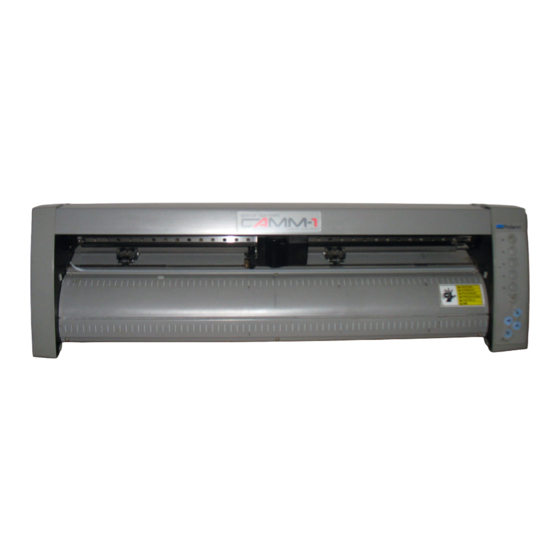

Roland CAMM-1 CM-24 User Manual

Desktop sign maker

Advertisement

Quick Links

All manuals and user guides at all-guides.com
USER'S MANUAL
This User's Manual is intended for CM-24 and CM-12.
Thank you very much for purchasing the CM-24/12.
To ensure correct and safe usage with a full understanding of
this product's performance, please be sure to read through this
manual completely and store it in a safe location.
Unauthorized copying or transferral, in whole or in part, of
this manual is prohibited.
The contents of this operation manual and the specifications of
this product are subject to change without notice.
The operation manual and the product have been prepared and
tested as much as possible. If you find any misprint or error,
please inform us.

Advertisement

Table of Contents
loading

Summary of Contents for Roland CAMM-1 CM-24

  • Page 1 All manuals and user guides at all-guides.com USER'S MANUAL This User's Manual is intended for CM-24 and CM-12. Thank you very much for purchasing the CM-24/12. • To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through this manual completely and store it in a safe location.
  • Page 2 AVIS Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. ROLAND DG CORPORATION 1-6-4 Shinmiyakoda, Hamamatsu-shi, Shizuoka-ken, JAPAN 431-2103 MODEL NAME : See the MODEL given on the rating plate.
  • Page 3: Table Of Contents

    7 Instruction Support Chart ........................27 8 Character Sets ............................28 9 Specifications ............................29 MS-DOS ® and Windows ® are registered trademarks or trademarks of Microsoft ® Corporation in the United States and/or other countries. Copyright © 1997 ROLAND DG CORPORATION...
  • Page 4: To Ensure Safe Use

    Ground the unit with the ground the power cord from the electrical outlet, wire. and contact your authorized Roland dealer Failure to do so may result in risk of or service center. electrical shock in the even of a mechanical...
  • Page 5 All manuals and user guides at all-guides.com Do not use with a damaged power Do not injure or modify the electrical cord or plug, or with a loose power cord, nor subject it to electrical outlet. excessive bends, twists, pulls, Use with any other binding, or pinching, nor place any power supply may...
  • Page 6: About The Labels Affixed To The Unit

    All manuals and user guides at all-guides.com About the Labels Affixed to the Unit These labels are affixed to the body of this product. The following figure describes the location and content of these messages. Do not place hands near the platen while in operation.
  • Page 7: Checking Supplied Items

    All manuals and user guides at all-guides.com 1 Checking Supplied Items Check the following to make sure that you received all the items that were shipped along with the unit. Power cord: 1 Blade (ZEC-U1005) : 1 Blade holder Roller base: 1 (XD-CH3) : 1 * CM-24 only Cutter tool (for trimming...
  • Page 8: Rear View

    All manuals and user guides at all-guides.com 2-2 Rear View Sheet Loading Lever This moves the pinch rollers up and down to load and release the material. Power Switch ON when switched to [I]. OFF when switched to [O]. Power Connector (AC IN) This connector accepts standard AC power cord.
  • Page 9: Basic Operation

    All manuals and user guides at all-guides.com 3 Basic Operation 3-1 Setting Up and Connection Ground the unit with the ground Install on a stable surface. wire. Failure to do so may result in Failure to do so may result in risk of falling of the unit, electrical shock in the even of a mechanical leading to injury.
  • Page 10: Dip Switch Settings

    All manuals and user guides at all-guides.com 3-2 DIP Switch Settings NOTICE DIP switches settings must be made only when the power is turned off. DIP switch Function SW-1 Baud rate 9600 4800 SW-2 Parity check Disable Enable SW-3 Parity check EVEN SW-4 Data bits...
  • Page 11: Installing A Blade

    All manuals and user guides at all-guides.com 3-3 Installing a Blade Do not touch the tip of the blade with your fingers. Doing so may result in injury, and the cutting performance of the blade will be impaired. NOTICE Be sure to support the tool mounting screw from below when installing the blade holder. Cutting quality may become poor if installed without supporting the screw in this way.
  • Page 12: Turning On The Power

    All manuals and user guides at all-guides.com 3-4 Turning on the Power Be sure not to place the hands or anything else on the platen when switching on the power. Doing so may result in injury. (The cutting carriage moves simultaneously when the power is switched on.) Switch on the power switch on the left side of the CM-24/12.
  • Page 13 All manuals and user guides at all-guides.com Material Loading Position : Grit roller : Pinch roller (left) : Pinch roller (right) 6" (approx. 152 mm) Material 12" (approx. 305 mm) 18" (approx. 457 mm) 24" (approx. 610 mm) CM-24 Position of the pinch roller Position of the pinch roller Position of the pinch roller Position of the pinch roller...
  • Page 14 All manuals and user guides at all-guides.com For the CM-24: Position so that the right-hand edge of the material lies over any one of the grit rollers. Move the material from side to side and position so that the left-hand edge of the material lies over the leftmost grit roller.
  • Page 15 All manuals and user guides at all-guides.com Feed out the length of Return the fed-out For a cut piece of material or material to be cut. material. material whose left- or right-hand edge is at an angle, do not place the pinch rollers over the far ends of the material.
  • Page 16: Setting The Origin Point

    All manuals and user guides at all-guides.com About the Cutting Area Max. Max. 584 mm (23") 280 mm (11") Cutting Area Material About 1 mm (about 0.04") Pinch roller (Left) About 15 mm (about 9/16") Initial cutting coordinate origin point (0,0) Pinch roller (Right) Pinch roller (Right) [CM-24]...
  • Page 17: Cutting Test (How To Adjust Blade Force/Adjusting The Cutter Blade)

    All manuals and user guides at all-guides.com 3-7 Cutting Test (How to Adjust Blade Force/Adjusting the Cutter Blade) Before carrying out actual cutting, you may wish to perform a "cutting test" to check whether the unit produces the cutout satisfactorily. This is done by examining the results of the cutting test, and adjusting the blade force and the amount of blade extension.
  • Page 18 All manuals and user guides at all-guides.com How to Adjust Blade Force The pen force control slider is located on the right side of the unit. Move the blade force control slider sideways to alter the blade force. The pen force control slider can be positioned at marks indicating the 11 levels available. When making the blade force setting, it is important to Blade Force take into consideration the hardness of the blade as well as...
  • Page 19: Downloading Cutting Data

    All manuals and user guides at all-guides.com 3-8 Downloading Cutting Data NOTICE When loading a flat material the CM-12 that has been cut, be sure to use a flat material that is about 100 mm (3-15/16") longer than the vertical size of the cutting data. If data larger than the vertical length of the material is sent, the CM-12 will attempt to cut the data even if it does not all fit in the material.
  • Page 20: Applying The Completed Cutout

    All manuals and user guides at all-guides.com 3-9 Applying the Completed Cutout Once cutting has been completed, follow the procedure below for application instructions. - Make sure beforehand that the surface where the work is to be stuck is clean and free of all dust or oily deposits. - When applying the work to a transparent surface, such as a window, you can use a water-based pen (which can be wiped off afterwards) to mark guidelines on the reverse side of the glass, to aid in getting the work aligned properly.
  • Page 21: When Cutting Is Completed

    All manuals and user guides at all-guides.com 3-10 When Cutting is Completed When not in use for extended periods, unplug the power cord from the electrical outlet. Failure to do so may result in danger of shock, electrocution, or fire due to deterioration of the electrical insulation.
  • Page 22 All manuals and user guides at all-guides.com Performing a Self-test The CM-24/12 is equipped with a "self-test" function to conveniently allow you to check whether or not it is capable of operating normally. If the CM-24/12 is not performing correctly, follow the steps below to perform a self-test. A computer is not required in order to carry out the self-test.
  • Page 23: Settings For Each Function

    (horizontal dimension) of the material, such as long strings of text. If there is still unused material on the right side, rotation allows you to use this remaining material effectively. When the character string “Roland” is rotated by 90°, the X axis, Y axis, and origin change as follows: °...
  • Page 24: Plotting On Paper Media

    All manuals and user guides at all-guides.com 4-2 Plotting on Paper Media The CM-24/12 is also capable of plotting on paper media using plotter pens made by this company. Before cutting, plotting using pen and paper can ensure that your design is correct without wasting materials. * Since the design of the CM-24/12 differs inherently from that of dedicated plotters, it does not accommodate functions such as high-speed plotting, automatic pen changes, pen dry protection, or the like.
  • Page 25: Repeating The Same Cutting

    All manuals and user guides at all-guides.com 4-3 Repeating the same cutting The CM-24/12 can store the data sent from the computer in a buffer (a temporary memory area), and use this data to repeat cutting. When the SETUP key has been pressed and cutting data is sent, the data is stored in the buffer at the same time that it is cut. After cutting has finished, the data that has already been sent can be used to perform cutting again until the SETUP key is pressed.
  • Page 26: About The Blade

    All manuals and user guides at all-guides.com 5 About the Blade This section indicates the proper cutting conditions for various types of materials, as well as blade lifespans. Cutting conditions and blade life may vary according to the quality of the material and conditions of use. Making the settings for the conditions described below does not automatically guarantee attractive cutting results in all situations.
  • Page 27: What To Do If

    All manuals and user guides at all-guides.com 6 What to do if... If the CM-24/12 doesn't run... Are the computer and the CM-24/12 linked with the right Is the CM-24/12 power on? cable? Turn on the power (refer to "3-4 Turning on the Power"). The type of cable you need is determined by your computer and the software you are using.
  • Page 28 All manuals and user guides at all-guides.com The material slips away from the pinch rollers during the cutting process Are the sheet loading levers lowered? If a roll material is used, carry out cutting after first pulling out If the sheet loading levers are raised, then make sure the left the amount of material that is to be used.
  • Page 29: Instruction Support Chart

    A "CAMM-GL III Programmer's Manual" is available for separate purchase for those wishing to create their own programs for this machine. For further information, please contact your authorized Roland dealer or service center. The list uses marks, each of which means:...
  • Page 30: Character Sets

    All manuals and user guides at all-guides.com 8 Character Sets Automatic backspace...
  • Page 31: Specifications

    All manuals and user guides at all-guides.com 9 Specifications CM-24 CM-12 Mechanism Media-movement method Driving method Stepping motor (Micro-step) Maximum cutting area Width: 584 mm (23") Width: 280 mm (11") Length: 24,998 mm (984-1/8") Length: 24,998 mm (984-1/8") Acceptable media widths 50 mm—711 mm (1-15/16"—28") 50 mm—406 mm (1-15/16"—16") Acceptable paper widths...
  • Page 32 All manuals and user guides at all-guides.com Interface specifications Parallel Standard In compliance with the specifications of Centronics Input signals STROBE (1 BIT), DATA (8 BITS) Output signals BUSY (1 BIT), ACK (1 BIT) Level of input/output signals TTL level Transmission method Asynchronous S e r i a l...
  • Page 33 The enclosed Roland product is a single user version.
