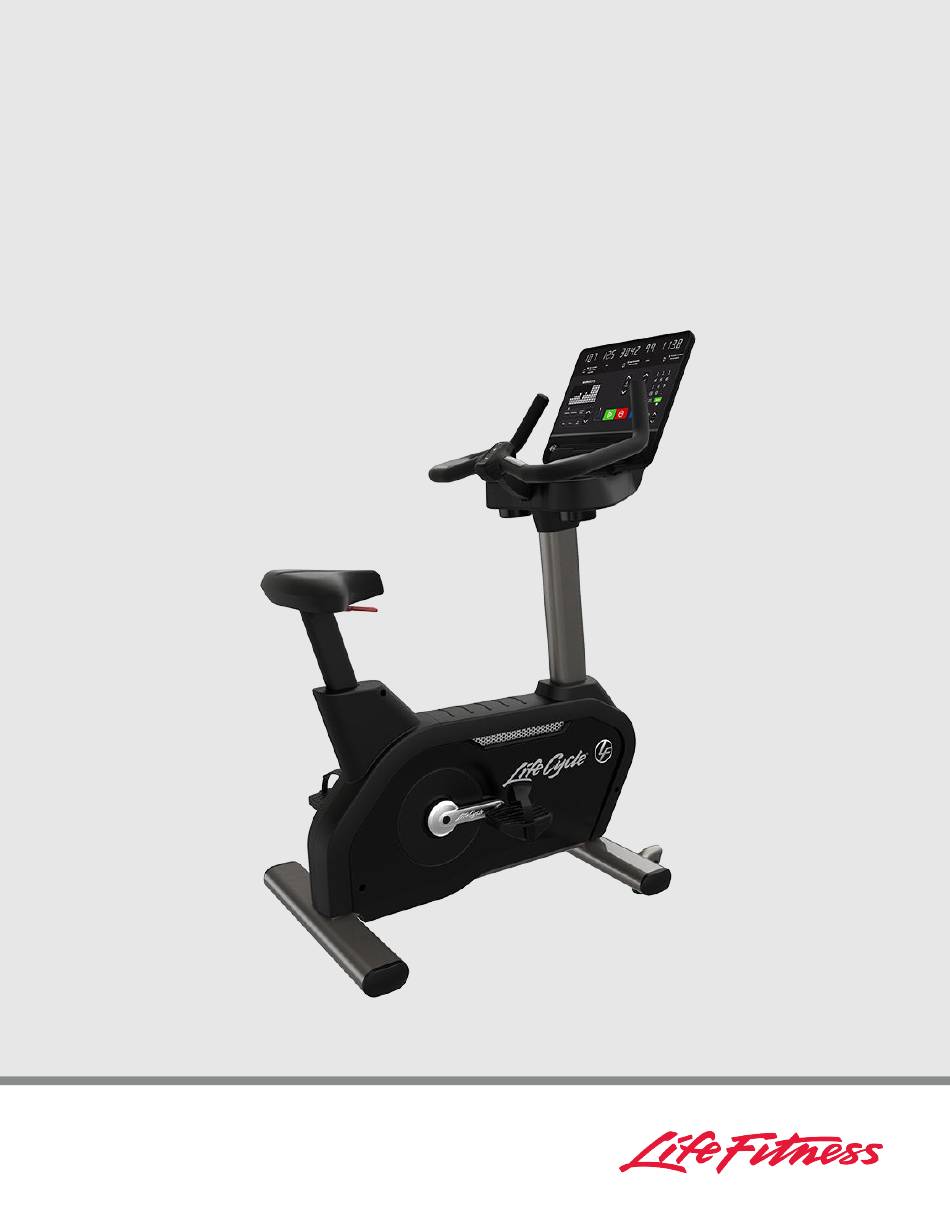

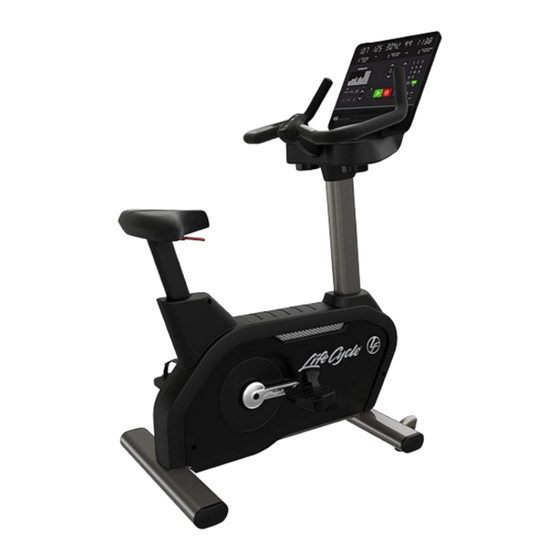

- Page 1 INTEGRITY AND CLUB SERIES PLUS UPRIGHT LIFECYCLE® EXERCISE BIKE INCDE-SE4XX, INCS-SLXX, INCD-SLXX, CSLUD-SLXX, INCDSE, INCSSE, INCDST, INCSST, PF-INT-UB, PF-INC-SL-11, PF-INC-SSL-ALLXM-11 Assembly Instructions 1015937-0001 REV AD...
- Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, LLC Life Fitness IBERIA Life Fitness Asia Pacific LTD 10601 W Belmont Ave C/Frederic Mompou 5,1º1ª 26/F, Global Trade Square Franklin Park, IL 60131 U.S.A. 08960 Sant Just Desvern Barcelona...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Copyright 2022, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Getting Started
• Life Fitness Family of Brands does not warrant nor guarantee that component parts used in the manufacture of products offered under the Life Fitness Family of Brands are latex-free. Users of these products must take all necessary precautions to prevent accidental contact that could lead to an adverse latex reaction. - Page 7 • Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and using. • When the product is not in use, Life Fitness recommends unplugging the product. Disconnect from the electrical outlet when not in use, and before putting on or taking off parts.
-
Page 8: Consignes De
• Life Fitness Family of Brands ne garantit pas que les composants utilisés dans la fabrication des produits proposés dans la Life Fitness Family of Brands sont exempts de latex. Les utilisateurs de ces produits doivent prendre toutes les précautions nécessaires pour éviter un contact accidentel qui pourrait entraîner une réaction indésirable au... - Page 9 à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness Family of Brands n’est pas responsable des étiquettes manquantes ou endommagées.
-
Page 10: How To Stabilize The Upright
How to Stabilize the Upright Bike Read the entire manual before setting up the bike. After following all Safety Instructions, move the bike to the location where it will be used. Allow a clearance of 2 ft. (0.6 m) in the directions the bike is accessed from and 3 ft. (1 m) between the front or rear of the bike or any other objects. -
Page 11: Electrical Power Requirements
The Integrity SL console is powered by a rechargeable 6-volt battery. Check the battery by pressing the GO button. The console should beep and light up. The console will display the Life Fitness logo. If a prompt doesn’t appear, mount the unit and begin pedaling. The console should light up and programming a workout should be possible. -
Page 12: Product Overview
2. Product Overview Product Features Deluxe Models (INCDE-SE4XX, INCD-SLXX, INCDSE, INCDST, CSLUD-SLXX, Club Series Plus) NOTE: Integrity SL Console shown as a reference in image. Item Description Console Accessory Tray Wheel Leg Leveler Seat Adjustment Lever Contact Heart Rate Sensors Cup Holder Resistance Up / Down Controls Simple Models (INCS-SLXX, INCSSE, INCSST, PF-INT-UB, PF-INC-SL-11, PF-INC-SSL-ALLXM-11) -
Page 13: How To Adjust
How to Adjust Seat A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees. -
Page 14: Assembly: Multi-Box Models
3. Assembly: Multi-Box Models Models: INCDE-SE4XX, INCS-SLXX, INCD-SLXX, CSLUD-SLXX, INCDSE, INCSSE, INCDST, INCSST, PF-INC-SSL- ALLXM-11, CLUB SERIES PLUS Hardware and Required Tools Hardware: Item Description Qty. M4.2 X 19 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW Required Tools: •... -
Page 15: Before You Begin
Before You Begin The monocolumn is positioned with the back of the console support weldment laying on the bike seat. The seat is set to the lowest position. 1. Remove and discard the metal bracket that holds the monocolumn to the base. Use a 13mm socket to remove the two M8 screws, two plastic washers and two M8 hex lock nuts that secure the monocolumn to the bracket. -
Page 16: Attach Monocolumn To
Attach Monocolumn to Base CAUTION: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding! NOTE: Route console cables through moncolumn. Item Description Qty. -
Page 17: Secure Left Monocolumn Shroud To Monocolumn
Secure Left Monocolumn Shroud to Monocolumn Item Description Qty. Monocolumn Shroud, Left M4.2 X 19 Phillips Pan Head Screw Grommet 1.5 Nm (1.1 ft. lbs.) Attach Right Monocolumn Shroud to Left Monocolumn Shroud Secure the clips on the right monocolumn shroud into position on the left monocolumn shroud. NOTE: Push gasket down to shrouds. -
Page 18: Base To Console Cable
Base to Console Cable Connections Discover SE4 Item Description Ethernet STB HDMI STB IR CSAFE Base Power Base Signal (Lifepulse, Base Switches) Base Comm RF Coax Integrity SL Item Description CSAFE Base Switches, Lifepulse Base Power Base Com TV (optional) Discover SE3HD / ST Item Description... -
Page 19: Attach Console
Attach Console Integrity SL Discover SE3HD / ST Discover SE4 Discover SE4 NOTE: Do not install the screw in the location shown (next to arrow) if the Discover SE4 console has a Set Top Box Sync (STB) receiver! The screw will hit the STB receiver inside of the console. Item Description Qty. -
Page 20: Assembly
Attach Rear Console Shroud Assembly 1. Slide the clips on top of the rear console shroud assembly into the corresponding slots on the console mounting bracket. 2. Use two screws and two grommets to attach rear console shroud assembly to the corresponding two holes on the console mounting bracket. -
Page 21: Assembly: One-Box Models
4. Assembly: One-Box Models Models: PF-INT-UB, PF-INC-SL-11 Hardware and Required Tools Hardware: Item Description Qty. M4.2 X 19 PHILLIPS PAN HEAD SCREW GROMMET Required Tools: • Phillips screwdriver • 13 mm Socket wrench Page 19 of 28... -
Page 22: Before You Begin
Before You Begin The monocolumn with console attached is positioned with the back of the console laying on the bike seat. The seat is set to the lowest position. 1. Remove and discard the metal bracket that holds the monocolumn to the base. Use a 13mm socket to remove the two M8 screws, two plastic washers and two M8 hex lock nuts that secure the monocolumn to the bracket. -
Page 23: Attach Monocolumn To Base
Attach Monocolumn to Base CAUTION: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding! NOTE: Route console cables through moncolumn. Item Description Qty. -
Page 24: Assembly
Attach Rear Console Shroud Assembly 1. Slide the clips on top of the rear console shroud assembly into the corresponding slots on the console mounting bracket. 2. Use two screws and two grommets to attach rear console shroud assembly to the corresponding two holes on the console mounting bracket. -
Page 25: Specifications
5. Specifications Specifications Heavy / Commercial (INCDE-SE4XX, INCS-SLXX, INCD-SLXX, INCDSE, INCSSE, INCDST, INCSST, PF-INT-UB, PF-INC-SL-11, PF-INC-SSL-ALLXM-11) EN ISO 20957 Designed Use Class SA Home (CSLUD-SLXX, CLUB SERIES PLUS) EN ISO 20957 Class HA Maximum User Weight 400 lbs. / 181 kg 5 in. -
Page 26: Service And Technical Data
6. Service and Technical Data Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Clean Inspect Trays Console Mounting Bolts Inspect Hardware Inspect Frame / Seat Post Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust... -
Page 27: Troubleshooting The Polar
Troubleshooting the Polar ® Heart Rate Chest Strap Heart rate reading is erratic or absent entirely Probable Cause Corrective Action Belt transmitter electrodes are not wet enough to pick up Wet the belt transmitter electrodes. accurate heart rate readings. Belt transmitter electrodes are not laying flat against the Ensure the belt transmitter electrodes are laying flat skin. -
Page 28: Troubleshoot The Lifepulse
Troubleshoot the Lifepulse ™ Sensors If the heart rate reading is erratic or missing, do the following: • Dry the hands to prevent slipping. • Apply hands to the sensors that are set into the handlebars. • Grasp the sensors firmly. •... -
Page 29: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 30: Changes In Warranty Not Effects Of State Laws
Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
