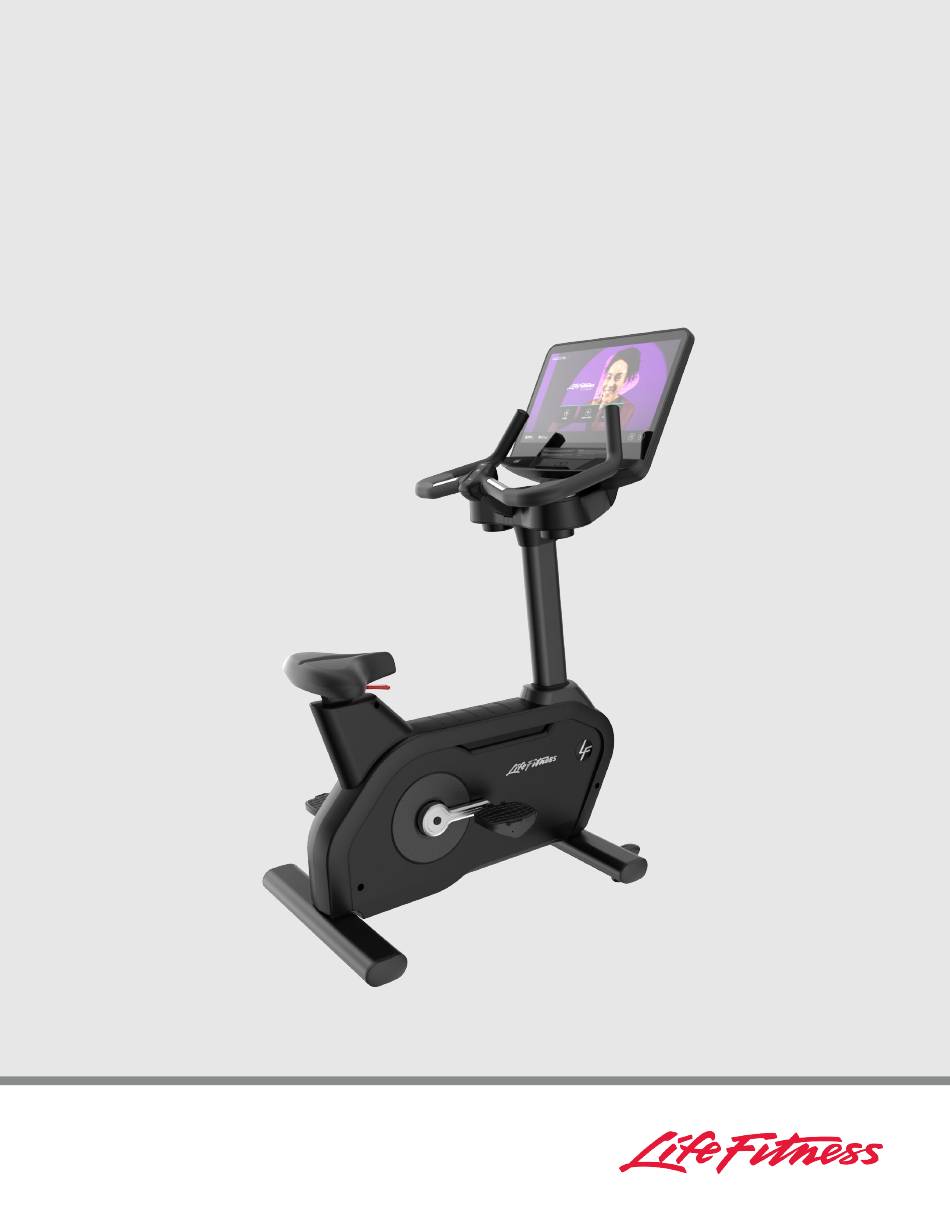

- Page 1 INTEGRITY+ AND CLUB SERIES+ UPRIGHT LIFECYCLE® EXERCISE BIKE INC-SE4-XF-13, INC-SL-XF-13, CSC-SL, CSC-SE4 Assembly Instructions 1023154-0001 REV AA...
- Page 3 Latin America and Caribbean* Germany, Austria, and Switzerland Hong Kong Life Fitness, LLC Life Fitness Europe GMBH Life Fitness Asia Pacific LTD 10601 W Belmont Ave Neuhofweg 9 26/F, Global Trade Square Franklin Park, IL 60131 U.S.A. 85716 Unterschleißheim...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Copyright 2023, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Getting Started
• Life Fitness Family of Brands does not warrant nor guarantee that component parts used in the manufacture of products offered under the Life Fitness Family of Brands are latex-free. Users of these products must take all necessary precautions to prevent accidental contact that could lead to an adverse latex reaction. - Page 7 • Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and using. • When the product is not in use, Life Fitness recommends unplugging the product. Disconnect from the electrical outlet when not in use, and before putting on or taking off parts.
-
Page 8: Consignes De
• Life Fitness Family of Brands ne garantit pas que les composants utilisés dans la fabrication des produits proposés dans la Life Fitness Family of Brands sont exempts de latex. Les utilisateurs de ces produits doivent prendre toutes les précautions nécessaires pour éviter un contact accidentel qui pourrait entraîner une réaction indésirable au... - Page 9 à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness Family of Brands n’est pas responsable des étiquettes manquantes ou endommagées.
-
Page 10: How To Stabilize The Upright
How to Stabilize the Upright Bike Read the entire manual before setting up the bike. After following all Safety Instructions, move the bike to the location where it will be used. Allow a clearance of 2 ft. (0.6 m) in the directions the bike is accessed from and 3 ft. (1 m) between the front or rear of the bike or any other objects. -
Page 11: Electrical Power Requirements
The Integrity SL console is powered by a rechargeable 6-volt battery. Check the battery by pressing the GO button. The console should beep and light up. The console will display the Life Fitness logo. If a prompt doesn’t appear, mount the unit and begin pedaling. The console should light up and programming a workout should be possible. -
Page 12: Product Overview
2. Product Overview Product Features Item Description Console Accessory Tray Wheel Leg Leveler Seat Adjustment Lever Contact Heart Rate Sensors Cup Holder Resistance Up / Down Controls Connections The following connection receptacle is located at the front of the bike. Item Description Coaxial Connection... -
Page 13: How To Adjust
How to Adjust Seat A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees. -
Page 14: Assembly
3. Assembly Hardware and Required Tools Hardware: Item Description Qty. M4.2 X 19 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW Required Tools: • Phillips screwdriver • 13 mm socket wrench Page 12 of 23... -
Page 15: Before You
Before You Begin The monocolumn is positioned with the back of the console support weldment laying on the bike seat. The seat is set to the lowest position. 1. Remove and discard the metal bracket that holds the monocolumn to the base. Use a 13mm socket to remove the two M8 screws, two plastic washers and two M8 hex lock nuts that secure the monocolumn to the bracket. -
Page 16: Attach Monocolumn To
Attach Monocolumn to Base CAUTION: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding! NOTE: Route console cables through moncolumn. Item Description Qty. -
Page 17: Attach Right Monocolumn Shroud To Left
Attach Right Monocolumn Shroud to Left Monocolumn Shroud Secure the clips on the right monocolumn shroud into position on the left monocolumn shroud. NOTE: Push gasket down to shrouds. Item Description Qty. Monocolumn Shroud, Right Gasket (attached to monocolumn) Base to Console Cable Connections Discover SE4 Item Description... - Page 18 Attach Console Discover SE4 (16" or 24") NOTE: Do not install the screw in the location shown (next to arrow) if the Discover SE4 console has a Set Top Box Sync (STB) receiver! The screw will hit the STB receiver inside of the console.
-
Page 19: Attach Rear Console Shroud
Attach Rear Console Shroud Assembly 1. Slide the clips on top of the rear console shroud assembly into the corresponding slots on the console mounting bracket. 2. Use two screws and two grommets to attach rear console shroud assembly to the corresponding two holes on the console mounting bracket. -
Page 20: Specifications
4. Specifications Specifications Heavy / Commercial (INC-SE4-XF-13, INC-SL-XF-13) EN ISO 20957 Class SA Designed Use Home (CSC-SL, CSC-SE4) EN ISO 20957 Class HA Maximum User Weight 400 lbs. / 181 kg Pedal Size 6.56 in. x 5.5 in. / 16.6 cm x 14 cm Drive Type Generator/Belt Power Requirements... -
Page 21: Service And Technical Data
5. Service and Technical Data Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Clean Inspect Trays Console Mounting Bolts Inspect Hardware Inspect Frame / Seat Post Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust... -
Page 22: Troubleshooting The Polar
Troubleshooting the Polar ® Heart Rate Chest Strap Heart rate reading is erratic or absent entirely Probable Cause Corrective Action Belt transmitter electrodes are not wet enough to pick up Wet the belt transmitter electrodes. accurate heart rate readings. Belt transmitter electrodes are not laying flat against the Ensure the belt transmitter electrodes are laying flat skin. -
Page 23: Troubleshoot The Lifepulse
Troubleshoot the Lifepulse™ Sensors If the heart rate reading is erratic or missing, do the following: • Dry the hands to prevent slipping. • Apply hands to the sensors that are set into the handlebars. • Grasp the sensors firmly. •... -
Page 24: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. - Page 25 Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
