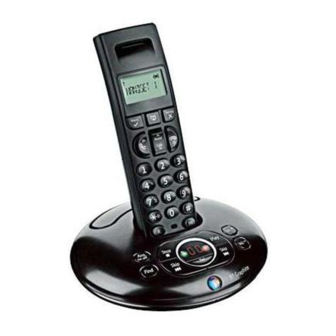

BT Graphite 1500 Quick Start Manual

Welcome
This Quick Start Guide provides all the information
you need to get your product up and running.
Please fully unfold this guide and follow the numbered
steps below. If you need more detailed instructions,
a full user guide is available to download in PDF format
from www.bt.com/help/userguides
We haven't printed a full user guide as we're working to make our
products greener, so please consider the environment before printing.
If you cannot find the answer to your problem in the full online
user guide, then please call the
* Calls provided by BT will be charged at up to 8 pence per minute. A Call
Set-Up Fee of up to 6 pence per call applies to calls from Residential
lines. Prices correct at time of going to press. See www.bt.com/pricing
for details. Mobile and other providers' costs may vary.
1 Getting started
Place your BT Graphite 1500 close enough to a mains power and telephone socket so that
the cables will reach. Make sure it is at least 1 metre away from other electrical appliances
to avoid interference.
Your BT Graphite 1500 works by sending radio signals between the handset and the base.
The strength of the handset signal depends on where you site the base. Putting it as high as
possible can help provide the best signal.
The handset range is up to 300m outdoors and 50m indoors (in ideal conditions). The icon
in the handset display will flash and you hear a warning beep when you go out of range.
Setting up
1. Plug the mains power adaptor and telephone
cables into the back of the base. Only use
the cables provided with the product.
2. Plug the power adaptor into the wall
socket and switch the power on – the
base will beep. The answering machine
will switch on and default to 'Answer and
record' mode and the message counter
will show 00.
3. Insert the two batteries supplied into the handset, observing the polarity markings inside
the battery compartment, and slide the compartment cover shut.
4. Place the handset on the base to charge. The handset will beep and the battery icon
will flash in the display to indicate charging. Charge the handset for at least 24 hours.
5. Once fully charged, plug the telephone line cord into the telephone wall socket.
Set up your additional handsets (2, 3 and 4-Pack owners only)
1. For each additional handset and charger: Plug the mains power adaptor into the back of
the charger and plug the other end into the wall socket and switch the power on.
2. Insert the two batteries supplied into the battery compartment and slide the
compartment cover shut.
3. Place the handset on the charger to charge. The handset will beep and the battery icon
will flash in the display to indicate charging. Charge the handset for at least 24 hours.
Additional handsets supplied as part of a multipack are pre-registered to the base so, once
charged, are ready for use. Each handset will display its own handset number: 1, 2, 3 and so on.
Set the answering machine day and time
You need to set the day and time so that you know when each message is received.
1. At the base, press and hold . The current hour setting is announced and displayed.
Press or to set the hour. Press
2. The minutes setting is announced and displayed. Press
Press to confirm.
3. The current setting for PM/AM is displayed and announced. Press
for AM or for PM. Press to confirm.
A P
4. The current day setting is announced. Press
Press to confirm. The full time and day will be announced.
You will need to set the handset time separately using the handset menu shown in Section 2.
Your BT Graphite 1500 is now ready for use.
Helpline on 0870 242 6652 .
*
Telephone Mains power
line cord adaptor
to confirm.
or to set the minute.
or to select
or to set the day.
Navigating the menus
2
All your phone's functions and settings can be accessed through the main menu on
the handset. The menu map below shows all the menu options you can choose from.
1. Press to enter the main menu.
2. Use the and buttons to scroll through the available options (when you reach the
end of the list, the first option is displayed again). Press
to return to the previous menu.
To exit a menu and return to standby press
Menu map
PHONEBOOK CLOCK /ALARM
(Menu only appears when DATE / TIME
phonebook is empty. With
ALARM
entries stored, press
ALARM TONE
again to enter the menu).
ADD ENTRY
MODIFY ENTRY
DELETE ENTRY
DELETE ALL
You can also access the phonebook directly by pressing the
Making and receiving calls
3
Make/end a call
1. Press . When you hear the dial tone, dial the number. To end the call, press
replace the handset on the base or charger.
Handsfree
Press to switch the call between the earpiece and the loudspeaker.
Earpiece/handsfree volume
During a call, use and to adjust the volume of the caller's voice.
Secrecy
You can mute the handset microphone and talk without your caller hearing you.
1. During a call, press . MUTE is displayed and your caller cannot hear you. Press
again to resume your call.
Receiving calls
When you receive a call, the phone will ring and
1. To answer the call press . Or if the handset is on the base or charger, simply lift it to
answer the call.
Redial
The last 10 numbers dialled are stored in the redial list.
1. Press to open the redial list, the most recently dialled number is displayed. Press
or to scroll through the list.
2. Press to redial the number, or press
numbers from the list or copy numbers to the phonebook.
Special features
4
Your BT Graphite 1500 has some special features, these include a 50 number phonebook,
a handsfree facility (see above), an answering machine and a calls list.
Phonebook
You can store up to 50 names and numbers in the phonebook to make dialling quick and easy.
For multi-pack users, each handset has its own phonebook.
Store a new phonebook entry
1. From the standby screen, press . PHONEBOOK
2. If there are already entries stored in the phonebook the first entry will be displayed and
you will need to press again. Otherwise, the display shows
3. The display shows ADD NAME. Using the letters on the keypad, enter the name.
You may need to press the same button a few times until the letter you want is displayed.
For example, press 2 once for A ,or twice for B. Press
4. The display shows ADD NUMBER. Enter the phone number and press
Dial a phonebook entry
1. Press . The first entry is displayed.
2. Press and to scroll through the list. When the entry you want to dial is displayed,
you can switch between the name and number by pressing
3. Press to dial the entry displayed or press
to select an option, or press
repeatedly.
SETTINGS ADVANCED SET
HANDSET TONE REGISTRATION
HANDSET NAME DE-REGISTER
AUTO ANSWER PIN CODE
BASE TONES PHONE RESET
button.
, or
CALL and the icon will flash in the display.
to access further options such as delete
is displayed, press again.
ADD ENTRY. Press
.
to confirm.
.
to return to standby.
.
