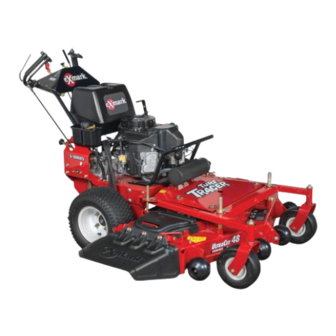

Exmark TURF TRACER S Series Setup Instructions

Loose Parts
Use the chart below to verify that all parts have been shipped. Part numbers not shown are available on the dealer
extranet.
Dealer Pack
Part No.
103-2106
1-603511
Literature Pack
Manual, Operator's
Manual, Engine Operator's (Non-Exmark Engine)
Checking Tire Pressure
1. Check the tire pressure in the drive tires. Proper
inflation for drive tires is 12-16 psi (83-110 kPa).
2. Adjust the tire pressure within 12-16 psi (83-110
kPa) range to make the tire circumferences match as
closely as possible.
3. The front caster tires are semi-pneumatic. No
adjustment is necessary.
Servicing the Battery
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm.
Wash hands after handling.
Important: The machine is shipped with a filled
lead acid battery.
© 2023—Exmark Mfg. Co., Inc.
415 Industrial Row
Beatrice, NE 68310
Description
Key, Exmark Logo
Key, Standard
WARNING
Qty.
Fill out the online warranty registration
1
form and place keys into literature
1
pack.
DANGER
Charging or jump starting the battery may produce
explosive gases. Battery gases can explode causing
serious injury.
• Keep sparks, flames, or cigarettes away from
battery.
• Ventilate when charging or using battery in an
enclosed space.
• Make sure venting path of battery is always open
once battery is filled with acid.
• Always shield eyes and face from battery.
DANGER
Battery electrolyte contains sulfuric acid, which is
poisonous and can cause severe burns. Swallowing
electrolyte can be fatal or if it touches skin can
cause severe burns.
• Wear safety glasses to shield eyes, and rubber
gloves to protect skin and clothing when
handling electrolyte.
• Do Not swallow electrolyte.
• In the event of an accident, flush with water and
call a doctor immediately.
1. Check the voltage of the battery with a digital
voltmeter. Locate the voltage reading of the battery
All Rights Reserved *4506-755* A
Part No. 4506-755 Rev. A
Printed in the USA
TURF TRACER
S-Series
Setup Instructions
For Serial Nos. 416,150,475 & Higher
Use
®
