Pro-Form COMMERCIAL 12.9 User Manual page 12

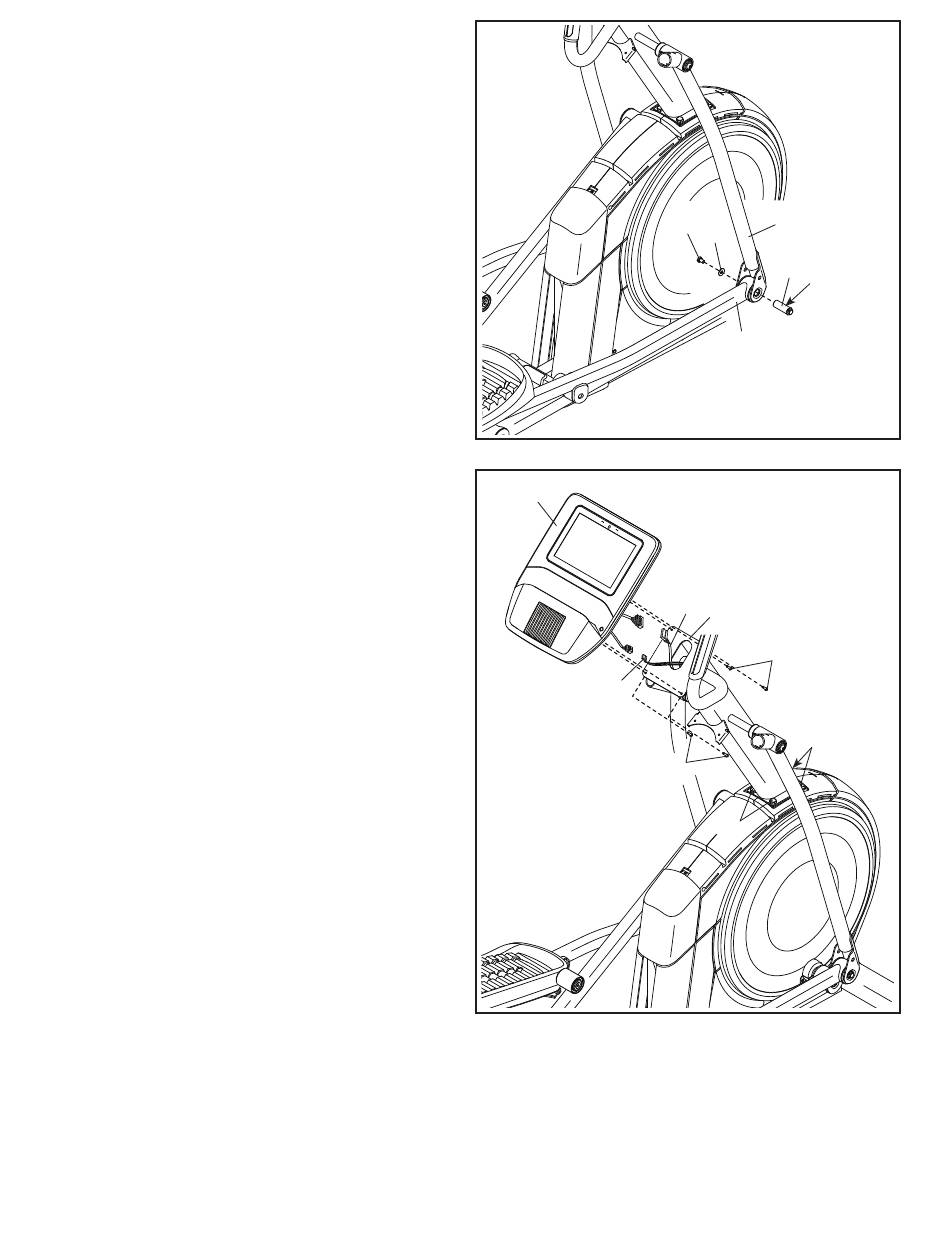

9. Apply grease to one of the Pedal Arm Axles (64).
Insert the Pedal Arm Axle (64) into the Right
Upper Body Leg (60) and the Right Pedal Arm
(58) from the direction shown.
Next, slide an M8 x 22mm Washer (129) onto an
M8 x 13mm Screw (82), and tighten the Screw a
few turns into the Pedal Arm Axle (64).
Then, tighten the Pedal Arm Axle (64) and the
M8 x 13mm Screw (82) at the same time.
Repeat this step on the other side of the
elliptical.
10. See step 6. Tighten the four M10 x 25mm
Screws (92).
Untie and discard the wire tie on the Upper
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Upper Wire (110) and to the
Pulse Wire (63).
Insert the excess wire into the Upright (4).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
9
10
7
63
12
60
82
129
64 Grease
58
Avoid pinching
the wires
110
4
101
92
101
92
