Page 1: Table Of Contents

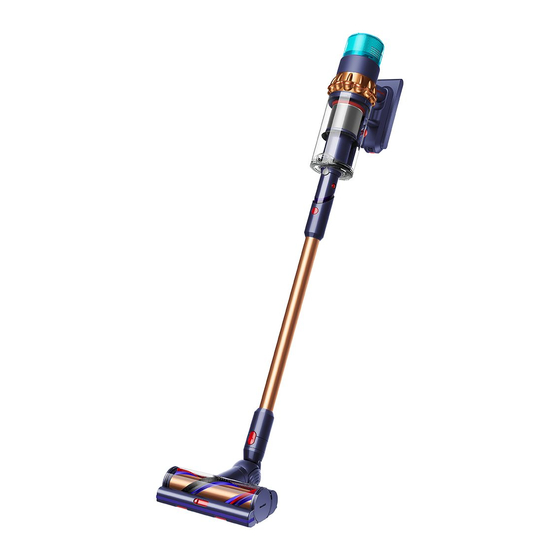

Dyson Gen5 Detect logo User manual Top view of the Dyson Gen5 detect machine, showing cleaner head, wand, bin and main body. Image 11 Contents Clearing obstructions from your In the box Digital Motorbar™ cleaner head Getting started Clearing blockages from your... -
Page 2: In The Box
The charger is a one piece unit with the plug, connector end and cable. A rectangular dock that Dyson wand, with a built-in dusting and needs to be crevice tool, convenient fixed to a wall for on-the-spot cleans. with screws. -
Page 3: Getting Started
Getting started Location of the Selection button on the screen on the filter end of the machine. click clik Screen on the filter end of the machine. Using the LCD screen clik Diagram click showing the connection of the wand onto the main body, Finger pressing the with the wand... -
Page 4: The Lcd Screen
On or Off. third screen option numbers allows you to view For more information and support for your machine go Serial numbers. online: https://support.dyson.com.sg/SupportHome.aspx The Exit menu screen is the final Exit menu option in settings. Change language To change the language on your screen, press the Selection button and hold it until the language list appears. - Page 5 The screen reads Low Run time countdown run time, When the battery needs charging, your machine will pulse three times and a surrounded Low run time icon will appear on the screen. by an amber circle, when Low run time will be in amber, or red when in Boost mode. run time run time the battery...
-
Page 6: Alerts
Alert icon with ‘Leave to warm up’ wording. Non-Dyson battery A non-Dyson battery has been detected. If you are not aware that you are using a third party battery for your machine, Alert icon with Alert warning this may be a counterfeit. - Page 7 Clean filter Your filter needs cleaning. Please refer to ‘Washing your filter’. After cleaning, leave to dry for at least 24 hours before Alert icon with reattaching it to your machine. Filter needs ‘Filter needs cleaning’ wording. cleaning Alert icon with a filter graphic and ‘24+’...
-
Page 8: Caring For Your Floors
Caring for your floors Check that the underside of the cleaner head or tool is clean and free from any objects that may cause damage. Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s recommended cleaning instructions. The brush bar on your machine can damage certain carpet types and floors. Some carpets will fuzz if a rotating brush bar is used when vacuuming. -
Page 9: Emptying Your Bin
Emptying your bin Empty as soon as the dirt reaches the MAX level – don’t overfill. Using your machine when the dirt is above the MAX line may affect the performance and require more frequent filter washing. Overfilling your bin could result in inaccurate readings on the particle graph. Make sure your machine power is turned off before removing your wand or releasing the bin. -
Page 10: Cleaning Your Bin
Cleaning your bin The bin being removed and the location of the bin release lever on the underside of the bin runner. Remove your bin If you need to clean your bin, empty it as shown in the ‘Emptying your bin’ section. -
Page 11: Clearing Blockages
Clearing blockages Disconnect your machine from the charger before looking for blockages. Make sure your machine power is turned off and be aware of sharp objects. Leave your machine to cool down before looking for blockages. With the bin removed, check for blockages, Don’t use your machine when looking for blockages as this could paying particular... -
Page 12: Clearing Obstructions From Your
Clearing obstructions from your Digital Motorbar™ cleaner head Your Digital Motorbar™ cleaner head doesn’t have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions. Make sure your machine is disconnected from the charger and your machine The lock located on the side power is turned off. -
Page 13: Clearing Blockages From Your
Clearing blockages from your Hair screw tool Your Hair screw tool doesn’t have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions. Make sure your machine is disconnected from the charger and your machine power is turned off. -
Page 14: Washing Your Filter
Your machine could be damaged if used with a damp filter. The filter is located at the For more information and support videos for your machine visit: rear of your machine. https://support.dyson.com.sg/SupportHome.aspx Twist off Twist your filter anti-clockwise and pull it away from your machine. Holding the filter by... -
Page 15: Washing Your Fluffy Optic™ Brush Bar
Washing your Fluffy Optic™ brush bar Your Fluffy™ Optic cleaner head has a washable brush bar. To maintain optimum performance, check and wash your brush bar regularly. Make sure your machine is disconnected from the charger and your machine power is turned off. Don’t put any part of your machine in a dishwasher or use detergents, polishes or air fresheners. -
Page 16: Scratch-Free Dusting Brush
Scratch-free dusting brush Compatible with Dyson Detect V15™, Dyson Detect Slim V12™, Dyson V11™, Dyson Cyclone V10™, Dyson V8™, Dyson V7™ and Dyson Digital Slim™ cordless vacuums. Step 1 The Scratch-free dusting brush, which has soft Attach the Scratch-free dusting brush directly to your vacuum or to the dusting bristles at the top extension hose for delicate cleaning. -
Page 17: Awkward Gap Tool
Awkward gap tool Compatible with Dyson Detect V15™, Dyson Detect Slim V12™, Dyson V11™, Dyson Cyclone V10™ , Dyson V8™, Dyson V7™ and Dyson Digital Slim™ cordless vacuums. A long, thin tool with an angled end. Step 1 Attach the Awkward gap tool directly to your vacuum. -
Page 18: Cleaning Your Tools
Cleaning your tools Don’t put any part of your machine in a dishwasher or use detergents, polishes or air fresheners. Wipe with a damp, lint-free cloth, without touching the connector end. Make sure your tools are completely dry before using. Combination tool Scratch-free Awkward gap tool... -
Page 19: Looking After Your Machine
This is designed to protect both the motor and battery. Your serial numbers You can find your serial numbers on your machine, battery, charger and in your screen settings. For more information and support for your machine go online: https://support.dyson.com.sg/SupportHome.aspx...
