Bose FreeSpace 4400 Manual

Hide thumbs Also See for FreeSpace 4400:

Advertisement

Quick Links

Download this manual
Bose
®
FreeSpace
®

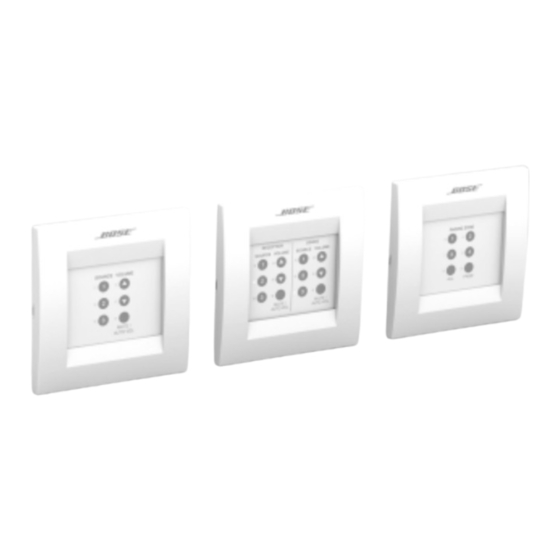

4400 System User Interfaces
®
FreeSpace
FreeSpace
®
FreeSpace
Operating Guide
4400 System AVM 1-Zone User Interface
4400 System AVM 2-Zone User Interface
®
4400 System Page User Interface

Advertisement

loading

Related Manuals for Bose FreeSpace 4400

Summary of Contents for Bose FreeSpace 4400

  • Page 1 Bose ® FreeSpace ® 4400 System User Interfaces Operating Guide ® FreeSpace 4400 System AVM 1-Zone User Interface FreeSpace ® 4400 System AVM 2-Zone User Interface FreeSpace ® 4400 System Page User Interface...

  • Page 2: Important Safety Instructions

    Do not attempt to service this product yourself. Opening or removing covers may expose you to hazards. Please call Bose to be referred to an authorized service center near you.
  • Page 3 Provided in carton FreeSpace ® 4400 System AVM 1-Zone User Interface ® FreeSpace 4400 System AVM 2-Zone User Interface ® FreeSpace 4400 System Page User Interface...
  • Page 4 Also needed (not provided) Double-gang junction box RJ45 connector* Cat 5 cable (with 4 twisted pairs)* *FreeSpace ® 4400 System AVM 2-Zone User Interface requires the use of two (2) RJ45 connectors and two (2) Cat 5 cables. Note: Cable for use in-wall must be CL or CM rated for the application (plenum use, riser use, general use etc.) per the National Electrical Code (NEC).
  • Page 5 Assembly...
  • Page 6 Assembly* *For AVM 2-Zone user interface only.
  • Page 7 Wiring User interface schematic - AVM 1-Zone (Auto Volume/Mute) 1 2 3 4 5 6 7 8 +5VD +5VD .33µF +5VD Volume Up Source 1 +5VD +5VD Volume Down Source 2 +5VD +5VD Mute Source 3 Auto Volume On/off...
  • Page 8 Wiring User interface schematic - AVM 2-Zone (Auto Volume/Mute) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 +5VD +5VD +5VD +5VD .33µF .33µF +5VD +5VD Volume Up Volume Up Source 1 Source 1 +5VD +5VD +5VD...
  • Page 9 Wiring User interface schematic - Page user interface: 1 2 3 4 5 6 7 8 +5VD +5VD .33µF +5VD Zone 2 Zone 1 +5VD +5VD Zone 4 Zone 3 +5VD +5VD All Zones Page...
  • Page 10 Wiring Installer’s Note: Use only standard ethernet (Cat 5) cable which is acceptable by the local or national code to connect the user interface to the FreeSpace ® 4400 system. DO NOT use crossover (XOV) cables. WALL PLATE 4400 RJ45 CONNECTOR BLOCK PIN 1-8 POS 1...
  • Page 11 Using a junction box Install a double-gang electrical box for each user interface. ® The Bose FreeSpace ® 4400 System AVM 1-Zone User Interface, FreeSpace ® 4400 System AVM 2-Zone User Interface, and FreeSpace ® 4400 System Page User Interface are designed to fit a North American, Japanese, Australian, and some European double- gang junction boxes.
  • Page 12 Mounting After connecting the wires, mount the user interface in the junction box. Two sets of screws are provided. Use the screws that are appropriate for your junction box: Use #6 for North American boxes, or M4 for Japanese, European, and Australian boxes.
  • Page 13 AVM (Auto Volume/Mute) User Interface Operation ® ® The FreeSpace 4400 System AVM 1-Zone User Interface and FreeSpace 4400 System AVM 2-Zone User Interface provide source selection, volume up/down, and Mute or Auto Volume on/off controls. ® FreeSpace 4400 System AVM 1-Zone User Interface Select LINE 1 Volume up input source...
  • Page 14 AVM (Auto Volume/Mute) User Interface Operation ® The FreeSpace 4400 System AVM 2-Zone User Interface provides two sets of source selection, volume up/down, and Mute or Auto Volume on/off controls for use with two zones. FreeSpace ® 4400 System AVM 2-Zone User Interface Slots for zone name tags (tag sheet included)
  • Page 15 AVM (Auto Volume/Mute) User Interface Operation • Press 1, 2, or 3 to select the audio source connected to the LINE 1, LINE 2, or LINE 3 input, respectively. A green LED indicates the active source. • Press (Volume up) or (Volume down) to increase or decrease the volume in 2 dB steps.
  • Page 16 Page User Interface Operation The page user interface provides keys to select single paging zones, all paging zones and initiate a page. When mapped, the paging zone 1 button will select the lowest numbered output ZONE to which the PAGE source is assigned. The paging zone 2 button will select the next lowest numbered output ZONE to which the PAGE source is assigned, and so forth.
  • Page 17 Dimensions ® Note: The Bose FreeSpace ® 4400 System AVM 2-Zone User Interface, and ® FreeSpace 4400 System Page User Interface are the same dimensions as the FreeSpace ® 4400 System AVM 1-Zone User Interface shown above.

  • Page 18: Limited Warranty

    MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. For how long: In countries where the duration of a warranty is not determined by statute, the Bose Limited Warranty lasts one year from the purchase date. For countries where minimum Warranty terms are determined by statute, the Limited Warranty term is the longer of the statutory period or one year.
  • Page 19 How you can obtain Limited Warranty service: You can ship the system to either a Bose Service Agency or to Bose directly with a proof of purchase from an authorized dealer. Please: A. Properly and carefully pack the product for shipping. If you need a carton for shipping, contact Bose for a new carton.
  • Page 20 ©2007 Bose Corporation, The Mountain Framingham, MA 01701-9168 USA AM306641 Rev.00...
