SOFT SIDES
EZWS-EDFP217K
INSTALLER
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices
to available water lines. This can, however, cause electrical feedback in the plumbing circuit, which
results in an "electrolysis" effect occurring in the fountain. This may result in water which has a
metallic taste to it or has a noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the
installation, and may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation.
Any drain fittings provided by the installer should be made of plastic which will electronically isolate
the fountain from the remainder of the building's plumbing circuits.

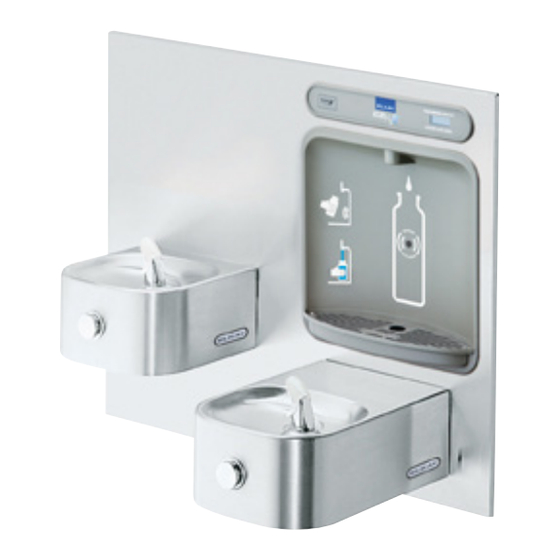

EDFP217WS
INSTALLATION & USE MANUAL
Fountains with FLEXI-GUARD
®
and ezH2O
Review these instructions before beginning installation. Be sure that installation
conforms to all plumbing, electrical and other applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
provided inside the installed unit for future reference.
Service to be performed by authorized service personnel only.
EDFP217WS*F
Bottle Filler
®
LZWS-EDFP217K
Page 1
®
0000001028 (Rev. H - 03/19)
Advertisement
Related Manuals for Elkay SOFT SIDES EDFP217WS F Series
Summary of Contents for Elkay SOFT SIDES EDFP217WS F Series
- Page 1 EDFP217WS EDFP217WS*F INSTALLATION & USE MANUAL SOFT SIDES Fountains with FLEXI-GUARD ® ® and ezH2O Bottle Filler ® EZWS-EDFP217K LZWS-EDFP217K INSTALLER Review these instructions before beginning installation. Be sure that installation conforms to all plumbing, electrical and other applicable codes. When installation is complete, ensure these instructions are left in the plastic bag provided inside the installed unit for future reference.
- Page 2 EDFP217WS EDFP217WS*F Figure 1 - Rough-in Dimensions 0000001028 (Rev. H - 03/19) Page 2...
-
Page 3: Required Tools And Materials
EDFP217WS EDFP217WS*F TO BUBBLER TO BUBBLER REQUIRED TOOLS AND MATERIALS These tables show special tools and/or additional materials (not provided) which are necessary to complete installation of these units: Special Tools Description Quantity Item NONE Additional Materials Not Included Quantity Item Description TO BOTTLE... - Page 4 EDFP217WS EDFP217WS*F 8. Install fountains with (8) 5/16-18 HHMS & (8) 5/16-18 nuts 27, 28, 29, (provided) (Fig. 5). Connect the ¼” water lines from each 30, & 31 fountain to the remaining openings on the tee at the remote chiller (cut lines to fit as needed).
-
Page 5: Electrical Diagram
EDFP217WS EDFP217WS*F FIVE PIN CONNECTOR MAIN BOARD FOUR PIN CONNECTOR WHITE I.R. BOARD SOLENOID WHITE NEUTRAL Basin BLACK LINE VOLTAGE LED BOARD GROUND GREEN GROUND Locknut VIOLET NOT USED CAPPED FLEXI-GUARD BUBBLER DETAIL ® MALE YELLOW PLUG NOT USED CAPPED FEMALE RECEPTACLE NOTE:... - Page 6 EDFP217WS EDFP217WS*F BF11 - BF12 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE Continued from below: 1) To verify the software program of the control board the unit will 3) When display shows “UNIT TYPE” push program button once the need to be shut down and restarted.
- Page 7 EDFP217WS EDFP217WS*F BACK PANEL JUNCTION MOUNTING MOUNTING DRAIN FILTER (OPTIONAL) FRAME FRAME LOCATIONS Figure 8 Figure 9 Page 7 0000001028 (Rev. H - 03/19)
-
Page 8: Installation Package
Figure 12 – Quick Connect Fittings FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816 REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com 0000001028 (Rev. H - 03/19) Page 8...
