HCD/HMD/HCF/HMF1810RJS, HCD/HMD/HCF/HMF2110RJS,
HCD/HMD1810NJS, HCD/HMD2110NJS
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com

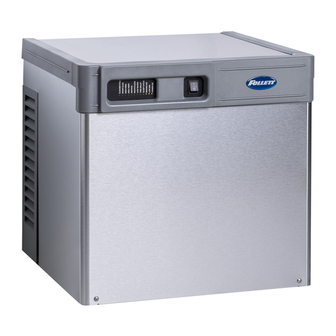

Horizon Elite
Ice Machine Models with RIDE
™
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Installation Instructions for Drop-Ins
Technology
®
remote condensing
01157890R03
Advertisement
Table of Contents
Related Manuals for Follett Horizon Elite HMF1810RJS
Summary of Contents for Follett Horizon Elite HMF1810RJS
- Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ® Installation Instructions for Drop-Ins HCD/HMD/HCF/HMF1810RJS, HCD/HMD/HCF/HMF2110RJS, HCD/HMD1810NJS, HCD/HMD2110NJS (See model number configurator on page 2 for details.) Order parts online www.follettice.com remote condensing 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Dispenser preparation Docking assembly Ice transport tube External connection Internal connection Front cover DROP-IN • RIDE Technology remote condensing...
- Page 4 Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ DROP-IN • RIDE Technology...
-
Page 5: Site Preparation
• 10-70 psi (69-483kpa) • 45-90 F (7-32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes Drains: ➌... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. Dispenser preparation Hot Water 160 F (71 C) 12" (304,8mm) min. 4" (101,6mm) • Determine best route for ice transport tube run. Note: 12" (304,8mm) clearance is required. • Drill 1 3/4" (44,5mm) hole through either side of dispenser ➊... - Page 7 Docking assembly Install the docking assembly. BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting.
- Page 8 Undercounter installation requirements Top View ➌ ➊ Access panel/ 3.25" (83 mm) min. door on counter 23.5" min. (59.7 mm) 24" min. (61 mm No Lip ➋ DOCKING STATION • Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation.
-
Page 9: Ice Transport Tube
Ice transport tube Install the ice transport tube. Ice transport tube installation from dispenser to ice machine ➋ Hot Water 160 F (71 C) ➎ ➊ 1/4" ➌ ➍ ➏ ➐ Ice transport tube tips • Insulate entire length of ice transport tube ➊... -
Page 10: External Connections
External connections Connect utilities to docking assembly. Water and drain Chassis drain plumbing - required ➊ ➋ ➌ Minimum 8" ➏ radius • Plug must be removed from John Guest 2 ft. x 1" OD fitting. silicone tubing • Route 3/8" drain tubing through knockout in back of docking station and insert fully into John Guest fitting connection at the 3/4"... -
Page 11: Internal Connections
Internal connections Connect docking assembly to ice machine. Ice transport tube installation Water line ➋ ➊ ➌ Mount water ➋ solenoid ➊ • Slide ice machine into docking assembly • Mount water solenoid to inside rear of ensuring that drain tube is fully seated on ➊... - Page 12 TDS switch Power cord HIGH CLEAN • Set the TDS switch on the electrical box: • Position plate into opening and secure with supplied screw HIGH: for extended service life LOW: for low-scale water DROP-IN • RIDE Technology remote condensing...
-
Page 13: Front Cover
Front cover Install front cover to ice machine. Install condensing unit Install ice machine front cover ➋ ➊ • Slide ice machine cover over machine ensuring that tabs on back of cover slip under louvers on back of docking • Complete installation of condensing unit assembly ➊... - Page 14 Long tube run recommendations max. 2 ft (.6m) ➊ ➋ 1/4" ➊ • Pitch ice transport tube to allow melt water to drain towards ice machine ➋ • Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps DROP-IN •...
- Page 15 DROP-IN • RIDE Technology remote condensing...
- Page 16 Horizon, Horizon Elite, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett Products LLC. Chewblet, RIDE and Follett are registered trademarks of Follett Products LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
