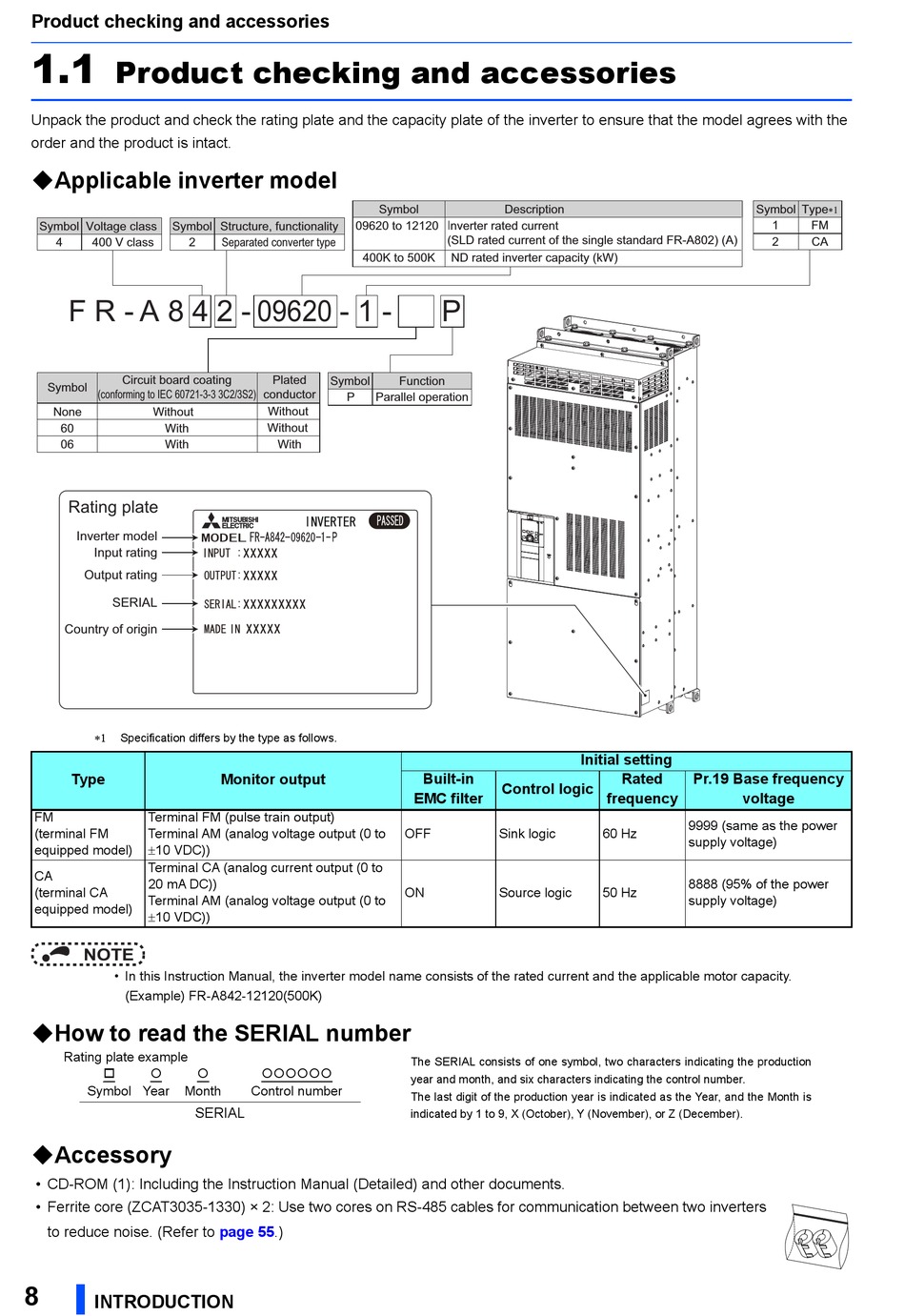

Product checking and accessories
1.1
Product checking and accessories
Unpack the product and check the rating plate and the capacity plate of the inverter to ensure that the model agrees with the
order and the product is intact.
Applicable inverter model
Symbol Voltage class Symbol Structure, functionality
4 400 V class 2
F R - A 8 4 2 - 09620 - 1 -
Circuit board coating
Symbol
(conforming to IEC 60721-3-3 3C2/3S2)
None Without
60 With
06 With
Rating plate
Inverter model
Input rating
Output rating
SERIAL
Country of origin

Specification differs by the type as follows.
Type
FM Terminal FM (pulse train output)
(terminal FM Terminal AM (analog voltage output (0 to
10 VDC))
equipped model)
Terminal CA (analog current output (0 to
CA
20 mA DC))
(terminal CA
Terminal AM (analog voltage output (0 to
equipped model)
10 VDC))
NOTE
• In this Instruction Manual, the inverter model name consists of the rated current and the applicable motor capacity.
(Example) FR-A842-12120(500K)
How to read the SERIAL number
Rating plate example
 
Symbol Year Month
SERIAL
Accessory
• CD-ROM (1): Including the Instruction Manual (Detailed) and other documents.
• Ferrite core (ZCAT3035-1330) × 2: Use two cores on RS-485 cables for communication between two inverters
to reduce noise. (Refer to
8
INTRODUCTION
09620 to 12120
Separated converter type
400K to 500K
Symbol
P
Without
Without
With
Monitor output
 
Control number
page 55.)
Symbol Description
Inverter rated current
(SLD rated current of the single standard FR-A802) (A)
ND rated inverter capacity (kW)
P
Function
Parallel operation
Built-in
Control logic
EMC filter
OFF Sink logic
ON Source logic
The SERIAL consists of one symbol, two characters indicating the production
year and month, and six characters indicating the control number.
The last digit of the production year is indicated as the Year, and the Month is
indicated by 1 to 9, X (October), Y (November), or Z (December).
Initial setting
Rated Pr.19 Base frequency
frequency voltage
9999 (same as the power
60 Hz
supply voltage)
8888 (95% of the power
50 Hz
supply voltage)
∗1
Symbol Type
1 FM
2 CA
