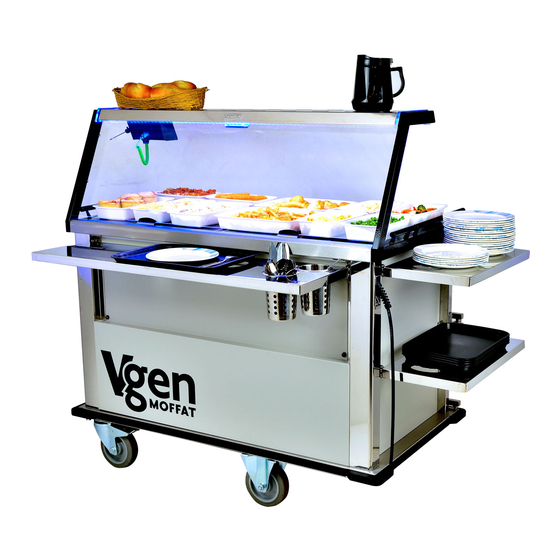

Operating & Service Manual
Manual 003 / Issue 004 / June 2023

Advertisement

Table of Contents
loading

Related Manuals for Moffat Vgen V1G

Summary of Contents for Moffat Vgen V1G

  • Page 1 Operating & Service Manual Manual 003 / Issue 004 / June 2023...

  • Page 2: Table Of Contents

    Contents page Installation To ensure the best results from this unit please take the time to Manoeuvring trolley read and follow all safety, installation and maintenance guidelines carefully before proceeding to install. Keep this manual in a safe Folding tray-slide & end shelves place for future consultation.

  • Page 3: Installation

    Maintain (N) Required to turn (m2) from the appliance and dispose in a responsible manner. Check for damage. Please note that in compliance with E&R Moffat V1G & V1C warrant conditions, any defects must be reported within 3 days of delivery.

  • Page 4: Folding Trayslide & End Shelves

    3: Trayslide 4: End shelf and waste bag Please note: Some accessories or options are factory fit only and may not be possible to retrofit. 2.1: Folding Trayslide & End Shelves Please ensure care is taken when operating the trayslide. Please lift/lower using the cut out provided and take care not trap the mains cable.

  • Page 5: Operating Lights Guide

    6: Operating Lights Guide 7: Operating modes Cook, Re-heat, Hold Hot, Hold Chilled, Transport, Serve. This is a sopisticate trolley with many options for use, designed primaraly for the heath care and Flashing red indicates education sector, for bulkfood regeneration of chilled or frozen food. oven doors are open.
  • Page 6 8: Recommended Use of Oven 8: Recommended Use of Oven Recommended that the top zone is used if reduced load is required. Avoid using lower shelves when possible. Chilled Food Frozen Food Suggested time 60-70 minutes. Suggested time 90-100 minutes. Suggested temperature Suggested temperature for Zone 1 (top) 140°C...

  • Page 7: General Operation

    9: General Operation 9: General Operation Plug in appliance and establish power. The stand-by screen will now be displayed. Time/Date Select to enter the main Screen Time/Date allows changing of the time and date. Press the to enter the options menu Element Control Element Control mode sets how the energy is distributed between the elements.

  • Page 8: Automatic Cook Programming 12 / 13

    9: General Operation 9: General Operation 10. Automatic Cook 24/7 Programming Example From the options screen, entering Automatic will allow the programming of 7 timers Each of these timers can be set for any time of day, any day of the week. Select SET on any program to open the programming screen for it.

  • Page 9: Pre-Set Cook Programming

    9: General Operation 9: General Operation 11. Pre-Set Cook Programming Example Select SET on any of these programs will open the respective programs settings menu Return to the REGEN SCREEN and press the number corresponding to the program you want; this will begin the regen cycle. Option Description Program name...

  • Page 10: Manual Cook Programming

    9: General Operation 9: General Operation 12. Manual Cook Programming 14. HACCP Pressing will enter the H.A.C.C.P screen. To regen without a program, touch the time and temperatures corresponding to the zones This screen allows the logging of food temperatures. and enter the desired values.
  • Page 11 11: Model: V1G 10: Chillogen models: V1C & V2CR Main Screen 1. From the Main Screen touch the button to activate Chillogen mode The Main Screen allows the user to regenerate and cook food. The BOOST can be used if the food is not quite ready. 2.
  • Page 12 12: Model: V2GR 13: Model: V2GPR Main Screen Main Screen The Main Screen allows the user to regenerate and cook food. The Main Screen allows the user to regenerate and cook food. The BOOST can be used if the food is not quite ready. The BOOST can be used if the food is not quite ready.
  • Page 13 14: Model: V2GG 15: Model: V1C Main Screen Main Screen The Main Screen allows the user to regenerate and cook food. The Main Screen allows the user to regenerate and cook food. The BOOST can be used if the food is not quite ready. The BOOST can be used if the food is not quite ready.
  • Page 14 16: Cleaning 17: Oven Cleaning Cycle Do not use a water jet or pressure spray to clean this Put a pan in the oven. containing ½ litre/2 cups water and mild detergent. appliance. Ensure appliance is switched off & plugs are For V2GG models place a pan in both ovens.

  • Page 15: Spare Parts List

    Only factory approved parts should be used in the appliance. Failure 18: Spare Parts List to do so may affect the safety and performance of the product. Part Number Description 2001B Caster 160mm Swivel 2003B Castor 160mm Fixed 3863 Circular Element 1.5kw 10392 Circular Element 0.9kw 2700...
  • Page 16 V1G: V2GR: V2GG: V2GPR:...
  • Page 17 19: Electrical Specification V1C: THIS APPLIANCE MUST BE EARTHED! DAMAGED CABLES MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON! Rating (kW) Supply Voltage Amps per Phase 230V N~ L1 - 13A V2GG 230V N~ L1 - 32A V2GPR 230V N~ L1 - 13A V2GR 230V N~...
  • Page 18 Thank you for choosing E&R Moffat! Scan the QR code below to visit the E&R Moffat website for further information: E&R Moffat Ltd. www.ermoffat.co.uk Bonnybridge +44 (0) 1324 812272 FK4 2BS sales@ermoffat.co.uk Scotland...
