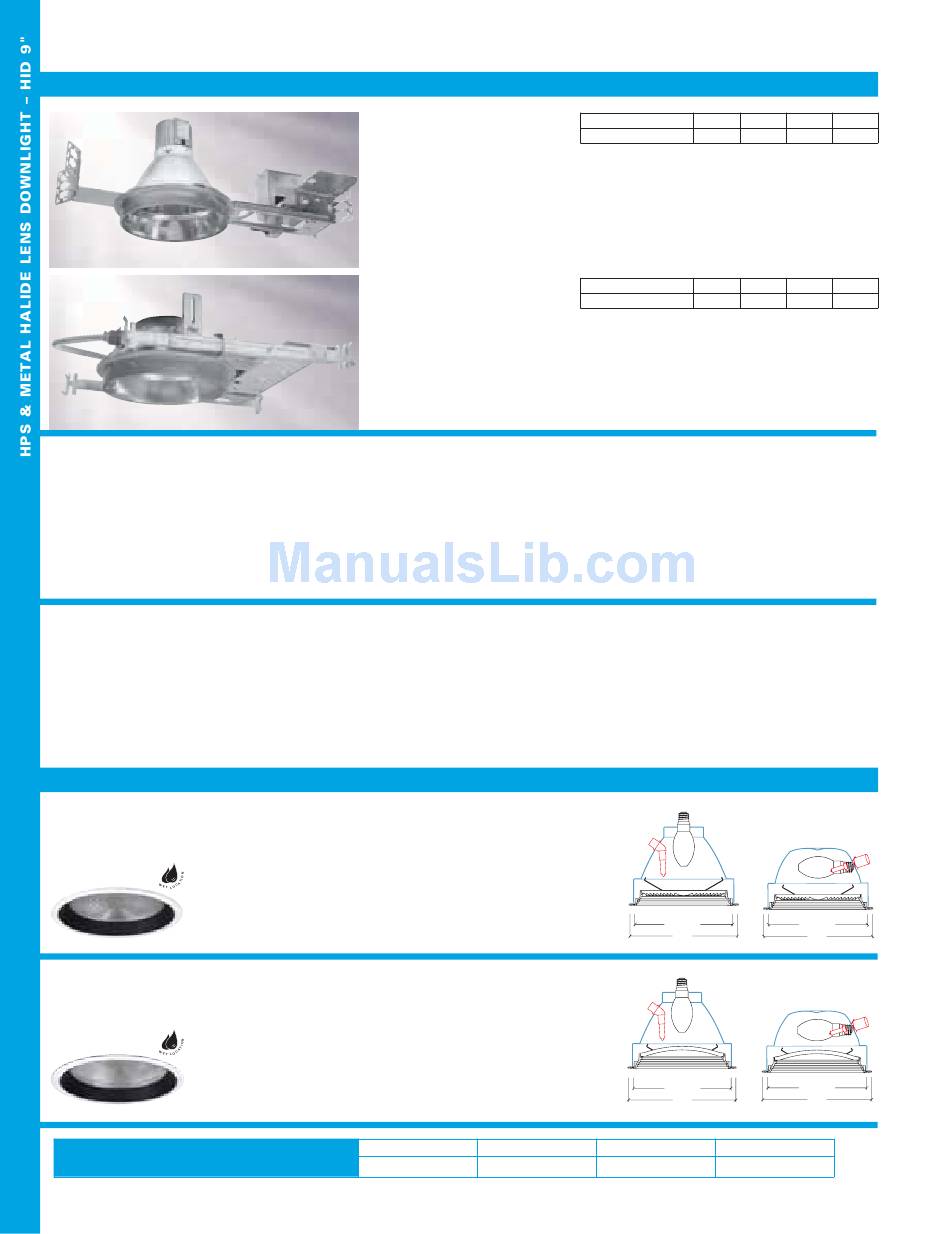

Portfolio M6022T Specification Sheet

PORTFOLIO
HOUSING
9"
M6022T, 23T, 24T
M6042T, 43T, 44T
M6043S
HOUSING
M6022T=50W MH Housing
M6023T=70W MH Housing
M6024T=100W MH Housing
M6042T=50W HPS Housing
M6043T=70W HPS Housing
M6044T=100W HPS Housing
HOUSING
M6043S=MH and HPS
Shallow Housing
TRIM
Regressed
Fresnel Lens
100W Max MH or HPS
150W ED17 HPS
Concave
Prismatic Lens
100W Max MH or HPS
150W ED17 HPS
Ordering Example
Housing, Ballast, Trim, Accessories and Lamps ordered as separate line items.
890
COOPER LIGHTING
™
9" Lens Downlight
Metal Halide & HPS
ED17
Lens downlight for general lighting when wet location listing is
required from a single vertically mounted ED17 high-pressure sodium
or metal halide lamps. Optional quartz standby lamp is factory installed
to upper reflector. Magnetic ballast ordered separately installs rapidly
to ballast bridge with electrical quick connects.
9" Shallow Downlight
Metal Halide & HPS
ED17
Wide beam downlight for general lighting from a single horizontally mounted ED17 high-
pressure sodium or metal halide lamps. Available with wet location listed fresnel or
concave prismatic glass lens trims. Optional quartz standby lamp is factory installed to
upper reflector. Magnetic ballast ordered separately installs rapidly to ballast bridge
with electrical quick connects. Bar hangers provided with housing.
OPTIONS BALLAST
Q=Quartz Restrike System with 620=50W HPS 120/277V Magnetic
Time Delay, 100W DC Bayonet 630=70W HPS 120/277V Magnetic
Base Quartz Lamp (Included) 638=70W HPS 120/347V Magnetic
X=DC Bayonet Lamp Socket only 640=100W HPS 120/277V Magnetic
for Quartz Standby Lamp 648=100W HPS 120/347V Magnetic
720=50W MH 120/277V Magnetic
728=50W MH 120/347V Magnetic
730=70W MH 120/277V Magnetic
738=70W MH 120/347V Magnetic
740=100W MH 120/277V Magnetic
748=100W MH 120/347V Magnetic
OPTIONS BALLAST
Q=Quartz Restrike System with 620=50W HPS 120/277V Magnetic
Time Delay, 100W DC Bayonet 630=70W HPS 120/277V Magnetic
Base Quartz Lamp (Included) 638=70W HPS 120/347V Magnetic
X=DC Bayonet Lamp Socket only 640=100W HPS 120/277V Magnetic
for Quartz Standby Lamp 648=100W HPS 120/347V Magnetic
650=150W HPS 120/277V Magnetic
658=150W HPS 120/347V Magnetic
TRIM
10002=Regressed Fresnel
TRIM
10012=Regressed Concave
Prismatic Lens
720=50W MH 120/277V Magnetic
728=50W MH 120/347V Magnetic
730=70W MH 120/277V Magnetic
738=70W MH 120/347V Magnetic
740=100W MH 120/277V Magnetic
748=100W MH 120/347V Magnetic
FINISH
P=Black Baffle with White Trim Ring
PWH=White Baffle with White Trim Ring
FINISH
P=Black Baffle with White Trim Ring
PWH=White Baffle with White Trim Ring
Housing Ballast
M6024T 740
Dimensions Length Width
Standard Housing 29-5/8" 16-1/2"
Dimensions Length Width
Standard Housing 28-7/16" 18"
ACCESSORIES
HB26=C Channel Bar Hanger,
26" Long, Pair
HB50=C Channel Bar Hanger,
50" Long, Pair
RMB22=Wood Joist Bar Hanger,
22" Long, Pair
HSA9=Slope Adapter for 9"
Aperture Housings, Specify Slope
FK – =Field Installed Fuse Kit,
Specify Amperage
ACCESSORIES
HB26=C Channel Bar Hanger,
26" Long, Pair
HB50=C Channel Bar Hanger,
50" Long, Pair
RMB22=Wood Joist Bar Hanger,
22" Long, Pair
HSA9=Slope Adapter for 9"
Aperture Housings, Specify Slope
FK – =Field Installed Fuse Kit,
Specify Amperage
9-1/2"
11"
9-1/2"
11"
Trim Accessories
10002PWH HB26
Height Cutout
11" 10-1/4"
Height Cutout
6" 10-1/4"
9-1/2"
11"
9-1/2"
11"
