Fisher & Paykel OR60 Installation Instructions And User Manual

Fisher & Paykel OR60 Installation Instructions And User Manual

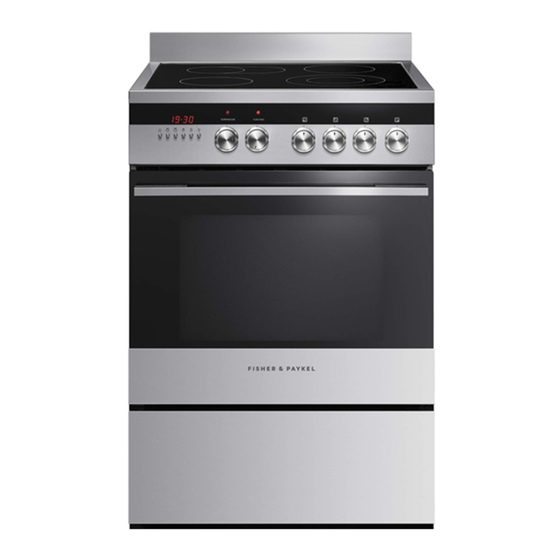

Freestanding cooker
Hide thumbs Also See for OR60:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation instructions
User guide
and
Freestanding cooker
OR60 models
NZ AU

Advertisement

Table of Contents
loading

Related Manuals for Fisher & Paykel OR60

Summary of Contents for Fisher & Paykel OR60

  • Page 1 Installation instructions User guide Freestanding cooker OR60 models NZ AU...

  • Page 3: Table Of Contents

    Contents Safety and warnings Installation instructions Using your oven for the first time Using your oven Cooking functions Using your gas cooktop Cooktop troubleshooting Care and cleaning Warranty and service Important! SAVE THESE INSTRUCTIONS The models shown in this User Guide may not be available in all markets and are subject to change at any time.

  • Page 4: Safety And Warnings

    Safety and warnings Installation WARNING! Electrical Shock Hazard Always disconnect the cooker from the mains electricity supply before carrying out any maintenance operations or repairs. Failure to do so may result in death or electrical shock. WARNING! Cut Hazard Take care - panel edges are sharp. Failure to use caution could result in injury or cuts.
  • Page 5 Safety and warnings The switch must always be accessible. The power supply cable must not touch any hot parts and must be positioned so that it does not exceed 75 C at any point. To connect the cooker to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.
  • Page 6 Safety and warnings Operation Your freestanding cooker has been carefully designed to operate safely during normal cooking procedures. Please keep the following guidelines in mind when you are using it: WARNING! Explosion Hazard Do not store flammable materials such as gasoline near the cooktop. Do not store flammable material in the oven or drawer.
  • Page 7 Safety and warnings Important safety precautions Isolating switch: make sure this cooker is connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. Household appliances are not intended to be played with by children. Children, or persons with a disability which limits their ability to use the appliance, should have a responsible person to instruct them in its use.

  • Page 8: Installation Instructions

    Installation instructions Installation instructions Clearances Installation clearances and protection of combustible surfaces shall comply with the current local regulations eg. AG 601 (AS 5601) Gas Installations code. Installation shall comply with the dimension in Fig. 1 bearing in mind that: Overhead Clearances In no case shall the clearances between the highest part of the cooker be less than 600 mm or, for an overhead exhaust fan, 750 mm.
  • Page 9 Installation instructions Levelling the cooker To fit the adjustable feet: Place the cooker on its back as shown. Screw the four feet to the cooker. Stand the cooker and level it by screwing or unscrewing the feet with a spanner. Figure 2a Fitting the adjustable feet + 15 Figure 2b Fitting the optional spacer...
  • Page 10 Installation instructions Anti-tilt bracket Important! This appliance must be restrained to prevent accidental tipping by fitting a bracket to the rear of the appliance and securely fixing it to the wall. To fix the anti-tilt bracket: After you have located where the cooker is to be positioned mark, on the wall, the place where the two screws of the anti-tilt bracket have to be fitted.
  • Page 11 Installation instructions Gas supply The gas connection must be carried out by an authorised person according to the relevant standards. Before connecting the appliance to the gas main, mount the brass conical adaptor onto the gas inlet pipe, upon which the gasket has been placed (see figures following). Conical adaptor and gasket are supplied with the appliance (packed with conversion kit for use with Natural gas or LPG gas).
  • Page 12 Installation instructions After installing the freestanding cooker and connecting the gas supply: Using a suitable leak detection fluid solution (e.g. Rocol) check each gas connection one at a time by brushing the solution over the connection. The presence of bubbles will indicate a leak. If there is a leak, tighten the fitting and then recheck for leaks.
  • Page 13 Installation instructions Converting to a different gas type This appliance is suitable for use with Natural gas or LPG gas (check the “gas type” sticker attached to the appliance). To convert from one gas type to another, you need to replace the injectors, and then adjust the minimum burning setting.
  • Page 14 Installation instructions Adjusting the minimum burner setting Check whether the flame spreads to all burner ports when the burner is lit with the gas tap set to the minimum position. If some ports do not light, increase the minimum gas rate setting. Check whether the burner remains lit even when the gas tap is turned quickly from the maximum to the minimum position.
  • Page 15 Installation instructions Lubrication of the gas taps A qualified technician must lubricate the gas taps. Wiring diagram Cod. 1131682...

  • Page 16: Using Your Oven For The First Time

    Using your oven for the fi rst time Temperature Front left Rear right (semi- indicator light (auxiliary) rapid) burner knob burner knob Function Temperature Rear left (semi-rapid) Front right knob knob burner knob (triple-ring wok) burner knob Figure 11 Control panel Before using your new oven, please: Read this user guide, taking special note of the ‘Safety and warnings’...

  • Page 17: Using Your Oven

    Using your oven Figure 13 Function and temperature knobs Select the function using the function knob. The oven light will come on. Select the temperature using the temperature control knob. The oven temperature indicator light, above the temperature knob on the control panel, will glow until the oven has reached the set temperature, and then it will go out.

  • Page 18: Cooking Functions

    Cooking functions OVEN LAMP Only the oven light comes on. It remains on in all the cooking functions. BAKE The upper and lower heating elements come on. BAKE is the traditional method of cooking. It is best to cook on only one shelf at a time in this function. FAN BAKE The upper and lower heating elements and the fan come on.

  • Page 19: Using Your Gas Cooktop

    Using your gas cooktop Figure 15 Cooktop layout Auxillary burner Semi-rapid burner Triple-ring wok burner Gas burners The knob controls the flow of gas through the safety tap. = closed valve = maximum aperture or flow = minimum aperture or flow You can choose to cook at any heat between and , but never between Figure 16 Burner control knob...
  • Page 20 Using your gas cooktop Before using your cooktop Before using your new cooktop, please: Read this user guide, taking special note of the safety and warnings section. Turn the cooker on. Make sure all controls are turned off. Lighting the cooktop Choose the control knob for the burner you want to use.
  • Page 21 Using your gas cooktop If the cooktop does not light If the cooktop does not light, check that: The cooktop is plugged in and the electricity is switched on. The gas is turned on. The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them with a toothbrush and methylated spirits, as shown.
  • Page 22 Using your gas cooktop Choosing a burner Use flat-bottomed pans, and make sure that they match your burner, as shown in the following table. A small pot on a large burner is not efficient. Diameters of pans which may be used on the cooktop Burners Minimum Maximum...

  • Page 23: Cooktop Troubleshooting

    Cooktop troubleshooting Problem Possible solutions My cooktop burners do not light Check the cooker is switched on. Check the gas supply valve is turned on and the supply to the house is working. You should hear the gas when you turn a burner on. The ignitors may be dirty.

  • Page 24: Care And Cleaning

    Care and cleaning Important! Before you start cleaning your cooker, please: Read these cleaning instructions and the ‘Safety and warnings’ section at the start of this user guide. Turn the cooker off at the wall. Make sure the cooker is a safe temperature to touch. Do not use a steam cleaner.
  • Page 25 Care and cleaning Burner parts and pan supports You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on. Do not wash these parts in a dishwasher. After cleaning, check that the burners and their flame spreaders are dry before replacing correctly.
  • Page 26 Care and cleaning Replacing the wok burner To replace the wok burner, fit the burner ring to the housing as shown by the arrow in the figure following. Make sure the burner is not able to rotate. Ignitor Figure 23 Replacing the triple ring wok burner Figure 22 Triple ring wok burner parts Gas taps If you have problems with the gas taps, call your Authorised Service Centre.
  • Page 27 Care and cleaning Cleaning the enamel cavity Clean the enamel on the inside of the oven when it has cooled down, using household detergents or an ammonia-based cleaner. You may use ‘off the shelf’ oven cleaners, if you carefully follow the manufacturers’ instructions. To make cleaning easier, you can remove the side racks, the oven door, and the fat filter.
  • Page 28 Care and cleaning Removing the oven door The oven door can easily be removed as follows: Open the door completely. Hook the swivel retainers of the rh and lh hinges (Fig. 28a) onto the metal bar above them (Fig. 28b). Lift the oven door slightly.
  • Page 29 Care and cleaning Replacing the oven lamp Let the oven cavity and the heating elements cool down. Remove the protective cover B. Unscrew and replace the bulb A with a new one suitable for high temperatures (300°C) with the specifications: 230-240V 50 Hz, 15W, E14 Refit the protective cover.

  • Page 30: Warranty And Service

    Warranty and service Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance, please refer to the Service &...
  • Page 32 Copyright © Fisher & Paykel 2007. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
