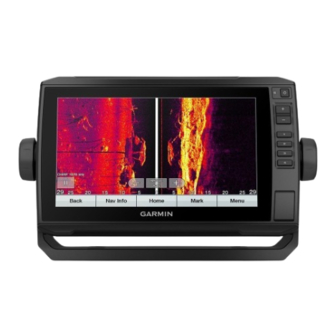

Garmin Echomap UHD Installation Instructions Manual

ECHOMAP
INSTALLATION
INSTRUCTIONS
Important Safety Information
Failure to follow these warnings, cautions, and notices could
result in personal injury, damage to the vessel or device, or poor
product performance.
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
When connecting the power cable, do not remove the in-line
fuse holder. To prevent the possibility of injury or product
damage caused by fire or overheating, the appropriate fuse
must be in place as indicated in the product specifications. In
addition, connecting the power cable without the appropriate
fuse in place voids the product warranty.
To avoid possible personal injury, always wear safety goggles,
ear protection, and a dust mask when drilling, cutting, or
sanding.
To avoid possible personal injury or damage to the device and
vessel, disconnect the vessel's power supply before beginning
to install the device.
To avoid possible personal injury or damage to the device or
vessel, before applying power to the device, make sure that it
has been properly grounded, following the instructions in the
guide.
For the best possible performance, the device must be installed
according to these instructions.
When drilling or cutting, always check what is on the opposite
side of the surface to avoid damaging the vessel.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin Product Support.
®
TRA
REGISTERED No:
ER59438/17
DEALER No:
DA0015955/08
January 2021
UHD
™
WARNING
CAUTION
NOTICE
ECHOMAP UHD 6x Connector View
POWER Power and data sharing
N2K NMEA 2000
XDCR 4-pin transducer
To prevent corrosion of the metal contacts, cover unused
connectors with weather caps.
ECHOMAP UHD 7x/9x Connector View
POWER Power and NMEA 0183 devices
NMEA 2000 NMEA 2000 network
SONAR 12-pin transducer
PANOPTIX Panoptix LiveScope
™
for sharing sonar, LiveScope sonar, charts, and user data
To prevent corrosion of the metal contacts, cover unused
connectors with weather caps.
Software Update
You may need to update the chartplotter software after
installation. For the instructions on how to update the software,
see the owner's manual at
/ECHOMAPUHD.
Tools Needed
• Drill
• Drill bits
◦ Bail mount: drill bits appropriate for the surface and
hardware
◦ Swivel mount: 3 mm (
◦ Flush mount: 3 mm (
• #2 Phillips screwdriver
• Jigsaw or rotary tool
• File and sandpaper
1
If you are not connecting NMEA ®
data, disregard the blue and brown wires.
TA-2020/5311
GUID-D4F04D40-7D5A-4040-AD3F-27506E0DAFD0 v3
1
network
®
NOTICE
sonar or Garmin Marine Network
™
NOTICE
garmin.com/manuals
1
/ in.) drill bit
8
1 3
/ in.) and 9.5 mm ( / in.) drill bits
8 8
0183 devices or another chartplotter to share
TA-2020/5226 TA-2020/5116
