DVG-6004S User's Manual

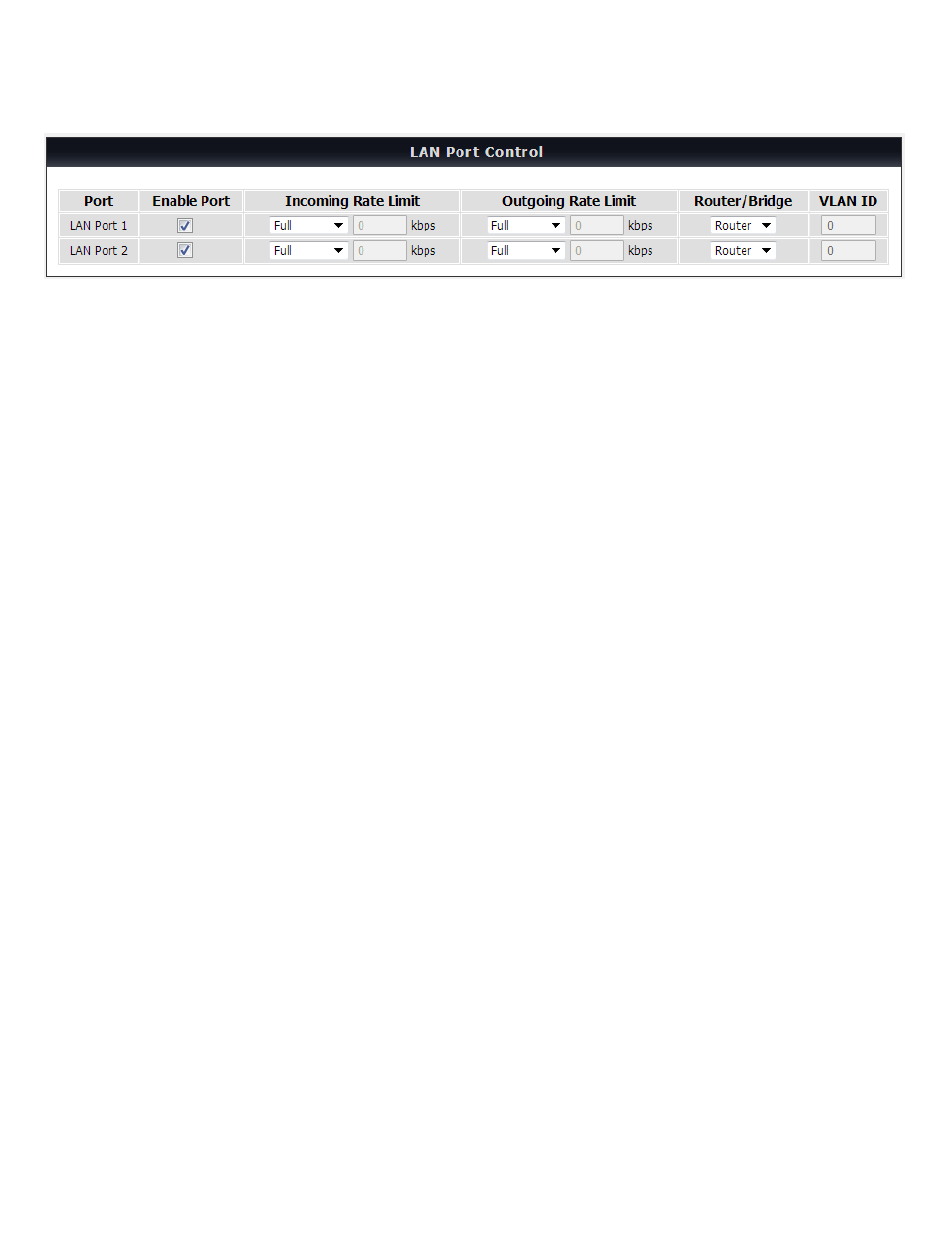

General Settings → LAN

Enable Port: Tick the box to enable LAN Port

Incoming Rate Limit: Use the drop-down menu to select the proper rate limit for the specific LAN port. The

flow is from LAN to WAN, and the rate limit can not exceed the real upstream bandwidth.

Outgoing Rate Limit: Use the drop-down menu to select the proper rate limit for the specific LAN port. The

flow is from WAN to LAN, and the rate limit can not exceed the real downstream bandwidth.

Router / Bridge: Select the VoIP GATEWAY serving as a Router with NAT or Bridge between WAN port

and LAN port without NAT.

VLAN ID: This option is configurable after enable VLAN tagging at "WAN" page and set the LAN port to be

bridge mode. The traffic at LAN port is un-tagged and will be tagged at WAN port.

VoIP Gateway Configuration
