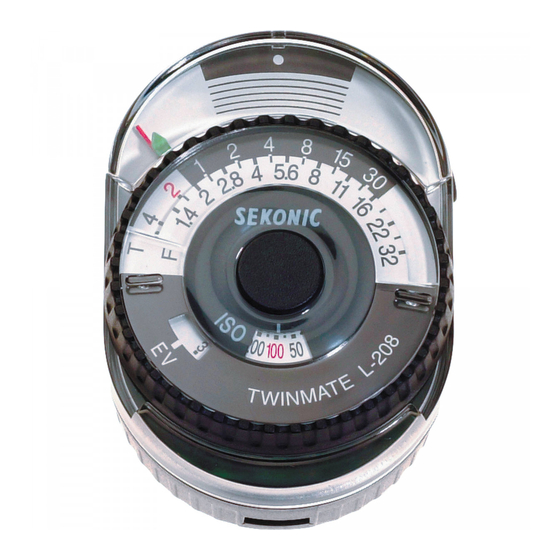

Sekonic TWINMATE L-208 Operating Instructions

SEKONIC
Light Meter
Operating Instructions
TWINMATE L-208
■
Parts
@) Guide needle
@Aperture
scale
®Dial ring
®O-Ring
0
®Screw
c:::=--a
i
@) Shoe mounting
plate
@Strap
�;
@ Shoe mounting screw hole
Find Quality Products Online at:
® Battery capacity range
@ Measurement button
@ ISO switchover
knob
(J) ISO indicator
@ISO scale
@ Battery cover
@ Battery capacity
checker button
@Strap clip
GlobalTestSupply
www.
1. Attaching the strap
Pass the end of the strap (@through
the strap clip@ and connect it to the
ring at the opposite end of the strap.
2. Inserting the battery
Use one 3V coin-type lithium bat­
1)
tery, model CR2032.
2) Rotate the battery cover to the left
with a coin or other tool and remove
battery cover@ .
3) Position the battery with the"+" side
facing up and insert it so that it
slides under the tooth.
4) Align the battery cover with the "T"
mark on the body of the unit and
rotate it to the right until a secure
click is heard.
· Be sure to remove the battery if it is not used for an extended period of time.
• Remember to take a spare battery with you on long trips and similar occasions.
3. Confirming battery strength
1) If the battery strength drops below the rated voltage, guide needle@
on the exposure meter will not display values correctly; therefore,
confirm the voltage prior to use by pressing the battery capacity
checker button @on the back of the unit.
2) It is possible to continue using the battery as long as the guide needle
is within battery capacity range@.
3) Replace the battery if it is not within the battery capacity range.
4. Setting the ISO film sensitivity
Rotate ISO switchover knob@and set film speed being used in ISO
indicator (I)
5. Switching between incident light and reflected light
Slide the lumisphere CD into the proper position for the type of light
being measured.
Fig. 3 shows the condition for incident light and Fig. 4 shows that for
reflected light.
r: ' : ;: : '1 r: , , ; : : � 1
Fig. 3
.com
Fig. 1
Tooth
Fig. 4
