INSTRUCTION MANUAL
DXPW3394
Pressure Washer

Advertisement

Table of Contents
loading

Summary of Contents for DeWalt DXPW3394

  • Page 1 If you have questions or comments, contact us. AUST 1800 841 749 NZ 0800 467 813 www.dewaltpw.com INSTRUCTION MANUAL DXPW3394 Pressure Washer...

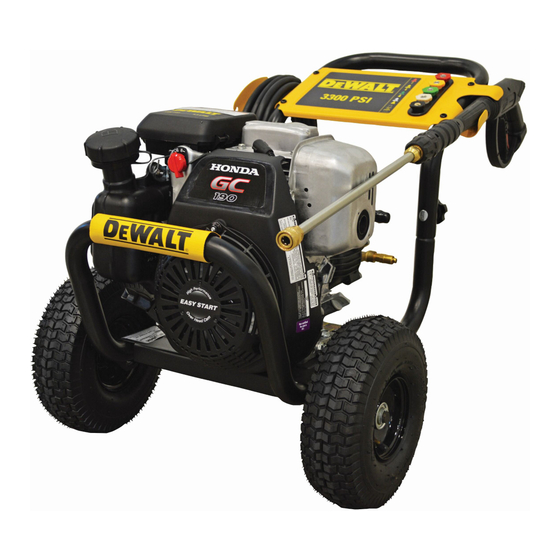

  • Page 2 FIG. 1 DXPW3425 PRESSURE WASHER A. Panel assembly J. High pressure pump B. Nozzle holder Engine C. Professional spray gun Refer to the engine instruction D. Tyres manual location E. Quick-connect operation of other engine spray wand controls. F. Frame G.
  • Page 3: Specifications

    Specifications MODEL PSI* LPM* ENGINE DXPW3394 3300 PSI 9.4 L/min HONDA** GC190 187 cc * Rated Pressure and Rated Water Flow is within manufacturing tolerance of (+/- 10%) ** HONDA™ is a registered trademark of the HONDA MOTOR CO., LTD used under license from AMERICAN HONDA MOTOR CO.
  • Page 4 SAVE THESE INSTRUCTIONS WARNING: Do not operate this unit until you read this instruction WARNING: Do not operate this unit until you read this instruction manual and the engine instruction manual for safety, operation and manual and the engine instruction manual for safety, operation and maintenance instructions.
  • Page 5 • Muffler exhaust heat can • Always keep pressure • Some clean ing fluids • Use only clean ing fluids damage paint ed sur fac es, washer a min i mum of 1.2 m con tain sub stanc es which spe cif i cal ly rec om mend ed melt any material sen si tive away from sur fac es (such could cause injury to skin,...
  • Page 6 • Your pressure washer • Inspect the high pressure • Do not allow hose to contact operates at fluid pressures hose regularly. Replace muf fler. and velocities high enough the hose immediately if it is • Never attach or remove to penetrate human and damaged, worn, has melted wand or hose fittings while...
  • Page 7 DANGER: RISK OF UNSAFE OPERATION DANGER: RISK OF INJURY FROM SPRAY WHAT CAN HAPPEN HOW TO PREVENT IT WHAT CAN HAPPEN HOW TO PREVENT IT • Unsafe op er a tion of your • Do not use chlorine • High-velocity fluid spray •...
  • Page 8 • If proper starting procedure • If engine does not start after is not followed, engine can two pulls, squeeze trigger kickback causing serious of gun to relieve pump DANGER: RISK OF INJURY OR PROP ER TY DAMAGE hand and arm injury. pressure.
  • Page 9 DANGER: RISK OF ELEC TRI CAL SHOCK WARNING: RISK OF BURSTING WHAT CAN HAPPEN HOW TO PREVENT IT WHAT CAN HAPPEN HOW TO PREVENT IT • Over inflation of tires could • Use a tire pressure gauge • Spray di rect ed at elec tri- •...
  • Page 10: Installation

    • High-velocity fluid spray • On pressure washers rated directed at pneumatic tire above 1600 psi (11032 kPa) sidewalls (such as found on use the widest fan spray automobiles, trailers and (40º nozzle) and keep the like) could damage the the spray a minimum of WARNING: RISK OF INJURY FROM LIFTING sidewall resulting in serious 200 mm from the pneumatic...
  • Page 11: Operation

    OPERATION FIG. 3 FIG. 4 Pressure Adjustments The pressure setting is preset at the factory to achieve op ti mum pressure and cleaning. To lower the pres sure, follow these instructions. 1. Back away from the sur face to be cleaned. The further away you are, the less the pressure will be on the surface to be cleaned.
  • Page 12 CHANGING NOZZLES ON SPRAY WAND Nozzle Color Spray Pattern Uses Surfaces*** DANGER: Risk of fluid injection. Do not direct discharge stream 0˚ powerful metal or toward persons, unprotected skin, eyes or any pets or animals. pinpoint for very concrete; Serious injury will occur. intense cleaning DO NOT use on WARNING: Flying objects could cause risk of serious injury.
  • Page 13 3. Install low-pressure (black) nozzle into quick connect fitting of spray • Operate pressure washer in a well-ventilated area. Avoid wand, refer to Spray Wand Nozzles. NOTE: Chemicals and soaps en closed areas such as ga rag es, base ments, etc. will not siphon if the black soap nozzle is not installed on the spray •...
  • Page 14 START-UP PROCEDURE (FIG. 1, 10–16) 6. Connect the cold water source (V) to pump inlet. 1. In a well-ventilated outdoor area, add fresh, high-quality, unleaded NOTE: Water source must provide a minimum of 5 gallons per minute gasoline with a pump octane rating of 86 or higher. Do not overfill. at 20 psi (138 kPa).
  • Page 15: Shutting Down

    NOTICE: Risk of property damage Failure to do so could cause WARNING: Risk of unsafe operation. If engine does not start after damage to the pump. two pulls, squeeze trigger of gun to relieve pump pressure. Pull starter cord slowly until resistance is felt. Then pull cord rapidly to avoid 2.
  • Page 16: Nozzle Cleaning

    temperatures or dusty conditions, more fre quent maintenance checks 5. Direct water supply into spray nozzle to back flush loosened will be required. particles for 30 seconds. 6. Reassemble the nozzle to the wand. Engine 7. Reconnect spray wand to gun then turn on water supply. Consult the engine instruction manual for the man u fac tur er's 8.
  • Page 17: Service Information

    STORAGE ACCESSORIES Recommended accessories for use with your tool are available for Engine purchase from your local dealer or authorized service center. If you Consult the engine instruction manual for the man u fac tur er's need assistance in locating any accessory for your tool, please contact recommendations for storage.
  • Page 18: Limited Warranty

    Limited Warranty Warranty Periods: The manufacturer of this product agrees to repair or replace designated ENGINE parts that prove defective within the warranty periods below. Specific Covered by engine manufacturer warranty. See engine manual. limitations/extensions and exclusions apply. These warranties pass through to the end user and are non-transferable.
  • Page 19 Glossary Where the purchaser of this product is in Australia and is a consumer under Australian Consumer Law, the warranty provisions herein are Bypass mode: Allows water to re-circulate within pump when the gun to be read subject to the terms of Australian Consumer Law unless trigger is not pulled.
  • Page 20: Troubleshooting Guide

    Troubleshooting Guide This section provides a list of the more frequently encountered malfunctions, their causes and corrective actions. The operator or maintenance personnel can perform some corrective actions, and others may require the assistance of a qualified FNA technician or your dealer. Problem Code Engine will not start ......................1, 2, 3, 4, 5, 6, 7, 8, 36...
  • Page 21 (Troubleshooting Codes cont.) CODE POSSIBLE CAUSE POSSIBLE SOLUTION Low water supply. Water supply must be at least 5 GPM @ 20 psi (138 kPa). Leak at high pressure hose fitting. Repair leak. Apply sealant tape if necessary. Nozzle obstructed. See Nozzle Cleaning under Maintenance. Water filter screen clogged.
  • Page 22 (Troubleshooting Codes cont.) CODE POSSIBLE CAUSE POSSIBLE SOLUTION Pump head or tubes damaged from freezing. Have replaced by authorized service center. Oil seals worn. Have replaced by authorized service center Loose drain plug. Tighten. Worn or torn drain plug o-ring. Check and replace.
