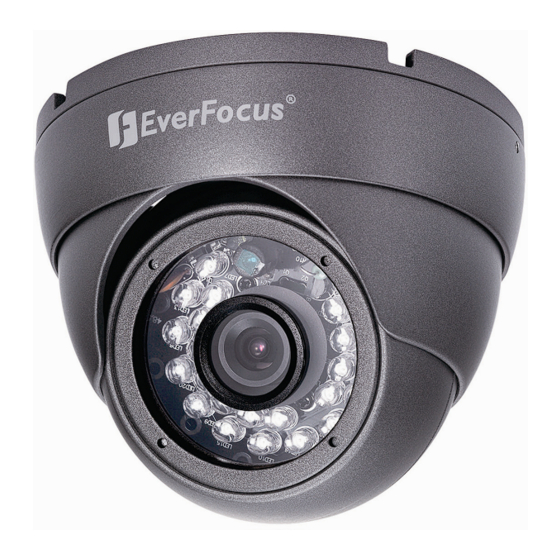

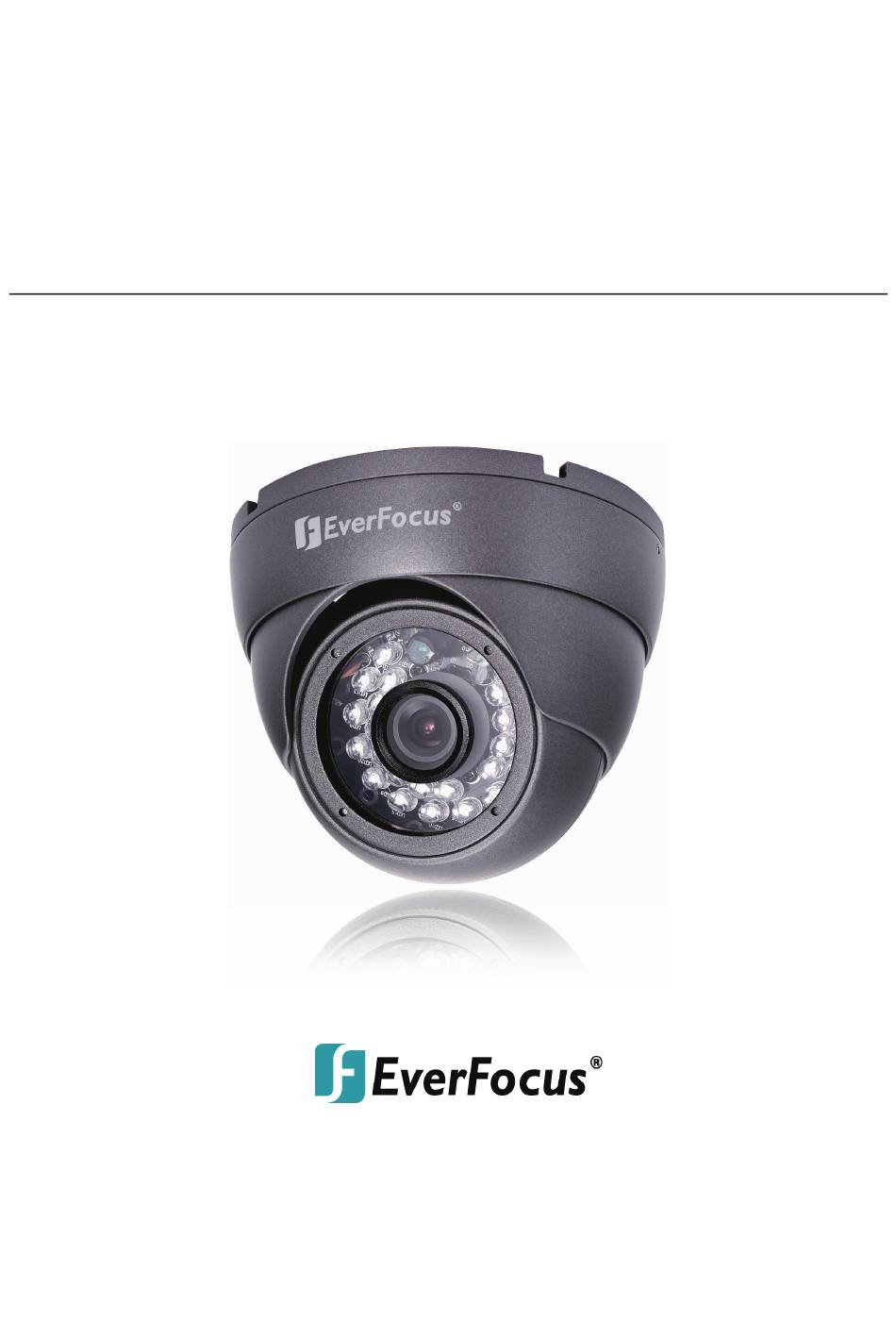

- Page 1 EBD331e Indoor/Outdoor Mini Ball Camera 700TVL, 3-Axis, IP66, IR User’s Manual Copyright © EverFocus Electronics Corp, Release Date: August, 2012...
- Page 2 CAUTIONS 1. Do not install the camera near electric or magnetic fields. 2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. 3. Try to avoid facing the camera toward the sun. 4.
- Page 3 EBD331e 1. INTRODUCTION The EBD331e Ball camera is equipped with a 1/3” Sony 960H CCD image sensor providing resolution of 700 TVL. Featured with the Digital Wide Dynamic Range (D‐WDR) function, the camera can provide clear images even under back light circumstances where intensity of illumination can vary excessively. The EBD331e comes with 24 IR LEDs, supporting up to 15m (~50ft.) IR distance in night vision. The camera can work in both indoor and outdoor environments. The IP66‐rating and vandal proof housing make it suitable for outdoor use. Model Name Scanning System EBD331e/N NTSC EBD331e/P PAL Note: The models vary among countries. Please visit EverFocus regional Websites for detailed ordering information. FEATURES 3‐Axis, Sony 1/3” 960H CCD Sensor, 700 TVL resolution Sony Effio‐E platform to provide advanced camera functions Fixed Lens f=3.6mm 24 IR LEDs reach up to 15m (~50ft.) IR distance Supports double glass D‐WDR function based on Sony’s ATR technology DNR function that reduces image noise to save storage space ...
-
Page 4: Package Contents
EBD331e PACKAGE CONTENTS 1. EBD331e camera x 1 2. Mounting Template x 1 3. User Manual x 1 4. Accessory kit x 1 (4 Screws, 4 Anchors 5. Power Adapter Pigtail x 1 and one Hexagon Wrench) CABLE DEFINITIONS Cable Name Description Connects to the 12V DC power source. You can Power Cable optionally use the supplied Power Adapter Pigtail or a power adapter. Video‐Out Cable Connects to a DVR or a portable monitor for adjusting (BNC) camera angles. Connects one end to the Power Cable, and the other Power Adapter end to the 12V DC power source (black wire to ground Pigtail end; black / white wire to positive end. DIMENSIONS ... -
Page 5: Specifications
EBD331e 2. SPECIFICATIONS Pickup Device 1/3" SONY 960H CCD Video Format NTSC or PAL (depends on model selected) Picture Elements 1020 x 508 (NTSC), 1020 x 596 (PAL) Horizontal Resolution 700 TVL Sensitivity 0.01 Lux / F=1.2; 0 Lux IR On... - Page 6 EBD331e 3. INSTALLATION & OPERATION 1. Unscrew the Set Screw using the supplied Hexagon Wrench. 2. Unscrew the Outer Housing by twisting it counterclockwise and then remove the Outer Housing from the Camera Base. Outer Housing Camera Base 3. Paste the supplied mounting template onto a desired location on the ceiling / wall. Drill the four small holes for screwing the camera with the supplied Screws and Anchors, and the circle in the middle only if you wish to run the wires into the wall. ...
- Page 7 EBD331e 4. Insert the supplied 4 Anchors into the 4 holes on the ceiling / wall. 5. Screw the Camera Base to the ceiling / wall using the supplied 4 Screws. a. If you want to wire the cables from the side cut of the Camera Base, run the cables through the Camera Base first, attach and then screw the Camera Base to the ceiling / wall. b. If you want to wire the cables through the wall, attach and then screw the Camera Base to the ceiling / wall. Attach the Camera Body to the Camera Base. 6. Connect the camera to the 12V DC power source using the supplied Power Adapter Pigtail or a power adapter. 7. Connect the camera to a DVR or a portable monitor using the Video‐Out cable for viewing the camera view while adjusting camera angles. 8. Screw back the Outer Housing and adjust the camera angle simultaneously. 9. Screw back the Set Screw using the supplied Hexagon Wrench. ...
- Page 8 FAX: +86 755 2765 0337 marketing@everfocus.com.cn www.everfocus.com.cn marketing@everfocus.com.cn EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 626 844 8888 TEL: +1 631 436 5070...
