Bushnell Yardage Pro XG - Golf GPS Device Manual

Introduction

Congratulations on your purchase of the Bushnell Yardage Pro XG. We sincerely hope you will find your Bushnell product both enjoyable and easy to use. Knowing the exact distance for each shot will assist you in lowering your score and enhance your overall golfing experience.

This User Manual was created for you to get the most out of your new device and assist with the initial setup. It only takes a few minutes to read, after which you can immediately begin using your new Yardage Pro XG and enjoying its many features.

Also, please visit http://www.bushnellgolf.com/gps/gps_rangefinders.cfm to explore the benefits of becoming an iGolf Member. As a member, you have access to all the features and benefits iGolf has to offer, including access to an extensive database of GPS enabled golf course files for use on your Yardage Pro XG.

Legal Disclaimer

By using this product, you agree that Bushnell Outdoor Products will not be held legally responsible for any injury or damage to you or any person or property caused by the user's improper operation and/or poor judgment while using this product.

Note: See Limited Warranty for other limitations to our liability.

Additional Information

The Global Positioning System (GPS), a network of 32 satellites orbiting Earth, is operated and maintained by the U.S. government. This GPS device requires at least 3 satellites to be acquired to accurately determine your position. Any change made to the system by the government could affect the accuracy and performance of this product.

Bushnell Golf GPS Website

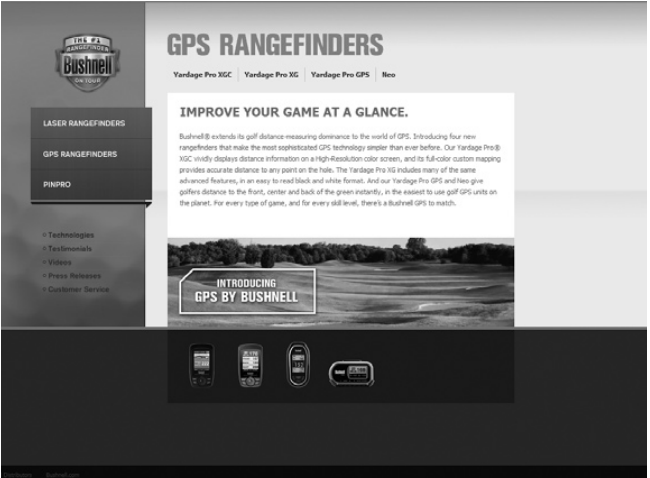

http://www.bushnellgolf.com/gps/gps_rangefinders.cfm is an online resource for all our Golf GPS product owners, and it also serves as a portal to access iGolf.com GPS course files to use with these Bushnell products. Setting up your iGolf.com membership allows you access to GPS course files, the ability to download GPS files and many other benefits.
Bushnell Golf GPS Website

Download Course Files

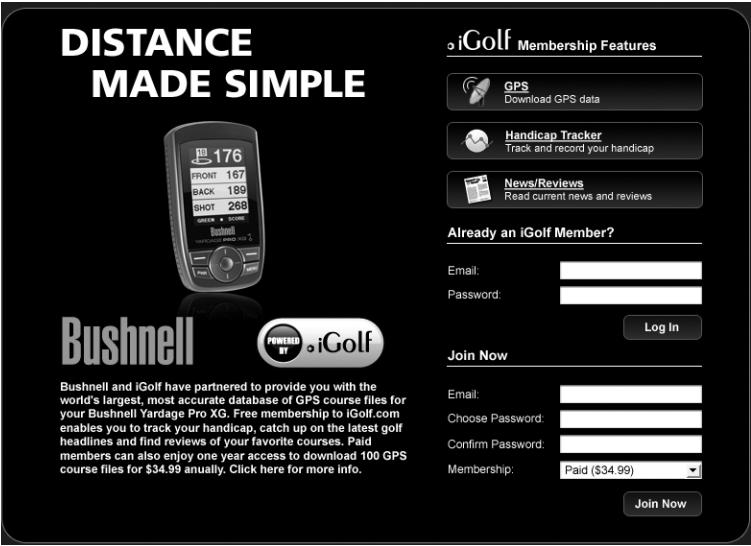

Go to http://www.bushnellgolf.com/gps/yardage_xg.cfm, and click the "Log-In" link. If not already an iGolf member, fill in the boxes and click "Join Now".
Search for desired course using simple terms to broaden results (i.e. Augusta National Golf Club: search for Augusta).
Select course name from search results and download GPS file.
When prompted, SAVE the file.
Use Bushnell Yardage Pro Sync to transfer golf course file to device.

Package Contents

1 - Bushnell Yardage Pro XG
1 - USB Sync Cable
1 - AC/DC 5V Adapter
1 - Belt Clip
1 - Storage Pouch
1 - Software CD
1 - User Manual
1 - Quick Start Guide

Additional Requirements

PC with Windows Vista/XP/2000 or Mac OSX
PC with CD-ROM
PC with USB port

* Required to transfer files from computer
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

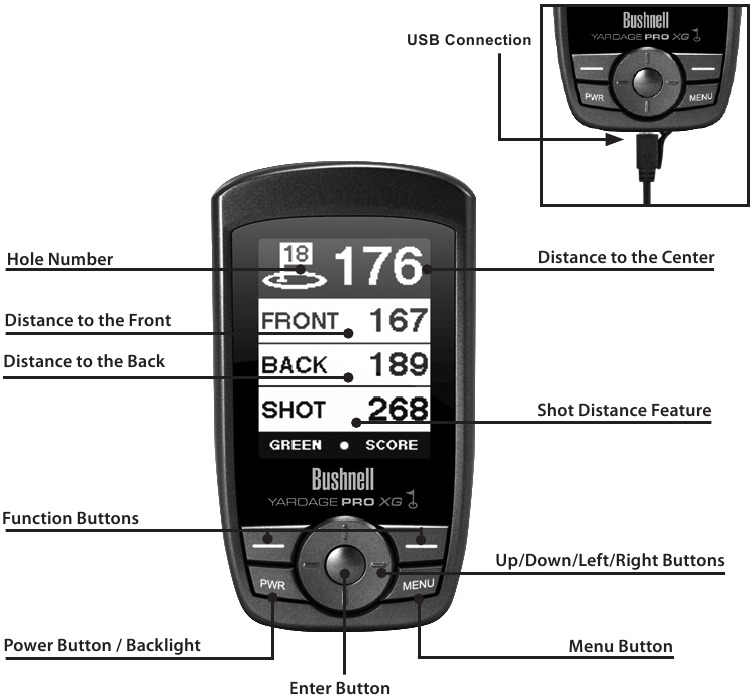

Device Features

Battery Information

This product contains an internal rechargeable lithium-ion battery. Under normal operating conditions, a new battery will last 14 -16 hours on a full charge. However, battery life is diminished due to a variety of factors including temperature and backlight usage. All rechargeable batteries lose their effective charge length over time.

The internal battery can be charged by connecting the included USB cable to the device and a computer. Alternatively, the battery can be charged by connecting the USB cable to the device and using the included adapter to plug the charger into a standard 110V wall outlet.

Keep battery cover closed at all times. Risk of explosion if battery is replaced with incorrect type.
Do not attempt to open, disassemble or service the battery. Battery must be replaced by qualified technician.
Do not crush, puncture or short external contacts. Do not expose to temperatures above 140^o F (60^o C).
Properly recycle or dispose of battery. Do not dispose in fire or water.

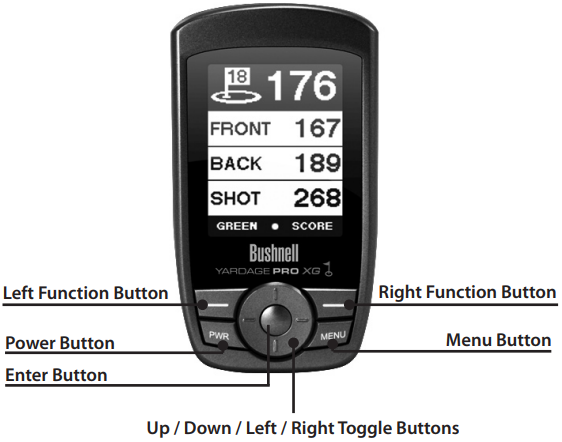

Keypad Function

Power Button

Turns the device on and off
Turns the backlight on and off

Menu Button

Launches Play Menu

Right/Left Function Buttons

Switches between screens

Right/Left Toggle Buttons

Moves between fields
Changes hole number (+/-)

Up/Down Toggle Buttons

Scrolls up/down
Switches between screens

Enter Button

Selects highlighted option
Activates Shot Distance

Start-Up

Power On

Press and hold power button until the welcome screen appears (about 2 seconds).
The welcome screen will display the name and phone number you specify in Settings.

Power Off

Press and hold power button until the screen goes blank.

Backlight On/Off

From any screen, press power button to turn backlight on.
Press power button again to turn backlight off.

Device

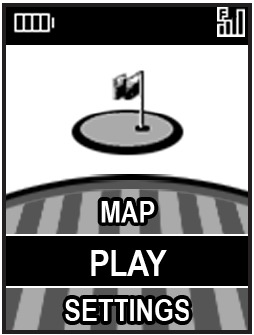

The Main Menu displays all the features available to the user, which are explained in detail in subsequent sections of this User Manual. To begin using the device, scroll to highlight any feature and press the Enter button.

Feature Descriptions

Play - Select to play golf using GPS data
Map - Select to create and customize golf course files
Settings - Select to customize additional features

Play Golf

This feature is the main interface to display scorecard and distance information. Course information must be first your iGolf account or manually entered using the Map feature. If GPS data is available, distances to the front, center and back of the green and up to six custom points per hole will be displayed upon satellite acquisition, as well as a map of the green for each hole. The user is also able to enter the score and putts for each hole.

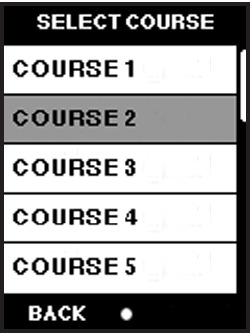

Select Course

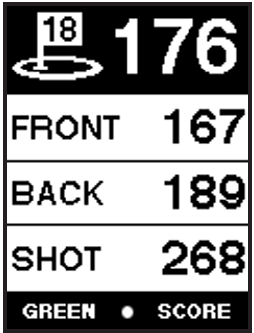

Highlight "Play" on the Main Menu and press Enter. If a satellite fix is available, the golf course closest to current location (within 1,000 yards) will automatically be highlighted. If a satellite fix is not available, scroll to highlight the correct golf course. Once the desired course is highlighted, press Enter.
Select Tee Box
Highlight the desired tee box and press Enter. Only the tee boxes available in the data file will be displayed.

Screen Operation

Right/Left toggle - Move between holes
Up/Down toggle - Move between screens
Enter - Activate Shot Distance
Menu - Go to Play Menu
Function - Green/Score

Shot Distance Operation

From the main Play screen, press Enter to activate the Shot Distance feature.
Distance from the start position will automatically update as the user moves.
Once the user reaches the end position, press Enter to freeze the shot distance measurement.
Press Enter again to reactivate the Shot Distance feature and establish a new start position.

Green

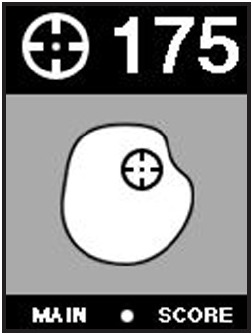

This feature displays a map of the green for the current hole. Using the Up/Down/Left/Right buttons, the user is able to move the crosshair target to any point on the green map. The distance to this point is displayed at the top of the screen.

Score

This feature allows the user to input the score and putts for each hole played.
The hole number and par are also displayed on this screen for reference. Use the Right/Left buttons to select the correct number for score and putts, and use the Up/Down buttons to move between score and putts fields. This information will be used on the Score Summary screen, which is found in the Play Menu.

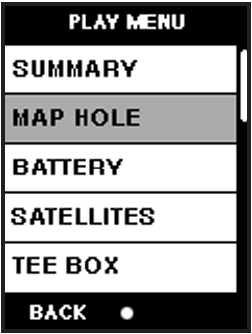

From any Play screen, press Menu to access the Play Menu. This menu allows the user to easily view status or modify settings being used for the current course.

Summary
Allows the user to see statistics for the current game being played.
Map Hole
Allows the user to map the current hole being played without having to exit the game.
Battery
Displays a horizontal bar representing the power remaining in the battery.
Satellites
Displays various circles to show current satellites being tracked and GPS signal strength.
Tee Box
Allows the user to change the current tee box selection.
Yard or Meter
Allows user to select unit of measurement displayed.
Exit
Returns to Main Menu.

Map Course

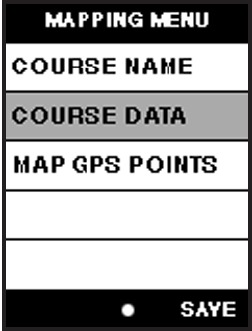

This feature is used to manually input course name and map GPS data points. Existing course files may be customized or new files created using the device. Highlight "Map" on the Main Menu and press Enter.

Select Course
Scroll to highlight the desired new or existing golf course and press Enter.
Course Name
To revise name, highlight "Course Name" and press Enter. Names should be distinguishable from other golf courses entered. Scroll to highlight the character and press Enter. To delete characters, scroll to "BKSPC" and press Enter. When finished, press SAVE.
Course Data
Highlight "Course Data" and press Enter. Highlight desired tee box and press Enter. Select the desired hole and press Enter. Input par and handicap information, using the toggle button to select values and move between options. When finished, press Save. Repeat these instructions for all desired holes and tee boxes for the course and press Save to exit.
Map GPS Points

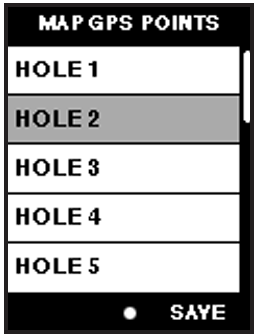

To add or revise GPS data, highlight "Map GPS Points" and press Enter. Select the desired hole and press Enter. Highlight point to map* and press Enter. Stand at desired location, confirm satellite strength and press Next to register point. Do not move until process is complete. Repeat these instructions for all desired points. When finished, press Save. Repeat for all holes.

*If mapping a Custom Point, the user may customize the name prior to registering GPS data. The user may select from a list of common abbreviations, or choose a six (6) character name, to easily identify the point on the course. If the user chooses not to customize the name, proceed directly to "Register".

Settings

This feature provides various configuration settings to personalize the device, such as screen contrast, distance measurement and GPS performance. Highlight "Settings" on the Main Menu and press Enter.

Battery Level
This feature displays the status of the battery in the device. Battery information is displayed using a horizontal bar representing the amount of power remaining in the battery.
Satellites
This feature displays the GPS satellites recognized by the device. Satellites providing location data to the device for use in distance calculation are represented by black squares. At least three satellites providing location data are required before GPS distance can be calculated.

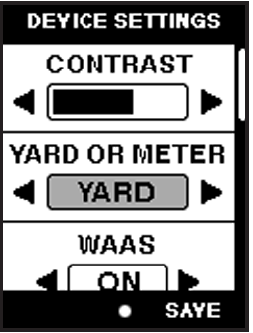

Device Settings

Screen contrast	Adjust to aid viewing in various light conditions
Yard or Meter	Select yards or meters as the measure of distance Select if location correction is used to improve GPS
WAAS	Select if location correction is used to improve GPS accuracy. Commonly known as WAAS, this system of satellites and ground stations provides GPS signal corrections for much of the U.S.
Stabilizer	Allows the user to select the rate at which the device refreshes GPS position. With "Stabilizer On" (default setting) the device will not refresh GPS distance readings once movement has ceased. This is useful to users who experience fluctuating distance readings, even though they are stationary.

Delete Course
This feature allows the user to permanently remove a golf course file from the device. Scroll to highlight the golf course to delete and press Enter. To remove course from device, confirm by pressing Yes.
Set Owner Info
Allows the user to input the name of the owner of the device. This information is displayed when the device is powered "On". To add or edit the owner's name, highlight "Name" and press Enter. Scroll to highlight the character and press Enter. To delete characters, scroll to "BKSPC" and press Enter.
When finished, press SAVE. To add or edit the owner's phone number, highlight "Phone Number" and press Enter. Scroll to highlight the character and press Enter. To delete characters, scroll to "BKSPC" and press Enter. When finished, press SAVE.
Default Settings
Allows user to return device to factory default settings. All data, including course files, will be permanently deleted. It is recommended all files are saved to computer prior to accessing this setting.
Update
This option is for factory use only. DO NOT select this option unless instructed to do so by Bushnell customer support.
About Bushnell Yardage Pro XG
This feature displays general information pertaining to the device including version of software.

Device Software

Introduction

Yardage Pro Sync provides the user with all the tools required to enable communication between the device and Windows Vista, Windows XP, Windows 2000 or Mac OS X computer. Using this interface, the user can control every aspect of golf course file management. From accessing the iGolf.com database to syncing course files, Yardage Pro Sync encompasses many functions which enhance the GPS experience.

Software Features

Search - Search for golf courses on iGolf.com to download
My Courses - ourse files saved on computer ready to send to device
My Device - Course files on device ready to save to computer
Settings - Change COM Port and modify course file locations
Web Browser - Direct access to features available on Bushnellgolf.com

Windows is a registered trademark of Microsoft Corporation.
Mac OS X is a trademark of Apple, Inc.

Installation

Follow these instructions to assist in the proper and complete installation of the Yardage Pro Sync application software on your computer. Confirm the XG is NOT connected with the USB cable to the computer before beginning the installation.

To install Yardage Pro Sync on a Windows Vista, Windows XP, Windows 2000 or Mac OS X computer:

Insert CD included with the product into computer.
Open appropriate CD drive to view contents.
Select "Bushnell Yardage Pro Sync Installer" to launch program.
Select "USB Driver Setup" to install required drivers.
Select "Sync Application" to install sync software.
Launch software from "Bushnell Yardage Pro Sync" icon on desktop.

Note: If you experience any problem with the installer (make sure you try restarting your computer first), click the "Product Support" link at http://www.bushnellgolf.com/gps/yardage_xg_support.cfm, and download and install the latest version of the Yardage Pro Sync application.

*Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

Download Courses

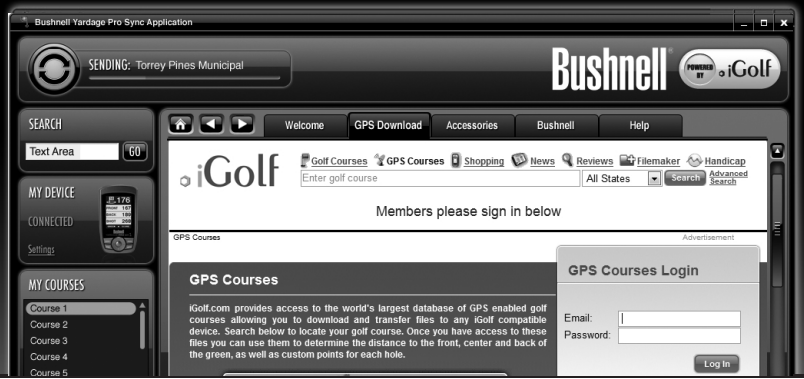

Device Software - Downloading the Courses
This feature provides direct access to iGolf.com where users may search for golf courses and members may download files. Select "Member Login" to access your account (if not yet an iGolf.com member, use the "Join Now" link to enroll). Click the "GPS Download" tab at the top of the screen.For further assistance, please note:

If search returns more than one page of results, use Advanced Search to narrow results.
All GPS files contain scorecard information.
Once downloaded, the course file will appear in the "My Courses" section of the sync application.

Send Courses

This feature allows the user to transfer golf course files from a computer to the device. Select course files from the "My Courses" section of the sync application and press the "Send" button to transfer the courses to the device. For further assistance, please note:

Before you can transfer the course files, the device must be powered on and connected (with the USB cable) to the computer. The device will then display "USB Mode".
Multiple courses can be selected and transferred at one time (by holding down the Ctrl key on your PC as you click on the names of the courses).

Save Courses

This feature allows the user to transfer golf course files from the device to a computer. Select the course files from the "My Device" section of the sync application and use the mouse to drag the courses into the "My Courses" section of the sync application. For further assistance, please note:

Before you can transfer the course files, the device must be powered on and connected (with the USB cable) to the computer. The device will then display "USB Mode".
Multiple course files can be saved at one time (by holding down the Ctrl key on your PC as you click on the names of the courses).

Settings

Device Software - Settings

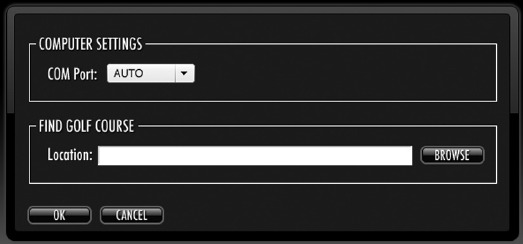

This feature allows the user to specify how the device communicates with a computer and where course files are stored. Select "Settings" from the "My Device" section. For further assistance, please note:

Always set COM to "AUTO" unless specific port being used is known (does not apply to Mac users).
Default course file storage location is C:\My Documents\Bushnell\ YardagePro XG. If the setting must be changed, note new location and save GPS course data downloads in the same folder.
