Juniper SRX4200 How To Set Up

How to Set Up Your SRX4200 Services Gateway

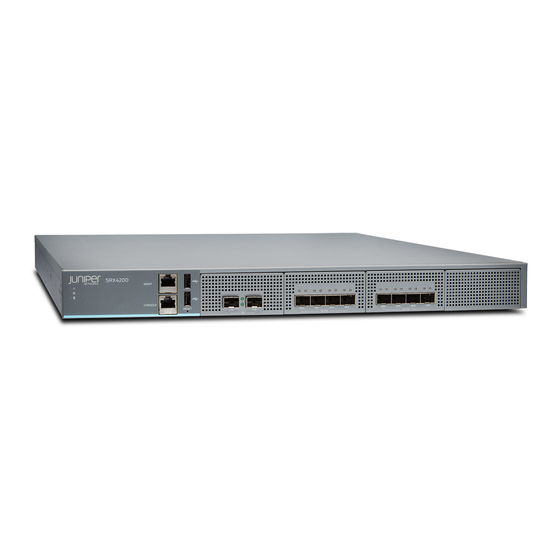

The SRX4200 Services Gateway is a high-performance, scalable mid-range
services gateway that consolidates security, next-generation firewall, and
advanced threat prevention capabilities to provide secure connectivity. The
services gateway is suited for small to medium enterprises and data centers.
The SRX4200 Services Gateway comes with 64 GB of DDR4 memory and two
240-GB solid-state drives (SSDs) in RAID1 configuration. The SRX4200 Services
Gateway is available in both AC and DC models.
Package Contents
SRX4200
AC power cables
• End User License Agreement
• Safety Guide
• Quick Start Guide
Mounting brackets Mounting ears
RJ-45 cables
DB9-to-RJ-45 cable
Warranty and Registration Screws
Information
Front Panel
Management USB 2.0 1G/10G SFP+
port ports HA ports
LEDs Console Reset
port button
Back Panel
Grounding
point
ESD Fans
point
NOTE: The SRX4200 Services Gateway shipment package contains a
packing list. Check the parts in the shipment against the items on the
packing list. If anything is missing or damaged, contact your Juniper
Networks customer service representative.
Specification
Dimensions (H x W x D)
Chassis weight
Average power consumption
Maximum thermal output
Relative humidity
1G/10G SFP+
ports
Power Alarm
switch o
ALARM OFF
Power supply slots
Value
1.75 in. x 17.48 in. x 25 in.
(4.45 cm x 44.40 cm x 63.50 cm)
29 lb (13.15 kg)-with two AC power supplies
28.8 lb (13.06 kg)-with two DC power supplies
200 W
1500 BTU/hour
5% to 90%, noncondensing
1
