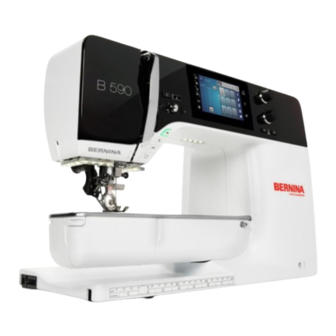

My BERNINA 1.1 Introduction With your BERNINA 590 you can sew, embroider and quilt. Delicate silk or satin fabrics as well as heavy- weight linen, fleece and denim can be sewn without any problems with this machine. Numerous practical as well as decorative stitches, buttonholes and embroidery motifs are at your disposal.
Page 14
Fancy instructions, free sewing patterns and embroidery motifs as well as many new ideas: all this you can find in the weekly blog by BERNINA. Our experts give valuable tips and explain step by step how you can achieve the desired result. In the community you can upload your own projects and exchange experiences and ideas with other sewing and embroidering enthusiasts.
My BERNINA Overview front Connection for embroidery module Speed control Bobbin cover Thread take-up lever cover Connection for accessory (optional accessory) Thread take-up lever Presser foot Thread cutter Needle threader Fixing screw Sewing light Connection for slide-on table Thread cutter...
My BERNINA Overview sideways Foot control connector Retractable spool pin Feed dog up/down Air vents PC-connection Handwheel USB connection Power switch Spool pin Power cable connection Bobbin winding unit Touchscreen pen magnetic holder...
My BERNINA 1.5 Supplied accessories Overview accessories machine Illustration Name Purpose Dust cover To protect the machine from dust and contamination. Accessories box To store the supplied accessories as well as the optional accessories. Free Hand System (FHS) To raise and lower the presser foot.
My BERNINA Illustration Name Purpose Foam pad To prevent the thread from slipping under the spool holder, 2 pieces tangling and breaking. Touchscreen pen For precise operation of the touch display. Seam ripper To undo seams and to cut buttonholes open.
My BERNINA Overview presser feet Supplied standard presser feet Illustration Number Name Purpose Example Reverse pattern foot To sew various practical and decorative stitches. To sew forward and in reverse. Reverse pattern foot To sew various practical and decorative stitches with Dual Feed.
My BERNINA Illustration Number Name Purpose Example BERNINA Stitch Free-motion quilting Regulator (BSR) with regular stitch length. Accessory box Drawer Foam pad Presser feet Automatic Buttonhole foot with slide Bobbin holder Selection of needles Spool discs Holder for 5.5 mm and 9.0 mm presser feet 1.6 Overview User Interface...
My BERNINA Upper thread tension Stitch plate/Needle selection Presser foot display/Presser foot selection Feed dog up/down Presser foot pressure Filling level of bobbin thread Overview System settings Sewing mode Embroidery mode Home Setup Program Help Tutorial Back to default setting...
My BERNINA Overview selection menu sewing Practical stitches Buttonholes Decorative stitches Quilt stitches Alphabets Personal Memory Overview Icons Icon Name Purpose i-Dialog Under the icon «i» dialog, you can find different functions for editing patterns. The window is closed and the changes that were previously set are implemented.
My BERNINA Icon Name Purpose Process navigation You can use the process navigation to return to the previous display. Please note: Some displays contain more functions than those displayed. You can display hidden functions by swiping your finger or the touchscreen pen upwards or downwards.
My BERNINA Illustration Needle name Needle description Purpose Fine-material needle Small ball point For fine knitware and knitted materials. 130/705 H SES 70, 90 For embroidery on fine, delicate fabrics. Metafil needle Long needle eye (2 mm) For sewing or...
My BERNINA 130/705 H-S/70 130 = Shank length (1) 705 = Flat shank (2) H = Needle scarf (3) S = Needle point (here medium ball point) (4) 70 = Needle size 0.7 mm (5) Thread selection For a perfect sewing result, thread and fabric quality play an important role.
Sewing preparation Sewing preparation 2.1 Accessory box Removing and attaching the accessory box The accessory box is fixed to the machine by means of four magnets. When attaching, the drawer has to be integrated in the accessory box. > Turn the carrying handle up and hold it in place. >...
Attaching the knee lifter of the Free Hand System The lateral position of the knee lifter can be adjusted by your local BERNINA Dealer if required. > Insert the knee lifter into the opening at the front side of the machine.
Sewing preparation > Adjust the sitting height so that the knee lifter can be operated with the knee. Fixing the touchscreen pen > Store the touchscreen pen at the magnet holder. Switching the machine on > Switch on the machine at the main switch to «I». 2.3 Foot control Regulating the speed via the foot control Via the foot control the speed is infinitely variable.
Sewing preparation > Release the foot control to stop the machine. Raising/Lowering the needle > Sink the heel back on the foot control to raise/lower the needle. Programming the foot control individually The foot control, i. e. the back kick function, can be programmed individually (see page 52). 2.4 Spool pin Retractable spool pin Raise the retractable spool pin...
Sewing preparation > To raise the spool pin, push the spool pin down and release it. > To lock the spool pin, turn the spool pin anti-clockwise as far as it will go. > To release the lock, turn the spool pin clockwise as far as it will go. >...
> If available, slide the spool net over the thread spool. 2.5 Free arm The BERNINA 590 provides a solidly designed free arm which offers a lot of space for large project on the right of the needle. 2.6 Feed dog...
Sewing preparation Let the fabric be fed evenly; this results in a more perfect stitch formation. Pulling or pushing the fabric will result in uneven stitches. Holding back the fabric will result in uneven stitches. > Push the button «Feed dog up/down» to lower the feed dog. >...
Sewing preparation > To remove the slide-on table, press the button at the table down and pull the slide-on table over the free arm to the left. Using the edge guide Fitting the edge guide Prerequisite: • The extension table has been fitted. >...
Sewing preparation Changing the presser foot > Raise the needle. > Raise the presser foot. > Switch the machine off and disconnect it from the power supply system. > Push the clamping lever up (1). > Remove the presser foot (2). >...
Sewing preparation > Select the attached presser foot. – When the selected presser foot is suitable, sewing can start. – If the selected presser foot is not suitable for the selected stitch pattern, it can be chosen but starting the machine is automatically prevented. An error message appears. With an incorrectly selected presser foot, the preview of the stitch pattern will be displayed in red.

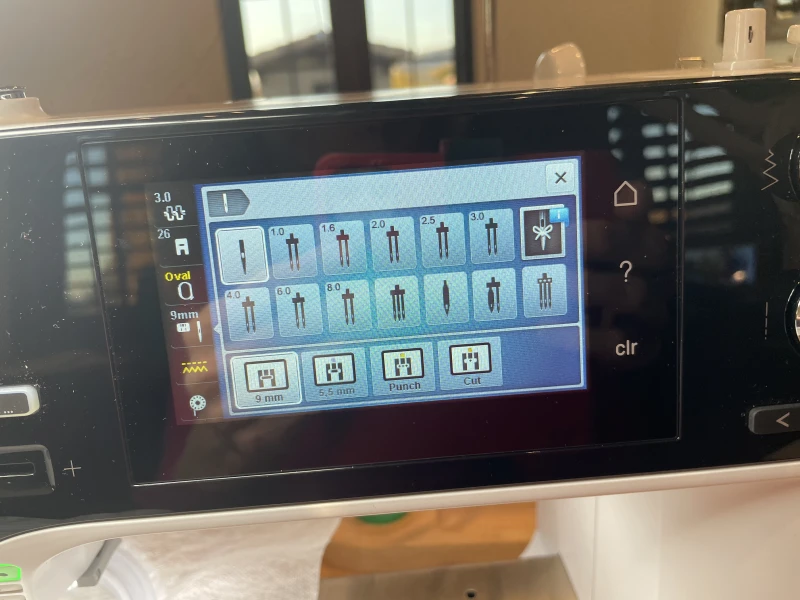

Sewing preparation Selecting the needle in the User Interface After having changed the needle, it can be checked whether or not it can be used in combination with the selected stitch plate. > Touch the icon «Stitch plate/Needle selection». > Select the inserted needle. Selecting the needle type and the needle size Convenient memory function: To prevent a loss of information, the needle type and the needle size can be saved additionally on the machine.
Sewing preparation > Push the button «Needle right» (2) to move the needle to the right. Needle stop up/down (permanent) > Touch the icon «Needle stop up/down (permanent)» to fix the needle position permanently. – The machine stops with needle position down as soon as the foot control is released or the button «Start/Stop»...
Sewing preparation > Place the openings of the new stitch plate above the corresponding guide pins and press down until it clicks into place. Selecting the stitch plate in the User Interface After having changed the stitch plate, it can be checked whether or not it is suitable to be used in combination with the selected needle.
Page 41
Sewing preparation > Insert the thread in the thread take-up lever (4). > Guide the thread downwards again (5). > Only release the thread now. > Switch the machine off. Threading the needle > Guide the thread through the guides (6/7) above the presser foot.
Page 42
Sewing preparation > Push the semi-automatic needle-threading lever (8) halfway down and pull the thread behind the grey needle-threading finger/hook to the left (9). > Guide the thread from the left to the right in front of the gray needle-threading finger/hook (11). >...
Sewing preparation > Pull the thread below the presser foot and through to the thread cutter (15), and cut it. Threading the double needle Prerequisite: • The double needle is inserted. > Guide the first thread in direction of the arrow on the right side of the tension disc (1). >...
Sewing preparation Prerequisite: • The triple needle is inserted. > Place the foam pad, the thread spool and the appropriate spool disc on the spool holder. > Place the filled bobbin on the retractable spool pin. > Add the appropriate spool disc. >...
Sewing preparation > Push the engaging lever (5) towards the bobbin. – The machine winds and the display to wind the bobbin appears. > Move the slide on the display using the touchscreen pen or the finger to adjust the winding speed. >...
Page 46
Sewing preparation > Insert the new bobbin so that the silvery sensor surface is facing the back of the bobbin case. > Pull the thread into the slot (2) from the left. > Pull the thread to the right under the spring (3), then lead the thread under the two thread guides (4) and pull upwards.
Sewing preparation > When inserting into the machine, hold the bobbin case so the thread guide (5) points upwards. > Insert the bobbin case. > Press onto the center of the bobbin case until it engages. > Pull the thread through the thread cutter (6) and cut. >...
Setup Program Setup Program 3.1 Sewing settings Adjusting the upper thread tension Changes to the upper thread tension in the Setup Program affect all of the stitch patterns. You can also make changes to the upper thread tension which then apply for the selected stitch pattern in each case. The setting in the setup is retained after the machine is switched off.
Setup Program > Touch the icon «Sewing settings». > To switch off securing stitches at the start of the pattern, set the switch to «0». > To switch on securing stitches at the start of the pattern, set the switch to «I». Adjusting the hovering height of the presser foot The floating height of the presser feet can be set from 0 to max.
Setup Program > Touch the icon «Securing» to program 4 securing stitches in place. > Touch the icon «Alter the number of securing stitches» to program securing stitches in close succession. > Touch the icons «-» or «+» to program the number of securing stitches in close succession. >...
Setup Program > Touch the icon «Securing» deactivate the automatic securing. > Touch the icon «Securing» again to activate the automatic securing. Adjusting the presser foot position with needle stop down With lowered needle, 3 different presser foot position can be selected: the presser foot lowered, the presser foot is raised to hovering position and the presser foot is raised to its maximum height.
Setup Program Programming the foot control When the icon «Needle up/down» is activated, the needle is raised or lowered via a back kick on the foot control. Alternatively, the presser foot can be positioned, the thread can be cut and the automatic securing can be programmed.
As the default setting, opened embroidery motifs are always displayed in the center of the hoop. You can use the switch «Restore saved embroidery motif position» to set that embroidery motifs are opened at the position in the hoop at which they had been saved in the BERNINA stitch software. > Tap «Home».
Setup Program > Touch the icon «Center the embroidery motif». > To open the embroidery motif at the saved position, set the switch «Restore saved embroidery motif position» to «I». > To open the embroidery motif in the center of the hoop, set the switch «Restore saved embroidery motif position»...
Setup Program > Touch the icon «Setup Program». > Touch the icon «Embroidery settings». > Touch the icon «Select fabric thickness». > Select fabric thickness. Function thread away on/off To pull the thread end out of the fabric being cut, the function must be activated. For embroidery motifs with long stitches, it is recommended to deactivate the function thread away.
Setup Program > To switch on securing stitches at the start, move the switch in the upper right-hand area to «I». – If the embroidery motif has programmed securing stitches, they will be embroidered. – If the embroidery motif doesn't have any programmed securing stitches, the securing stitches are added and will be embroidered.
Setup Program > To switch off the automatic thread cut before changing the thread, move the switch in the upper area of the display (1) to «0». > To switch on the automatic thread cut before changing the thread, move the switch in the upper area of the display (1) to «I».
Setup Program 3.3 Selecting personal settings > Touch the icon «Home». > Touch the icon «Setup Program». > Touch the icon «Own settings». > Select the required display color and background. > To change the welcome message, touch the text field above the color settings. >...
Setup Program > To switch off the upper thread indicator, move the switch in the upper area to «0». > To switch on the upper thread indicator, move the switch in the upper area to «I». Activating the bobbin thread indicator >...
Setup Program 3.6 Machine settings Selecting a language > Tap «Home». > Tap «Setup Pogram». > Tap «Machine settings». > Tap «Language selection». > Tap the required language. Adjusting the brightness of the display The brightness of the display can be set to meet your individual needs. >...
> Touch the icon «Machine settings». > Touch the icon «Information». > Touch the icon «Firmware and Hardware Information». Registering details of the dealer The contact details for your specialized BERNINA dealer can be entered. > Touch the icon «Home».
> To enter the website or e-mail address for the specialized BERNINA dealer, touch the icon «Internet». Saving Service data The service data regarding the current status of the machine can be saved on the BERNINA USB stick (optional accessory) and provided to the specialized BERNINA dealer.
Setup Program Back to basic setting WARNING: Using this function will delete all individually made settings. > Touch the icon «Home». > Touch the icon «Setup Program». > Touch the icon «Machine settings». > Touch the icon «Default settings». > Touch the icon «Default setting sewing». >...
Setup Program Deleting motifs on the BERNINA USB Stick When motifs which won't be needed anymore are saved on the BERNINA USB Stick (Optional accessory), the stick can be connected to the machine and the data can be deleted. > Insert the BERNINA USB Stick (Optional accessory) into the den USB port of the machine.
> Remove the BERNINA USB stick (optional accessory) only after the saved data has been transferred successfully. > Insert the BERNINA USB stick (optional accessory) providing the saved data and settings into the USB port of the machine. > Touch the icon «Home».
Too much oil can pollute the fabric and the thread. > After lubricating, sew/embroider a test piece first. The Setup Program provides animations how the machine has to be oiled. In chapter «Maintenance and cleaning» there are additional illustrated step-by-step instructions. Always use BERNINA oil to lubricate.
Setup Program > Touch the icon «Home». > Touch the icon «Setup Program». > Touch the icon «Machine settings». > Touch the icon «Maintenance/Update». > Touch the icon «Lubricate the machine». > Lubricate the machine according to the instructions on the display. Packing the embroidery module To pack the embroidery module into the original packaging without moving the embroidery arm manually, the embroidery arm needs to be brought to its packing position.
System settings System settings 4.1 Calling up the Tutorial The Tutorial gives information and explanations, covering various aspects of sewing, embroidering and the different stitches. > Touch the icon «Home». > Touch the icon «Tutorial». > Select the desired topic to get information. 4.2 Calling up the Creative Consultant The Creative Consultant informs you about decision support for sewing projects.
System settings 4.5 Calling up the Help > Touch the window in the display where help is needed. > Touch the icon «Help» to start the help mode. > Touch the icon in the display where help is needed. – Assistance concerning the selected icon is displayed.
It is recommended to match the presser foot pressure with the fabric. The thicker the fabric, the lower the presser foot pressure. The BERNINA Dual Feed feeds the fabric from above and from beneath simultaneously. This provides an even and careful feed forward even for smooth and thin materials. Striped and checkered patterns can be matched perfectly by even feeding.
• Imitation leather, coated fabrics (optimally with optional accessory Zigzag foot # 52D with sliding sole). Application of the BERNINA Dual Feed Only use presser feet with a cut-out at the center back and the labeling «D». Additional presser feet with the labeling «D»...
The basic setting of the upper thread tension is provided automatically as soon as a stitch pattern or an embroidery motif is selected. The upper thread tension is set optimally at the BERNINA factory and the machine has been tested. Metrosene-/Seralon thread size 100/2 (Company Mettler, Switzerland) is used for upper and bobbin thread.
Creative sewing 5.5 Editing stitch patterns Changing the stitch width > Turn the «Upper Multifunction knob» to the left to narrow the stitch width. > Turn the «Upper Multifunction knob» to the right to widen the stitch width. > To call up further setting options, touch the icon «Stitch width» (1). Changing the stitch length >...
Creative sewing > Touch the icon «Confirm». – A preview of the stitch pattern is displayed. > To correct the longitudinal direction of the stitch pattern, turn the «Lower Multifunction knob» until the preview of the stitch pattern matches the stitch pattern sewn on the fabric. >...
Creative sewing Editing stitch pattern length The stitch patterns can be lengthwise extended or shortened. > Select a stitch pattern or alphabet. > Touch the icon «i»-Dialog. > Touch the icon «Editing stitch pattern length». > Move the slide with the touchscreen pen/finger to determine the length of the stitch pattern. >...
Individual stitch pattern within the combination Creating Stitch pattern combinations In the Combi mode stitch patterns and alphabets can be combined according to your wish. By combining any alphabet letters, the logo BERNINA can be created. > Touch the icon «Single/Combi mode».
Creative sewing > Select the desired stitch patterns. > Touch the icon «Single/Combi mode» again to return to the single mode. Saving a stitch pattern combination To be able to use individually created stitch pattern combinations, they can be saved in «Personal Memory». >...
Creative sewing > Touch the icon «Edit the whole combination». > Touch the icon «Delete». > Touch the icon «Confirm». Editing a single stitch pattern > Create a stitch pattern combination. > With the touchscreen pen/finger touch the desired position (1) within the stitch pattern combination to select a single stitch pattern.
Creative sewing Adding a single stitch pattern The new stitch pattern is always inserted after the selected stitch pattern. > Create a stitch pattern combination. > With the touchscreen pen/finger touch the desired position (1) within the stitch pattern combination to select a single stitch pattern.
Creative sewing > Touch the icon «Stitch width» (3). > Touch the icon «Adapt the width within the combination» (4). – The widths of all of the stitch patterns are adapted to the width of the widest stitch pattern in the combination Furthermore, the length and width of the stitch pattern combination are increased or decreased proportionally.
Creative sewing > With the touchscreen pen/finger select the desired position within the stitch pattern combination where the stitch pattern combination is to be interrupted. > Touch the icon «i»-Dialog. > Touch the icon «Edit combination at cursor position». > Touch the icon «Combination subdivider 2». >...
Creative sewing > Touch the icon «Back to default setting» to cancel the alterations. Saving stitch patterns in personal memory In the filing system «Personal memory» any stitch patterns, also those which have been individually edited, can be saved. > Select a stitch pattern, alphabet or buttonhole. >...
> Touch the icon «Confirm» to delete the stitch pattern. Saving stitch patterns on the BERNINA USB stick On the BERNINA USB stick stitch patterns, also those which have been individually edited, can be saved. > Select a stitch pattern, alphabet or buttonhole.
Creative sewing 5.8 Securing Securing via the icon «Securing» Every single pattern of a stitch pattern combination can be secured either at the beginning or at the end. > Touch the icon «i»-Dialog. > Touch the icon «Securing» before starting to sew. –...
Creative sewing 5.10 Sewing Corners When sewing corners, only a small section of the fabric is actually on the feed dog. Therefore it cannot grip the fabric well. By means of the height compensation tool the fabric can be fed evenly. >...
Practical stitches Practical stitches 6.1 Overview Practical stitches Stitch Stitch Name Description pattern number Straight stitch Sew together and top-stitch. Zigzag Reinforcing seams, overcasting edges, sewing elastic seams and attaching lace. Vari-Overlock Sewing and finishing in one step of elastic fabrics.
Page 87
Practical stitches Stitch Stitch Name Description pattern number Stretch overlock Sewing and finishing in one step of elastic fabrics. Tricot stitch Visible hems, visible seams in lingerie, sweaters, mending jersey. Universal stitch For firm fabrics such as felt and leather. Flat joining seams, visible seams, attaching elastic, decorative seams.
Practical stitches Stitch Stitch Name Description pattern number Single Straight stitch Used as a connecting stitch in a combination. Three simple straight As connecting stitches in a combination. stitches Darning Stitch For darning with a running stitch together with the function «Permanent reverse sewing».
Practical stitches Prerequisite: • The Reverse pattern foot No.1C/1D is attached. > Touch the icon «Practical stitches». > Select the Straight stitch No. 1. 6.3 Securing with the automatic Securing Program Due to a determined number of 5 stitches sewn forward and 5 stitches sewn backward, the securing is regular.
Practical stitches As the fabric feed can be difficult when starting to sew, it is recommended to hold the threads firmly or to pull the fabric slightly to the back for a few stitches or to sew 1 – 2 cm reverse first. >...
Practical stitches > Attach the Zipper foot No. 4D. > Move the needle position to the right. > Use the Free Hand System to raise the presser foot and to position the sewing project. > Start sewing in the center of the seam at the end of the zipper. >...
Practical stitches 6.7 Sewing Triple zig zag For firm materials such as denim, deckchair covers, awnings or frequently washed items. Finish raw edges first. > Attach the Reverse pattern foot No. 1C/1D. > Touch the icon «Practical stitches». > Select the Triple zig zag No. 7. 6.8 Manual darning Used for darning holes or worn areas in all fabric types.
Page 93
Practical stitches > Work the rows in irregular lengths so that the thread is better spread over the fabric. > Sew the first rows not too close together and beyond the worn area. > Sew the rows in irregular lengths. >...
Practical stitches > Sew another loose row. 6.9 Automatic darning The simple Darning Program No. 22 is especially suitable for quick darning of worn or damaged areas. It is recommended to use fine material as a backing for the worn and damaged areas or to stick an adhesive interlining.
Practical stitches 6.10 Reinforced darning, automatic The reinforced Darning Program No. 23 is especially suitable for quick darning of thin areas or snags. The reinforced Darning Program No. 23 replaces longitudinal threads in all fabrics. If the Darning Program does not cover the whole worn or damaged area, it is recommended to reposition the work and the sew the Darning Program again.
Practical stitches The Darning Program No. 34 is particularly suitable for worn or damaged area in heavy or firm fabrics such as denim or overalls. > Attach the Reverse pattern foot No. 1C. > Touch the icon «Practical stitches». > Select the reinforced Darning Program No. 34. 6.12 Finishing edges The Zig zag No.
Practical stitches A double overlock seam is suitable for loose knits and cross seams in knits. When working with jersey, a jersey needle should be used to prevent damaging the knit fabric. When sewing stretch materials, use a stretch needle. >...
Practical stitches 6.16 Edgestitching using the seam guide (optional accessory) When sewing parallel wider lines, it is recommended to guide the seam guide (optional accessory) along a sewn line. > Attach the Reverse pattern foot No. 1C or the Edge stitch foot No. 10/10C/10D (optional accessory). >...
Practical stitches 6.18 Sewing blind hems For invisible hems in medium to heavy-weight cotton, wool and blended materials. Prerequisite: • The fabric edges are finished. > Attach the Blindstitch foot No. 5. > Touch the icon «Practical stitches». > Select the Blindstitch No. 9. >...
Practical stitches 6.19 Sewing visible hems The visible hem is especially suitable for elastic hems in jersey, cotton, wool, synthetic and mixed fibers. > Attach the Reverse pattern foot No. 1C/1D. > Touch the icon «Practical stitches». > Select Tricot stitch No. 14. >...
Practical stitches 6.21 Sewing basting stitches When sewing basting stitches, it is recommended to use a fine darning thread as this is easier to remove. With the Basting stitch No. 21 only every fourth stitch is sewn. The longest stitch possible is 24 mm when the stitch length is set at 6 mm.
Decorative stitches Decorative stitches 7.1 Overview Decorative Stitches Easier or more difficult decorative stitches come into their own depending on the type of fabric. • Decorative stitches which are programmed with simple straight stitches are particularly appropriate for light-weight materials, e.g. the Decorative stitch No. 101. •...
Decorative stitches Decorative stitch Category Name Category 2200 Hobbies and sport 7.2 Bobbin-Play The bobbin can be filled with different thread material. For free-motion stitching to add texture. This method is similar to «normal» free-motion sewing, but is done on the wrong side of the fabric. Reinforce the area to be sewn with embroidery stabilizer.
Decorative stitches > Touch the icon «Upper thread tension» to adjust the upper thread tension if necessary. 7.3 Altering the stitch density With certain decorative stitches (e. g. No. 401) the stitch density can be altered. If the stitch density is increased, the stitch distance is enlarged. If the stitch density is decreased, the stitch distance is shortened. The programmed length of the stitch pattern is not affected.
Decorative stitches 7.5 Pintucks Pintucks The technique reduces the size of the fabric piece. It is always advisable to plan in sufficient fabric. Pintucks are narrow stitched folds, which are normally sewn on the fabric before cutting out the pieces for the garment or the sewing project.
Decorative stitches Inserting the cord > Switch the machine off and disconnect it from the power supply system. > Remove the needle. > Remove the presser foot. > Remove the stitch plate. > Open the bobbin cover. > Pull the cord through the hook opening from the bottom and through the opening of the stitch plate. >...
Alphabets Alphabets 8.1 Overview Alphabet Block- outline, script, quilt and comic writing, as well as Cyrillic and Cyrillic script can be sewn in two different sizes. Block- outline, script, quilt and comic writing, as well as Cyrillic and Cyrillic script can also be sewn in small letters.
Alphabets 8.2 Creating lettering It is recommend to sew a test sample using the desired thread, the original fabric and the original stabilizer. Please make sure that the fabric is fed evenly and lightly without colloding and being caught. Do not pull, push or hold the fabric while sewing. >...
Alphabets 8.3 Altering font size Block, Double block, Script, Quilting Text and Comic alphabets as well as Cyrillic and Script Cyrillic can be reduced in size. > Touch the icon «Alphabets». > Select the font. > Select the letters. > Touch the icon «i»-Dialog. >...
To be able to create the right buttonhole for every button, every purpose and also for every garment, the BERNINA 590 comes with an extensive collection of buttonholes. The corresponding button can be sewn on automatically. Eyelets can also be sewn.
Page 111
Buttonholes Buttonhole Buttonhole Name Description number Heirloom For light to medium-weight woven fabrics; blouses, dresses, leisure wear, bedlinen. Double-rounded For medium-weight to heavy fabrics buttonhole made from different materials. Double-rounded For light to medium-weight woven heirloom buttonhole materials; blouses, dresses, bedlinen. Buttonhole with double For medium-weight woven materials;...
Buttonholes 9.2 Making use of the height compensation tool When a buttonhole is to be sewn at right angles to the project edge, it is recommend to use the height compensation plates (optional accessory). > Place the plates from the back between the sewing project and the bottom of the slide to the thick part of the sewing project.
Buttonholes 9.4 Marking buttonholes > For the buttonholes to be sewn manually, mark the position and the length on the fabric using chalk or a water-soluble pen. > For the buttonholes to be sewn automatically, mark the complete length of 1 buttonhole on the fabric using chalk or a water-soluble pen.
Buttonholes 9.5 Cord Using cord with the Buttonhole foot with slide No. 3A Cords reinforce buttonholes and enhance their appearance and suit best fpr the Buttonhole No. 51. Ideal cords are Perle cotton No. 8, strong hand-sewing thread and fine crochet yarn. It is recommended to not hold the cord while sewing.
Buttonholes > Pull the ends of the cord through to the wrong side of the fabric (using a hand stitching-needle), knot or secure with stitches. Using cord with the Buttonhole foot No. 3C (optional accessory) Prerequisite: • The Buttonhole foot No. 3 is attached and raised. >...
Buttonholes > Pull the ends of the cord through to the wrong side of the fabric using a hand stitching-needle and knot or secure with stitches. 9.6 Sewing a test sample Always sew a test sample of the buttonhole on the same fabric: It is recommended to use the same stabilizer and to select the same buttonhole.
Buttonholes 9.8 Determining the buttonhole length with the Buttonhole foot with slide No. 3A The button can be centered in the yellow circle on the display. By turning the «Upper/Lower Multifunction knobs», the yellow circle can be enlarged or downsized to determine the diameter of the button.
Buttonholes 9.10 Sewing a buttonhole automatically When the Buttonhole foot with slide No. 3A is used, the length of the buttonhole is measured automatically by the lens on the presser foot. The buttonhole will be duplicated and the machine switches to the next step automatically when the maximum length is reached.
Buttonholes 9.11 Programming the Heirloom buttonhole Prerequisite: • The Buttonhole foot with slide No. 3A is attached. > Touch the icon «Buttonholes». > Select the Buttonhole No. 63. > Sew the desired buttonhole length. > Push the button «Quick reverse» to program the length. –...
Buttonholes > Touch the icon «Scroll down» so that step 6 appears. – The machine sews the bottom bartack and stops automatically. > Touch the icon «Scroll down» so that step 7 appears. – The machine secures and stops automatically. 9.13 Sewing the manual 5-step buttonhole with the Buttonhole foot No.
Buttonholes 9.14 Cutting the buttonhole open with the seam ripper > Place a pin in each end of the buttonhole to avoid accidental cutting into ends of buttonhole. > Cut the buttonhole from both ends to the middle. 9.15 Cutting open buttonholes with the buttonhole cutter (optional accessory) >...
Buttonholes Adjusting the thread shank For buttons on thicker fabrics, increase the thread shank = the distance between the button and the fabric. Buttons sewn on thin fabrics or buttons for decorative purposes only are stitched without a «thread shank». NOTICE! The adjustment of the thread shank is only possible when using the Button sew-on foot No.
Quilting 10 Quilting 10.1 Overview Quilt Stitches Stitch Stitch Name Description pattern number 1301 Quilting, securing To secure at the sewing start and sewing end program with short stitches forward. 1302 Quilting straight stitch Straight stitch at 3 mm stitch length. 1303 Piecing stitch/Straight Straight stitch at 2 mm stitch length.
Quilting 10.4 Guiding the quilt work freely Quilt gloves with rubber fingertips (optional accessory) will help when guiding the fabric. It is recommended to use the slide-on table and the Free Hand System. With free-motion quilting, it is of advantage to quilt from the center outwards and to guide the fabric using smooth, round movements to form the design of your choice.
BERNINA Stitch Regulator (BSR) 11 BERNINA Stitch Regulator (BSR) The BERNINA Stitch regulator equalizes the stitch length which results of the free movement of the fabric while free-motion sewing - a sewing technique which grows more and more popular. When free-motion sewing with the BSR presser foot, every stitch is equally long and the stitch formation is perfectly regular.
BERNINA Stitch Regulator (BSR) > Insert the plug for the cable vertically into the BSR connection (1) until you feel it click into place. > Switch the machine on. – The BSR display opens and the BSR 1 mode is activated.
BERNINA Stitch Regulator (BSR) Prerequisite: • The slide-on table is attached. • The knee lifter of the Free Hand System is attached. > Lower the feed dog. > Select the desired BSR mode. > Push the button «Start/Stop» or press the foot control to lower the presser foot.
BERNINA Stitch Regulator (BSR) Securing in BSR2 mode Prerequisite: • The BSR presser foot is attached and connected with the machine. • The BSR display is open and the BSR2 mode is activated. > Lower the presser foot. > Touch the icon «i»-Dialog.
My BERNINA Embroidery 12 My BERNINA Embroidery 12.1 Overview Embroidery module Release lever/carrying handle Guide rails for the machine Embroidery arm Connection to the machine Coupling for securing the hoop 12.2 Supplied accessories Embroidery module Overview accessory Embroidery module Illustration...
My BERNINA Embroidery Illustration Name Purpose Medium embroidery hoop To embroider medium-sized embroidery motifs up to 100 x 130 mm (3.94 × 5.12 in). Including the template for precise fabric positioning. USB Connecting cable To transfer data from the computer to the machine or vice versa.
My BERNINA Embroidery Overview System settings Sewing mode Embroidery mode Home Setup Program Help Tutorial Back to default setting Embroidery Consultant Overview Selection menu embroidery Selection embroidery motifs Color information Editing embroidery motifs Embroidery 12.4 Important Embroidery information Upper thread A good quality thread (brand manufacturer) is essential for embroidery so that the embroidery is not affected negatively because of poor thread or thread breakage.
Selecting the embroidery file format In order that embroidery motifs can be read by the BERNINA embroidery machine, they have to be created by the BERNINA Embroidery software and exported as .EXP file. Besides the actual embroidery file, a .BMP file and an .INF file are generated additionally.
Embroidering motifs by third-party providers BERNINA recommends uploading embroidery motifs of any file format via the free program ««ART-Link»» to the machine or a USB stick. Using «ART-Link» ensures that the embroidery motif can be read and embroidered correctly. «ART-Link» can be downloaded for free at www.bernina.com.
My BERNINA Embroidery Step stitch Many short, equally long stitches are embroidered in offset rows closely next to each other which results in a densesly filled area. Connecting stitches Long stitches which are used to get from one part of the motif to the next. Before and after the connecting...
Embroidering preparation 13 Embroidering preparation 13.1 Attaching the Module Prerequisite: • Extension table must not be fitted. > Make sure that the module and the machine are placed on a stable, even surface. > Ensure that the embroidery arm can move freely. >...
Please find all the embroidery motifs at the end of this instruction manual. In addition to that, embroidery motifs can be loaded from the personal memory or from the BERNINA USB stick (optional accessory). > Touch the icon «Home».
Embroidering preparation 13.4 Embroidery foot Attaching the embroidery foot > Raise the needle. > Raise the presser foot. > Switch the machine off and disconnect it from the power supply system. > Push the clamping lever up (1). > Remove the presser foot (2). >...
Embroidering preparation > Select the attached embroidery foot. 13.5 Needle and stitch plate Inserting the embroidery needle Embroidery needles of the type 130/705 H-SUK provide a larger eye and are slightly rounded. This avoids thread abrasion when using Rayon- and cotton embroidery thread. Depending on the embroidery thread use a size No.
Embroidering preparation > Select the attached needle. – If the selected needle is suitable in combination with the stitch plate, sewing can be started. – If the selected needle is not suitable in combination with the stitch plate, starting the machine is automatically prevented.
Embroidering preparation Attaching the stitch plate There is a small hole in the area of the needle on the CutWork/straight stitch plate (optional accessory). The thread draw-in (thread knotting of upper thread and bobbin thread) is therefore optimized. This results in a nicer stitch formation.
Embroidering preparation Thread-up command The machine must be ready for embroidery to bring up the bobbin thread.The bobbin thread can be brought up in one step for a manual knotting. If no securing stitches are wanted, it is recommended to deactivate the securing stitches in the Setup.
Embroidering preparation Using adhesive spray The application of spray adhesive is recommended for stretch and smooth materials and knitware. It prevents the fabric from losing shape and slipping. Appliqués can be exactly positioned with spray adhesive. The spray adhesive shouldn't be used near the machine to avoid contamination. >...
> Make sure that the arrows marks of both hoops match. > Attach the template holder. > Place the template in the inner hoop, so the BERNINA logo is at the front edge at the arrow mark until it clicks into place.
Embroidering preparation > Position the hoop below the embroidery foot. > Press both attaching mechanisms (1) of the hoop towards each other. > Position the embroidery hoop (2) above the bracket of the embroidery arm. > Press the hoop down until it clicks in position. >...
Embroidering preparation Moving the hoop to the back To facilitate changing the bobbin, it is recommended to move the hoop to the back before threading. This makes it easier to open the bobbin cover. > Touch the icon «Embroidery hoop display/Embroidery hoop selection». >...
Embroidering preparation Locating the center of the embroidery motif The embroidery hoop is positioned so that the needle is exactly above the center of the embroidery motif or the motif begin. > Touch the icon «Embroidery hoop display/Embroidery hoop selection». >...
Creative embroidering 15 Creative embroidering 15.1 Overview embroidering Embroidery time/Embroidery motif size in mm Area to be embroidered or inch Scaling up, downsizing and moving the «i»-Dialog embroidery motif view Undoing entries Embroidery motif layers Redoing entries 15.2 Selecting and changing the embroidery motif >...
Creative embroidering 15.5 Editing the embroidery motif Overview Editing embroidery motif > To edit an embroidery motif, select the embroidery motif. > Touch the icon i-Dialog. Zoom out Mirror image up/down Zoom in Duplicating Moving the view Endless Embroidery Moving the motif Deleting Moving the motif Checking the motif size...
Creative embroidering Moving the embroidery motif view The view of the embroidery motif can be moved. In addition to that, the view can be adjusted with or without changing the embroidery position. > Select an embroidery motif. > To activate the icon «Move the view», touch the icon «Zoom in». –...
Creative embroidering Rotating motif > Select an embroidery motif. > Touch the icon «i»-Dialog. > Touch the icon «Rotate the motif». > Turn the «Upper Multifunctional knob» or the «Lower Multifunctional knob» to the right to rotate the embroidery motif clockwise. >...
Creative embroidering > Touch the icon «i»-Dialog. > Touch the icon «Alter the embroidery size». > To change the embroidery motif size disproportionally, the icon «Retain proportions» must not have a white frame. Only touch the icon «Retain proportions» when the icon has a white frame. –...
Creative embroidering Changing the stitch type If the satin stitches are too long, they can be changed to step stitches. > Select an embroidery motif. > Touch the icon «i»-Dialog. > Touch the icon «Change the stitch type». > Touch the switch in the upper section of the display (1) to change the satin stitch to the step stitch. >...
Creative embroidering Checking the size and the position of the embroidery motif It can be checked whether or not the embroidery motif matches the designated position/location on the fabric. Points which are beyond the embroidery hoop are not traveled to. >...
Creative embroidering Endless embroidery When embroidering a trim, it is advantageous to use the «Mega Hoop» (optional accessory). The embroidering project therefore does not have to be re-clamped as frequently. We recommend marking guide lines on the fabric and using the pattern when clamping and re-clamping in the hoop. In doing so, the guide lines must run parallel to the pattern.
Creative embroidering > Touch the icon «Embroider trims» once the reference points have been embroidered. – An animation displays that the fabric has to be re-clamped. > Remove the hoop and spin the fabric in such a way that the embroidered reference points are in the upper embroidery field of the hoop and the reference points are located at least 3 cm (1.18 inch) away from the upper edge of the hoop.
Creative embroidering > Touch the icon «Duplicate». – The embroidery motif (1) is duplicated (2). Deleting an embroidery motif The active embroidery motif is deleted. > Select an embroidery motif. > Touch the icon «i»-Dialog. > Touch the icon «Delete». Changing the sequence within an embroidery motif combination The sequence of the embroidery motifs within the embroidery motif combination can be changed.
Creative embroidering > Touch the icon «Redo» to restore the last entry. > Touch the icon «Redo» several times to restore the last entries step by step. Grouping embroidery motifs Embroidery motifs can be added to or removed from a group. The grouped embroidery motifs can be processed in the same way as for one embroidery motif.
Creative embroidering > Touch the icon «i»-Dialog. > Touch the icon «Grouping». – All embroidery motifs are added to the embroidery motif group. > Select the embroidery motif group. > Touch the icon «Expand grouping». – The grouping is canceled. 15.6 Pinpoint placement Positioning of grid points This function allows the exact positioning of the embroidery motif on the fabric in an easy way.
Creative embroidering > Touch the icon «Reset Pinpoint placement» to reset the alterations to default setting. Free point positioning This function allows the exact positioning of the embroidery motif on the fabric in an easy way. The points can be defined as you like within the embroidery motif. Prerequisite: •...
Creative embroidering > Touch the icon «Add an embroidery motif» (1). > Select another embroidery motif. Deleting a single embroidery motif Prerequisite: • A combination of embroidery motifs has been created. > In the section of the embroidery motif level (1) touch the desired embroidery motif with the finger, keep it pressed and move it outwards.
Creative embroidering > Touch the icon «i»-Dialog. > Touch the icon «Duplicate». – The combination is duplicated (2). 15.8 Creating lettering Overview embroidery alphabets Embroidery motif Name Swiss Block Anniversary Guinevere Drifter Childs Play Russian Textbook Curly Rounded Sans Creating words/sentences Lettering is always embroidered in one color.
Creative embroidering > Select the file «Alphabets». > Select the font. > Enter the text «Made to». > Touch the icon (1) (standard setting) to use upper case letters. > Touch the icon (2) to use lower case letters. > Touch the icon (3) to use numbers and mathematic characters. >...
Creative embroidering > Turn the «Lower Multifunctional knob» to move the embroidery motif vertically. > Touch the icon «Add motif». > Enter and also rotate the text «create». > Touch the icon «Embroidery hoop display/Embroidery hoop selection». > Touch the icon «Grid on/off» to position the text lines more exactly. 15.9 Changing the colors of the embroidery motif Overview changing the color Colors of embroidery motifs...
Creative embroidering > Touch the icon «Color information». > Touch the icon «Change color/manufacturer» beside the color that you want to change. > To display additional colors, swipe up or down on the display. > To select the color by entering the color number, touch the icon «Color selection by number». >...
Creative embroidering > Touch the icon «Edit». – The embroidery motif appears in the new colors. Changing the thread brand > Select the embroidery motif. > Touch the icon «Color information». > Touch the icon «Alter color/brand». > To show more thread brands, touch the icons «Scroll left» and «Scroll rights» in the upper part of the screen.
Creative embroidering > Touch the icon «Basting» to embroider basting stitches along the embroidery motif. > Touch the icon «Basting» again to embroider basting stitches along the embroidery hoop. > Touch the icon «Basting» again to deactivate the basting stitches. Moving the hoop If the embroidery motif is so big that repeated rehooping is necessary, the embroidered motif can be moved again.
Creative embroidering Reducing color changes When the embroidery motifs overlap, the color changes cannot be reduced. > Select an embroidery motif. > Touch the icon «Embroidering». > Touch the icon «Reduce thread change». – Identical colors of the embroidery motif are collected to one color. Multi-colored embroidery motif on/off Multi-colored embroidery motifs can also be embroidered in one color.
Creative embroidering > Touch the icon «Confirm». – The hoop is automatically moved close to the last stitch. – The icon «AUTO» is active and the hoop automatically moves close to the last reference point. > Use the arrow icons to determine the side of the embroidered section on which you want to position the next reference point.
Creative embroidering Check the movability of the free arm Please note: With tiny fabric tubes, deactivate the thread-away in the Setup Program if necessary. > Open the embroidery motif on the machine and edit as desired. > Mark the embroidery motif position and the size on the fabric in a suitable way. >...
> Touch the icon «Save the motif». – The embroidery motif to be saved is outlined in yellow. > Insert the BERNINA USB stick into the USB port of the machine. > Touch the icon «USB stick». > Touch the icon «Confirm».
> Select an embroidery motif. Loading an embroidery motif from the BERNINA USB stick > Touch the icon «Selection». > Insert the BERNINA USB stick into the USB port of the machine. > Touch the icon «USB stick». > Select a personal embroidery motif.
Embroidery 16 Embroidery 16.1 Embroidering via the button «Start/Stop» In case of a power cut the embroidery process is interrupted. After the restart the machine goes to the position which was embroidered last. > Push the button «Start/Stop» to start the embroidery machine. –...
The basic setting of the upper thread tension is provided automatically as soon as a stitch pattern or an embroidery motif is selected. The upper thread tension is set optimally at the BERNINA factory and the machine has been tested. Metrosene-/Seralon thread size 100/2 (Company Mettler, Switzerland) is used for upper and bobbin thread.
Appendix 17 Appendix 17.1 Maintencance and cleaning Cleaning the display > Clean the display in the switched off status with a soft slightly damp microfiber cloth. Cleaning the feed dog Remove the thread remnants under the stitch plate regularly. Electronically driven components CAUTION Risk of injury near the needle and the hook.
Appendix > Remove the hook. > Clean the hook race area with the brush; never use a sharp instrument. > Hold the hook at the pin in the center with two fingers. > Lead the hook, lower edge ahead, angular top-down behind the hook race cover. >...
Page 178
> Remove the hook. > Give one drop of BERNINA oil down in the hook race. > Give one drop of oil in each of the two oil depots so that the felts are damp and make sure that the red- marked surface of the hook sleeve remains free of oil.
Upper thread too tight or too > Adjust the upper thread tension. loose. Needle blunt or bent. > Replace the needle, make sure that a new BERNINA quality needle is used. Poor quality needle. > Use a new BERNINA quality needle.
Page 180
> Rethread. Poor quality thread. > Use quality thread. The stitch plate or the hook tip is > Contact the nearest specialized BERNINA dealer to have damaged. the damages repaired. > Replace the stitch plate. The thread is caught in the area >...
> Place the machine in a warm room one hour before use. > Connect the machine and switch it on. The machine is damaged. > Contact the specialized BERNINA dealer. Neither the sewing light nor Settings in the Setup Program.
Page 182
Appendix Message on the display Cause Solution The feed dog is not lowered. > Push the button «Feed dog up/down» to lower the feed dog. The selected needle and stitch > Replace the needle. plate cannot be used in > Replace the stitch plate. combination.
Page 183
The embroidery module is not > Connect the embroidery module to the machine. attached. > Contact the specialized BERNINA dealer to have the machine checked. The hoop is not attached. > Attach the hoop. The hoop is attached.
Page 184
> Attach a larger embroidery hoop. Too less free capacity on the Not enough free capacity on the > Make sure that the BERNINA USB stick (optional BERNINA USB stick (optional BERNINA USB stick (optional accessory) is used. accessory).
Page 185
The counter for the cutting cycles is reset. It is time for the regular The machine needs maintenance. > Contact the specialized BERNINA dealer. maintenance. Please contact your The message appears after the > Delete the message temporarily by touching the icon...
Appendix 17.4 Storage and disposal Storing the machine It is recommended to store the machine in the original packaging. If the machine is stored in a cold room, place it in a warm room one hour before use. > Switch the machine off and disconnect it from the power supply system. >...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12619-04 57.8 x 57.4 2.27 x 2.25 Quilt motifs Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors >...
Page 195
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12499-05 12499-24 123.3 x 123.3 133.1 x 214.7 4.85 x 4.85 5.24 x 8.45 12499-23 12607-20 123.3 x 123.3 122.4 x 122.3 4.85 x 4.85 4.81 x 4.81...
Page 196
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12416-03 12416-26 124.0 x 124.0 43.7 x 174.1 4.88 x 4.88 1.72 x 6.85 12416-48 NB346-48 160.0 x 167.0 76.2 x 76.3 6.30 x 6.60 3.00 x 3.00...
Page 197
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch NB335-48 NZ498 127.1 x 127.1 88.9 x 88.9 5.00 x 5.00 3.50 x 3.50 NZ503 82013-29 99.1 x 98.7 121.2 x 121.2 3.90 x 3.88 4.76 x 4.76...
Page 198
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 82013-32 12416-24 121.8 x 105.6 88.9 x 73.1 4.79 x 4.15 3.50 x 2.87 12616-16 12607-16 122.8 x 122.3 122.8 x 122.6 4.83 x 4.81 4.83 x 4.82...
Page 199
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12380-30 12380-04 89.2 x 96.3 83.1 x 89.9 3.51 x 3.79 3.27 x 3.53 12380-08 12380-09 89.2 x 89.1 111.6 x 61.6 3.51 x 3.50 4.39 x 2.42...
Page 200
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch BD804 BD796 122.9 x 123.6 47.2 x 174.5 4.83 x 4.86 1.85 x 6.87 BD837 BD292 123.6 x 123.6 94.8 x 95.1 4.86 x 4.86 3.73 x 3.74...
Page 201
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch BD413 BD554 97.1 x 97.2 109.9 x 109.9 3.82 x 3.82 4.32 x 4.32 BD553 BD567 113.8 x 121.1 107.9 x 108.2 4.48 x 4.76 4.24 x 4.25...
Page 202
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch BD501 BD502 63.5 x 61.1 61.5 x 60.7 2.50 x 2.40 2.42 x 2.38 BD513 BD514 63.5 x 63.4 63.5 x 62.9 2.50 x 2.49 2.50 x 2.47...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch BD563 BD569_48 89.7 x 89.6 120.6 x 120.6 3.53 x 3.52 4.74 x 4.74 Ornaments Embroidery motif Embroidery motif Width x Height Colors...
Page 204
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > in mm > in mm > in inch > in inch 12633-06 12473-04 119.8 x 119.9 93.6 x 184.2 4.71 x 4.72 3.68 x 7.25 BE7904-03 12473-06 140.0 x 130.4...
Page 205
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > in mm > in mm > in inch > in inch 19999-002 NB934-48 124.9 x 136.4 132.4 x 164.8 4.91 x 5.37 5.21 x 6.48 NB935-48 21021-05 104.1 x 168.9...
Page 206
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > in mm > in mm > in inch > in inch 12490-03 12490-04 118.1 x 113.4 146.4 x 122.4 4.64 x 4.46 5.76 x 4.81 12490-05 FP887 125.8 x 104.5...
Page 207
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > in mm > in mm > in inch > in inch OC07207 82007-11 105.8 x 138.6 4.16 x 5.45 111.7 x 94.2 4.39 x 3.70 82007-44 82006-30 114.0 x 114.8...
Page 208
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > in mm > in mm > in inch > in inch FB126 BE790502 86.9 x 102.2 59.9 x 58.2 3.42 x 4.02 2.35 x 2.29 21003-26 NB403 78.1 x 78.3...
Page 209
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > in mm > in mm > in inch > in inch NB481 NB749 123.4 x 67.6 126.5 x 262.8 4.85 x 2.66 4.98 x 10.34 NA959 FB106 128.1 x 92.6...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > in mm > in mm > in inch > in inch WS655 116.5 x 222.3 4.58 x 8.75 Children Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors...
Page 211
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch CM031-48 12401-17 85.7 x 63.4 98.8 x 55.1 3.37 x 2.49 3.88 x 2.16 CK859 CK520 75.6 x 60.3 2.97 x 2.37 118.8 x 141.8 4.67 x 5.58...
Page 212
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch CK863 NB198-48 94.2 x 72.4 3.70 x 2.85 127.1 x 124.6 5.00 x 4.90 BE790307 BE790311 141.5 x 126.9 114.1 x 152.5 5.57 x 4.99 4.49 x 6.00...
Page 213
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch BE790309 BE790310 87.5 x 149.8 137.8 x 136.0 3.44 x 5.89 5.42 x 5.35 BE790312 BE790313 122.0 x 133.1 98.9 x 102.3 4.80 x 5.24 3.89 x 4.02...
Page 214
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch CK667 CK738 89.1 x 85.7 3.50 x 3.37 99.8 x 82.3 3.92 x 3.24 CK970 CM147 84.4 x 81.6 55.0 x 99.6 3.33 x 3.21 2.16 x 3.92...
Page 215
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch CM362 CM376 120.6 x 113.0 100.3 x 97.5 4.74 x 4.44 3.94 x 3.84 NB193 113.3 x 96.2 4.46 x 3.78...
Overview stitch patterns Frames and borders Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 80090-26 12630-07 124.4 x 128.8 97.0 x 205.0 4.89 x 5.07 3.8 x 8.1 12611-27 12611-28 136.9 x 137.3...
Page 217
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12606-33 12606-37 43.0 x 70.0 45.6 x 77.8 1.69 x 2.75 1.79 x 3.06 32078-02 32078-03 123.4 x 172.9 123.4 x 172.9 4.85 x 6.80 4.85 x 6.80...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12611-21 12611-23 155.8 x 71.7 155.8 x 71.7 6.13 x 2.82 6.13 x 2.82 12611-22 12611-24 155.8 x 71.7 155.8 x 71.7 6.13 x 2.82 6.13 x 2.82...
Page 219
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12597-16 80009-17 88.4 x 85.0 85.7 x 129.8 3.48 x 3.34 3.37 x 5.11 HE255 HE252 133.2 x 127.1 88.1 x 145.0 5.24 x 5.00 3.46 x 5.70...
Page 220
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch HG747-48 NB754-48 114.3 x 128.1 4.50 x 5.04 124.0 x 147.5 4.88 x 5.80 NB759-48 HD976 98.7 x 61.7 101.1 x 108.3 3.88 x 2.42 3.98 x 4.26...
Page 221
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12415-29 12655-14 108.4 x 172.4 164 x 110 4.26 x 6.78 6.45 x 4.33 12433-05 12417-04 84.3 x 97.1 3.31 x 3.82 83.4 x 124.4 3.28 x 4.89...
Page 222
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch GNNF80834 HE962 95.2 x 78.8 120.5 x 135.2 3.74 x 3.10 4.74 x 5.32 12421-11 12421-37 39.9 x 43.6 67.4 x 61.0 1.57 x 1.71 2.65 x 2.40...
Page 223
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch CM426 FQ749 45.8 x 96.0 77.6 x 94.8 1.80 x 3.77 3.05 x 3.73 HE919 HG053 89.1 x 69.2 122.1 x 121.8 3.50 x 2.72 4.80 x 4.79...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch NB317 87.4 x 86.9 3.44 x 3.42 Borders and Lace Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors...
Page 225
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 21021-25 OC00303 33.8 x 71.5 100.6 x 110.6 1.33 x 2.81 3.96 x 4.35 HG341 NX957 63.8 x 63.7 97.9 x 88.1 2.51 x 2.50 3.85 x 3.46...
Page 226
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12633-20 12508-08 34.3 x 170.1 40.0 x 150.9 1.35 x 6.69 1.57 x 5.94 12508-17 OC33411 42.1 x 152.5 24.2 x 177.1 1.65 x 6.00 0.95 x 6.97...
Page 227
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12485-31 21013-29 45.6 x 225.2 40.2 x 152.0 1.79 x 8.86 1.58 x 5.98 BE110415 FA981 43.7 x 172.4 35.1 x 142.3 1.72 x 6.78 1.38 x 5.60...
Page 228
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 82005-40 BE790702 26.0 x 239.4 73.0 x 190.5 1.02 x 9.42 2.87 x 7.50 NA914 NB520 18.8 x 120.3 26.3 x 175.9 4.73 x 0.74 1.03 x 6.92...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch FB436 29.2 x 132.8 1.15 x 5.22 Sports and hobby Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors...
Page 230
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12611-18 NX737 72.1 x 98.7 2.83 x 3.88 130.2 x 157.6 5.12 x 6.20 NX741 12383-18 80.0 x 78.0 90.7 x 171.2 3.14 x 3.07 3.57 x 6.74...
Page 231
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch BE790606 BE790608 100.2 x 86.0 80.3 x 80.1 3.94 x 3.38 3.16 x 3.15 BE790603 BE790602 80.5 x 74.8 80.3 x 75.6 3.16 x 2.94 3.16 x 2.97...
Page 232
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch FB148 SR589 101.1 x 89.5 95.2 x 66.5 3.98 x 3.52 3.75 x 2.61 LT870 RC244 97.5 x 57.0 88.4 x 53.4 3.83 x 2.24 3.48 x 2.10...
Overview stitch patterns Animals Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch WP415-48 CM216-48 132.4 x 148.4 5.21 x 5.84 47.0 x 67.0 1.85 x 2.63 CM213-48 WP421-48 95.8 x 137.5 3.77 x 5.41 58.3 x 101.9...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch LJ598 CM220 106.5 x 81.5 4.19 x 3.20 71.5 x 71.8 2.81 x 2.82 Flowers Embroidery motif Embroidery motif Width x Height Colors...
Page 235
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 21027-16 21027-17 57.4 x 151.8 57.3 x 151.4 2.25 x 5.97 2.25 x 5.96 21017-01 FI135 104.5 x 157.5 88.5 x 87.1 4.11 x 6.20 3.48 x 3.42...
Page 236
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch FI142 FI230 79.0 x 85.8 78.1 x 72.4 3.11 x 3.37 3.07 x 2.85 FI171 82006-07 69.5 x 88.9 123.7 x 165.6 2.73 x 3.50 4.87 x 6.51...
Page 237
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12457-06 12457-13 106.3 x 172.3 113.1 x 130.3 4.18 x 6.78 4.45 x 5.12 21009-21 BE790408 64.9 x 107.7 58.3 x 89.7 2.55 x 4.24 2.29 x 3.53...
Page 238
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch FB492 FP246 86.8 x 293.2 65.6 x 61.8 3.41 x 11.54 2.58 x 2.43 FP814 FQ562 88.0 x 84.4 90.3 x 156.3 3.46 x 3.32 3.55 x 6.15...
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch FQ801 NB209 46.0 x 112.5 90.0 x 89.9 1.81 x 4.42 3.54 x 3.53 Designs with special effects Embroidery motif Embroidery motif Width x Height...
Page 240
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 21026-02_DW 21026_-02 68.6 x 193.8 60.8 x 93.8 2.70 x 7.62 2.39 x 3.69 21026-02_CR 12448-09_PW 103 x 127 121 x 161 4.05 x 0.47 4.76 x 6.34...
Page 241
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch 12448-08_PW 21022-13_DW 119.1 x 177.4 105.6 x 192.8 4.68 x 6.98 4.15 x 7.59 21022_-13 21022-13_ CWA_B 75.4 x 76.4 47.7 x 36.2 2.96 x 3.00...
Page 242
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch DW05 DW10 105 x 94 119 x 119 4.13 x 3.70 4.69 x 4.69 DW08 BE700121 100 x 206 128 x 128 3.94 x 8.11 5.0 x 5.1...
Page 243
Overview stitch patterns Embroidery motif Embroidery motif Width x Height Colors Width x Height Colors > mm > mm > inch > inch BE700124 141.0 x 134.4 5.55 x 5.29...
Attaching the hoop............. 144 Fitting the stitch plate ............ 141 Attaching the knee lifter ............ 29 Free point positioning ............ 161 BERNINA Dual Feed............... 70 Introduction................ 13 Buttonholes ................ 110 Lubricating the hook............ 177 Calibrating Buttonhole foot with slide No. 3A ....... 64 Calling up Help ..............
Page 245
Index Raising/Lowering the needle .......... 31 Regulating the speed ........... 72, 149 Restoring the default settings.......... 63 Safety instructions.............. 9 Saving a stitch pattern combination ........ 77 Saving the service data............ 62 Select own settings ............... 58 Selecting a stitch pattern............ 70 Selecting an embroidery motif ..........
