SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
5. When the cylinder fillport is disconnected from the
connector fillport, release the outer ring (sleeve) of the
connector fillport and use two hands to remove the
cylinder from the compressor cradle.
The fillport cover on the connector fillport and the
cylinder fillport MUST be replaced after filling and
whenever not in use. If either of the fillport covers are
missing contact your healthcare provider before using.
6. Place the fillport covers onto the connector fillport and
cylinder fillport.
7. Examine the cylinder gauge to ensure cylinder is full
(needle pointing into GREEN area). If the cylinder is not
full, perform the following:
• Repeat Connecting the Cylinder to the Compressor on
page 13.
• If cylinder is not full after second attempt to fill, contact
the provider.
Cylinder Fillport Cover
Part No 1143247
WARNING

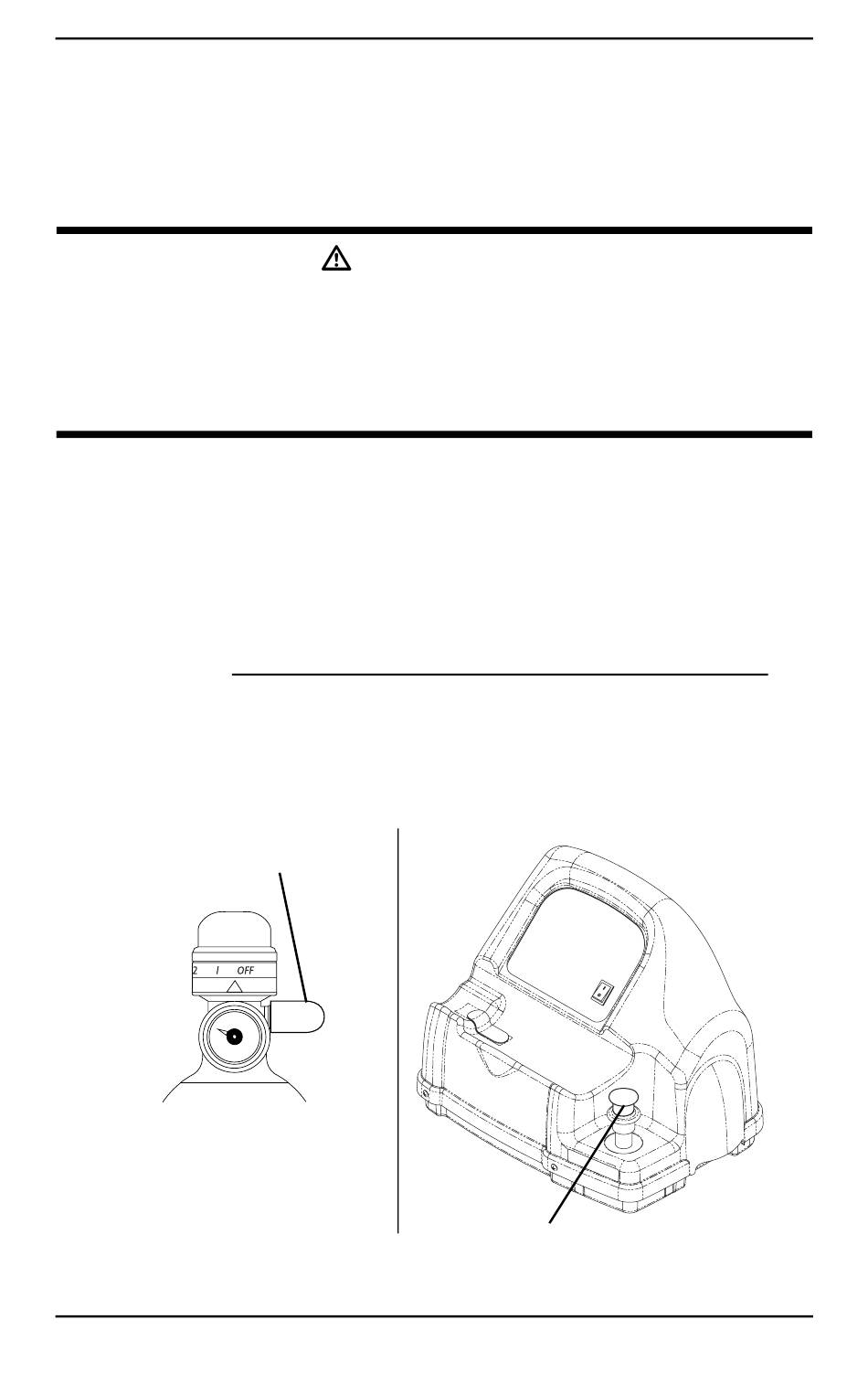

FIGURE 4.5 Fillport Covers
17
Connector Fillport Cover
Oxygen Conserving Cylinder
