SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
4. Momentarily push DOWN on the outer ring (sleeve) of the
connector fillport to reset the connector as shown in
FIGURE 4.2.
NOTE: If the outer ring (sleeve) is in the UP position
(GREEN dots not visible), the connector fillport will not
be able to accept the cylinder fillport. Pushing DOWN
momentarily will reset the connector fillport (GREEN
dots visible) to accept the cylinder fillport.
PUSH
DOWN
GREEN Dots

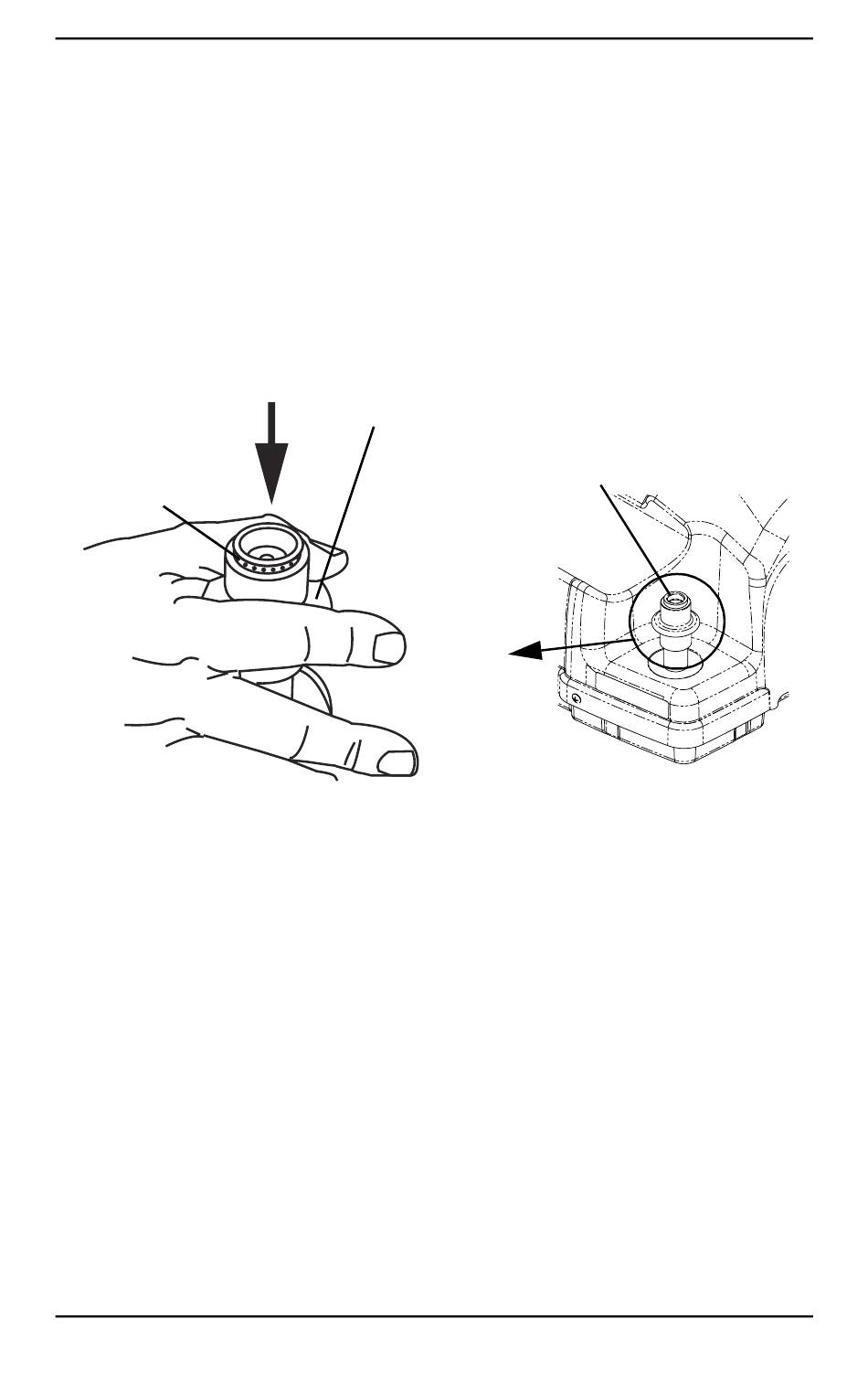

FIGURE 4.2 Resetting Connector Fillport
5. Grasp the cylinder/regulator assembly in the area behind
the cylinder gauge (FIGURE 4.3).
6. Position the cylinder in the compressor cradle (FIGURE
4.3).
7. Align the cylinder fillport with the connector fillport
(FIGURE 4.3).
8. Pull UP on the outer ring (sleeve) of the connector fillport
while pushing DOWN on the cylinder/regulator assembly
to couple the cylinder fillport into the connector fillport
(FIGURE 4.3).
NOTE: The cylinder is properly connected when an audible "click"
is heard.
Oxygen Conserving Cylinder
Outer Ring (Sleeve)
BEFORE
COUPLING
CYLINDER,
PUSH DOWN
ON SLEEVE
UNTIL
GREEN DOTS
ARE VISIBLE.
14
Connector Fillport
