Starting Up - Varytec Retro Blinder 80 LED User Manual

5

Starting up

Connections in DMX mode
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

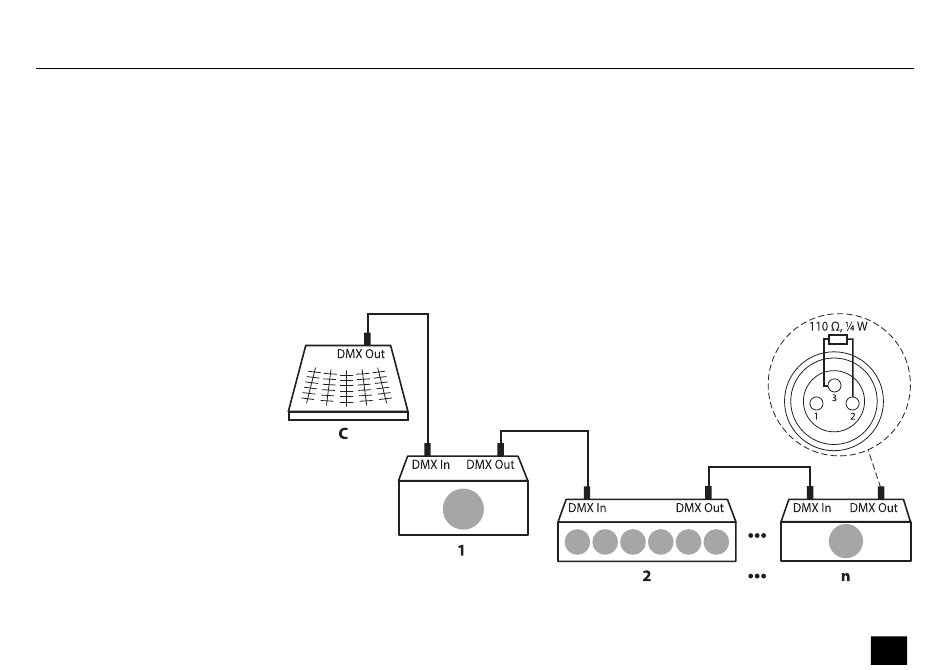

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼ W).
Starting up
Retro Blinder 80 LED
15
Blinder
