Summary of Contents for Varytec LED Giga Bar 4
-

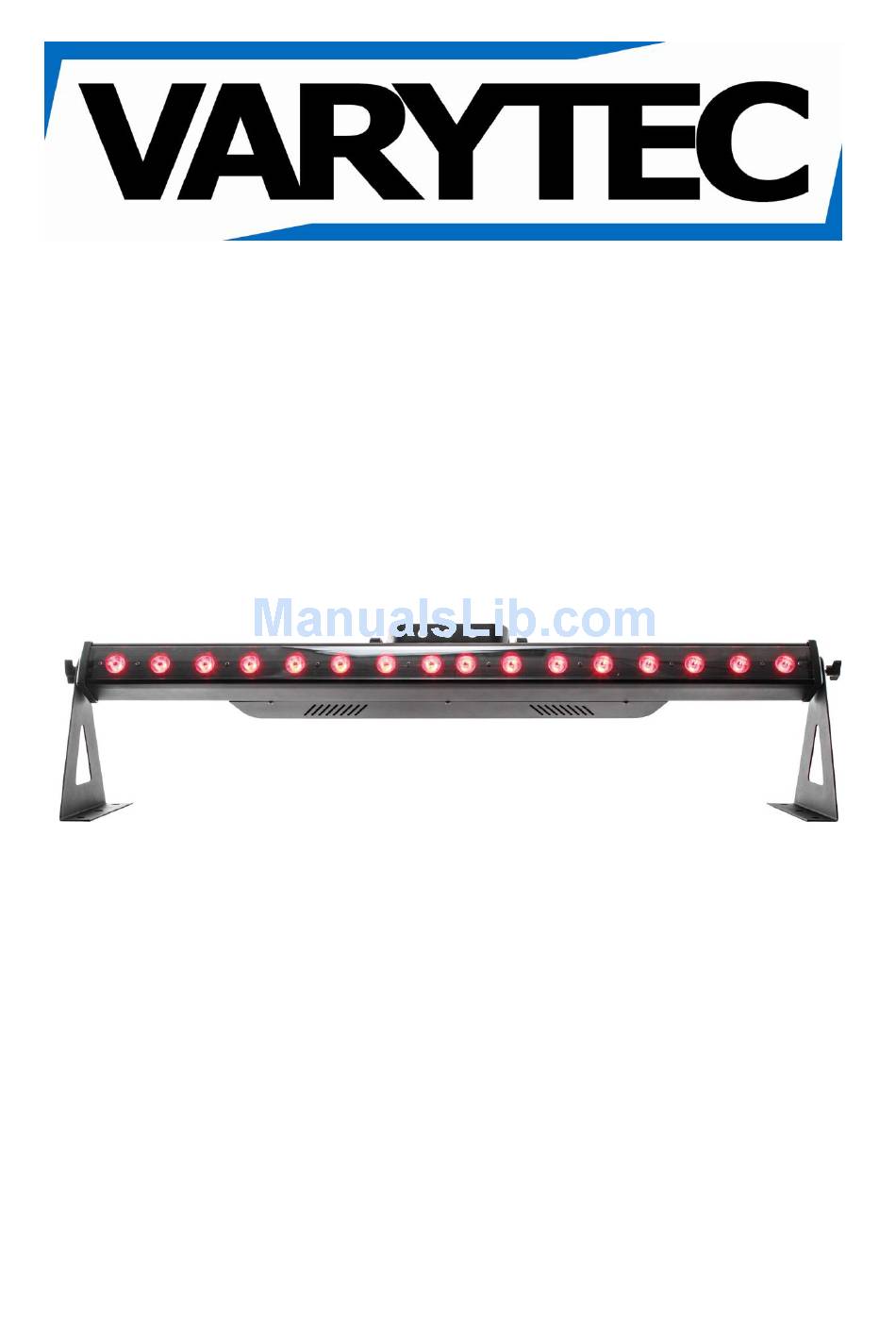

Page 1: Led Giga Bar 4
LED Giga Bar 4 User Manual... -
Page 2: Table Of Contents
Index LED Giga Bar 4 ............................1 Safety instructions ........................... 3 1.1. Hints for safe and faultless use ....................3 Introduction ............................4 Installation (for rigging) ........................4 Unpacking ............................4 Specifications: ..........................4 Functions: ............................6 Menu ..............................6... -
Page 3: Safety Instructions
1. Safety instructions The warranty expires in case of manual changes at the device by the user. The device may only be repaired by professionals. Only use fuses of the same type, as the original and only use original spare parts. -
Page 4: Introduction
Attention! The warranty claim expires, when damages are caused by disregarding this user manual. The manufacturer and importer do not assume liability for consequential damages at all. Only qualified and trained technicians are allowed to work at electric parts of the device. All electrical and mechanical connections have to be mounted according to the European safety standards. - Page 5 DMX channels and their functions 10CH 18CH 32CH 34CH...
-
Page 6: Functions
LED functions speed DMX values and their functions: … 0~7： 8~15 16~23 24~31: 237~244 245~242 242~247 248~255 LED functions … strobo mode1 mode2 mode27 sound1 sound2 sound3 dimmer 0<-------------------------------------------->255 Functions speed slow<------------------------------------------->fast 6. Functions: RGBW color mixing Color-Strobe effect Color-mix effect LED chases (controllable speed) Electronic dimming 0-100% Build in microphone... - Page 7 Addr: You can set the DMX start-address here. Auto: You can select the automatic programs here. Chnd: You can select the DMX mode for using the device. (For using the DMX mode connect the DMXin of the Gigabar IV with the DMXout of a DMX-controller by a DMX-cable.
