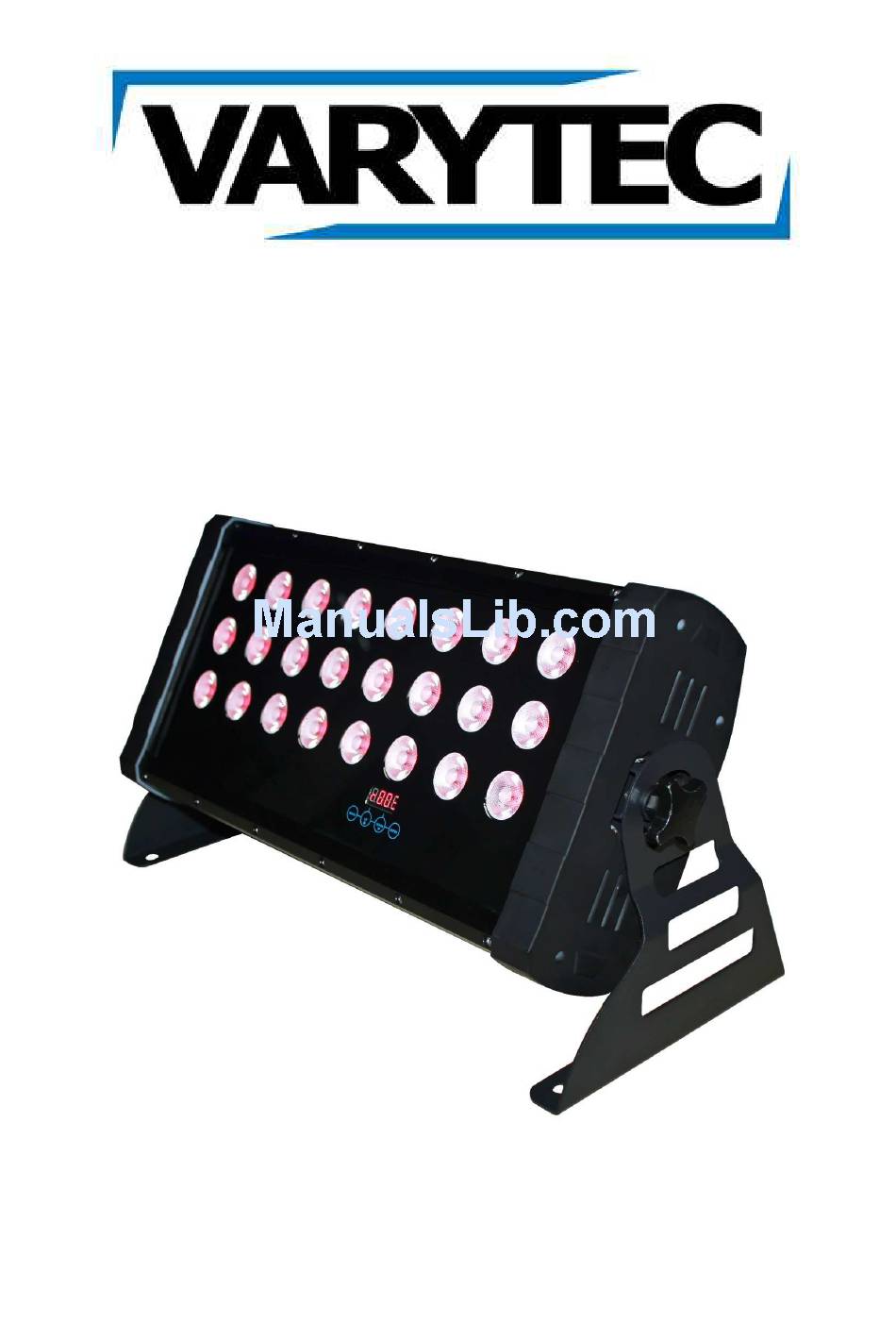

- Page 1 LED TouchWash 24x8W RGBW IP65 User Manual...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Introduction ............................4 2.1. Foreword ..........................4 2.2. Description ..........................4 Properties ............................4 3.1. Fittings ............................. 4 3.2. Specifications........................... 5 Menu..............................5 DMX Table ............................8 5.1. -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Introduction
2.2. Description The LED TouchWash is a LED color changer with 24 powerful RGBW full color LEDs. You can use the device in “Stand alone”-mode or in “Master-Slave”-mode. The configuration you can make easy on the operating panel. -
Page 5: Specifications
Switching power supply (100-240V, 50/60Hz) • 230W input 4. Menu The TouchWash has an Menu which is easy to operate. It follows a description about the function of menu. Please read this chapter carefully. Addr DMX address adjust: 1…512 1 Ch... -
Page 6: Color
Addr – Setting for the start of the DMX address 1. Push the Enter MENU-Button, then the UP/DOWN-button until you can read “Addr” in the display. Confirm with ENTER. 2. The display shows “Axxx”. “x” is the current address. Set with the UP/DOWN-buttons the right address and confirm with ENTER. -
Page 7: Color
Slav – Setting of Master/Slave-mode 1. Push the Enter MENU-Button, then the UP/DOWN-button until you can read “SLav” in the display. Confirm with ENTER. 2. The display shows “Sla”, now the device is controlled by the master device. Info – Shows the current software version 1. -
Page 8: Dmx Table
5. DMX Table 5.1. DMX Mode 1 (1 Channel) Value Function Channel Color 1 Color 2 10-14 Color 3 … … 240-244 Color 48 245-249 Color 49 250-254 Color 50 Color 51 5.2. DMX Mode 4 (4 Channel) Value Function Channel 0-255 Dimmer red LEDs... -
Page 9: Color
