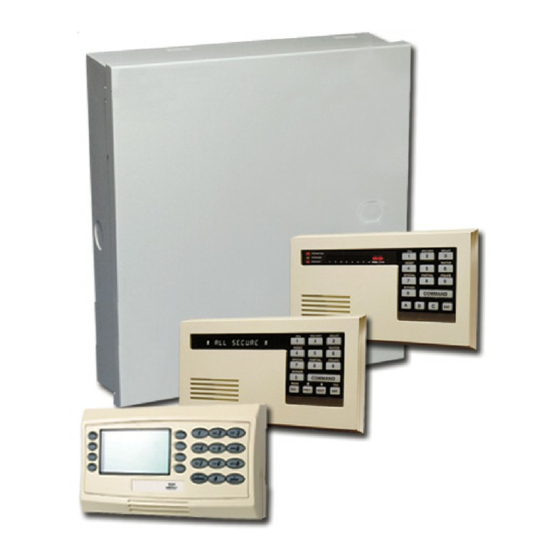

Control/Communicator D7212G
Approved Applications Compliance Guide

Advertisement

Table of Contents
loading

Related Manuals for Bosch D7212G

Summary of Contents for Bosch D7212G

  • Page 1 Control/Communicator D7212G Approved Applications Compliance Guide...
  • Page 2 D7212G Approved Applications Compliance Guide D7212G Approved Applications Compliance Guide 4998138560C Page 2 © 2003 Bosch Security Systems...

  • Page 3: Table Of Contents

    Enclosures ....................................6 System Chart ......................................7 System Wiring Diagrams, Issue A ............................... 9 D7212G Control/Communicator, 1 of 3 ......................... 9 D7212G Control/Communicator, 2 of 3 ........................10 D7212G Control/Communicator, 3 of 3 ........................11 Current Rating Charts ..................................13 Current Rating Chart for Standby Battery Calculations ..................
  • Page 4 D7212G Contents Figures Figure 1: D7212G System Wiring Diagram, 1 of 3 ........................9 Figure 2: D7212G System Wiring Diagram, 2 of 3 ........................10 Figure 3: D7212G System Wiring Diagram, 3 of 3 ........................11 Tables Table 1: UL System Chart ................................. 7 Table 2: Current Rating Chart for Standby Battery Calculations ..................

  • Page 5: Approved Applications Compliance Guide

    The UL Listed Model 5110 Bell and Model 4001-42 External Line Balancer (both made by Rothenbuhler) must be used for the bell and balanced line module in bank safe and vault applications. Modifications must be made to the Bosch Security Systems D8108A enclosure to meet UL Standard 681.

  • Page 6: Enclosures

    For battery calculations, refer to Table 2 on page 15, Section 5.0 Standby Battery Requirements on page 13, and Section 6.0 Standby Battery Calculation for NFPA 72 Fire Alarm Applications on page 16. Test weekly: Bosch Security Systems recommends a Fire Test be performed weekly. The AC power is automatically tested as is the battery per UL 985.

  • Page 7: System Chart

    D270 4-wire base and a listed power supervision relay. ** = Listed bell (siren) housing required for burglary alarm bell or siren. [Empty Cell] = Not used for this application. Table 1: UL System Chart D7212G Approved Applications Compliance Guide © 2003 Bosch Security Systems Page 7 4998138560C...
  • Page 8 D7212G System Chart Notes: D7212G Approved Applications Compliance Guide 4998138560C Page 8 © 2003 Bosch Security Systems...

  • Page 9: System Wiring Diagrams, Issue A

    D7212G System Wiring Diagrams, Issue A System Wiring Diagrams, Issue A D7212G Control/Communicator, 1 of 3 Figure 1: D7212G System Wiring Diagram, 1 of 3 D7212G Approved Applications Compliance Guide © 2003 Bosch Security Systems Page 9 4998138560C...

  • Page 10: D7212G Control/Communicator, 2 Of 3

    D7212G System Wiring Diagrams, Issue A D7212G Control/Communicator, 2 of 3 Figure 2: D7212G System Wiring Diagram, 2 of 3 D7212G Approved Applications Compliance Guide 4998138560C Page 10 © 2003 Bosch Security Systems...

  • Page 11: D7212G Control/Communicator, 3 Of 3

    D7212G System Wiring Diagrams, Issue A D7212G Control/Communicator, 3 of 3 Figure 3: D7212G System Wiring Diagram, 3 of 3 D7212G Approved Applications Compliance Guide © 2003 Bosch Security Systems Page 11 4998138560C...
  • Page 12 D7212G System Wiring Diagrams, Issue A Notes: D7212G Approved Applications Compliance Guide 4998138560C Page 12 © 2003 Bosch Security Systems...

  • Page 13: Current Rating Charts

    Total C = _____ * See Table 3 on page 14 for determining maximum currents for the D8125MUX and its accessories. Table 2: Current Rating Chart for Standby Battery Calculations D7212G Approved Applications Compliance Guide © 2003 Bosch Security Systems Page 13...

  • Page 14: Current Rating Chart For D8125Mux

    Qty. = Column A Column B Total = Total = * Refer to the device’s Installation Guide for current draw values. Table 3: Current Rating Chart for D8125MUX D7212G Approved Applications Compliance Guide 4998138560C Page 14 © 2003 Bosch Security Systems...

  • Page 15: Standby Battery Requirements

    Standby battery capacity of 24 hours plus 4 minutes of alarm operation is required. See the Ampere-Hour Calculation Formula in Section 6.2 Household Fire Warning Equipment on page 16. D7212G Approved Applications Compliance Guide © 2003 Bosch Security Systems Page 15...

  • Page 16: Standby Battery Calculation For Nfpa 72 Fire Alarm Applications

    .067 ) ______ Total Ah requirements must not exceed Ah capacity of batteries: Two D126 Batteries = 14 Ah; one D1218 battery = 17.2 or 18 Ah © 2003 Bosch Security Systems 4998138560C 05/03 130 Perinton Parkway, Fairport, NY 14450-9199 USA...
