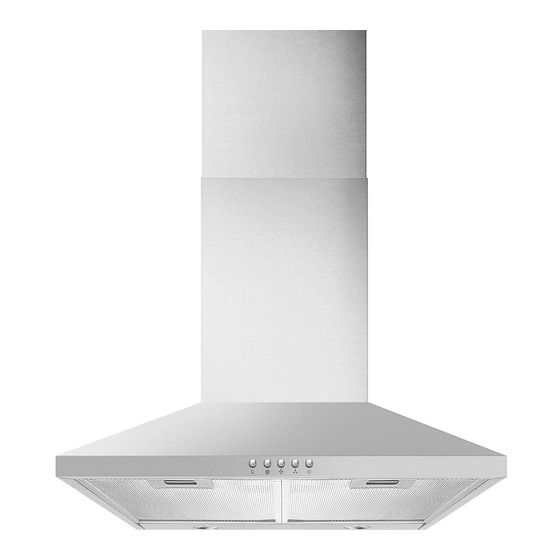

CDA ECH Series Directions For Installation, Use And Maintenance
Standard chimney extractors
Hide thumbs
Also See for ECH Series:
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for CDA ECH Series
Summary of Contents for CDA ECH Series
- Page 1 Standard chimney extractors Installation, use and maintenance...
-
Page 2: Table Of Contents
Contents 3. Important 4. Declaration of Conformity & product disposal 5. Notes 6. Using your extractor 7. Care and maintenance Removing and cleaning the grease filters 8. Changing a charcoal filter Extractor lighting Notes on operating modes 10. Mains electrical connection Electrical information Troubleshooting Determining the position of your extractor... -
Page 3: Important
Appliance information Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance warranty. Appliance model Serial number... - Page 4 EU Declarations of Conformity This appliance has been designed and manufactured to comply with all applicable UK and EU legislation, Low voltage Directive, 2014/35/EU Electromagnetic compatibility Directive, 2014/30/EU ErP Directive, 2009/125/EC RoHS Directive, 2011/65/EU and has been marked with the following symbols IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
- Page 5 Please note Under no circumstances should the extractor be connected to any gas ventilation system, flue system or hot air ducting system. Do not vent the extractor into an attic or loft space. Only house the extractor in rooms with adequate ventilation.
-
Page 6: Using Your Extractor
Using your extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel Lamp Fig 1. To switch the extractor light on or off Press the “Lamp”... - Page 7 IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a non-abrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. You can clean your extractor effectively by simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth.
-
Page 8: Changing A Charcoal Filter
Please note that cleaning the grease filter(s) in a dishwasher may cause the filters to discolour. This is normal and does not constitute a fault with the appliance. Changing the charcoal filter To ensure the best performance of your extractor, you should replace the charcoal filter every three to six months, depending on the frequency of use and the style of cooking. -
Page 9: Extractor Lighting
The lighting on your extractor uses energy efficient LED technology and is designed to last the lifetime of the product. If the LED system malfunctions, please contact CDA Customer Care. The LED units must only be replaced by a competent appliance service engineer. -
Page 10: Mains Electrical Connection
Mains electricity connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A 3A FUSE. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. -
Page 11: Electrical Information
If the mains cable of this appliance is damaged, it must only be replaced by a CDA approved service engineer, agent, or other suitably qualified person. IMPORTANT – ONLY USE A 3 AMP FUSE The use of a 13A fuse can cause internal wiring damage which will not be covered under the CDA warranty. -
Page 12: Determining The Position Of Your Extractor
Determining the position of your extractor When the extractor is to be h = min 550mm mounted above an electric hob, the distance between the hob h = min 650mm and the extractor must be greater than 550mm (600mm is recommended). -
Page 13: Fixings Provided
Installation Fixings provided We have provided a set of fixings that are suitable for most walls. However, please ensure that the fixings you use to secure the extractor to the wall are appropriate for the type of wall in your kitchen. -
Page 14: Installation Steps
Installation steps 1. Using the template supplied, mark out the positions of the mounting holes required. Make sure that the extractor height above the hob will be greater or equal to the height required for Fig 9. your hob (figure 7). 2. - Page 15 5. Fit the extractor duct pipe and secure to the extractor using duct tape, cable tie or other clamping means. Fig 13. 6. Lift the chimney section on to the body of your extractor, taking care not to scratch the two parts. Fig 14.
-
Page 16: Ducting And Ventilation
Ducting and ventilation For best performance and quietest operation, we recommend the use of 150mm ducting and for the extractor to be used in extraction mode (as shown in figure 4). 125mm ducting may be used but this will reduce the performance and increase the noise of the extractor when in use. - Page 17 Product fiche (Technical information) Model identification, Symbol Units ECH63 ECH73 ECH93 ECH103 Annual Energy Consumption, AEC 67.7 kWh/yr hood Energy Efficiency Index, EEI hood Fluid Dynamic Efficiency, FDE 14.3 20.6 15.4 20.8 hood Fluid Dynamic Efficiency Class Lighting Efficiency, LE Lux/W hood Lighting Efficiency Class...
- Page 18 Notes 18 | Instruction Manual...
- Page 19 This page is intentionally left blank Instruction Manual | 19...
- Page 20 The CDA Group Harby Road Langar Nottinghamshire NG13 9HY Sales Department Phone: 01949 862010 Email: sales@cda.eu Customer Care Phone: 01949 862012 Email: customer.care@cda.eu...
