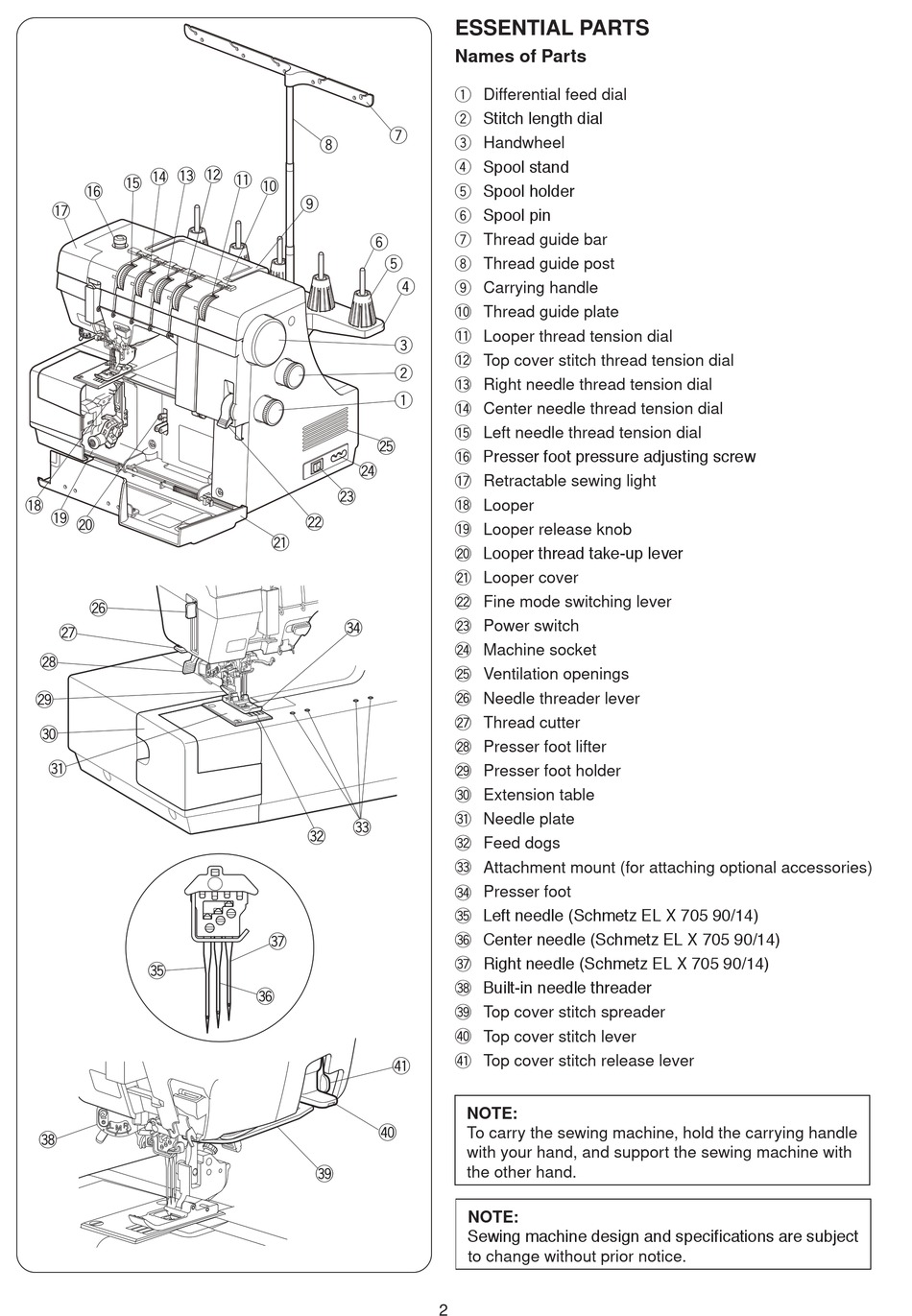

ESSENTIAL PARTS
Names of Parts
q
Differential feed dial
Stitch length dial
w
e
Handwheel
Spool stand
r
Spool holder
t
Spool pin
y
u
Thread guide bar
i
Thread guide post
o
Carrying handle
!0
Thread guide plate
!1
Looper thread tension dial
!2
Top cover stitch thread tension dial
!3
Right needle thread tension dial
!4
Center needle thread tension dial
!5
Left needle thread tension dial
Presser foot pressure adjusting screw
!6
!7
Retractable sewing light
!8
Looper
!9
Looper release knob
Looper thread take-up lever
@0
@1
Looper cover
@2
Fine mode switching lever
@3
Power switch
@4
Machine socket
@5
Ventilation openings
@6
Needle threader lever
@7
Thread cutter
@8
Presser foot lifter
@9
Presser foot holder
#0
Extension table
#1
Needle plate
#2
Feed dogs
#3
Attachment mount (for attaching optional accessories)
#4 Presser foot
Left needle (Schmetz EL X 705 90/14)
#5
Center needle (Schmetz EL X 705 90/14)
#6
Right needle (Schmetz EL X 705 90/14)
#7
Built-in needle threader
#8
#9
Top cover stitch spreader
$0
Top cover stitch lever
$1
Top cover stitch release lever
NOTE:
To carry the sewing machine, hold the carrying handle
with your hand, and support the sewing machine with
the other hand.
NOTE:
Sewing machine design and specifications are subject
to change without prior notice.
