Summary of Contents for IPSO IPD150G
-
Page 1: Model Numbers & Company Address

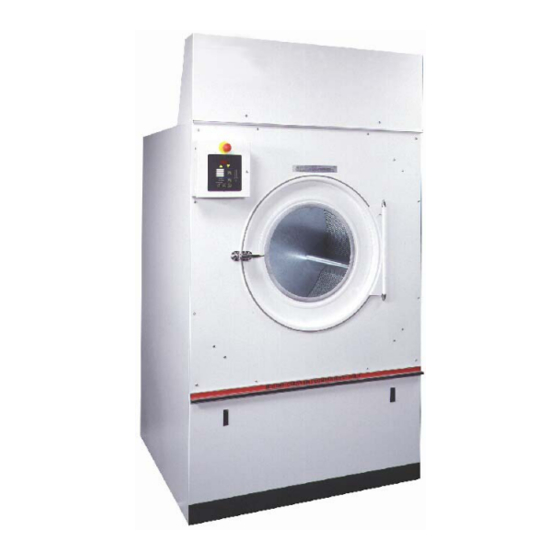

- USA OWNER'S MANUAL 150 lb. LAUNDRY DRYER Gas: IPD150G Steam: IPD150S IPD150 IPSO-USA 3101 South Haven Hwy. 77 - Suite A Panama City, FL 32405 Tel: (850) 271-8486 THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER D0384 MANIPD150... -
Page 2: Important Notices
IMPORTANT NOTICES—PLEASE READ For optimum efficiency and safety, we recommend that you read the Manual before operating the equipment. Store this manual in a file or binder and keep for future reference. WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury, or loss of life. - Page 3 IMPORTANT NOTICES—PLEASE READ WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similar texture materials. Do not put into this dryer flammable items such as baby bed mattresses, throw rugs, undergarments (brassieres, etc.) and other items which use rubber as padding or backing. Rubber easily oxidizes causing excessive heat and possible fire.
- Page 4 IMPORTANT NOTICES—PLEASE READ ATTENTION: L’ACHETEUR DOIT PLACER L’AVERTISSEMENT SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE: AVERTISSEMENT. Assurez-vous de bien suivre les instructions donnees dans cette notice pour reduire au minimum le risque d’incendie ou d’explosion ou pour eviter tuot dommage materiel, toute blessure ou la mort. __ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre...
-
Page 5: Dryer Warranty
(3) years due to normal wear and tear, and with respect to all new repair or replacement parts for IPSO equipment for which the three (3) year warranty period has expired, or for all new repair or replacement parts for equipment other than IPSO equipment, the warranty period is limited to ninety (90) days from date of sale. -
Page 6: Table Of Contents
TABLE OF CONTENTS PAGE Model Numbers & Company Address .................. 1 Important Notices ......................2-4 Dryer Warranty ........................5 Table of Contents ......................6-7 Warnings, Symbols ......................8-9 Unpacking/General Installation ..................10-11 General Dimensions ....................... 12-13 Dryer Specifications ....................... 14-15 Electrical Connections ...................... -
Page 7: Table Of Contents
TABLE OF CONTENTS Air Switch Assembly ......................65 Two Timer Control Panel Assembly ..................66 DMP Control Panel Assembly .................... 67 Pro Control Panel Assembly ....................68 ProHC Control Panel Assembly ..................69 DX3R Control Panel Assembly ................... 70 Rear Motor Control Assembly .................... 71 Parts - TM200 Gear Reducer ..................... -
Page 8: Warnings, Symbols
SYMBOLS The following symbols are used in this manual and/or on the machine. Symbol Description NOTE! Hot! Do Not Touch Heiß! Nicht Beruhren Haute temperature! Ne pas toucher Caliente! no tocar dangerous voltage tension dangereuse Gefährliche elektrische Spannung tension peligrosa marche conectado arrêt... - Page 9 SYMBOLS Description Symbol rotation in two directions rotation dans les deux sens Drehbewigung in zwei Richtungen movimiento rotativo en los dos sentidos direction of rotation sens de mouvement continu de rotation Drehbewegung in Pfeilrichtung movimiento giratorio o rotatorio en el sentido de la flecha End of Cycle caution attention...
-
Page 10: Unpacking/General Installation
UNPACKING/GENERAL INSTALLATION (ALL DRYERS) This dryer is packed in a large wooden crate. UNPACKING Upon arrival of the equipment, any damage in shipment should be reported to the carrier immediately. Upon locating permanent location of a unit, care should be taken in movement and placement of equipment. - Page 11 GENERAL INSTALLATION (ALL DRYERS) IMPORTANT Provide adequate clearance for air openings into the combustion chamber. GENERAL Replacement parts for this dryer are available from your distributor or by contacting the factory at the address or phone number printed on the cover of this manual. 1 .
-
Page 12: General Dimensions
GAS DRYER DIMENSIONS Page 12... - Page 13 STEAM DRYER DIMENSIONS Page 13...
-
Page 14: Dryer Specifications
DRYER SPECIFICATIONS GENERAL Floor Space ..........64” (1626 mm) Deep x 54” SPECIFICATIONS (1372 mm) Wide x 96” FOR 150 lb. DRYERS (2439 mm) High Doors ............ 31-1/4” (794 mm) Diameter Basket Size .......... 50” (1270 mm) Diameter x 42” (1067 mm) Deep Basket Capacity (Dry Weight) .. - Page 15 DRYER SPECIFICATIONS STEAM HEATED DRYERS ONLY Operating Steam Pressure 100 psig (6.9 bar) Maximum Boiler HP 12.5 HP (9.33 kW) Heat Capacity 8 Coil Steam Coils (4) 6”(153 mm) x 10 1/4” (261 mm) x 40 1/2”(1029 mm) Steam Supply Connection 3/4”...
-
Page 16: Electrical Connections
ELECTRICAL CONNECTIONS (WITH GROUNDING INSTRUCTIONS Dryers must be electrically grounded by a separate #14 or larger ELECTRICAL green wire from the grounding terminal within the service connection CONNECTIONS box, to a cold water pipe. In all cases, the grounding method must comply FOR ALL DRYERS with local electrical code requirements;... -
Page 17: Gas Piping
GAS PIPING The size of the gas service pipe is dependant upon many variables, such GAS SERVICE as tees, lengths, etc. Specific pipe size should be obtained from the gas INSTALLATION supplier. Refer to the Gas Pipe Size Chart in this manual for general gas INFORMATION pipe size information. - Page 18 GAS PIPING INSTALLATION (ILLUSTRATION) Page 18...
-
Page 19: Gas Pipe Size Chart
GAS PIPE SIZE CHART TOTAL BTU/HR GAS PIPE SIZE FOR 1000 Btu (252 kcal/h) NATURAL GAS (for LP Gas correct AT 7” w. c. (17.5 bar) PRESSURE TOTAL total Btu/h below by KCAL multiplying by .6) In figuring total length of pipe, make allowance for tees and elbows. H O U R (25 ft.) (50 ft.) -
Page 20: Gas Piping Installation
GAS PIPING INSTALLATION GAS PIPING 1. The installation must conform to local codes or in absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 or INSTALLATION the CAN/CGA-B149, Installation Codes. 2. Check with utilities for proper gas pressure and gas supply line. 3. -
Page 21: Bonnet Shipped Separately - Installation Instructions
Steam Dryers - Option Installation Instructions (When The Steam Bonnet Is Shipped Separate) STEAM DRYERS -OPTION 1. The dryer comes in two wood crates: INSTALLATION INSTRUCTIONS A - Very large crate B - Smaller crate 2 . Open Crate A and lift dryer off the skid and set in place. 3 . - Page 22 I - Control Box Assembly and II - Steam Bonnet Assembly (When The Steam Bonnet Is Shipped Seperate) I - Control Box Assembly II - Steam Bonnet Assembly Page 22...
- Page 23 STEAM PIPING - INSTALLATION INSTRUCTIONS STEAM PIPING - Set and anchor dryer in position. Machine should be level INSTALLATION assure proper steam circulation. INSTRUCTIONS 2. To prevent condensate draining from headers to dryer, piping should have a minimum 12” (305 mm)above respective header.
-
Page 24: Steam Piping Installation
STEAM PIPING INSTALLATION INDIVIDUALLY TRAPPED COILS ARE RECOMMENDED RATHER THAN MANFOLDING RE- TURN INTO ONE TRAP. Page 24... -
Page 25: Exhaust Installation - Multiple Exhaust
DRYER INSTALLATION WITH MULTIPLE EXHAUST For Exhaust Duct less than 14 feet (5 m) and 2 elbows equivalent and less than 0.3 inches (.8 mbar) static pressure. DRYER EXHAUSTS Area of section “A-A” must be equal to the sum of dryer exhaust pipes entering multiple exhaust pipe. - Page 26 DRYER INSTALLATION WITH MULTIPLE EXHAUST (ILLUSTRATION) Page 26...
- Page 27 DRYER INSTALLATION WITH MULTIPLE EXHAUST For Exhaust Duct more than 14 feet (5 m) and 2 elbows equivalent EXHAUST and more than 0.3 inches (8 mm) static pressure. INSTALLATION— MULTIPLE MANIFOLD 1. Make-up air from outside building may enter enclosure from top or side walls.
-
Page 28: Dryer Make-Up Air Requirements
SUGGESTED MINIMUM DRYER MAKE-UP AIR REQUIREMENTS Dryer Dryer Pocket Maximum Air Flow Duct Size For Required Make-up Model Capacity Rate per Pocket Service Connection Air Area per Pocket m3/h inch sq. inch cm2 IPD30 ST 13.6 IPD75 ST 1000 1700 1240 IPD110.1 2200... -
Page 29: Exhaust Installation - Separate Exhaust
DRYER INSTALLATION WITH SEPARATE EXHAUST (PREFERRED) DRYER INSTALLATION WITH SEPARATE EXHAUST DRYER INSTALLATION (PREFERRED) WITH SEPARATE EXHAUST (PREFERRED) For Exhaust Duct less than 14 feet (5 m) and 2 elbows equivalent and less than 0.3 (8 mm) inches static pressure. NEVER exhaust the dryer into a chimney. -
Page 30: Dryer Air Flow Installation
DRYER AIR FLOW INSTALLATION Nothing is more important than air flow for the proper operation of a clothes dryer. A DRYER AIR FLOW dryer is a pump which draws make-up air from the out-of-doors, through the heater, INSTALLATION through the clothes and then forces the air through the exhaust duct back to the out-of- doors. -
Page 31: Rules For Safe Operation Of Dryer
RULES FOR SAFE OPERATION OF DRYER 1. Be sure your dryer is installed properly in accordance with the RULES FOR SAFE recommended instructions. OPERATION OF DRYER 2. CAUTION Be safe—shut main electrical power supply and gas supply off externally before attempting service. 3. -
Page 32: Energy Saving Tips
ENERGY SAVING TIPS Install dryer so that you can use short, straight venting. Turned ENERGY SAVING TIPS elbows and long vent tubing tend to increase drying time. Longer drying time means the use of more energy and higher operating costs. Operate dryer using full-size loads. -
Page 33: Operating Instructions-Two Timer Models
OPERATING INSTRUCTIONS—TWO TIMER MODELS Page 33... - Page 34 OPERATING INSTRUCTIONS—TWO TIMER MODELS OPERATING INSTRUCTIONS—TWO TIMER MODELS OPERATING INSTRUCTIONS—TWO 1. After loading the dryer with the water washed clothes load, TIMER MODELS close the loading door. For better drying, do not load dryer with combination of garments that twist. 2.
- Page 35 OPERATING INSTRUCTIONS—TWO TIMER MODELS OPERATING OPERATING INSTRUCTIONS—TWO TIMER MODELS (continued) INSTRUCTIONS—TWO TIMER MODELS What is happening to the drying operation: a. The fan motor will operate. b. The basket will rotate. c. The heat source will be energized. d. The heated air will mix with the water washed clothes to evaporate the moisture from the garments.
-
Page 36: Service Savers
SERVICE SAVERS To help you troubleshoot the dryer, listed below are the most common TROUBLESHOOTING reasons for service calls and some answers to the problems. Before you call service, please review the following items: 1. Is the door completely closed? 2. -
Page 37: Troubleshooting Charts
TROUBLESHOOTING CHART TROUBLE CAUSE REMEDY Motor will not start. No power. Check fuses on circuit breakers. Make sure main control switch is ON. Incorrect power. Check power source; voltage, phase and frequency must be the same as specified on electrical rating plate. Time off. - Page 38 TROUBLESHOOTING CHART TROUBLE CAUSE REMEDY Dryer runs, but no heat. Incorrect voltage. Check for correct control voltage - 24V. No voltage. Check power supply, check secondary voltage on transformer and check wiring and wiring diagram. Lint Door open. Close lint door. Defective gas valve.
- Page 39 TROUBLESHOOTING CHART TROUBLE CAUSE REMEDY Main burners burning Dirt in burner. Blow out. improperly. High gas pressure. Adjust gas pressure per rating plate. Orifice too large. Send to factory for correct orifices. Restricted or blocked Clean exhaust. exhaust. Main burner cycles on and Defective ground.
-
Page 40: Direct-Spark Ignition Operation
DIRECT-SPARK IGNITION OPERATION DIRECT SPARK NOTE: Some models are equipped with a dual ignition system. The dual ignition system contains two Direct Spark IGNITION Ignition modules in parallel. Each module has its own OPERATION Flame Sense circuit and acts independently of the other. If either Bonnet Limit Thermostat opens because of high heat or flame impingement, the entire ignition system will shut down. - Page 41 DIRECT SPARK IGNITION OPERATION FLOW CHART Page 41...
-
Page 42: General Maintenance
MAINTENANCE—GENERAL CLEAN LINT TRAP DAILY. Remove lint before starting day’s operation. A clean lint trap will increase DAILY the efficiency of the dryer, as the moisture-laden air will be exhausted more quickly. DRYER AREA. Keep dryer area clean and free from combustible materials, gasoline and other flammable vapors and liquids. -
Page 43: Burner Air Inlet Adjustment
BURNER AIR INLET ADJUSTMENT BURNER AIR INLET ADJUSTMENT Page 43... -
Page 44: Basket Alignment (Tm200 Gear Reducer)
BASKET ALIGNMENT FOR DRYERS WITH TM200 GEAR REDUCER Page 44... - Page 45 BASKET ALIGNMENT FOR DRYERS WITH TM200 GEAR REDUCER INSTRUCTIONS INSTRUCTIONS FOR ALIGNING BASKETS ON 1. Loosen bolts number one (1) through five (5). 110 LB. DRYERS 2. Place pin “A” in position shown in figures 1 and 2. 3. Check pins “B” at position shown in figures 1 and 2 for equal clearance.
-
Page 46: Basket Alignment (Gear Motor)
BASKET ALIGNMENT FOR DRYERS WITH GEAR MOTOR Jacket Rear View BASKET TOO LOW If there are shims under Bearing B; 1. Loosen bolts 2. Remove shim(s). 3. Tighten bolts - check alignment. If there are no shims under B; 1. Loosen bolts on bearing A. 2. -
Page 47: Shimming The Basket And Spider Assembly
SHIMMING THE BASKET AND SPIDER ASSEMBLY This procedure is normally necessary when replacing either the basket INSTRUCTIONS FOR or the spider assembly on any dryer. The alignment of these two parts SHIMMING THE BASKET are crucial in assuring a true running basket. AND SPIDER ASSEMBLY A. -
Page 48: Air Switch Adjustment
AIR SWITCH ADJUSTMENT AIR SWITCH 1. Shut off current; disconnect leads and remove air switch. 2. Lay air switch assembly on flat surface. Adjust air blade at “A” ADJUSTMENT (figure 1) so that air blade lays flat and surface “B” is parallel to the flat surface. -
Page 49: Dryers With Reversing Control Timer
DRYERS WITH REVERSING CONTROL TIMER Instructions INSTRUCTIONS FOR In operation, coasting of basket increases, making it necessary to DRYERS WITH readjust reversing timer. REVERSING CONTROL TIMER CAUTION Failure to do this will cause the thermal overload units for the basket to cut-out unnecessarily and probably damage the gear reducer. - Page 50 DRYERS WITH REVERSING CONTROL Instructions INSTRUCTIONS FOR DRYERS WITHOUT NOTE REVERSING CONTROL Fan rotates counter-clockwise as viewed from back end of FAN AND BASKET motor. See arrow on motor support. ROTATION Basket rotates counter-clockwise as viewed from back end of motor. See arrow on motor support.
-
Page 51: Large Gear Reducer Maintenance
LARGE GEAR REDUCER MAINTENANCE LARGE GEAR REDUCER MAINTENANCE LARGE GEAR REDUCER Before placing the dryer in operation, check the oil level. If the oil level MAINTENANCE is correct, it can be checked by removing the fill overflow plug on the right hand side of the gear reducer (facing rear). -
Page 52: Front Exploded View
FRONT VIEW Ref. Part No. Description TU9608 Basket and Spider Assembly (Galvanized) (TM200 Gear Reducer) TUS9608 Basket and Spider Asembly (Stainless Steel) (TM200 Gear Reducer) TU16029 Basket and Spider Assembly (Galvanized) (Gear Motor) TUS16029 Basket and Spider Asembly (Stainless Steel) (Gear Motor) TU9609 Basket, without Spider (Galvanized) TUS9609... -
Page 53: Rear View (Tm200 Gear Reducer)
REAR VIEW (TM200 GEAR REDUCER) 60 Cycle Fan Assembly 50 Cycle Fan Assembly See following page for part numbers. Page 53... - Page 54 REAR VIEW (TM200 GEAR REDUCER) TU5312 3/8” - 16 x 3” Sq. Hd. Set Screw TUX415 Air Switch Cover TU4787 3/8” - 16 Hex Nut (Pkg. of 6) TU4967 Allen Head Set Screw TU5439 5/16” - 18 x 3/4” Hex Hd. Cap Screw TU8206 Air Switch Assembly (Pkg.
-
Page 55: Rear View (Gear Motor)
REAR VIEW (GEAR MOTOR) 60 Cycle Fan Assembly 50 Cycle Fan Assembly See following page for part numbers. Page 55... - Page 56 REAR VIEW (GEAR MOTOR) SB-00837-0 Screw, #10 TUX415 Air Switch Cover TU4787 3/8” - 16 Hex Nut (Pkg. of 6) TU4967 Allen Head Set Screw TU5439 5/16” - 18 x 3/4” Hex Hd. Cap Screw TU8206 Air Switch Assembly (Pkg. of 6) AT304 Square Head Set Screw TU2814...
-
Page 57: Front Panel And Door Assembly
TU15449 FRONT PANEL ASSEMBLY * Cover plate used for DMP and PRO HC. Ref. Ref. Part No. Description Part No. Description EA-00652-0 Reed Switch TU5503 Door latch spacer SB-00975-0 #6-32 Screw TU15966 Gasket PIF172 Hinge post bearing TU15107 Door glass - 20 1/4” TU15448 Front panel (Specify color) TUA2319H... -
Page 58: Two Timer Thermostat Assembly
THERMOSTAT ASSEMBLY - 2 TIMER Ref. Part No. Description TU6030 Assembly, Thermostat TU5530 Mounting Bracket TU1980 Thermostat TU3593 Thermometer TU3816 Lens Replacement (Texas Gage ONLY) TU8475 Lens Replacement (Marshaltown Inst. ONLY) TU11193 Lens Replacement (Weiss—consult factory) TU13213 Lens Replacement (Weiss—consult factory) TU490 Thermostat Knob (Fahrenheit) TU491... -
Page 59: Burner Access Door
TU14624 - Burner Access Door complete (Specify color) CA-13098-0 Gasket, DR dryer control doors SB-00951-0 Screw,#8 X 7/16" Philips F.H. TU14622 Asm, Access door weld (Specify color) TU14623 Trim, Burner access door IPS102 Logo, IPSO TU5739 Rod, support arm Page 59... -
Page 60: Lint Door Assembly
LINT DOOR ASSEMBLY Ref. Part No. Description TU14627 Lint Door Complete (Specify color) LA-00123-0 Latch SB-00836-0 Screw, Pancake SB-00949-0 Fastener, Kickplate TU15410 Label, 5 Language TU14626 Lint Door Welded Asm. (Specify color). TU14529 Handle TU14530 Trim TU14640 Kickplate Page 60... -
Page 61: Dmp Sensor Assembly
DMP SENSOR ASSEMBLY Ref. Part No. Description TU15538 DMP Thermostat Assembly TU15537 Bracket EA-00411-0 Switch - 220 degrees TU11991 Thermistor M262 Screw, #8-32 TU3266 Nut, hex brass #8-32 TU3624 Screw, #6-32 TU3400 Nut, hex brass #6-32 Page 61... -
Page 62: Two Timer Sensor Assembly
2 TIMER SENSOR ASSEMBLY Ref. Part No. Description TU6029 - Thermostat Assembly TU2477 Thermostat #AR594 TU2486 Bracket TU3801 Nut, speed #C18784-010-4 Page 62... -
Page 63: Pro Sensor Assembly
PRO SENSOR ASSEMBLY Ref. Part No. Description ESA-00940-0 Sensor Assembly 254/00009/10 Thermistor CA-23067-0 Thermostat EA-00411-0 Switch, 220 Degrees SB-00828-0 Screw, Mach. P.H. #8-32 X 1/2 SB-00952-0 Screw, P.H. #6-32 x 3/8 TU3266 Nut, Hex #8-32 TU3400 Nut, Hex #6-32 Page 63... -
Page 64: Prohc Sensor Assembly
PROHC SENSOR ASSEMBLY - UPPER and LOWER Ref. Part No. Description TU14724 PROHC Sensor assembly (upper) SB-00952-0 Screw, #6-32x 3/8” long TU14693 Mounting plate upper probe TU14694 Cover plate, probe TU3400 Nut, #6-32 TU7733 Screw, self drill #8-18x 1/2” long 254/00060/00 Humidity sensor UPPER ASSEMBLY... -
Page 65: Air Switch Assembly
AIR SWITCH ASSEMBLY Ref. Part No. Description TU8206 Assembly, Air Switch F888 E-Ring TU1770 Insulator TU1771 Tinnerman Nut, #6 TU2463 Actuator Arm TU3219 Screw, #6 TU3476 Decal TU7733 Screw, #8 TU8155 Micro Switch TU8171 Bracket Assembly Page 65... -
Page 66: Two Timer Control Panel Assembly
2 TIMER CONTROL PANEL ASSEMBLY Ref. Part Ref. Part Description Description ET208 #6-32 x 1/4” Binding Hd Screw TU15406WHT Panel W/A F1300 24V Relay TU2555 Knob Assembly FG147 Toggle Switch TU3805 #15-32 Hex Nut TU12874 Reversing Board TU7733 #8-18 x 1/2” Self Drilling Screw TU12932 Timer (0-60 Minutes) TU8629... -
Page 67: Dmp Control Panel Assembly
DMP CONTROL PANEL ASSEMBLY Part No. Description TU14469WHT DMP Control Panel Welded Assembly TU15184 Opl Dmp, Rt-Side (Dn) Overlay TU14137 Buzzer, 24V TU14435 Emergency Stop (50 Hz) TU15724 7/8” Button Plug (60 Hz) TU3400 #6-32 Hex Nut TU14404 Controller Opl/Coin Board, New M270 #6 Int Tooth Lock Washer Page 67... -
Page 68: Pro Control Panel Assembly
PRO CONTROL PANEL ASSEMBLY Ref. Part No. Description 254/00039/00 Overlay 254/00070/00 Pro Control M261 #8-32 Screw M270 Lockwasher TU14435 Emergency Stop (50 Hz) TU15724 7/8” Button Plug (60 Hz) TU14442WHT Control Panel Welded Assembly TU14701 Spacer TU14727WHT Cover TU3400 #6-32 Nut TU15899 Pro / ProHC EPROM Chip (Standard program) Page 68... -
Page 69: Prohc Control Panel Assembly
PROHC CONTROL PANEL Ref. Part No. Description 254/00018/00 Overlay 254/00070/00 ProHC Control M261 #8-32 Screw M270 Lock Washer TU14435 Emergency Stop (50 Hz) TU15724 7/8” Button Plug (60 Hz) TU14442WHT Control Panel W/A TU14701 Spacer TU14727WHT Cover TU3400 #6-32 Nut TU15899 Pro / ProHC EPROM Chip (Standard program) Page 69... -
Page 70: Dx3R Control Panel Assembly
DX3R CONTROL PANEL Part No. Description 254/00069/00 OPL DX3/R Lower (Right) Label 254/00067/00 OPL Rev DX3S-PLGS Control Board M270 #6 Lockwasher TU12253 #6-32 Stud TU14435 Emergency Stop TU14701 Spacer TU14720WHT Control Panel TU3400 #6-32 Nut Page 70... -
Page 71: Rear Motor Control Assembly
REAR MOTOR CONTROL ASSEMBLY Ref. Part No. Description TU13700 Plate, Motor Control TU13802 Transformer, 115/208/230 75VA TU13514 Transformer, 60VA 460V/24V 60VA TU13642 Transformer, 60VA 575V/24V 60VA TU2973 Screw, #8 TU13516 Contactor, 24VAC IEC 12A W/AUX TU7733 Screw, #8 self drilling EA-00685-0 Reversing Contactor, 3 POLE/24V COIL/12A TU16101... -
Page 72: Parts - Tm200 Gear Reducer
PARTS—TM200—LARGE GEAR REDUCER WITH BRONZE TEETH PART DESCRIPTION PART DESCRIPTION NO.. TM203 Housing TM218 Small Closed End Cap K474 Oil Level Plug Kit VSB134 3/8” Split Lockwasher (Pkg. of 6) TM119 1/4” Vent Plug TU3246 3/8” - 16 x 1” Cap Screw (Pkg. -
Page 73: Gas Bonnet Assembly
GAS BONNET AND BURNER ASSEMBLY PART DESCRIPTION PART DESCRIPTION NO.. TU13836 Bonnet Assembly, Complete, LP Gas TU14030 Bonnet Assembly, Complete, LP Gas TU4934 1/4” - 20 Hex Nut TU14058 Gas Manifold TU13823 3/4” x 36” Nipple CB36 1/4” - 20 x 1/2” Hex Head Screw TU3539 Burner Orifice OP267... -
Page 74: Steam Bonnet Assembly-Tu14027
STEAM BONNET ASSEMBLY—TU14027 PART DESCRIPTION PART DESCRIPTION NO.. 1 TU4610 3/4” x 5” Pipe Nipple 13 TU2847 Flat Washer (Pkg. of 6) 2 TU4597 3/4” Tee 14 TU9953 Air Filter 20” x 24” x 1” 3 TU4608 3/4” x 2” Pipe Nipple 1 5 TU9873 Steam Bonnet Weldment 4 TU13517... - Page 75 Page 75...
