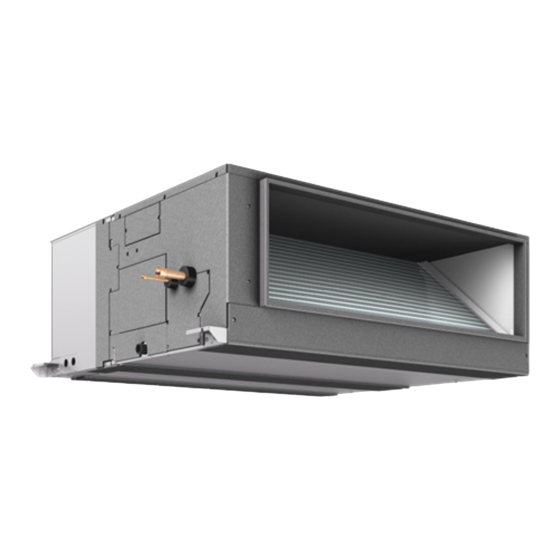

Packaged Air-Conditioners
INDOOR UNIT
PEA-M200,250LA2
OPERATION MANUAL
BEDIENUNGSHANDBUCH
MANUEL D'UTILISATION
BEDIENINGSHANDLEIDING
MANUAL DE INSTRUCCIONES
ISTRUZIONI DI FUNZIONAMENTO
ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ ΧΡΗΣΕΩΣ
MANUAL DE OPERAÇÃO
DRIFTSMANUAL
DRIFTSMANUAL
IŞLETME ELKİTABI
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ПОСІБНИК З ЕКСПЛУАТАЦІЇ
РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ
INSTRUKCJA OBSŁUGI
BRUKSANVISNING
KÄYTTÖOPAS
PROVOZNÍ PŘÍRUČKA
NÁVOD NA OBSLUHU
HASZNÁLATI KÉZIKÖNYV
NAVODILA ZA UPORABO
MANUAL DE UTILIZARE
KASUTUSJUHEND
LIETOŠANAS ROKASGRĀMATA
NAUDOJIMO VADOVAS
PRIRUČNIK ZA RUKOVANJE
UPUTSTVO ZA RUKOVANJE
FOR USER
FÜR BENUTZER
POUR L'UTILISATEUR
VOOR DE GEBRUIKER
PARA EL USUARIO
PER L'UTENTE
ΓΙΑ ΤΟΝ ΧΡΗΣΤΗ
PARA O UTILIZADOR
TIL BRUGER
FÖR ANVÄNDAREN
KULLANICI İÇİN
ДЛЯ ПОЛЬЗОВАТЕЛЯ
ДЛЯ КОРИСТУВАЧА
ЗА ПОТРЕБИТЕЛЯ
INFORMACJA DLA UŻYTKOWNIKA
FOR BRUKER
KÄYTTÄJÄLLE
PRO UŽIVATELE
PRE POUŽÍVATEĽA
A FELHASZNÁLÓNAK
ZA UPORABNIKA
PENTRU UTILIZATOR
KASUTAJALE
LIETOTĀJIEM
SKIRTA NAUDOTOJUI
ZA KORISNIKA
ZA KORISNIKA
<ORIGINAL>
English
Deutsch
Français
Nederlands
Español
Italiano
Ελληνικά
Português
Dansk
Svenska
Türkçe
Русский
Українська
Български
Polski
Norsk
Suomi
Čeština
Slovenčina
Magyar
Slovenščina
Română
Eesti
Latviski
Lietuviškai
Hrvatski
Srpski
Advertisement
Related Manuals for Mitsubishi Electric Mr. Slim PEA-M200LA2
Summary of Contents for Mitsubishi Electric Mr. Slim PEA-M200LA2
- Page 1 <ORIGINAL> Packaged Air-Conditioners INDOOR UNIT PEA-M200,250LA2 English OPERATION MANUAL FOR USER Deutsch BEDIENUNGSHANDBUCH FÜR BENUTZER Français MANUEL D’UTILISATION POUR L’UTILISATEUR Nederlands BEDIENINGSHANDLEIDING VOOR DE GEBRUIKER Español MANUAL DE INSTRUCCIONES PARA EL USUARIO Italiano ISTRUZIONI DI FUNZIONAMENTO PER L’UTENTE Ελληνικά ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ ΧΡΗΣΕΩΣ ΓΙΑ...
-
Page 2: Table Of Contents
2006/66/EC Article 20 Information for end-users and Annex II. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of- life, should be disposed of separately from your household waste. -
Page 3: Parts Names
1. Safety Precautions • Only use means recommended by the manufacturer to accelerate • Do not pierce a hole in or burn this indoor unit or refrigerant the defrosting process or to clean. lines. • This indoor unit shall be stored in a room that has no • Be aware that the refrigerant may be odour-free. - Page 4 2. Parts Names ■ Wired Remote Controller Controller interface The functions of the function buttons change depending on the screen. Refer to the button function guide that appears at the bottom of the LCD for the functions they serve on a given screen. ⑤ When the system is centrally controlled, the button function guide that corresponds to the locked button will not appear.
- Page 5 2. Parts Names Display The main display can be displayed in two different modes: “Full” and “Basic”. The factory setting is “Full”. To switch to the “Basic” mode, change the setting on the Main display setting. (Refer to operation manual included with remote controller.) <Full mode> <Basic mode> * All icons are displayed for explanation. ㉔ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ㉔ ② ㉓...
- Page 6 2. Parts Names ■ Outdoor unit Power Refrigerant pipes Indoor-outdoor connection wire Earth...
-
Page 7: Operation
3. Operation ■ About the operation method, refer to the operation manual that comes with each remote controller. 3.1. Turning ON/OFF [ON] [OFF] Press the [ON/OFF] button. Press the [ON/OFF] button again. The ON/OFF lamp will light up in green, The ON/OFF lamp will come off, and and the operation will start. the operation will stop. ■ Operation status memory ■... - Page 8 3. Operation 3.5. Ventilation <Returning to the Operation menu> 3.5.1. Navigating through the Main menu Press the [RETURN] button to go back to the Operation menu. <Accessing the Main menu> Press the [MENU] button. The Main menu will appear. <Item selection> Press [F2] to move the cursor left. Press [F3] to move the cursor right.
-
Page 9: Timer
4. Timer ■ Timer functions are different by each remote controller. ■ For details on how to operate the remote controller, refer to the appropriate operation manual included with each remote controller. 5. Emergency Operation for Wireless Remote-controller (option) ① ON/OFF lamp (lit when unit is operating; unlit when unit is not operating) ON/OFF ②... -
Page 10: Trouble Shooting
7. Trouble Shooting Having trouble? Here is the solution. (Unit is operating normally.) Air conditioner does not heat or cool well. ■ Clean the filter. (Airflow is reduced when the filter is dirty or clogged.) ■ Check the temperature adjustment and adjust the set temperature. ■ Make sure that there is plenty of space around the outdoor unit. Is the indoor unit air intake or outlet blocked? ■... -
Page 11: Specifications
7. Trouble Shooting Having trouble? Here is the solution. (Unit is operating normally.) Noise is louder than specifications. ■ The indoor operation sound level is affected by the acoustics of the particular room as shown in the following table and will be higher than the noise specification, which was measured in an echo-free room. High sound- Low sound- absorbing Normal rooms absorbing rooms rooms Broadcasting Reception Location... - Page 12 0.48 Note: Recycle Rating condition Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality Cooling - I ndoor: 27ºC DB, 19ºC WB materials and components which can be recycled and reused. Electrical and electronic Outdoor: 35ºC DB, 24ºC WB equipment, at their end-of-life, should be disposed of separately from your household Heating - I ndoor: 20ºC DB, 15ºC WB...
- Page 13 Schallleistungspegel Ниво на звуковата мощност Müravõimsustase (ggf. je Geschwindigkeitseinstellung) (за отделните настройки на оборотите, ако е (kiiruse kohta, kui asjakohane) приложимо) Niveau de puissance acoustique Poziom mocy akustycznej Akustiskās jaudas līmenis (pour chaque réglage de la vitesse, si disponible) (w stosownych przypadkach w zależności od (attiecīgā gadījumā – katram ātruma iestatījumam) ustawienia prędkości) Geluidsvermogensniveau Livell ta’ qawwa tal-ħoss Garso galios lygis (per snelheid, indien van toepassing) (għal kull veloċità, jekk ikun applikabbli) (kiekvieno spartos nuostačio, jei taikoma) Nivel de potencia acústica Äänitehotaso Razina zvučne snage (por velocidad regulada, si procede)
- Page 14 55.4 59.6 55.4 59.6 55.4 Measurement category Efficiency category Total Efficiency grade (N) The VSD is integrated within the fan. Year of manufacture 2022 Manufacturer MITSUBISHI ELECTRIC CORPORATION HEAD OFFICE: TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN AUTHORIZED REPRESENTATIVE IN EU: MITSUBISHI ELECTRIC EUROPE B.V. HARMAN HOUSE, 1 GEORGE STREET, UXBRIDGE, MIDDLESEX UB8 1QQ, U.K. COMMERCIAL REGISTRATION NO.33279602 Model number PEA-M200LA2 PEA-M250LA2 PEA-M200LA2-ET PEA-M250LA2-ET PEA-M200LA2-ER PEA-M250LA2-ER Motor power input (kW) 0.32...
- Page 15 EC DECLARATION OF CONFORMITY ΔΗΛΩΣΗ ΠΙΣΤΟΤΗΤΑΣ ΕΚ VYHLÁSENIE O ZHODE S NORMAMI ES DECLARAŢIE DE CONFORMITATE CE EG-KONFORMITÄTSERKLÄRUNG DECLARAÇÃO DE CONFORMIDADE CE IZJAVA ES O SKLADNOSTI EF-OVERENSSTEMMELSESERKLÆRING DÉCLARATION DE CONFORMITÉ CE EG-DEKLARATION OM ÖVERENSSTÄMMELSE EK MEGFELELŐSÉGI NYILATKOZAT EF-SAMSVARSERKLÆRING EG-CONFORMITEITSVERKLARING EC UYGUNLUK BEYANI DEKLARACJA ZGODNOŚCI WE DECLARACIÓN DE CONFORMIDAD CE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ НОРМАМ ЕС EC IZJAVA O SUKLADNOSTI DICHIARAZIONE DI CONFORMITÀ CE PROHLÁŠENÍ O SHODĚ EU ЕС ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ MITSUBISHI ELECTRIC CONSUMER PRODUCTS (THAILAND) CO., LTD. 700/406 MOO 7, TAMBON DON HUA ROH, AMPHUR MUANG, CHONBURI 20000, THAILAND MADE IN THAILAND hereby declares under its sole responsibility that the air conditioners and heat pumps described below for use in residential, commercial and light-industrial environments: erklärt hiermit auf seine alleinige Verantwortung, dass die Klimaanlagen und Wärmepumpen für das häusliche, kommerzielle und leicht-industrielle Umfeld wie unten beschrieben: déclare par la présente et sous sa propre responsabilité que les climatiseurs et les pompes à chaleur décrits ci-dessous, destinés à un usage dans des environnements résidentiels, commerciaux et d’industrie légère :...
- Page 16 UK DECLARATION OF CONFORMITY MITSUBISHI ELECTRIC CONSUMER PRODUCTS (THAILAND) CO., LTD. 700/406 MOO 7, TAMBON DON HUA ROH, AMPHUR MUANG, CHONBURI 20000, THAILAND MADE IN THAILAND hereby declares under its sole responsibility that the air conditioners and heat pumps described below for use in residential, commercial and light-industrial environments: MITSUBISHI ELECTRIC, P EA-M200LA2, PEA-M250LA2 Note: Its serial number is on the nameplate of the product. Legislation Electrical Equipment (Safety) Regulations 2016 Supply of Machinery (Safety) Regulations 2008...
- Page 17 <ENGLISH> <PORTUGUÊS> English is original. The other languages versions are translation of the original. O idioma original é o inglês. As versões em outros idiomas são traduções do idioma original. CAUTION CUIDADO • Refrigerant leakage may cause suffocation. Provide ventilation in accordance with EN378-1. • As fugas de refrigerante podem provocar asfixia. Proporcione ventilação de acordo com a EN378-1.
- Page 18 <MAGYAR> Az eredeti szöveg angol nyelven íródott. A más nyelven írt változatok az eredeti szöveg fordításai. FIGYELMEZTETÉS • A hűtőközeg szivárgása fulladást okozhat. Gondoskodjon a szellőzésről az EN378-1 szerint. • Feltétlenül gondoskodjon a csövek szigeteléséről. A fedetlen csövek közvetlen megérintése égési vagy fagyási sérülést okozhat. • Soha, semmilyen okból ne vegye a szájába az elemeket, nehogy véletlenül lenyelje. • Az elem lenyelése fulladást és/vagy mérgezést okozhat. • Az üzem közben fellépő, túlzott mértékű zaj és rezgés elkerülése érdekében az egységet merev szerkezetre kell szerelni. • A zaj mérése a JIS C9612, JIS B8616, ISO 5151(T1) és ISO 13523(T1) szerint történik. <POLSKI> Oryginał jest w języku angielskim. Pozostałe wersje językowe stanowią tłumaczenia oryginału. PRZESTROGA • Wyciek czynnika chłodniczego może spowodować uduszenie. Należy zapewnić wentylację zgodnie z normą EN378-1.
- Page 19 Software Information This product includes open source software (“OSS”) distributed under the terms of open source licenses. Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION 1. Definitions. “License” shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. “Licensor”...
- Page 20 APPENDIX: How to apply the Apache License to your work. To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets “{}” replaced with your own identifying information. (Don’t include the brackets!) The text should be enclosed in the appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose be included on the same “printed page”...
- Page 24 This product is designed and intended for use in the residential, commercial and light-industrial environment. Please be sure to put the contact address/telephone number on this manual before handing it to the customer. HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN VG79F142H01_en...
