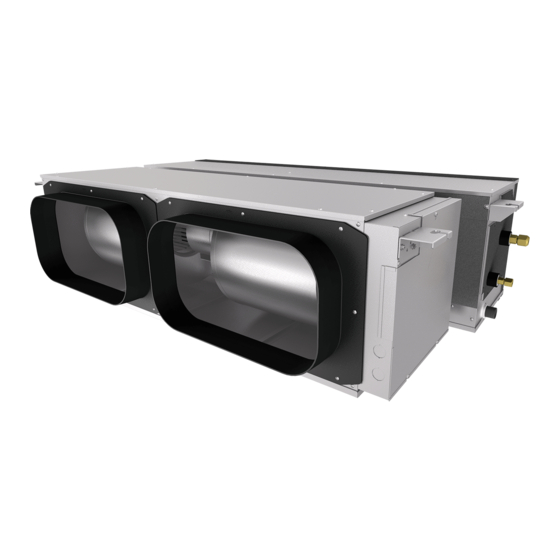

- Page 1 <ORIGINAL> Air-Conditioners PEA-M100, 125, 140HAA OPERATION MANUAL FOR USER English For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
-
Page 2: Table Of Contents
In the worst case, this could lead to a serious impediment to securing product safety. - It may also be in violation of applicable laws. - MITSUBISHI ELECTRIC CORPORATION cannot be held responsible for malfunctions or accidents resulting from the use of the wrong type of refrigerant. -
Page 3: Parts Names
Caution: • Never block or cover the indoor or outdoor unit’s intakes or • Do not use any sharp object to push the buttons, as this may outlets. Tall items of furniture underneath the indoor unit, or damage the remote controller. bulky items such as large boxes placed close to the outdoor unit •... - Page 4 2. Parts Names ■ Wired Remote Controller Controller interface The functions of the function buttons change depending on the screen. Refer to the button function guide that appears at the bottom of the LCD for the functions they serve on a given screen. When the system is centrally controlled, the button function guide that corresponds to the locked button will not appear.
- Page 5 2. Parts Names Display The main display can be displayed in two different modes: “Full” and “Basic.” The factory setting is “Full.” <Full mode> <Basic mode> ② ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ③ ③ ⑥ ⑦ ⑲ ⑧ ⑨ ⑩...
- Page 6 2. Parts Names ■ Wireless Remote-Controller (option) ON/OFF button CHECK TEST RUN SET TEMPERATURE button MODEL SELECT Pushing button starts operation. SET TEMPERATURE button Pushing again stops operation. sets and any desired room temperature. NOT AVAILABLE TEMP ON/OFF FAN SPEED button AUTO STOP/AUTO START button This button is used to set fan Used for selecting timed starting...
-
Page 7: Operation
3. Operation ■ About the operation method, refer to the operation manual that comes with each remote controller. 3.1. Mode select 3.2. Preset temperature setting 3.1.1. For wired remote controller 3.2.1. For wired remote controller Preset temperature will be displayed either in Celsius in 0.5- or 1-degree increments, or in Fahrenheit, depending on the indoor unit model and the display mode setting on the remote controller. -
Page 8: Timer
3. Operation 3.3. Fan speed setting 3.3.2. For wireless remote controller button to select a desired fan speed. ■ Press ④ 3.3.1. For wired remote controller • Each time you press the button, available options change with the Press button ⑩ [F4] to go through the fan speed. display 4 on the remote controller, as shown below. -
Page 9: Trouble Shooting
6. Trouble Shooting Having trouble? Here is the solution. (Unit is operating normally.) Air conditioner does not heat or cool well. ■ Clean the filter. (Airflow is reduced when the filter is dirty or clogged.) ■ Check the temperature adjustment and adjust the set temperature. ■... -
Page 10: Specifications
6. Trouble Shooting Having trouble? Here is the solution. (Unit is operating normally.) Noise is louder than specifications. ■ The indoor operation sound level is affected by the acoustics of the particular room as shown in the following table and will be higher than the noise specification, which was measured in an echo-free room. - Page 12 Please be sure to put the contact address/telephone number on this manual before handing it to the customer. HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN VG79D916H02...
