ADTRAN NETVANTA Installation Instructions

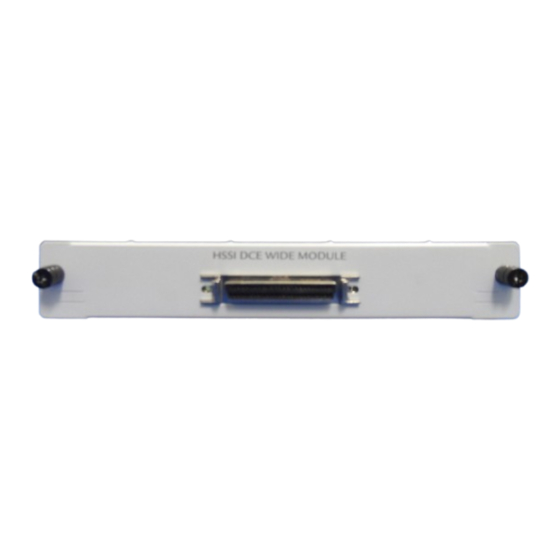

NETVANTA HSSI WIDE MODULE
Quick Start Guide
S
PECIFICATIONS
Interface Type: 50 pin SCSI-II female connector
Line Rate: 0-52 Mbps
Electrically balanced with Non Return to Zero
Signal Type:
encoding
HSSI Loopbacks, HSSI External loopback control
Diagnostics/Testing:
with T3SU or DSU/CSU
Environmental: Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: up to 95% Noncondensing
Compliance: FCC Part 15 Class A, UL 60950/CSA-C22.2
No. 60950, EN 60950, IEC 60950,
AS/NZS 60950, EN 55022, EN 54024
I I
NSTALLATION NSTRUCTIONS
1. Remove the cover plate from the appropriate option slot in the
NetVanta 5305 Base Unit.
2. Slide the NetVanta HSSI Wide Module into the option slot until the
module is firmly positioned against the front of the chassis.
3. Secure the thumbscrews at both edges of the module. Tighten with a
screwdriver.
4. Connect the cables to the associated device(s).
5. Complete the installation of the system as specified in the Hardware
Installation Guide (P/N 61200890L1-34 or P/N 61200990L1-34).
Quick Start Guide, 61200934L1-13A, July 2004
HSSI P
PIN# (+ side)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
INOUT
PIN# (- side) Direction Description
26 — HSSI SG - Signal Ground
27 I HSSI RT - Receive Timing
28 I HSSI CA - DCE Available
29 I HSSI RD - Receive Data
30 I HSSI LC - Loopback Circuit C
31 I HSSI ST - Send Timing
32 — HSSI SG - Signal Ground
33 O HSSI TA - DTE Available
34 O HSSI TT - Terminal Timing
35 O HSSI LA - Loopback Circuit A
36 O HSSI SD - Send Data
37 O HSSI LB - Loopback Circuit B
38 — HSSI SG - Signal Ground
— — No Connection
40 — No Connection
41 — No Connection
42 — No Connection
43 — No Connection
44 — HSSI SG - Signal Ground
45 — No Connection
46 — No Connection
47 — No Connection
— — No Connection
49 I HSSI TM - Test Mode
50 — HSSI SG - Signal Ground
Copyright © 2004 ADTRAN, All Rights Reserved
www.adtran.com
P/N 1200934L1
