ADTRAN NetVanta SHDSL Network Interface Module Quick Start Manual

Quick Start Guide
AN-SHDSL
S
PECIFICATIONS
SHDSL Interface Line rate: 200 to 2312 kbps in 64k
increments
ITU-T standards: G.991.2 SHDSL
Operating modes: line termination (CO)
and network termination (CPE)
Connector: RJ-45
Clock Source CO operating mode: internal
CPE operating mode: network
Diagnostics
Test pattern generation and detection: 2
Network loopbacks (local and remote)
Alarm generation and detection
Programmable alarm threshold settings
for loop attenuation and signal-to-noise
ratio margin
Line Code TC-PAM
I I
NSTALLATION NSTRUCTIONS
1. Remove power from the base unit.
2. Slide the Network Interface Module (NIM) into the
option slot until the NIM is firmly seated against the front
of the chassis.
3. Secure the pins at both edges of the NIM.
4. Connect the cables to the associated device(s).
5. Complete installation of the base unit.
6. Restore power to the base unit.
Quick Start Guide, 61200867L1-13B, February 2004

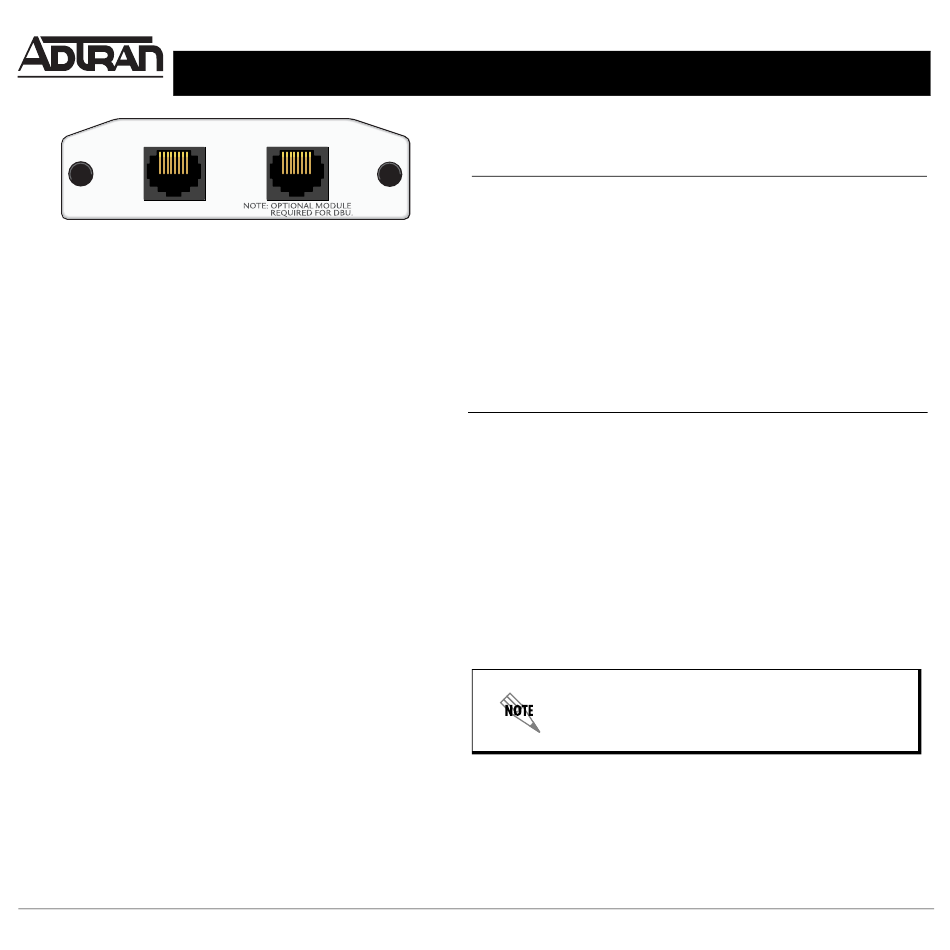

NETVANTA SHDSL NETWORK INTERFACE MODULE
DBU
Technical Support 1-888-4ADTRAN or +1-256-963-8716
For more detailed documentation, visit us online at
WAN-SHDSL N
Pin Name
1-3 —
4 T
5 R
6-8 —
DBU (RJ-48C) P
Pin Name
1-2 —
3 R1
15
4 R
5 T
6 T1
7-8 —
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
(RJ-45) P
ETWORK INOUT
Description
Unused
SHDSL Tip
SHDSL Ring
Unused
INOUT
Description
Unused
Network-Ring 1
Network-Ring
Network-Tip
Network-Tip 1
Unused
© 2004 ADTRAN, All Rights Reserved
www.adtran.com
P/N 1200867L1
