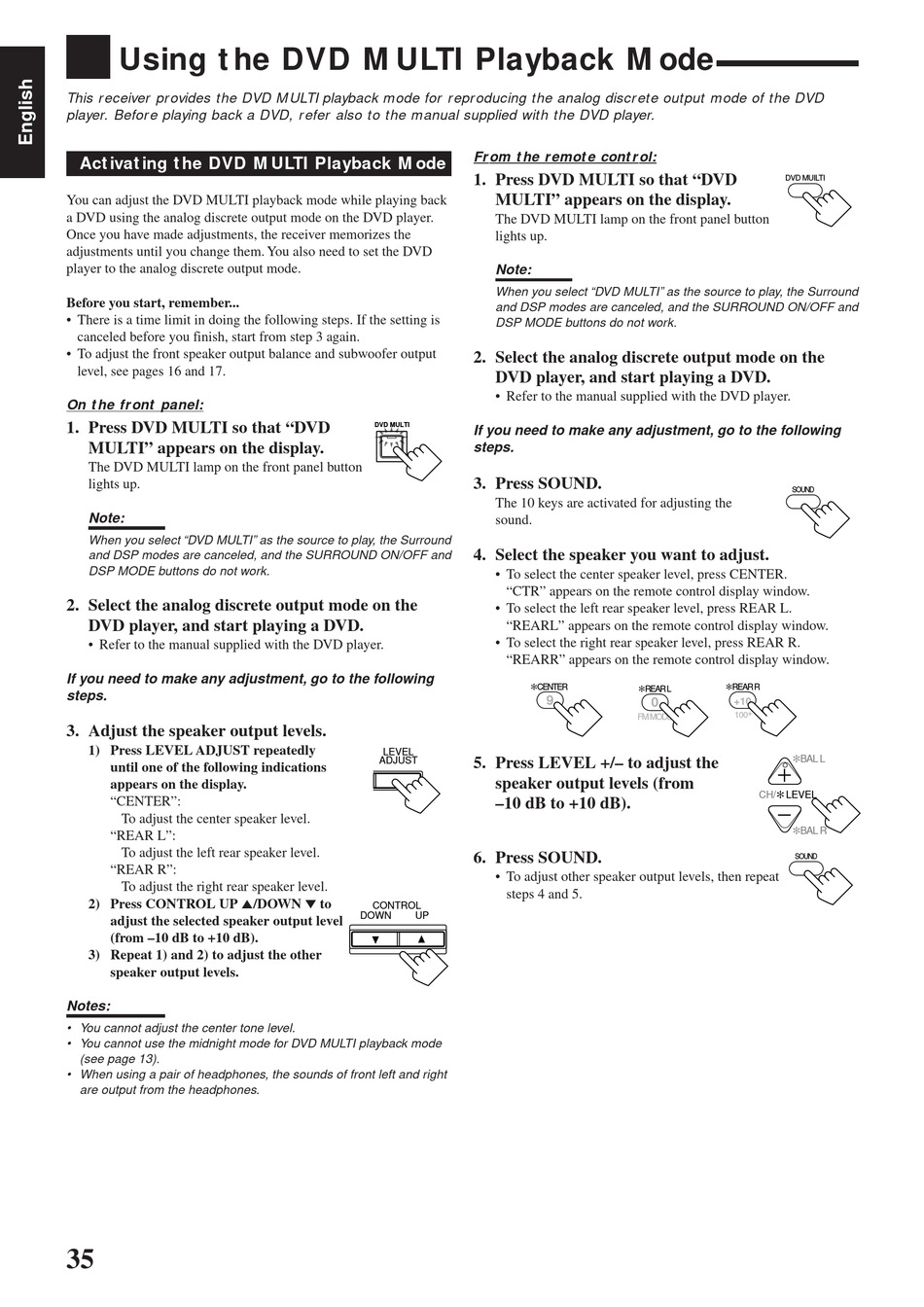

Using t he DVD M ULTI Playback M ode
This r eceiver pr ovides the DVD M ULTI playback mode for repr oducing the analog discr ete output mode of the DVD
player. Befor e playing back a DVD, r efer also to the manual supplied with the DVD player.
Act ivat ing t he DVD M ULTI Playback M ode
You can adjust the DVD MULTI playback mode while playing back
a DVD using the analog discrete output mode on the DVD player.
Once you have made adjustments, the receiver memorizes the
adjustments until you change them. You also need to set the DVD
player to the analog discrete output mode.
Before you start, remember...
• There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 3 again.
• To adjust the front speaker output balance and subwoofer output
level, see pages 16 and 17.
On t he fr ont panel:
1. Press DVD MULTI so that "DVD
MULTI" appears on the display.
The DVD MULTI lamp on the front panel button
lights up.
Note:
When you select "DVD MULTI" as the source to play, the Surround
and DSP modes are canceled, and the SURROUND ON/OFF and
DSP MODE buttons do not work.
2. Select the analog discrete output mode on the
DVD player, and start playing a DVD.
• Refer to the manual supplied with the DVD player.
If you need to make any adjustment, go to the following
steps.
3. Adjust the speaker output levels.
1) Press LEVEL ADJUST repeatedly
until one of the following indications
appears on the display.
"CENTER":
To adjust the center speaker level.
"REAR L":
To adjust the left rear speaker level.
"REAR R":
To adjust the right rear speaker level.
2) Press CONTROL UP 5/DOWN ∞ to
adjust the selected speaker output level
(from –10 dB to +10 dB).
3) Repeat 1) and 2) to adjust the other
speaker output levels.
Notes:
• You cannot adjust the center tone level.
• You cannot use the midnight mode for DVD MULTI playback mode
(see page 13).
• When using a pair of headphones, the sounds of front left and right
are output from the headphones.
35
Fr om t he r emot e cont r ol:
1. Press DVD MULTI so that "DVD
MULTI" appears on the display.
The DVD MULTI lamp on the front panel button
lights up.
Note:
When you select "DVD MULTI" as the source to play, the Surround
and DSP modes are canceled, and the SURROUND ON/OFF and
DSP MODE buttons do not work.
2. Select the analog discrete output mode on the
DVD player, and start playing a DVD.
• Refer to the manual supplied with the DVD player.
DVD MULTI
If you need to make any adjustment, go to the following
steps.
3. Press SOUND.
The 10 keys are activated for adjusting the
sound.
4. Select the speaker you want to adjust.
• To select the center speaker level, press CENTER.
"CTR" appears on the remote control display window.
• To select the left rear speaker level, press REAR L.
"REARL" appears on the remote control display window.
• To select the right rear speaker level, press REAR R.
"REARR" appears on the remote control display window.
∗
AL
LEVEL
ADJUST
5. Press LEVEL +/– to adjust the
speaker output levels (from
–10 dB to +10 dB).
6. Press SOUND.
• To adjust other speaker output levels, then repeat
steps 4 and 5.
CONTROL
DOWN
UP
∗
CENTER
REAR L
9
0
FM MODE
DVD MUILTI
SOUND
∗
REAR R
+10
100 +
∗
BAL L
+
∗
CH/
LEVEL
−
∗
BAL R
SOUND
