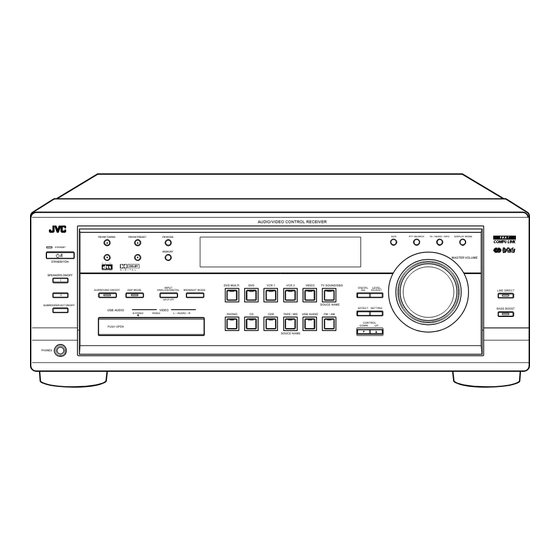

JVC RX-8010RBK Service Manual

Audio/video control receiver
Hide thumbs Also See for RX-8010RBK:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
SERVICE MANUAL
AUDIO/VIDEO CONTROL RECEIVER
CATV/DBS
VCR 1
TV
AUDIO
DVD
DVD MUILTI
CD
FM/AM
TV/DBS
VIDEO
CDR
PHONO
VCR 1
VCR 2
TAPE/MD
USB
SURROUND
DSP
ANALOG/DIGITAL SLEEP
ON/OFF
MODE
INPUT
BASS
ROOM
LINE DIF.ECT
BOOST
EFFECT
SIZE
1
2
3
MENU
MIDNIGHT
FM/AM TUNING
MODE
TEST
CTR TONE
LIVENESS
4
5
6
ENTER
STANDBY
*
*
*
SUBWFR
L/R BAL
CENTER
SOUND
8
9
7/P
STANDBY/ON
*
*
*
MUTING
DIGITAL EQ
REAR L
REAR R
D I G I T A L
0
10
+10
S U R R O U N D
100 +
RETURN
FM MODE
SPEAKERS ON/OFF
CATV/DBS
*
CONTROL
CONTROL
BAL L
1
+
+
+
SURROUND ON/OFF
*
CH/
LEVEL TV VOL
VOLUME
TV/VIDEO
2
-
-
-
*
BAL R
SUBWOOFER OUT ON/OFF
PLAY
MENU
EXIT
TEXT
/REW
FF/
PAUSE
DISPLAY
SET
REC
PTY–PTY SEARCH–PTY
PAUSE
DISPLAY
MODE
STOP
CONTROL
PHONES
A/V CONTROL RECEIVER
Contents
Safety precautions --------------------------------------------------------1-2
Disassembly method -----------------------------------------------------1-3
Adjustment method -------------------------------------------------------1-9
Self-diagnose function ----------------------------------------------------1-10
Description of major ICs -------------------------------------------------1-12~29
RX-8010RBK
RX-8012RSL
AUDIO/VIDEO CONTROL RECEIVER
FM/AM PRESET
FM MODE
MEMORY
D I G I T A L
DVD MULTI
DVD
VCR 1
VCR 2
INPUT
DSP MODE
ANALOG/DIGITAL
MIDNIGHT MODE
INPUT ATT
USB AUDIO
VIDEO
S-VIDEO
VIDEO
L—AUDIO—R
PHONO
CD
CDR
TAPE / MD
PUSH OPEN
SOUCE NAME
COPYRIGHT
2001 VICTOR COMPANY OF JAPAN, LTD.
EON
PTY SEARCH
TA / NEWS / INFO
DISPLAY MODE
MASTER VOLUME
VIDEO
TV SOUND/DBS
DIGITAL
LEVEL
EQ
ADJUST
SOUCE NAME
EFFECT SETTING
USB AUDIO
FM / AM
CONTROL
DOWN
UP
RX-8010RBK/ RX-8012RSL
Area Suffix
E
Continental Europe
EN
Northern Europe
LINE DIRECT
BASS BOOST
D I G I T A L
No.20979
May. 2001
