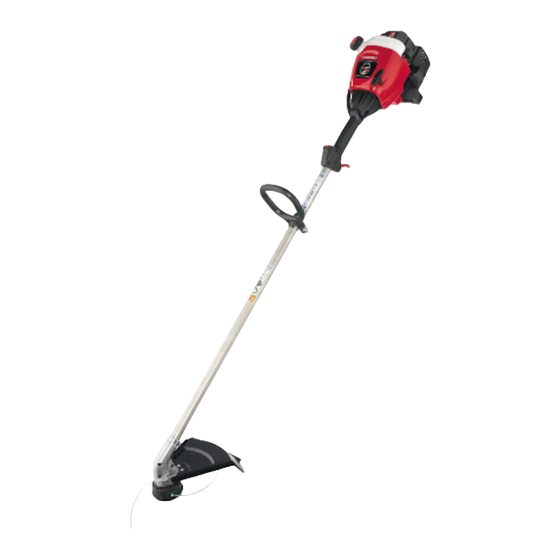

Troy-Bilt TB65SS Operator's Manual

Quick Instructions to
Assemble Straight
Shaft String
Trimmers
for complete instructions
see page 3.
Quick Instructions
to Start Engine
for complete instructions see page 4.
Quick Instructions to
®
Replace SplitLine
Trimmer Line
®
Replacement SplitLine
Part #49U3577L953
For single line installation,
see page 4.
For replacement spool
installation, see page 4.
Wind line tightly in direction of arrow.
Split other end of SplitLine
IMPORTANT: READ OPERATOR'S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING THE UNIT.
NEED HELP?
PART NO. 769-04448 P00
Operator's Manual
Read and understand all instruction, warning and danger labels on the unit.
Place the shield onto the mount
bracket. Screw the 2 shield
screws into the 2 holes on the
mount bracket and tighten.
Press primer bulb 10 times.
Move blue choke
lever to Position 2.
Push 6"-7" ends into
®
back 6"-7". 0.080" holding slots.
CALL 1-800-828-5500 IN U.S. OR 1–800–668–1238 IN CANADA
DO NOT RETURN THIS PRODUCT
For Assistance please call 1-800-828-5500 (U.S.) or 1-800-668-1238 (Canada)
or visit www.troybilt.com or www.troybilt.ca
Min. 6"
Push D-handle on shaft.
Move handle a minimum
6 inches away from shaft
grip. Insert clamp bolt and
tighten the wing nut.
Move blue choke Crouch in starting
lever to Position 1. position.
Continue to squeeze
Pull starter rope 3 to 5 times.
throttle control and
Making sure to keep throttle
move the blue choke
squeezed, run engine for
lever to Position 3.
30-60 seconds to warm up.
Spool
Spring
Inner
Reel
Bump
Knob
Unscrew Bump Knob™ Insert 10' of 0.080"SplitLine
counterclockwise. Remove hole in top of reel. Pull most of line
inner reel and spring. through hole until 3"-4" remains.
Insert lines through eyelets in spool.
Insert spring and reel into spool.
TB65SS
2-Cycle Trimmer
40:1
1 Gallon 3.2 oz
Mix thoroughly in a separate fuel can:
– 3.2 fl. oz. of 2-cycle engine oil
– 1 gallon of unleaded gasoline
Place the unit on a level surface. Fill fuel tank.
NOTE: Do not mix directly in the engine fuel tank.
SQUEEZE and HOLD throttle Pull the rope
control for ALL further steps. 5 times.
DIDN'T START?
Continue squeezing the
throttle control and run engine starting and troubleshooting
for additional 60 seconds to
complete warm up.
3"-4"
®
through Bend short end and push it
into the other hole. Pull tight.
Hold the inner reel in place. Pull lines firmly to release
Tighten Bump Knob clockwise. from holding slots.
5 X
Repeat these instructions.
If engine still fails to start,
refer to the operator's
manual for additional
information
