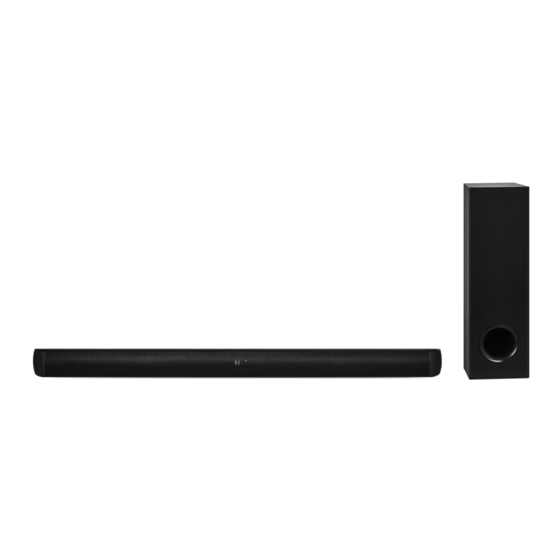

- Page 1 Instruction Manual 2.1ch Soundbar with Wireless Subwoofer - BSB210DWS...
-
Page 3: Table Of Contents
CONTENTS General Safety Instructions Remote Control Product Overview Controls and Connections First Time Setup with SUBWOOFER General Operations Pairing your soundbar Troubleshooting Specifications Specifications Last Page... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Read this manual thoroughly before you start using the Soundbar. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling when mounted and can cause injury, particularly to children if it positioned incorrectly. •...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) • If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock. • When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power supply from the wall socket.
-
Page 7: Remote Control
REMOTE CONTROL • The remote control has a reception range of approximately 5m. Be sure to point the remote control directly at the sensor at the front of the soundbar. • Make sure there are no obstacles in the way. This will intefere with the sensor strength. •... - Page 8 REMOTE CONTROL (Cont.) CAUTION! Battery Precautions • Do not use other batteries other than the one specified in this manual. • Danger of explosion if incorrectly replaced by a battery other than the one specified. • Do not store battery with other metallic objects, doing so can cause the battery to short-circuit, leak or explode.
-
Page 9: Product Overview
PRODUCT OVERVIEW HDMI(ARC) INPUT USB PLAYBACK OPT: OPTICAL INPUT AUX IN (3.5M) DC IN OFF: SHORT PRESS - POWER ON SHORT PRESS FOR MODE CHANGE LONG PRESS TO POWER OFF PLAY/PAUSE VOLUME UP VOLUME DOWN... -
Page 10: Controls And Connections
CONTROLS AND CONNECTIONS HDMI Connect a HDMI cable (not supplied) from your TV HDMI/ARC port to the HDMI socket on the soundbar. Then change the mode on your soundbar to HDMI Mode. Note: To enable the Audio Return Channel (ARC) feature, the HDMI must be connected to an ARC enabled HDMI on your TV. -
Page 11: First Time Setup With Subwoofer
CONTROLS AND CONNECTIONS (Cont.) AUDIO RETURN CHANNEL (ARC) / HDMI ARC function is used for connecting the Soundbar to the TV with a HDMI cable through an audio return channel. This means you can listen to the TV sounds through your Soundbar via HDMI cable. -
Page 12: General Operations
GENERAL OPERATION During On mode, press either buttons on RC for AUX, BT / OPTICAL / HDMI / AUX / USB - OR the M button on the side of soundbar. Operate your audio device directly for playback features. Turning on/off the unit 1. -
Page 13: Pairing Your Soundbar
2. When first entering BT mode, the soundbar will automatically enter pairing mode, on your smart device, select to search for devices. 3. Select “BSB210DWS” in the list of devices that appear. The Soundbar LED showing BT mode will stay on and stop flashing once their is a successful connection. -
Page 14: Troubleshooting
TROUBLESHOOTING Never try to repair the soundbar yourself. If you encounter any problems when using this unit, check the following points before seeking for service. Problem Solution No Power • Ensure that the Switching Adaptor is connected to power socket outlet. •... -
Page 15: Specifications
SPECIFICATIONS Power Supply 18VDC, 1.3A Output Power Total: 20W*2 + 40W Frequency Response 50Hz to 15kHz Bluetooth 5.0, A2DP, AVRCP Bluetooth Range Up to 10m Soundbar: 810 (w) x 70 (d) x 58 (h) mm Dimensions Subwoofer: 120 (w) x 220 (d) x 397 (h) mm Weights Net: 3.85 kg / Gross: 5.4 kg The Bluetooth®... - Page 16 CUSTOMER SUPPORT: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
