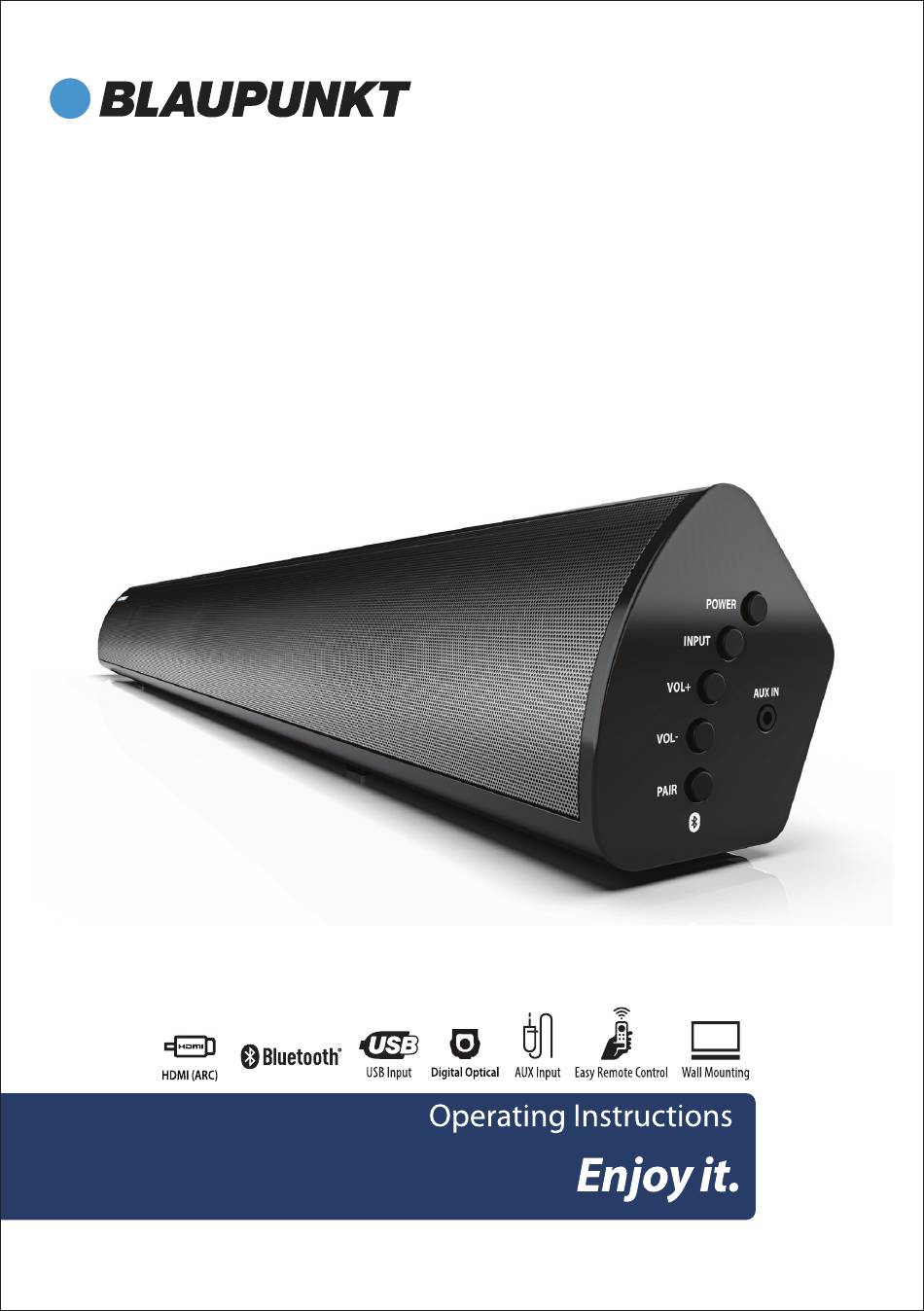

- Page 1 SBA SERIES Wireless Soundbar...
-
Page 2: Safety Information
Accessories Control panel and remote control 3 , 4 Product support Making the connections Troubleshooting Using your Blaupunkt Soundbar Using the Optical input Using the HDMI(ARC) input Pairing a bluetooth device Using the line in Using the USB playback for MP3... - Page 3 2.0 SOUNDBAR...
- Page 4 2.0 SOUNDBAR...
- Page 5 2.0 SOUNDBAR HDMI(ARC) OPTICAL AC 110-240V 1 2 3 4 HDMI (ARC) input Power : USB Input (Mp3 playback) Input : Press to select a input: Bluetooth, HDMI(ARC) in, USB, Optical in, Line in. Optical input Volume + and - : Press to adjust the volume up or down. AC power cord Bluetooth pair button 3.5mm LINE input...
- Page 6 2.0 SOUNDBAR Power : Press to switch the unit on AUX/USB : Press to switch line and USB mode Bluetooth : Press to switch BT mode; Hold and press 3 seconds to disconnect the Bluetooth connection OPTICAL : Press to switch OPTICAL and search for the Bluetooth IN mode device again...
- Page 7 2.0 SOUNDBAR 3.5mm audio socket (such as earphone output) OPTICAL AC 110-240V HDMI(ARC)
-
Page 8: Using The Optical Input
2.0 SOUNDBAR Using the Optical input 1. Connect the Digital Optical Audio cable to the optical output on the audio source and to the OPTICAL IN on the soundbar. 2. Press the OPT button on your remote control directly to switch to Optical Mode or one touch Source button on main unit repeatedly to select the Optical mode. - Page 9 2.0 SOUNDBAR...
- Page 10 2.0 SOUNDBAR Using the AUX IN AUX IN AUX IN Press one of the MUSIC, MOVIE, NEWS buttons to select the presets for the tone quality for music (MUSIC), movie (MOVIE), news (NEWS) MUSIC MOVIE NEWS Connection with optical cable,e.g.to Optical the optical OPT.
- Page 11 2.0 SOUNDBAR 430mm Lift the soundbar over heads of screws and slot into place. 430mm Drill two parallel holes in the wall. Firmly fix a dowel (included) into each hole in the wall if necessary. Insert a screw (included) into each dowel.
- Page 12 2.0 SOUNDBAR HDMI, OPTICAL, USB, Bluetooth, 1000mV, LINE IN: 1V AC 110V-240V 50/60Hz 8 Ohm, 76.2mm(3") 30 Hz ~ 20KHz Soundbar: 812 × 103 × 96mm...
- Page 13 2.0 SOUNDBAR...
- Page 14 2.0 SOUNDBAR ATTENTION! Please be careful while listening to music. Blaupunkt has always ensured that every audio product is powerful and produces massive bass and other audio ranges. Please raise the volume levels slowly and do not play music at full volume levels as this could hurt your ears.
