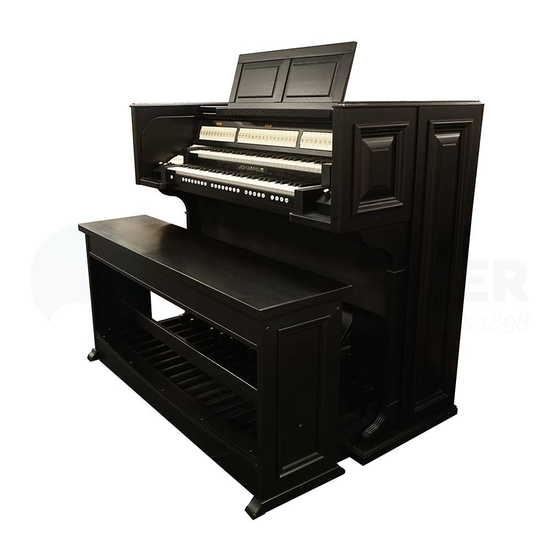

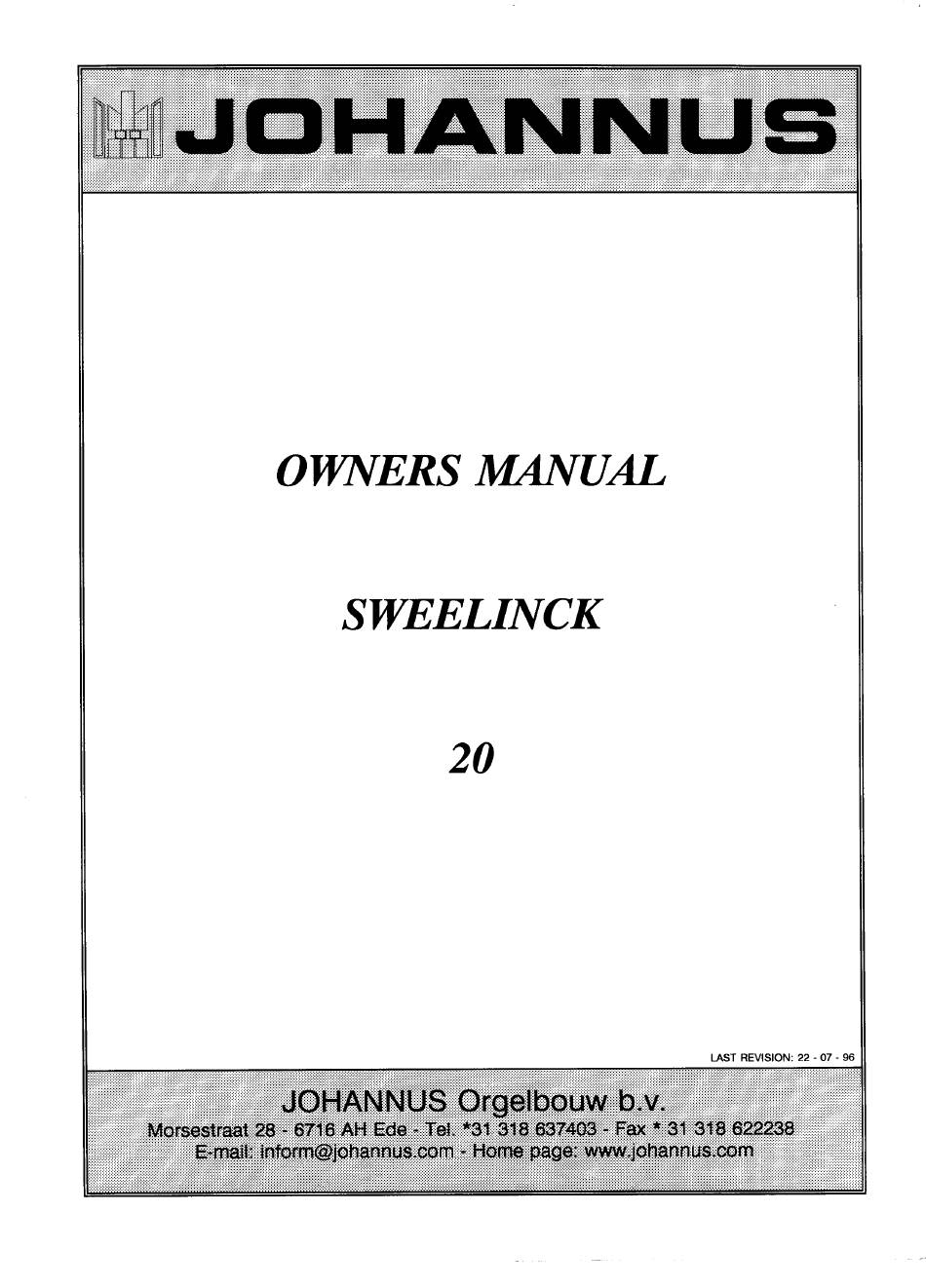

- Page 1 OWNERS MANUAL SWEELINCK...
- Page 3 JOHANNUS ORGELBOUW TECHNICAL SPECIFICATIONS SWEELINCK 20..CONSOLE SWEELINCK 20..EXPLANATION FIGURES INTRODUCTION.. MUSIC RACK..ROLLCOVER..PEDALBOARD......MAINS VOLTAGE MAINS SWITCH..STOPS STOP LAMPS... GENERAL VOLUME.....8 EXPRESSION PEDALS COUPLERS ... 9 MANUAL BASS..CANTUS FIRMUS..TREMULANTS PITCH....TRANSPOSER....10 CHORUS TUNINGS ..
- Page 4 A short time after, study organs were added to the assortment. There was a great demand for this jOHANNUS organ, as it enabled more and more organ players to study classical and liturgical music, since not everyone had the possibility to play on a church organ frequently.
- Page 5 Pedal Great Swell Romantic + baroque • Ughted Rocker tabs • Overall rotary stoplight intensity control • 2x5 octaves (C-d"') synthetic 2x5 octaves (Cod"') wood with toggle touch option • 30-note straight (C-t) 30-note concave (C-t) option 32-note radial concave (C-g') option 32-note AGO (C-g') option...
- Page 7 1. ROLL COVER 2. STOPS PEDAL 3. MUSIC RACK 4. ROLL COVER LOCK 5. STOPS GREAT 6. KEYBOARD SWELL 7. KEYBOARD GREAT 8. STOPS SWELL 9. DISPLAY CAPTURE MEMORY AND GENERAL CRESCENDO STEP 10. MAINS SWITCH 11. GENERAL VOLUME CONTROL 12.
- Page 8 You are now the proud owner of a organ, an instrument with a well JOHANNUS SWEELINCK 20 chosen and balanced selection of stops which allow the player the opportunity to perform the full repertoire of classical and liturgical organ music. This manual will assist you to make you of the many possibilities offered by this organ.
- Page 9 It is important to check the mains voltage of the AC outlet with the voltage setting of the organ. This is printed od the serial numberplate which is located on the left side beneath the manuals. The mains switch is located on the right side of the keyboards. The red pilot lamp inside the mains switch will light up as soon as the organ is switched on.
- Page 10 The volume of the great division together with the pedal division is (independent of the position of the general volume control) adjustable with the left expressionpedal The volume of the swell division is (independent of the position of the general volume control) adjustable with the middle expression pedal When switching on the coupler SWELL TO GREAT, the stops of the swell division can be played not only on the swell manual but also on the great manual (in combination with the stops of the great...
- Page 11 The great division as well as the swell division have their own, independent tremulants. With the tremulant stops TREMULANT GREAT and TREMULANT SWELL the tremulants of the great division respective the swell division can be switched on. Using the coupler SWELL TO GREAT or the coupler CF, the tremulant of the swell division is also coupled to the great manual.
- Page 12 Through the centuries, several systems (tunings) were used in order to calculate and lay down the tone height of each separate key of e.g. keyboard instruments. Nowadays mostly the so called equal tuning is used. This tuning is the default tuning of the organ. On an equal tuned instrument, music in every key can be played.
- Page 13 The preset pistons with the text PP-P-MF-F-FF-T-O-RO are located in the center of the lower rail below the great manual Presets (or fixed combinations) are combinations of pre-programmed stops according to musical standards, from PP (pianissimo) to T (tutti). These presets are fixed at the time of manufacture. They can't be changed by the user anymore. Pressing one of the preset pistons will light up the stop belonging to that preset.
- Page 14 1. Check if the pistons GC and PG are not pressed. This is to avoid changing the general crescendo- combinations by accident. 2. Unlock the capture memory by turning the key in the MEMORY LOCK a quarter turn clockwise. 3. Select the registrationyou wish to store into the memory by switching on the stops. 4.
- Page 15 With the general crescendo pedal @, stops can be switched on in 20 steps, from pianissimo (very soft) to Tutti (very loud). To use the general crescendo pedal, the piston @ must be pressed. As soon as the piston is ®...
- Page 16 One can always recall the factory setting of the general crescendo pedal, but only all 20 steps at the same time. Your own programmed registrations would be deleted as well. 1. Unlock the general crescendo memory by turning the key in the MEMORY LOCK @a quarter turn clockwise.
- Page 17 EXTERN REVERB: This output specifically is meant to connect a JOHANNUS external acoustic system. By means of 4 loudspeakerboxes, this external acoustic system creates an acoustical environment within any building and allows for further development of the cathedral effect. We strongly advise against using this output for other purposes.
- Page 18 CHART of the SWEELINCK 20 organ on page 20. The cabinet of JOHANNUS organs consists of either solid wood or high quality compacted wood board with veneer finish. Consoles should be cleaned with a soft polishing cloth and the keyboards with a soft chamois.
- Page 19 REGISTRATION EXAMPLES SWEELINCK 20 SOLO ON GREAT SOLO ON SWELL TRIO I TRIO II ROMANTIC PLENUM PEDAL • • • DOUBLE BASS • • • • • • • • • • • • SUBBASS • • • • •...
- Page 20 PEDAL DOUBLE BASS SUBBASS OCTAVE GEDACKT CHORALBASS BASS FLUTE NACHTHORN RAUSCHPFEIFE BOMBARDE CONTRA TRUMPET TRUMPET CLARION GREAT BOURDON PRINCIPAL OPEN DIAPASON HOHL FLUTE FLUTE CELESTE GAMBA OCTAVE OPEN FLUTE TWELFTH OCTAVE CONICAL FLUTE CORNET MIXTURE TRUMPET TRUMPET VOX HUMANA SWELL QUINTATON OPEN DIAPASON ROHR FLUTE...
- Page 21 Johannus Organ Date: Nov., 1995 SWEELINCK 20 Version 1.01 Functions Transmitted Recognized Remarks 1 = Great Basic Default 1, 2, 3, 12 1, 2, 3, 12 = Swell Channel Changes' 1, 2, 3 = Pedal = Stops Default Mode 3...
