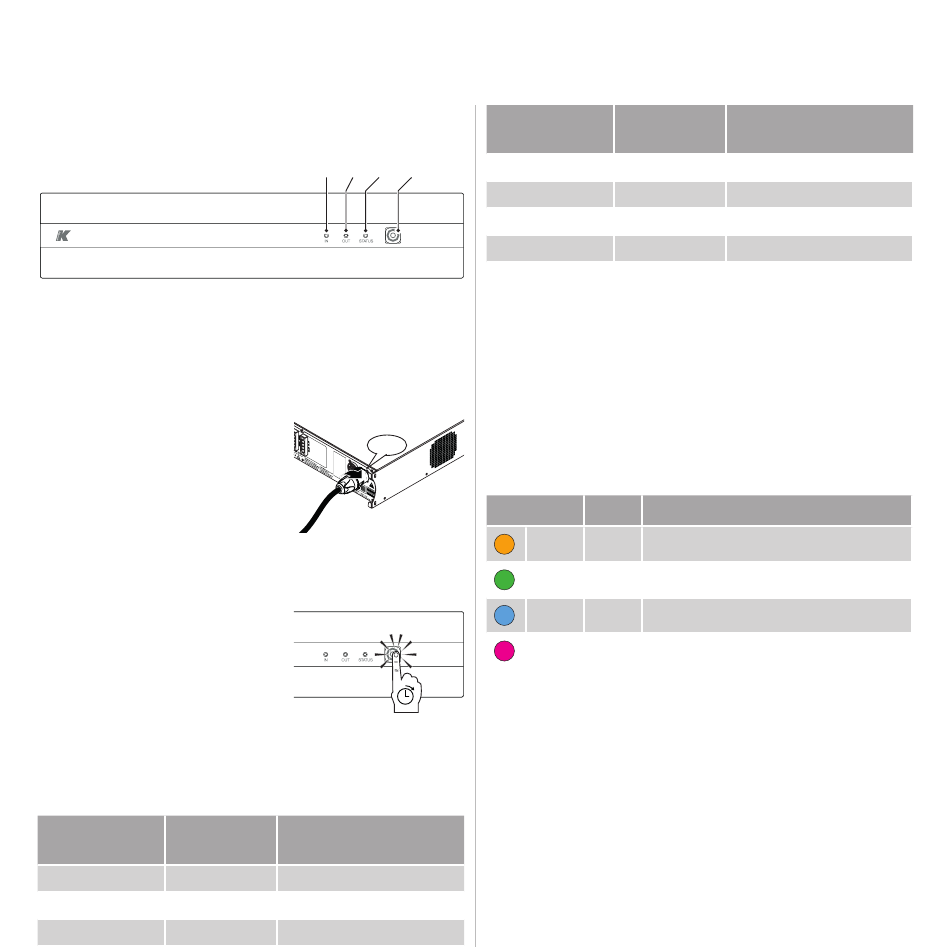

Front Panel
A. Input signal monitor LED
B. Output signal monitor LED
AC mains supply
The AC Main connection is made via the provided power cord:
1. insert the powerCon TRUE flying
connector into the inlet and then
rotate it clockwise;
2. connect the power plug of the
power cord to a mains socket
outlet.
Once properly plugged, the amplifier power up: the front and
back LEDs light on.
In order to set the amplifier unit in standby mode, keep pressed
the button on the front panel for 2
seconds. Keep pressed the button
for 2 seconds to wake up the
amplifier from standby mode.
The powerCon TRUE link (AC mains out) connector allows to
distribute the AC main power to other units according to their
power consumption. Please don't exceed the limits stated on
the next tables.
Power
consumption*
Kommander-KA14 I
400 W
Kommander-KA34
600 W
Kommander-KA104
1200 W
A B C D
C. Status LED
D. Standby button
click!
Max number of cascade
powered equal units
4x KA14 I
4x KA34
2x KA104
Kommander-KA
Power
consumption*
Kommander-KA18
300 W
Kommander-KA28
800 W
Kommander-KA68
1200 W
Kommander-KA208
1200 W
* Power Consumption at 4 Ω load, Pink noise, 1/8 rated power.
LED chart
In the rear panel, the input signal monitor LED and the output
signal monitor LED blink according to the presence of audio
signal at any input or output channel respectively. The input
and output signal monitor LEDs light on orange when the DSP is
limiting the signal level.
Status LED
Color
Mode
orange
solid
DSP software is loading
green
solid
System ready
blue
solid
User command: system identification
purple
flashing
Network parameters reset
User Guide
Max number of cascade
powered equal units
6x KA18
2x KA28
2x KA28
-
