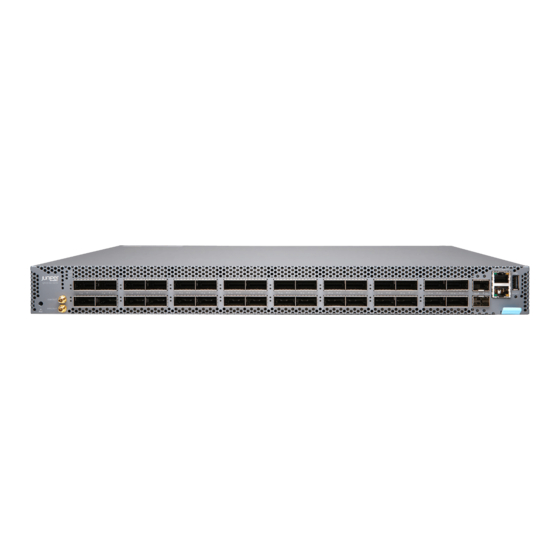

QFX5130-32CD Switch Hardware Guide
Published
2023-03-28

Advertisement

Table of Contents
loading

Related Manuals for Juniper QFX5130-32CD

Summary of Contents for Juniper QFX5130-32CD

  • Page 1 QFX5130-32CD Switch Hardware Guide Published 2023-03-28...
  • Page 2 The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement ("EULA") posted at https:/ /support.juniper.net/support/eula/.

  • Page 3: Table Of Contents

    QFX5130-32CD Fan Module LED | 22 Fan Module Status | 23 QFX5130-32CD Power System | 25 QFX5130-32CD AC Power Supply Modules Description | 26 QFX5130-32CD AC Power Specifications | 27 AC Power Cord with Type C15 Coupler Specifications | 28...
  • Page 4 QFX5130-32CD Environmental Requirements and Specifications | 38 General Site Guidelines | 39 QFX5130-32CD Grounding Cable and Lug Specifications | 40 QFX5130-32CD Clearance Requirements for Airflow and Hardware Maintenance | 41 QFX5130-32CD Chassis Physical Specifications | 42 Site Electrical Wiring Guidelines | 42...
  • Page 5 Performing the Initial Software Configuration for QFX5130-32CD Switches | 93 Maintaining Components Maintaining QFX5130-32CD Cooling System | 98 How to Remove a Fan Module from a QFX5130-32CD | 98 How to Remove a Fan Module in a QFX5130-32CD | 99 Maintaining the QFX5130-32CD Power System | 101...
  • Page 6 How to Install an AC Power Supply in a QFX5130-32CD | 103 Maintaining Transceivers and Fiber Optic Cables on a QFX5130-32CD | 105 Remove a Transceiver | 105 Install a Transceiver | 108 Disconnect a Fiber-Optic Cable | 111 Connect a Fiber-Optic Cable | 111...
  • Page 7 Qualified Personnel Warning | 139 Warning Statement for Norway and Sweden | 139 Fire Safety Requirements | 140 Installation Instructions Warning | 141 QFX5130-32CD Installation Safety Guidelines | 142 Restricted Access Warning | 142 Ramp Warning | 144 Rack-Mounting and Cabinet-Mounting Warnings | 144...
  • Page 8 TN Power Warning | 172 Agency Approvals and Compliance Statements for QFX5130-32CD Switches | 172 Agency Approvals for the QFX Series | 173...

  • Page 9: About This Guide

    About This Guide Use this guide to plan, install, perform initial software configuration, perform routine maintenance, and to troubleshoot QFX5130-32CD switches. After completing the installation and basic configuration procedures covered in this guide, refer to the Junos OS documentation for further software configuration.

  • Page 10: Overview

    C HAPTER Overview QFX5130-32CD System Overview | 2 QFX5130-32CD Port Panel | 6 QFX5130-32CD Management Panel | 11 QFX5130-32CD Cooling System | 17 QFX5130-32CD Power System | 25...

  • Page 11: Qfx5130-32Cd System Overview

    QFX5130-32CD Switch Description The QFX5130-32CD offers 32 ports of 400-Gigabit Ethernet in a low-profile 1-U form factor. The high- speed ports support a wide variety of port speeds ranging from 10Gbps to 400Gbps. An Intel Xeon D-1500 processor drives the QFX5130 control plane, which runs the Junos OS Evolved software.

  • Page 12: Benefits Of The Qfx5130-32Cd Switch

    • Allows current Junos OS users to seamlessly migrate to Junos OS Evolved software. With Junos OS Evolved, you can run Linux using your familiar Junos OS CLI, and run third-party Linux applications with Juniper Extension Toolkit (JET) API support, telemetry support for monitoring the DC network, and support for module-level in-service software upgrade (ISSU).

  • Page 13: System Software

    JPSU-1600W-1UDCAFO (ports-to- FRUs airflow) System Software The Junos OS Evolved software that runs on the QFX5130-32CD Switch provides Layer 2 and Layer 3 switching, routing, and security services. Junos OS Evolved is installed on the switch solid-state drive (SSD). For more information about the features are supported on QFX5130-32CD, see Feature Explorer.

  • Page 14: Qfx5130-32Cd Component Redundancy

    QFX5130-32CD switch can shut down. QFX5130-32CD Field-Replaceable Units Field-replaceable units (FRUs) are components that you can replace at your site. The QFX5130-32CD device FRUs are hot-insertable and hot-removable: you can remove and replace the FRUs without powering off the switch or disrupting the switching function.

  • Page 15: Qfx5130-32Cd Port Panel

    See "Disconnect a Fiber-Optic Cable" on page 111. NOTE: If you have a Juniper Care service contract, register any addition, change, or upgrade of hardware components at https:/ /www.juniper.net/customers/support/tools/updateinstallbase/. Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace existing components with the same type of component.
  • Page 16 The device does not return to the factory-default configuration. Network Ports The QFX5130-32CD network ports (0 to 31) support: • 400-Gbps QSFP-DD direct attach copper (DAC) cables • 400 Gbps active optic cable (AOC) (starting in Junos OS Evolved Release 20.4R1) •...
  • Page 17 100g user@host#set interfaces NOTE: On QFX5130-32CD devices, there is a single FPC and PIC, which is always 0. You can channelize the port into 4 independent 25-Gigabit or 10-Gigabit Ethernet interfaces by configuring the number of sub-ports and speed. To do this, you can use the set interfaces et-0/0/x speed...
  • Page 18 LED indicates fault conditions. See Figure 3 on page Figure 3: Link/Activity LEDs on QFX5130-32CD Table 4 on page 10 describes the various states of the network port LED for the QSFP-DD high-speed ports.
  • Page 19 Table 4: QSFP-DD Network Port LEDs on a QFX5130-32CD Color State Channelized Description Unlit Off is the default mode. The LED can be unlit even when power is present and a transceiver is present in the port. • The port is administratively disabled.

  • Page 20: Qfx5130-32Cd Management Panel

    Channelizing Interfaces on QFX3500, QFX3600, QFX5100, QFX10002, QFX10008, QFX10016, and EX4600 Switches QFX5130-32CD Network Cable and Transceiver Planning | 47 Maintaining Transceivers and Fiber Optic Cables on a QFX5130-32CD | 105 QFX5130-32CD Management Panel IN THIS SECTION QFX5130-32CD Management Panel Overview | 12...

  • Page 21: Qfx5130-32Cd Management Panel Overview

    The management panel allows you to have a management channel into the switch that is separate from production traffic. QFX5130-32CD Management Panel Overview The management panel of the QFX5130-32CD is divided in two sections, with the port panel in between these sections. Figure 4 on page 12 shows the connections and components of the management panel and the network ports.
  • Page 22 The following sections explain how to interpret these LEDs. QFX5130-32CD Chassis Status LEDs QFX5130-32CD has a series of three LEDs that indicate system status. On the QFX5130, you can find these LEDs to the left of the network ports (see Figure 5 on page 13).
  • Page 23 Green et-0/0/27 Green et-0/0/28 Green et-0/0/29 et-0/0/30 Green et-0/0/31 et-0/0/32 et-0/0/33 Table 6: Chassis Status LEDs on QFX5130-32CD Devices Name Color State Description ALM–Alarm Unlit The switch is halted or there is no alarm.
  • Page 24 (Continued) Table 6: Chassis Status LEDs on QFX5130-32CD Devices Name Color State Description On steadily A major hardware fault has occurred, such as a temperature alarm, power failure, or media failure. The device has halted. Power off the device by...
  • Page 25 0 FPC 0 RJ-45 Management Port LEDs The management port on a QFX5130-32CD has two LEDs that indicate link status and link activity. The management port is labeled MGMT for 10/100/1000BASE-T connections. Link and activity LED Status LED —...

  • Page 26: Qfx5130-32Cd Cooling System

    Table 7: Management Port LEDs on a QFX5130-32CD (Continued) Color State Description Green On steadily A link is established, but there is no link activity. Blinking or flickering A link is established, and there is link activity. Status Unlit Either the port speed is 10-Mbps or the link is down.

  • Page 27: Qfx5130-32Cd Cooling System Description

    Do Not Install Components with Different Airflow or Wattage in the Switch | 21 The cooling system in an QFX5130-32CD consists of six fan modules and a single fan in each power supply. The switch can ordered in one of two airflow directions: •...
  • Page 28 The fan modules are available in two product variants that have different airflow directions—FRU-to- port airflow and port-to-FRU airflow Table 8 on page 19 lists the available fan module product variants and the direction of airflow in them: Table 8: Fan Modules in QFX5130-32CD Switches Fan Module Airflow Diagram Label on Color of...
  • Page 29 (Continued) Table 8: Fan Modules in QFX5130-32CD Switches Fan Module Airflow Diagram Label on Color of Direction of Airflow Power the Fan in the Fan Module Supplies Module Module QFX5130-32CD- Figure 8 on page AIR OUT Juniper Port-to-FRU, that is,...
  • Page 30 The handles on Airflow In fans and power supplies are azure blue, compared to the Airflow Out fans and power supplies, which are Juniper gold. Mixing components with different airflows in the same chassis hampers the performance of the cooling system of the switch and leads to overheating of the chassis.

  • Page 31: Qfx5130-32Cd Fan Module Led

    However, if you need to convert a QFX5130-32CD device to have a different airflow, you can change the airflow pattern. To convert an AIR IN product variant to an AIR OUT product variant or an AIR OUT product variant to a AIR IN product variant, you must power off and replace all of the fans and power supplies at one time to use the new direction.

  • Page 32: Fan Module Status

    (Continued) Table 9: Fan Tray LED Behavior in a QFX5130-32CD Name Color State Description Amber Blinking An error has been detected in the fan module. Replace the fan module as soon as possible. Either the fan has failed or it is seated incorrectly.
  • Page 33 Fan Tray 5 Fan 1 12700 RPM Fan Tray 5 Fan 2 11800 RPM The QFX5130-32CD has a status LED (labeled ST) for each fan module. It indicates the status of all the fan modules. RELATED DOCUMENTATION Maintaining QFX5130-32CD Cooling System | 98...

  • Page 34: Qfx5130-32Cd Power System

    The system raises an alarm when a power supply having a different airflow or wattage is inserted into the chassis. The power supplies for the QFX5130-32CD are located on the FRU panel. See Figure 10 on page...

  • Page 35: Qfx5130-32Cd Ac Power Supply Modules Description

    QFX5130-32CD AC Power Supply Modules Description The QFX5130-32CD ships with two power supplies. While QFX5130-32CD can operate with the minimum number of power supplies, maximum power supplies are required to have redundancy. See Figure 11 on page 26 for examples of these power supply modules.

  • Page 36: Qfx5130-32Cd Ac Power Specifications

    8.0 A at 200-240 VAC QFX5130-32CD 115-127 V: 730-W Typical power consumption 220-240 V: 775-W QFX5130-32CD 115-127 V: 973-W Maximum power consumption The QFX5130-32CD AC model uses power cords with type C15 couplers, see "AC Power Cord with Type C15 Coupler Specifications" on page...

  • Page 37: Ac Power Cord With Type C15 Coupler Specifications

    Table 12 on page 28 lists AC power cord specifications provided for each country or region. Table 12: AC Power Cord Specifications Country/Region Electrical Plug Standards Juniper Spare Juniper Graphic Specifications Model Model Number Number Argentina 250 VAC, 10 A, IRAM 2073 Type RA/3 –...
  • Page 38 (Continued) Table 12: AC Power Cord Specifications Country/Region Electrical Plug Standards Juniper Spare Juniper Graphic Specifications Model Model Number Number Europe (except 250 VAC, 10 A, CEE (7) VII Type VIIG CG_CBL- CBL-PWR- Italy, 50 Hz C15-02-EU C15M- Switzerland, HITEMP-EU...

  • Page 39: Qfx5130-32Cd Ac Power Supply Leds

    AC input okay Fault condition — — DC output okay — Table 13 on page 30 describes the LED behavior on the QFX5130-32CD AC power supplies. Table 13: AC Power Supply LEDs on a QFX5130-32CD Color State Description AC input okay Unlit The power supply is disconnected from power, or power is not coming into the power supply.

  • Page 40: Qfx5130-32Cd Dc Power Supply Description

    (FRUs) that install without powering off the device or disrupting the switching function. The factory installed power supplies in both models are 1600-W, but are not interchangeable. The QFX5130-32CD is shipped with two power supplies. Each power supply provides 2400 W of power to the chassis.
  • Page 41 Figure 13: DC Power Supply in QFX5130-32CD CAUTION: Verify that the airflow direction on the power supply handle matches the direction of airflow in the chassis. Ensure that each power supply you install in the chassis has the same airflow direction. If you install power supplies with two different airflow directions, Junos Evolved raises an alarm.

  • Page 42: Qfx5130-32Cd Dc Power Specifications

    QFX5130-32CD DC Power Specifications Table 15 on page 33 describes the DC power specifications for the DC version of a QFX5130-32CD switch. Table 15: DC Power Specifications for a QFX5130-32CD Item Specifications DC input voltage • Rated operating voltage: VDC -48 VDC through -60 VDC •...
  • Page 43 Table 16 on page 34 describes the status LED behavior on QFX5130-32CD power supplies. Table 16: DC Power Supply LEDs on a QFX5130-32CD Status LED Color Description Input OK The power supply is disconnected from power, or power is not coming into the power supply.

  • Page 44: Site Planning, Preparation, And Specifications

    C HAPTER Site Planning, Preparation, and Specifications QFX5130-32CD Site Preparation Checklist | 36 QFX5130-32CD Site Guidelines and Requirements | 38 QFX5130-32CD Network Cable and Transceiver Planning | 47 QFX5130-32CD Management Cable Specifications and Pinouts | 54...

  • Page 45: Qfx5130-32Cd Site Preparation Checklist

    QFX5130-32CD Site Preparation Checklist The checklist in Table 17 on page 36 summarizes the tasks you need to perform when preparing a site for a QFX5130-32CD installation. Table 17: Site Preparation Checklist Item or Task For More Information Performed By...
  • Page 46 Choose the length of cable based on the distance between the hardware components being connected. Plan the cable routing and — management. RELATED DOCUMENTATION General Safety Guidelines and Warnings | 136 QFX5130-32CD Installation Overview | 70...

  • Page 47: Qfx5130-32Cd Site Guidelines And Requirements

    QFX5130-32CD Environmental Requirements and Specifications | 38 General Site Guidelines | 39 QFX5130-32CD Grounding Cable and Lug Specifications | 40 QFX5130-32CD Clearance Requirements for Airflow and Hardware Maintenance | 41 QFX5130-32CD Chassis Physical Specifications | 42 Site Electrical Wiring Guidelines | 42...

  • Page 48: General Site Guidelines

    40° C) there is no performance degradation to 6000 feet (1828.8 meters) • QFX5130-32CD-AFI-At 32° F through 77° F (0° C through 25° C) there is no performance degradation to 6000 feet (1828.8 meters) Relative humidity, operating Normal operation ensured in relative humidity range of 5% through...

  • Page 49: Qfx5130-32Cd Grounding Cable And Lug Specifications

    The switch must be adequately grounded before power is connected to ensure proper operation and to meet safety and electromagnetic interference (EMI) requirements. You must install the QFX5130-32CD in a restricted-access location and ensure that the chassis is always properly grounded. The QFX5130-32CD has a two-hole protective grounding terminal provided on the chassis.

  • Page 50: Qfx5130-32Cd Clearance Requirements For Airflow And Hardware Maintenance

    LCD10-10A-L or equivalent (not provided). The grounding lug should accommodates 14–10 AWG (2–5.3 mm²) stranded wire. • The grounding cable that you provide for a QFX5130-32CD must be 14 AWG (2 mm²), minimum 60° C wire, or as permitted by the local code.

  • Page 51: Qfx5130-32Cd Chassis Physical Specifications

    • Leave at least 24 in. (61 cm) both in front of and behind the QFX5130-32CD. For service personnel to remove and install hardware components, you must leave adequate space at the front and back of the switch. NEBS GR-63 recommends that you allow at least 30 in. (76.2 cm) in front of the rack or cabinet and 24 in.

  • Page 52: Qfx5130-32Cd Rack Requirements

    • Electrical hazards as a result of power surges conducted over the lines into the equipment. QFX5130-32CD Rack Requirements QFX5130-32CD switches are designed to be installed on four-post racks. Rack requirements consist of: • Rack type • Mounting bracket hole spacing...
  • Page 53 Table 21 on page 44 provides the rack requirements and specifications for the QFX5130-32CD. Table 21: Rack Requirements for the QFX5130-32CD Rack Requirement Guidelines Rack type Use a four-post rack that provides bracket holes or hole patterns spaced at 1-U (1.75 in. or 4.45 cm) increments and that meets the size and strength requirements to support the...

  • Page 54: Qfx5130-32Cd Cabinet Requirements

    Secure the rack to the ceiling brackets as well as wall or floor brackets for maximum stability. QFX5130-32CD Cabinet Requirements You can mount the QFX5130-32CD in an enclosure or cabinet that contains a four-post 19-in. open Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) rack as defined in published by the Electronics Industry Association.
  • Page 55 • The QFX5130-32CD fans exhaust hot air either through the vents on the port panel or through the fans and power supplies. Install the switch in the cabinet in a way that maximizes the open space on the FRU side of the chassis.

  • Page 56: Qfx5130-32Cd Network Cable And Transceiver Planning

    Calculating Power Budget and Power Margin for Fiber-Optic Cables | 52 Determining QFX5130-32CD Optical Interface Support You can find information about the optical transceivers supported on your Juniper device by using the Hardware Compatibility Tool. In addition to transceiver and connection type, the optical and cable characteristics–where applicable–are documented for each transceiver.

  • Page 57: Cable Specifications For Qsfp+ And Qsfp28 Transceivers

    The 40-Gigabit Ethernet QSFP+ and 100-Gigabit Ethernet QSFP28 transceivers that are used in QFX Series switches use 12-ribbon multimode fiber crossover cables with socket MPO/UPC connectors. The fiber can be either OM3 or OM4. These cables are not sold by Juniper Networks. CAUTION: To maintain agency approvals, use only a properly constructed, shielded cable.
  • Page 58 (Continued) Table 23: QSFP+ and QSFP28 Optical Module Receptacle Pinouts Fiber Signal Unused Unused Unused Unused Rx3 (Receive) Rx2 (Receive) Rx1 (Receive) Rx0 (Receive) Table 24: QSFP+ MPO Fiber-Optic Crossover Cable Pinouts...

  • Page 59: Understanding Qfx Series Fiber-Optic Cable Signal Loss, Attenuation, And Dispersion

    Table 24: QSFP+ MPO Fiber-Optic Crossover Cable Pinouts (Continued) Understanding QFX Series Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion IN THIS SECTION Signal Loss in Multimode and Single-Mode Fiber-Optic Cables | 50 Attenuation and Dispersion in Fiber-Optic Cable | 51 To determine the power budget and power margin needed for fiber-optic connections, you need to understand how signal loss, attenuation, and dispersion affect transmission.
  • Page 60 are not coherent light sources. They spray varying wavelengths of light into the multimode fiber, which reflect the light at different angles. Light rays travel in jagged lines through a multimode fiber, causing signal dispersion. When light traveling in the fiber core radiates into the fiber cladding (layers of lower refractive index material in close contact with a core material of higher refractive index), higher-order mode loss occurs.

  • Page 61: Calculating Power Budget And Power Margin For Fiber-Optic Cables

    TIP: You can use the Hardware Compatibility Tool to find information about the pluggable transceivers supported on your Juniper Networks device. To calculate the power budget and power margin, perform the following tasks: How to Calculate Power Budget for Fiber-Optic Cables To ensure that fiber-optic connections have sufficient power for correct operation, you need to calculate the link's power budget, which is the maximum amount of power it can transmit.

  • Page 62: How To Calculate Power Margin For Fiber-Optic Cables

    How to Calculate Power Margin for Fiber-Optic Cables After calculating a link's power budget, you can calculate the power margin (P ), which represents the amount of power available after subtracting attenuation or link loss (LL) from the power budget (P ).

  • Page 63: Qfx5130-32Cd Management Cable Specifications And Pinouts

    In both examples, the calculated power margin is greater than zero, indicating that the link has sufficient power for transmission and does not exceed the maximum receiver input power. RELATED DOCUMENTATION Maintaining Transceivers and Fiber Optic Cables on a QFX5130-32CD | 105 QFX5130-32CD Management Cable Specifications and Pinouts...

  • Page 64: Cable Specifications For Console And Management Connections For The Qfx Series

    328 feet RJ-45 equivalent suitable for long RJ-45 patch cable (100 meters) 1000BASE-T operation RJ-45 Management Port Connector Pinout Information Table 27 on page 56 provides the pinout information for the RJ-45 connector for the management port on Juniper Networks devices.

  • Page 65: Console Port Connector Pinouts For The Qfx Series

    Table 27: RJ-45 Management Port Connector Pinout Information Signal Description TRP1+ Transmit/receive data pair 1 TRP1- Transmit/receive data pair 1 TRP2+ Transmit/receive data pair 2 TRP3+ Transmit/receive data pair 3 TRP3- Transmit/receive data pair 3 TRP2- Transmit/receive data pair 2 TRP4+ Transmit/receive data pair 4 TRP4-...

  • Page 66: Qsfp-Dd Port Connector Pinout Information

    Table 28: Console Port Connector Pinouts for the QFX Series Signal Description TxD Output Transmit data Signal Ground Signal ground Signal Ground Signal ground RxD Input Receive data QSFP-DD Port Connector Pinout Information Table 29 on page 57 provides the pinout mapping for double density quad small-form factor pluggable (QSFP-DD) port connectors.
  • Page 67 (Continued) Table 29: QSFP-DD Network Port Pinout Mapping Symbol Description Ground ModSelL Module select ResetL Module reset VCC RX +3.3V Power Supply Receiver 2-wire serial interface clock 2-wire serial interface data Ground RX3p Receiver non-inverted data output RX3n Receiver inverted data output Ground RX1p Receiver non-inverted data output...
  • Page 68 (Continued) Table 29: QSFP-DD Network Port Pinout Mapping Symbol Description RX2p Receiver non-inverted data output Ground RX4n Receiver inverted data output RX4p Receiver non-inverted data output Ground ModPrsL Module Present IntL Interrupt VCC TX +3.3V power supply transmitter VCC1 +3/3V power supply LPMode Low power mode Ground...
  • Page 69 (Continued) Table 29: QSFP-DD Network Port Pinout Mapping Symbol Description TX1n Transmitter inverted data input Ground Ground TX6n Transmitter inverted data input TX6p Transmitter non-inverted data input Ground TX8n Transmitter inverted data input TX8p Transmitter non-inverted data input Ground Not used Not used +3.3V power supply Reserved...
  • Page 70 (Continued) Table 29: QSFP-DD Network Port Pinout Mapping Symbol Description RX7p Receiver non-inverted data output RX7n Receiver inverted data output Ground RX5p Receiver non-inverted data output RX5n Receiver inverted data output Ground Ground RX6n Receiver inverted data output RX6p Receiver non-inverted data output Ground RX8n Receiver inverted data output...

  • Page 71: Qsfp+, Qsfp28, And Qsfp56 Port Connector Pinout Information

    (Continued) Table 29: QSFP-DD Network Port Pinout Mapping Symbol Description +3.3V power supply +3.3V power supply Reserved Ground TX7p Transmitter non-inverted data input TX7n Transmitter inverted data input Ground TX5p Transmitter non-inverted data input TX5n Transmitter inverted data input Ground QSFP+, QSFP28, and QSFP56 Port Connector Pinout Information Table 30 on page 63 provides the pinout mapping for the quad small-form factor pluggable (QSFP)
  • Page 72 Table 30: QSFP+, QSFP28, and QSFP56 Port Connector Pinout Mappng Symbol Description Ground TX2n Transmitter inverted data input TX2p Transmitter non-inverted data input Ground TX4n Transmitter inverted data input TX4p Transmitter non-inverted data input Ground ModSelL Module select LPMode_Reset Low power mode reset VccRx +3.3V power supply receiver 2-wire serial interface clock...
  • Page 73 (Continued) Table 30: QSFP+, QSFP28, and QSFP56 Port Connector Pinout Mappng Symbol Description Ground RX1p Receiver non-inverted data output RX1n Receiver inverted data output Ground Ground RX2n Receiver inverted data output RX2p Receiver non-inverted data output Ground RX4n Receiver inverted data output RX4p Receiver non-inverted data output Ground...

  • Page 74: Sfp, Sfp+, And Sfp28 Port Connector Pinout Information

    (Continued) Table 30: QSFP+, QSFP28, and QSFP56 Port Connector Pinout Mappng Symbol Description Reserved Ground TX3p Transmitter non-inverted data input TX3n Transmitter inverted data input Ground TX1p Transmitter non-inverted data input TX1n Transmitter inverted data input Ground SFP, SFP+, and SFP28 Port Connector Pinout Information Table 31 on page 65 provides the pinout mapping for small-form factor pluggable (SFP) connectors, SFP+ connectors, and SFP28 connectors.
  • Page 75 (Continued) Table 31: SFP, SFP+, and SFP28 Port Connector Pinout Mapping Symbol Description TX_Disable Optical output disabled when high 2-wire serial interface data (MOD-DEF2) 2-wire serial interface data (MOD-DEF1) MOD_ABS Module absent Receiver rate select RX_LOS Receiver loss of signal indication Transmitter rate select VeeR Receiver ground...

  • Page 76: Usb Port Specifications For The Qfx Series

    Transmitter ground USB Port Specifications for the QFX Series The following Juniper Networks USB flash drives have been tested and are officially supported for the USB port in the QFX Series: • RE-USB-1G-S—1-gigabyte (GB) USB flash drive (except QFX3100 Director device) •...
  • Page 77 NOTE: USB flash drives used with the QFX Series device must support USB 2.0 or later. RELATED DOCUMENTATION Connecting the QFX5130-32CD to External Devices | 81...

  • Page 78: Initial Installation And Configuration

    Initial Installation and Configuration QFX5130-32CD Installation Overview | 70 Unpack and Mount the QFX5130-32CD | 71 Connecting the QFX5130-32CD to External Devices | 81 Connecting the QFX5130-32CD to Power | 85 Performing the Initial Software Configuration for QFX5130-32CD Switches | 93...

  • Page 79: Qfx5130-32Cd Installation Overview

    "Mounting a QFX5130-32CD in a Rack or Cabinet" on page 3. Follow the instructions in: "Ground the QFX5130-32CD and Connect Power" on page 81 "Connecting the QFX5130-32CD to Power" on page 85 "Register Products—Mandatory to Validate SLAs" on page 73 4.

  • Page 80: Qfx5130 Installation Safety Guidelines

    General Safety Guidelines and Warnings | 136 Unpack and Mount the QFX5130-32CD IN THIS SECTION Unpack a QFX5130-32CD | 72 Register Products—Mandatory to Validate SLAs | 73 Mounting a QFX5130-32CD in a Rack or Cabinet | 74 Four-Post Cabinet Installation for QFX5130-32CD | 77...

  • Page 81: Unpack A Qfx5130-32Cd

    Unpack a QFX5130-32CD The QFX5130-32CD chassis is a rigid sheet-metal structure that houses the hardware components. A QFX5130-32CD is shipped in a cardboard carton, secured with foam packing material. CAUTION: The QFX5130-32CD is maximally protected inside the shipping carton. Do not unpack the switch until you are ready to begin installation.

  • Page 82: Register Products-Mandatory To Validate Slas

    Power cords with plugs appropriate to your geographical location Documentation roadmap card Warranty Register Products—Mandatory to Validate SLAs Register all new Juniper Networks hardware products and changes to an existing installed product using the Juniper Networks website to activate your hardware replacement service-level agreements (SLAs).

  • Page 83: Mounting A Qfx5130-32Cd In A Rack Or Cabinet

    Four-Post Installation Procedure for QFX5130-32CD | 75 You can mount QFX5130-32CD switches only on a four-post 19-in. rack or cabinet using the rack mount kit provided with the switch. The rack mount kit can be adapted for either a four-post rack-only or a rack and cabinet installation.

  • Page 84: Four-Post Installation Procedure For Qfx5130-32Cd

    If you are installing the QFX5130-32CD above 60 in. (152.4 cm) from the floor, you can remove the power supplies and fan modules to minimize the weight before attempting to install the device.
  • Page 85 Have a second person secure the front of the switch to the rack using four mounting screws (and cage nuts and washers if your rack requires them.) Tighten the screws. See Figure 18 on page 77 for an example of connecting the mounting rails and blades to a QFX5130-32CD.

  • Page 86: Four-Post Cabinet Installation For Qfx5130-32Cd

    11. We recommend that you insert dust covers in any unused ports. Four-Post Cabinet Installation for QFX5130-32CD You can mount a QFX5130-32CD on four-post racks within a cabinet. For cabinet installations, you need to reconfigure the provided mounting rail. The mounting rail needs to be changed from a flush- mount to a set-back design to allow room in the cabinet for network cabling.
  • Page 87 Decide whether the field replaceable unit (FRU) end of the switch or the port end is to be placed at the front of the rack. Position the device in such a manner that the AIR IN labels on components are next to the cold aisle and AIR OUT labels on components are next to the hot aisle. Disassemble one of the front mounting rails by removing the three Phillips screws.
  • Page 88 22 on page 79 to see the proper alignment for the QFX5130-32CD. Figure 22: Attaching the Mounting Rails to the QFX5130-32CD Attach the mounting rail to the switch using six of the M4 Flat-head mounting screws (provided). Tighten the screws using a Phillips number 2 screwdriver.
  • Page 89 Figure 23: Attaching QFX5130-32CD to Cabinet Rack 12. Continue to support the switch while sliding the rear mounting-blades into the channel of the extended mounting-rails and securing the mounting blades to the rack. Use the four mounting screws (and cage nuts and washers if your rack requires them) to attach each blade to the rack.

  • Page 90: Connecting The Qfx5130-32Cd To External Devices

    QFX5130-32CD to earth ground before you connect it to power. You must install the QFX5130-32CD in a restricted-access location and ensure that the chassis is always properly grounded. The QFX5130-32CD has a two-hole protective grounding terminal provided on the chassis.
  • Page 91 "Mounting a QFX5130-32CD in a Rack or Cabinet" on page Ensure that you have the following parts and tools available: • Grounding cable for your QFX5130-32CD device—The grounding cable must be 14 AWG (2 mm²), minimum 90° C wire, or as permitted by the local code.

  • Page 92: Connect A Device To A Network For Out-Of-Band Management

    2. Connect the remaining end of the grounding cable to a proper earth ground, such as the rack in which the switch is mounted. 3. Dress the grounding cable and ensure that it does not touch or block access to other device components and that it does not drape where people could trip over it.

  • Page 93: Connect A Device To A Management Console Using An Rj-45 Connector

    Connect a Device to a Management Console Using an RJ-45 Connector Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. One such cable and an RJ-45-to-DB-9 serial port adapter are supplied with the device. Figure 28 on page 84 shows the RJ-45 connector on the Ethernet cable.

  • Page 94: Connecting The Qfx5130-32Cd To Power

    Connecting the QFX5130-32CD to Power | 85 Connecting the QFX5130-32CD to Power IN THIS SECTION How to Connect AC Power to a QFX5130-32CD | 85 How to Connect DC Power to a QFX5130-32CD | 88 How to Connect AC Power to a QFX5130-32CD Ensure that you have a power cord appropriate for your geographical location available to connect AC power to the switch.
  • Page 95 "How to Install an AC Power Supply in a QFX5130-32CD" on page 103. The QFX5130-32CD ships from the factory with two power supplies. Each power supply is a hot- removable and hot-insertable field-replaceable unit (FRU). You can install a replacement power supply in the slots next to the fan modules without powering off the switch or disrupting the switching function.
  • Page 96 7. Verify that the AC and DC LEDs on each power supply are lit green. If the amber fault LED is lit, remove power from the power supply, and replace the power supply ("Maintaining the QFX5130-32CD Power System" on page 101). Do not remove the power supply until you have a replacement power supply ready: the power supplies must be installed in the switch to ensure proper airflow.

  • Page 97: How To Connect Dc Power To A Qfx5130-32Cd

    • Install the power supply in the chassis. For instructions on Installing a power supply in a QFX5130-32CD, see "How to Install an AC Power Supply in a QFX5130-32CD" on page 103. WARNING: A DC-powered QFX5130-32CD is intended for installation only in a restricted access location.

  • Page 98: Connecting Dc Power To A Qfx5130-32Cd

    WARNING: Connecting DC Power to a QFX5130-32CD To connect DC power to the DC model QFX5130-32CD: Attach the grounding strap to your bare wrist and to a site ESD point on the switch. Verify that the DC power cables are correctly labeled before making connections to the power supply.
  • Page 99 0 V and that the cable leads do not become active while you are connecting DC power. The QFX5130-32CD should connect the power supplies to an external DC power source, or an -0% to +20% tolerance DC mains, supplied with a NRTL-approved circuit breaker rated at 40-A.
  • Page 100 Figure 33: Removing Terminal Block Cover Remove the screws on the terminals using the screwdriver. Save the screws. See Figure 34 on page Figure 34: QFX5130-32CD Faceplate Not used Release latch — — Handle V– terminal — — LEDs V+ terminal —...
  • Page 101 Figure 35: Securing Ring Lugs to the Terminals on the QFX5130-32CD DC Power Supply The QFX5130-32CD is designed to operate with a DC power supply that has a single, non- redundant, feed input. For source redundancy, two DC power supplies must be installed in the QFX5130;...

  • Page 102: Performing The Initial Software Configuration For Qfx5130-32Cd Switches

    • Stop Bits—1 • DCD State—Disregard You must perform the initial configuration of the QFX5130-32CD through the console port using the CLI or through zero touch provisioning (ZTP). In order to use ZTP to provision the device, you must have...
  • Page 103 Log in as root. There is no password. If the software booted before you connected to the console port, you might need to press the Enter key for the prompt to appear. login: root Start the CLI. root@% cli Enter configuration mode. root>...
  • Page 104 10. Enable Telnet service. [edit] root@# set system services telnet NOTE: When Telnet is enabled, you cannot log in to a QFX5130-32CD switch through Telnet using root credentials. Root login is allowed only for SSH access. 11. Enable SSH service for root login.
  • Page 105 RELATED DOCUMENTATION QFX5130-32CD Installation Overview | 70...

  • Page 106: Maintaining Components

    C HAPTER Maintaining Components Maintaining QFX5130-32CD Cooling System | 98 Maintaining the QFX5130-32CD Power System | 101 Maintaining Transceivers and Fiber Optic Cables on a QFX5130-32CD | 105 Powering Off a QFX5130-32CD | 113...

  • Page 107: Maintaining Qfx5130-32Cd Cooling System

    How to Remove a Fan Module from a QFX5130-32CD Before you remove a fan module from a QFX5130-32CD, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge Damage"...

  • Page 108: How To Remove A Fan Module In A Qfx5130-32Cd

    How to Remove a Fan Module in a QFX5130-32CD Before you install a fan module in a QFX5130-32CD, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge...
  • Page 109 The fan modules are designed so that they can only be inserted into the QFX5130-32CD product variant that supports the same airflow type. See"QFX5130-32CD Power System" on page 25...

  • Page 110: Maintaining The Qfx5130-32Cd Power System

    (FRU). You can install replacement power supplies without powering off the switch or disrupting the switching function. How to Remove a Power Supply from a QFX5130-32CD Before you remove a power supply from a QFX5130-32CD, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge Damage"...
  • Page 111 2. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis. NOTE: If only one power supply is installed in your QFX5130-32CD, you need to power off the switch before removing the power supply. See "Powering Off a QFX5130-32CD"...

  • Page 112: How To Install An Ac Power Supply In A Qfx5130-32Cd

    9. Replace with another power supply module. How to Install an AC Power Supply in a QFX5130-32CD • Before you install a power supply in a QFX5130-32CD, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic...
  • Page 113 Figure 40: Installing a QFX5130-32CD AC Power Supply NOTE: Each power supply must be connected to a dedicated power source outlet. NOTE: If you have a Juniper Care service contract, register any addition, change, or upgrade of hardware components at https:/ /www.juniper.net/customers/support/tools/updateinstallbase/...

  • Page 114: Maintaining Transceivers And Fiber Optic Cables On A Qfx5130-32Cd

    • Rubber safety caps to cover the transceiver and fiber-optic cable connector • A dust cover to cover the port or a replacement transceiver The transceivers for Juniper Networks devices are hot-removable and hot-insertable field-replaceable units (FRUs). You can remove and replace the transceivers without powering off the device or disrupting...
  • Page 115 NOTE: After you remove a transceiver, or when you change the media-type configuration, wait for 6 seconds for the interface to display the operational commands. Figure 41 on page 107 shows how to remove a QSFP+ transceiver. The procedure is the same for all types of transceivers except the QSFP28 and CFP transceivers.
  • Page 116 CAUTION: Do not bend the fiber-optic cable beyond its minimum bend radius. An arc smaller than a few inches in diameter can damage the cable and cause problems that are difficult to diagnose. 6. To remove an SFP, SFP+, XFP, or a QSFP+ transceiver: a.

  • Page 117: Install A Transceiver

    Juniper Networks. If you face a problem running a Juniper device that uses third-party optical modules or cables, JTAC may help you diagnose host-related issues if the observed issue is not, in the opinion of JTAC, related to the use of the third-party optical modules or cables.
  • Page 118 ZR or ZR+) can potentially cause thermal damage to or reduce the lifespan of the host equipment. Any damage to the host equipment due to the use of third-party optical modules or cables is the users’ responsibility. Juniper Networks will accept no liability for any damage caused due to such use.
  • Page 119 LASER WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cable connected to a transceiver emit laser light that can damage your eyes. CAUTION: Do not leave a fiber-optic transceiver uncovered except when inserting or removing cable.

  • Page 120: Disconnect A Fiber-Optic Cable

    • A rubber safety cap to cover the transceiver • A rubber safety cap to cover the fiber-optic cable connector Juniper Networks devices have optical transceivers to which you can connect fiber-optic cables. To disconnect a fiber-optic cable from an optical transceiver installed in the device: 1.

  • Page 121: How To Handle Fiber-Optic Cables

    How to Handle Fiber-Optic Cables Fiber-optic cables connect to optical transceivers that are installed in Juniper Networks devices. Follow these guidelines when handling fiber-optic cables: • When you unplug a fiber-optic cable from a transceiver, place rubber safety caps over the transceiver...

  • Page 122: Powering Off A Qfx5130-32Cd

    • Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage. See "Prevention of Electrostatic Discharge Damage" on page 161. • Ensure that you do not need to forward traffic through the switch. NOTE: Use the following procedure to turn off power on a QFX5130-32CD switch.
  • Page 123 To power off a QFX5130-32CD switch: 1. Connect to the switch using one of the following methods: • Connect a management device to the console (CON) port on a QFX5130-32CD. For instructions about connecting a management device to the console (CON) port, see "Connect a Device to a...
  • Page 124 Replace the screws on the terminals and tighten them. 6. Uncable the switch before removing it from the rack or cabinet. RELATED DOCUMENTATION Connecting the QFX5130-32CD to Power | 85...

  • Page 125: Troubleshooting Hardware

    C HAPTER Troubleshooting Hardware Troubleshooting the QFX5130-32CD | 117...

  • Page 126: Troubleshooting The Qfx5130-32Cd

    Management Panel" on page • JTAC If you need assistance during troubleshooting, you can contact the Juniper Networks Technical Assistance Center (JTAC) by using the Web or by telephone. If you encounter software problems, or problems with hardware components not discussed here, contact JTAC.

  • Page 127: Qfx5130-32Cd Alarm Messages Overview

    QFX5130-32CD Alarm Messages Overview When a QFX5130-32CD switch detects an alarm condition, it lights the red or yellow alarm LED on the management panel as appropriate. To view a more detailed description of the alarm cause, issue the show system alarms operational CLI command.

  • Page 128: Chassis Alarm Messages

    Table 33 on page 119 describes the chassis alarm messages on QFX5130-32CD. Junos OS Evolved systems, such as QFX5130-32CD, are based on a new alarm infrastructure, not all power supplies and fan alarms are supported. Table 33 on page 119 shows these alarms.
  • Page 129 (Continued) Table 33: Chassis Alarm Messages for QFX5130-32CD Component Alarm Type CLI Message Recommended Action sensor-location Temp Sensor Too Check the environmental conditions and alarms on other devices. Ensure that environmental factors (such as hot air blowing around the equipment) do not affect the temperature sensor.
  • Page 130 (Continued) Table 33: Chassis Alarm Messages for QFX5130-32CD Component Alarm Type CLI Message Recommended Action Minor (yellow) FPC 0 Temperature Warm Check environmental conditions and alarms on other devices. Ensure that environmental factors (such as hot air blowing around the equipment) do not affect the temperature sensor.

  • Page 131: Contacting Customer Support And Returning The Chassis Or Components

    C HAPTER Contacting Customer Support and Returning the Chassis or Components Contact Customer Support to Obtain a Return Material Authorization | 123 Returning the QFX5130-32CD Chassis or Components | 124...

  • Page 132: Contact Customer Support To Obtain A Return Material Authorization

    Contact Customer Support to Obtain a Return Material Authorization If you need to return a device or hardware component to Juniper Networks for repair or replacement, obtain a Return Material Authorization (RMA) number from Juniper Networks Technical Assistance Center (JTAC). You must obtain an RMA number before you attempt to return the component.

  • Page 133: Returning The Qfx5130-32Cd Chassis Or Components

    If you are returning a switch or component to Juniper Networks for repair or replacement, you must locate the serial number of the switch or component. You must provide this serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain a Return Materials Authorization (RMA).

  • Page 134: Listing The Chassis And Component Details Using The Cli

    Listing the Chassis and Component Details Using the CLI To list the QFX5130-32CD switch and components and their serial numbers, use the show chassis hardware CLI operational mode command. The following examples shows the output for the QFX5130-32CD model.

  • Page 135: Locating The Chassis Serial Number Id Label On A Qfx5130-32Cd

    You can find the chassis serial number in either the show chassis hardware command output or physically on a pull-out tab located on the right side of the QFX5130-32CD port panel. For an example of where to find the serial number ID on the chassis, see Figure 44 on page 127 for the QFX5130-32CD.

  • Page 136: Locating The Serial Number Id Labels On Fru Components

    Locating the Serial Number ID Labels on FRU Components The power supplies and fan modules installed in a QFX5130-32CD are field-replaceable units (FRUs). For each FRU, you must remove the FRU from the switch chassis to see the FRU serial number ID label.

  • Page 137: Removing The Solid-State Drives For Rma

    The QFX5130-32CD models have two solid-state drives (SSDs) that store the software images, system logs, and the configuration files. Before returning a chassis to Juniper Networks as part of a Return Merchandise Authorization (RMA), you have the option of removing the SSDs and disposing them according to your own company’s security procedures.
  • Page 138 Figure 47: Remove the Screws on the SSD Doors Remove the doors and set aside with the screws. Use the Phillips screwdriver to remove the screw on one of the SSDs and set it aside. Figure 48: Removing the Screw and Lifting the SDD Out Lift the end furthest from the connector and remove from the cavity.

  • Page 139: How To Return A Hardware Component To Juniper Networks, Inc

    NOTE: Do not return any component to Juniper Networks, Inc. unless you have first obtained an RMA number. Juniper Networks, Inc. reserves the right to refuse shipments that do not have an RMA.

  • Page 140: Guidelines For Packing Hardware Components For Shipment

    Packing a QFX5130-32CD Switch for Shipping | 132 Packing QFX5130-32CD Components for Shipping | 132 If you are returning a QFX5130-32CD or one of its components to Juniper Networks for repair or replacement, pack the item as described in this topic.

  • Page 141: Packing A Qfx5130-32Cd Switch For Shipping

    "Powering Off a QFX5130-32CD" on page 113. Remove the cables that connect the QFX5130-32CD to all external devices. Remove all field-replaceable units (FRUs) from the switch. Have one person support the weight of the switch while another person unscrews and removes the mounting screws.
  • Page 142 • Ensure that the components are adequately protected with packing materials and packed so that the pieces are prevented from moving around inside the carton. • Close the top of the cardboard shipping box and seal it with packing tape. •...

  • Page 143: Safety And Compliance Information

    Qualified Personnel Warning | 139 Warning Statement for Norway and Sweden | 139 Fire Safety Requirements | 140 Installation Instructions Warning | 141 QFX5130-32CD Installation Safety Guidelines | 142 Restricted Access Warning | 142 Ramp Warning | 144 Rack-Mounting and Cabinet-Mounting Warnings | 144...
  • Page 144 DC Power Grounding Requirements and Warning | 167 DC Power Wiring Sequence Warning | 168 DC Power Wiring Terminations Warning | 169 Multiple Power Supplies Disconnection Warning | 171 TN Power Warning | 172 Agency Approvals and Compliance Statements for QFX5130-32CD Switches |...

  • Page 145: General Safety Guidelines And Warnings

    General Safety Guidelines and Warnings The following guidelines help ensure your safety and protect the device from damage. The list of guidelines might not address all potentially hazardous situations in your working environment, so be alert and exercise good judgment at all times. •...

  • Page 146: Definitions Of Safety Warning Levels

    • Some parts of the chassis, including AC and DC power supply surfaces, power supply unit handles, SFB card handles, and fan tray handles might become hot. The following label provides the warning for hot surfaces on the chassis: • Always ensure that all modules, power supplies, and cover panels are fully inserted and that the installation screws are fully tightened.
  • Page 147 Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Varoitus Tämä...

  • Page 148: Qualified Personnel Warning

    Qualified Personnel Warning WARNING: Only trained and qualified personnel should install or replace the device. Waarschuwing Installatie en reparaties mogen uitsluitend door getraind en bevoegd personeel uitgevoerd worden. Varoitus Ainoastaan koulutettu ja pätevä henkilökunta saa asentaa tai vaihtaa tämän laitteen. Avertissement Tout installation ou remplacement de l'appareil doit être réalisé...

  • Page 149: Fire Safety Requirements

    In addition, you should establish procedures to protect your equipment in the event of a fire emergency. Juniper Networks products should be installed in an environment suitable for electronic equipment. We recommend that fire suppression equipment be available in the event of a fire in the vicinity of the equipment and that all local fire, safety, and electrical codes and ordinances be observed when you install and operate your equipment.

  • Page 150: Installation Instructions Warning

    NOTE: To keep warranties effective, do not use a dry chemical fire extinguisher to control a fire at or near a Juniper Networks device. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.

  • Page 151: Qfx5130-32Cd Installation Safety Guidelines

    QFX5130-32CD Installation Safety Guidelines The weight of a QFX5130-32CD with fans and power supplies is approximately 24.5 lb (11.11 kg). Observe the following guidelines for lifting and moving a QFX5130-32CD: CAUTION: If you are installing the QFX5130-32CD above 60 in. (152.4 cm) from the...
  • Page 152 Avertissement Cet appareil est à installer dans des zones d'accès réservé. Ces dernières sont des zones auxquelles seul le personnel de service peut accéder en utilisant un outil spécial, un mécanisme de verrouillage et une clé, ou tout autre moyen de sécurité. L'accès aux zones de sécurité...

  • Page 153: Ramp Warning

    Ramp Warning WARNING: When installing the device, do not use a ramp inclined at more than 10 degrees. Waarschuwing Gebruik een oprijplaat niet onder een hoek van meer dan 10 graden. Varoitus Älä käytä sellaista kaltevaa pintaa, jonka kaltevuus ylittää 10 astetta. Avertissement Ne pas utiliser une rampe dont l'inclinaison est supérieure à...
  • Page 154 Les directives ci-dessous sont destinées à assurer la protection du personnel: • Le rack sur lequel est monté le Juniper Networks switch doit être fixé à la structure du bâtiment.
  • Page 155 Le seguenti direttive vengono fornite per garantire la sicurezza personale: • Il Juniper Networks switch deve essere installato in un telaio, il quale deve essere fissato alla struttura dell'edificio. • Questa unità deve venire montata sul fondo del supporto, se si tratta dell'unica unità...
  • Page 156 Para garantizar su seguridad, proceda según las siguientes instrucciones: • El Juniper Networks switch debe instalarse en un bastidor fijado a la estructura del edificio. • Colocar el equipo en la parte inferior del bastidor, cuando sea la única unidad en el...

  • Page 157: Grounded Equipment Warning

    Följande riktlinjer ges för att trygga din säkerhet: • Juniper Networks switch måste installeras i en ställning som är förankrad i byggnadens struktur. • Om denna enhet är den enda enheten på ställningen skall den installeras längst ned på...

  • Page 158: Laser And Led Safety Guidelines And Warnings

    Class 1 LED Product Warning | 151 Laser Beam Warning | 151 Juniper Networks devices are equipped with laser transmitters, which are considered a Class 1 Laser Product by the U.S. Food and Drug Administration and are evaluated as a Class 1 Laser Product per IEC/EN 60825-1 requirements.
  • Page 159 General Laser Safety Guidelines When working around ports that support optical transceivers, observe the following safety guidelines to prevent eye injury: • Do not look into unterminated ports or at fibers that connect to unknown sources. • Do not examine unterminated optical ports with optical instruments. •...
  • Page 160 Class 1 LED Product Warning LASER WARNING: Class 1 LED product. Waarschuwing Klasse 1 LED-product. Varoitus Luokan 1 valodiodituote. Avertissement Alarme de produit LED Class I. Warnung Class 1 LED-Produktwarnung. Avvertenza Avvertenza prodotto LED di Classe 1. Advarsel LED-produkt i klasse 1. Aviso Produto de classe 1 com LED.

  • Page 161: Radiation From Open Port Apertures Warning

    Aviso Não olhe fixamente para o raio, nem olhe para ele directamente com instrumentos ópticos. ¡Atención! No mirar fijamente el haz ni observarlo directamente con instrumentos ópticos. Varning! Rikta inte blicken in mot strålen och titta inte direkt på den genom optiska instrument.

  • Page 162: Maintenance And Operational Safety Guidelines And Warnings

    EXposição à radiação e não deverá olhar fixamente para orifícios que se encontrarem a descoberto. ¡Atención! Debido a que la apertura del puerto puede emitir radiación invisible cuando no existe un cable de fibra conectado, evite mirar directamente a las aperturas para no exponerse a la radiación.
  • Page 163 Waarschuwing Er is ontploffingsgevaar als de batterij verkeerd vervangen wordt. Vervang de batterij slechts met hetzelfde of een equivalent type dat door de fabrikant aanbevolen is. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften weggeworpen te worden. Varoitus Räjähdyksen vaara, jos akku on vaihdettu väärään akkuun. Käytä vaihtamiseen ainoastaan saman- tai vastaavantyyppistä...
  • Page 164 Jewelry Removal Warning WARNING: Before working on equipment that is connected to power lines, remove jewelry, including rings, necklaces, and watches. Metal objects heat up when connected to power and ground and can cause serious burns or can be welded to the terminals. Waarschuwing Alvorens aan apparatuur te werken die met elektrische leidingen is verbonden, sieraden (inclusief ringen, kettingen en horloges) verwijderen.
  • Page 165 ¡Atención! Antes de operar sobre equipos conectados a líneas de alimentación, quitarse las joyas (incluidos anillos, collares y relojes). Los objetos de metal se calientan cuando se conectan a la alimentación y a tierra, lo que puede ocasionar quemaduras graves o que los objetos metálicos queden soldados a los bornes.
  • Page 166 6 in. (15.2 cm) of clearance around the ventilation openings. Waarschuwing Om te voorkomen dat welke switch van de Juniper Networks router dan ook oververhit raakt, dient u deze niet te bedienen op een plaats waar de maximale aanbevolen omgevingstemperatuur van 40°...
  • Page 167 ¡Atención! Para impedir que un encaminador de la serie Juniper Networks switch se recaliente, no lo haga funcionar en un área en la que se supere la temperatura ambiente máxima recomendada de 40° C. Para impedir la restricción de la entrada de aire, deje un espacio mínimo de 15,2 cm alrededor de las aperturas para ventilación.

  • Page 168: General Electrical Safety Guidelines And Warnings

    General Electrical Safety Guidelines and Warnings WARNING: Certain ports on the device are designed for use as intrabuilding (within- GR-1089-CORE ) the-building) interfaces only (Type 2 or Type 4 ports as described in and require isolation from the exposed outside plant (OSP) cabling. To comply with NEBS (Network Equipment-Building System) requirements and protect against lightning must not be surges and commercial power disturbances, the intrabuilding ports...

  • Page 169: Action To Take After An Electrical Accident

    • Canada—Canadian Electrical Code, Part 1, CSA C22.1. • Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75. Peut être installé dans des salles de matériel de traitement de l’information conformément à l’article 645 du National Electrical Code et à...

  • Page 170: Prevention Of Electrostatic Discharge Damage

    Prevention of Electrostatic Discharge Damage Device components that are shipped in antistatic bags are sensitive to damage from static electricity. Some components can be impaired by voltages as low as 30 V. You can easily generate potentially damaging static voltages whenever you handle plastic or foam packing material or if you move components across plastic or carpets.

  • Page 171: Ac Power Electrical Safety Guidelines

    Figure 50: Placing a Component into an Antistatic Bag CAUTION: ANSI/TIA/EIA-568 cables such as Category 5e and Category 6 can get electrostatically charged. To dissipate this charge, always ground the cables to a suitable and safe earth ground before connecting them to the system. Attention Les câbles ANSI/TIA/EIA-568, par exemple Cat 5e et Cat 6, peuvent emmagasiner des charges électrostatiques.

  • Page 172: Ac Power Disconnection Warning

    • AC-powered devices are shipped with a three-wire electrical cord with a grounding-type plug that fits only a grounding-type power outlet. Do not circumvent this safety feature. Equipment grounding must comply with local and national electrical codes. • You must provide an external certified circuit breaker (2-pole circuit breaker or 4-pole circuit breaker based on your device) rated minimum 20 A in the building installation.

  • Page 173: Dc Power Electrical Safety Guidelines

    Warnung Bevor Sie an einem Chassis oder in der Nähe von Netzgeräten arbeiten, ziehen Sie bei Wechselstromeinheiten das Netzkabel ab bzw. Avvertenza Prima di lavorare su un telaio o intorno ad alimentatori, scollegare il cavo di alimentazione sulle unità CA. Advarsel Før det utføres arbeid på...

  • Page 174: Dc Power Copper Conductors Warning

    NOTE: Primary overcurrent protection is provided by the building circuit breaker. This breaker must protect against excess currents, short circuits, and earth grounding faults in accordance with NEC ANSI/NFPA 70. • Ensure that the polarity of the DC input wiring is correct. Under certain conditions, connections with reversed polarity might trip the primary circuit breaker or damage the equipment.

  • Page 175: Dc Power Disconnection Warning

    DC Power Disconnection Warning WARNING: Before performing any of the DC power procedures, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the device handle of the circuit breaker in the OFF position.

  • Page 176: Dc Power Grounding Requirements And Warning

    Aviso Antes de executar um dos seguintes procedimentos, certifique-se que desligou a fonte de alimentação de energia do circuito de corrente contínua. Para se assegurar que toda a corrente foi DESLIGADA, localize o disjuntor no painel que serve o circuito de corrente contínua e coloque-o na posição OFF (Desligado), segurando nessa posição a manivela do interruptor do disjuntor com fita isoladora.

  • Page 177: Dc Power Wiring Sequence Warning

    Avvertenza In fase di installazione dell'unità, eseguire sempre per primo il collegamento a massa e disconnetterlo per ultimo. Advarsel Når enheten installeres, må jordledningen alltid tilkobles først og frakobles sist. Aviso Ao instalar a unidade, a ligação à terra deverá ser sempre a primeira a ser ligada, e a última a ser desligada.

  • Page 178: Dc Power Wiring Terminations Warning

    Stromversorgung ist -48V zu -48V, +RTN zu +RTN und dann Erdanschluss zu Erdanschluss. Es ist zu beachten dass der Erdanschluss immer zuerst angeschlossen und als letztes abgetrennt wird. Avvertenza Mostra la morsettiera dell alimentatore CC. Cablare l'alimentatore CC usando i connettori adatti all'estremità del cablaggio, come illustrato. La corretta sequenza di cablaggio è...
  • Page 179 Waarschuwing Wanneer geslagen bedrading vereist is, dient u bedrading te gebruiken die voorzien is van goedgekeurde aansluitingspunten, zoals het gesloten-lus type of het grijperschop type waarbij de aansluitpunten omhoog wijzen. Deze aansluitpunten dienen de juiste maat voor de draden te hebben en dienen zowel de isolatie als de geleider vast te klemmen.

  • Page 180: Multiple Power Supplies Disconnection Warning

    Varning! När flertrådiga ledningar krävs måste godkända ledningskontakter användas, t.ex. kabelsko av sluten eller öppen typ med uppåtvänd tapp. Storleken på dessa kontakter måste vara avpassad till ledningarna och måste kunna hålla både isoleringen och ledaren fastklämda. Multiple Power Supplies Disconnection Warning WARNING: The network device has more than one power supply connection.

  • Page 181: Tn Power Warning

    Varning! Enheten är konstruerad för användning tillsammans med elkraftssystem av TN- typ. Agency Approvals and Compliance Statements for QFX5130-32CD Switches IN THIS SECTION Agency Approvals for the QFX Series | 173 See the following topics for agency and compliance information:...
  • Page 182 Agency Approvals for the QFX Series IN THIS SECTION Compliance Statement for Argentina | 174 The QFX Series complies with the following standards: • Safety • CAN/CSA-C22.2 No. 60950-1 Safety of Information Technology Equipment • UL 62368-1 Audio/Video, Information and Communication Technology Equipment- Safety •...
  • Page 183 • VCCI Class A:(2010) Japanese Emissions • BSMI CNS 13438 and NCC C6357 Class A Taiwan Radiated Emissions • AS/NZS CISPR 22:2009: Class A, Australian/New Zealand Radiated Emissions • Immunity • EN 55024: 1998/A1:2001/A2:2003 Information Technology Equipment Immunity Characteristics • EN-61000-3-2 (2006) Power Line Harmonics •...

Table of Contents
