Zotac ZBOX C NANO Series Quick Start Manual page 4

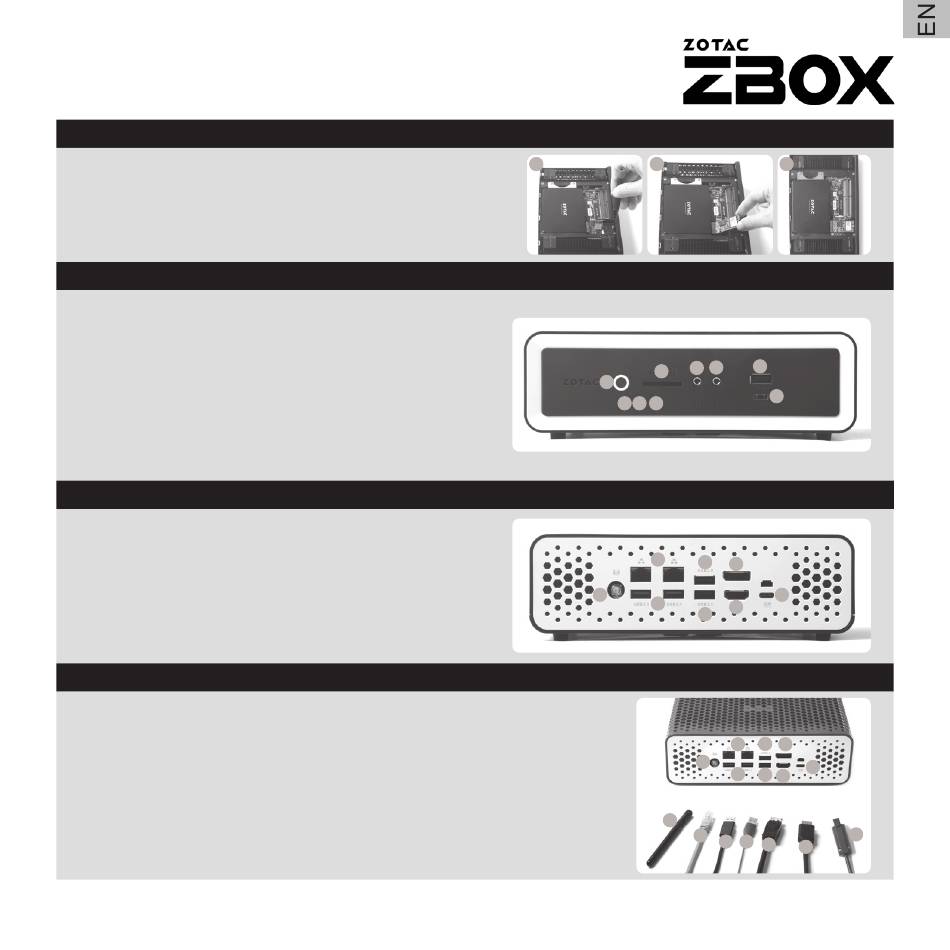

I N S TA L L I N G M . 2 S S D M O D U L E
1. Locate the M.2 SSD slot and remove the screw.
2. Insert an M.2 SSD module into the slot at a 45 degree
angle.
3. Gently press down on the M.2 SSD module and install
the screw to secure the drive.
F R O N T PA N E L
1. Power button
2. Power LED
3. SATA LED
4. WiFi LED
5. Memory card reader (SD/SDHC/SDXC)
6. Headphone/Audio Out jack
7. Microphone jack
8. USB 3.1 port
9. Thunderbolt 4 port
R E A R PA N E L
1. WiFi antenna connector
2. LAN (RJ45) ports
3. USB 3.1 ports
4. USB 2.0 port
5. DisplayPort
6. HDMI port
7. Power input (DC20V)
S E T T I N G U P YO U R ZOTAC Z B OX N A N O
1. Connecting antenna for Wi-Fi
2. Connecting to a wired home network
3. Connecting USB 3.1 devices
4. Connecting USB 2.0 devices
5. Connecting a DisplayPort display
6. Connecting an HDMI display
7. Connecting the power adapter and turning on the system
1 2
6 7
5
1
2 3 4
2
4
1
3
3
1
1
2
3
8
9
5
7
6
2 4 5
7
3
3
6
7
3 4
5
6
3
