QUICK START GUIDE

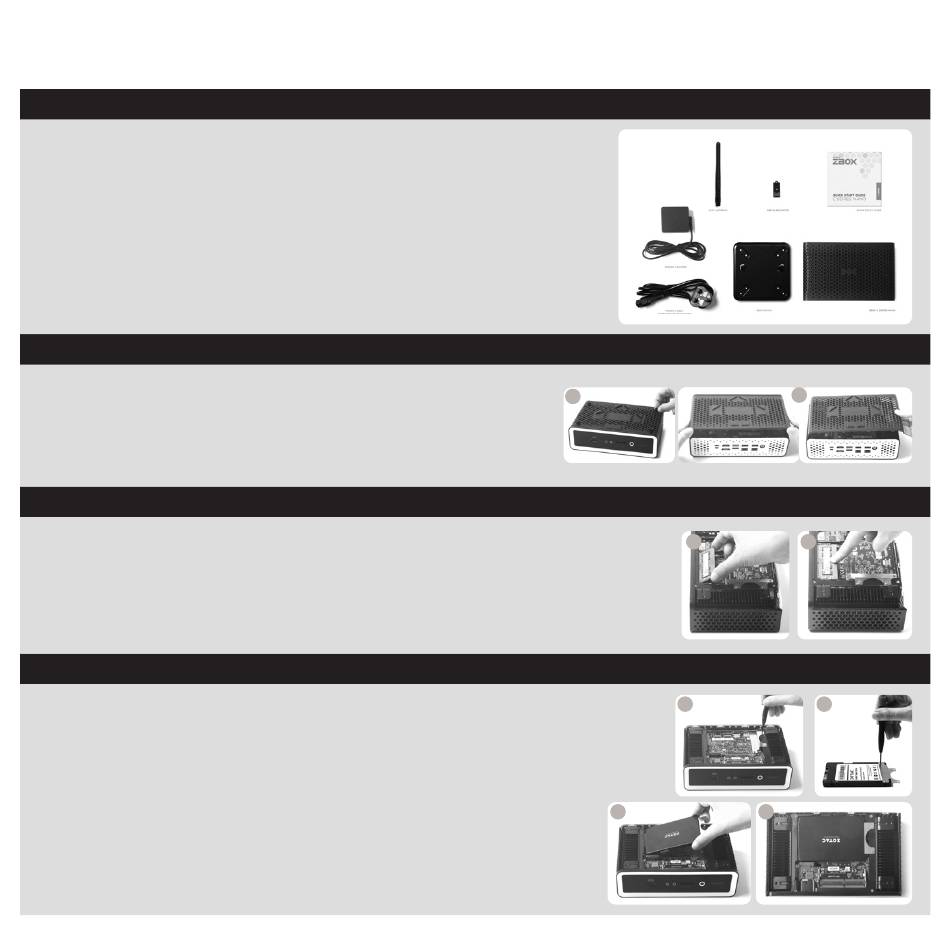

PAC K AG E C O N T E N T S
• 1 x ZOTAC ZBOX nano
• 1 x VESA mount
• 1 x AC Adapter
• 1 x Power Cord
• 1 x Warranty Card
• 1 x Quick Start Guide
• 1 x USB drive with O/S driver
• 1 x Antenna
C U S TO M I Z I N G YO U R ZOTAC Z B OX N A N O
1. Loosen and remove the 4 thumb screws securing the
bottom cover.
2. Remove the cover.
I N S TA L L I N G M E M O RY M O D U L E S
1. Locate the SO-DIMM memory slots and insert a SO-DIMM
memory module into the slot at a 45 degree angle.
2. Gently press down on the memory module until it locks
into place by the arms of the memory slot.
I N S TA L L I N G A 2 . 5 - I N C H S ATA H D D/S S D
1. Locate the HDD/SSD bracket.Remove the 2 screws and
then remove the SSD bracket.
2. Install the HDD/SSD bracket to the 2.5-inch SATA HDD/
SSD. Secure the drive with the 2 screws.
3. Insert the HDD/SSD into the socket and gently slide into
the connector.
4. Reinstall the screws to the HDD/SSD bracket to secure
the drive.
2
1
1
1
3
2
2
2
4
