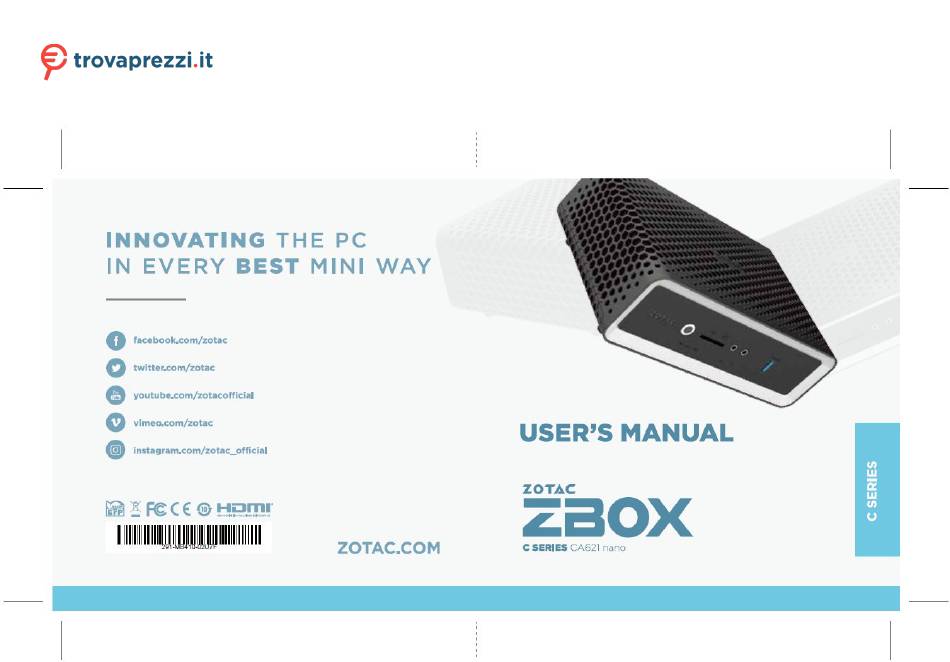

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Zotac ZBOX CA621 ZBOX-CA621NANO-BE o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation...
- Page 2 ZOTAC. Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Installing a hard disk drive --------------------------------------------------------------------------------15 Setting up your ZOTAC ZBOX nano ----------------------------------------------------------------------18 Positioning the ZOTAC ZBOX nano -----------------------------------------------------------------------20 Mounting the ZOTAC ZBOX nano to an LCD monitor ---------------------------------------------20 Installing drivers and software -----------------------------------------------------------------------------22 Installing an operating system ----------------------------------------------------------------------------22 Installing system drivers -----------------------------------------------------------------------------------22... -
Page 4: Product Specifications
ZOTAC ZBOX nano Product specifications Processor • AMD Ryzen 3 Mobile 3200U (dual-core 2.6GHz,up to 3.5GHz) for ZBOX CA621NANO Onboard graphics • AMD Radeon™ Vega 3 Graphics • HDMI 2.0 (max resolution:4096x2160 @60Hz) • DP 1.4 (max resolution:3840x2160 @60Hz) Memory support •... -
Page 5: Safety Information
ZOTAC ZBOX nano Safety information Your ZOTAC ZBOX nano is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before operating your system. -
Page 6: Welcome

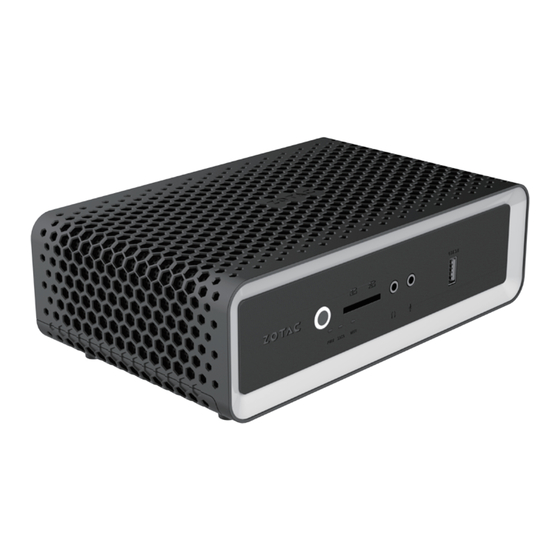

ZOTAC ZBOX nano Welcome Congratulations on your purchase of the ZOTAC ZBOX nano. The following illustration displays the package contents of your new ZOTAC ZBOX nano. If any of the below items is damaged or missing, contact your retailer. Package contents •... -
Page 7: Getting To Know Your Zotac Zbox Nano
ZOTAC ZBOX nano Getting to know your ZOTAC ZBOX nano Front view Refer to the diagram below to identify the components on the front of the ZBOX nano 1. Power button The power button turns the system ON and OFF. -
Page 8: Rear View
ZOTAC ZBOX nano Rear view Refer to the diagram below to identify the components on the back of the system. 1. WiFi antenna connector The WiFi antenna connector supports the included WiFi antenna. 2. Ethernet ports The eight-pin RJ-45 LAN port supports standard Ethernet cable for connections to local area networks (LAN) with speeds of 10/100/1000Mbps. -
Page 9: Customizing The Zotac Zbox Nano
ZOTAC ZBOX nano Customizing the ZOTAC ZBOX nano Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX nano. 1. Remove the four thumb screws securing the bottom cover into place. 2. Remove the bottom cover. -
Page 10: Installing A Memory Module
2. Gently press down on the memory module until it locks into place by the arms of the memory slot. Note: This ZOTAC ZBOX nano accomodates two DDR4 SO-DIMM memory modules. You must install at least one module for the system to function. PLUS / Windows models include memory pre-installed. -
Page 11: Removing The Memory Module
ZOTAC ZBOX nano Removing the memory module 1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module. 2. Remove the memory module from the slot at a 45-degree angle. -
Page 12: Installing A 22/42 M.2 Sata Ssd
ZOTAC ZBOX nano Installing a 22/42 M.2 SATA SSD 1. Remove 4 screws highlighted from the chassis bracket (tool required) and set them aside in a safe place. 2. Gently lift up the chassis bracket and set it aside in a safe place. - Page 13 ZOTAC ZBOX nano 3. Release the screw from the M.2 SSD slot as shown and set it aside. 4. Insert the M.2 SSD into the slot at a 45 degree angle.
- Page 14 ZOTAC ZBOX nano 5. Gently push down on the M.2 SSD and secure it in place with the screw. 6. Orient the chassis bracket as shown and gently place it down onto the unit.
- Page 15 ZOTAC ZBOX nano 7. Secure the chassis bracket down with the 4 screws...
-
Page 16: Installing A Hard Disk Drive
ZOTAC ZBOX nano Installing a hard disk drive 1. Locate the hard disk bracket, remove the 2 screws, and remove the hard disk bracket as shown in the image below. 2. Install the hard disk bracket onto a 2.5-inch SATA hard disk drive / SSD with 2 screws. - Page 17 ZOTAC ZBOX nano 3. Insert the hard disk drive / SSD into the socket and gently slide into the connector. 4. Reinstall the screws for the hard disk bracket.
- Page 18 ZOTAC ZBOX nano Note: 1. After installing the hard disk drive / SSD and memory module, please remove the corresponding protective film. for HDD/SSD for the lower for the top memory slot memory slot 2. The thermal pad is default for 7mm height HDD / SSD, if you use a 9.5mm hard...
-
Page 19: Setting Up Your Zotac Zbox Nano
ZOTAC ZBOX nano Setting up your ZOTAC ZBOX nano Please connect your peripherals before using your ZOTAC ZBOX nano 1. Connecting the WiFi antenna Connect the WiFi antenna to the WiFi antenna connector. 2. Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a network hub, switch or router. - Page 20 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. When your ZOTAC ZBOX nano is not in use, unplug the power adapter or switch off the AC outlet to conserve power.
-
Page 21: Positioning The Zotac Zbox Nano
ZOTAC ZBOX nano Positioning the ZOTAC ZBOX nano • Do not position the ZOTAC ZBOX nano where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation holes. • ZOTAC ZBOX nano mini-PC systems provide ample connectivity in a tiny form factor, please choose connectors and cables in appropriate sizes to avoid interference. - Page 22 ZOTAC ZBOX nano Connect the ZOTAC ZBOX nano to your LCD monitor with an HDMI/DP cable.
-
Page 23: Installing Drivers And Software
OS related issue with DisplayPort or HDMI display compatibility. Installing system drivers Before you can use the full features of the ZOTAC ZBOX nano, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX nano driver DVD and USB flash drive: •... -
Page 24: Using Your Zotac Zbox Nano
• Wireless Network Driver • Bluetooth Driver • CardReader Driver Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX nano. Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions to install the drivers. -
Page 25: Configuring Audio Output
ZOTAC ZBOX nano Configuring audio output Follow the steps below to enable audio output when connecting the ZOTAC ZBOX nano to a TV or receiver via DP/HDMI adapter. Access the Sound settings via the system Control Panel. Under Playback devices, click the display device that corresponds with your audio compatible display.
