1 General

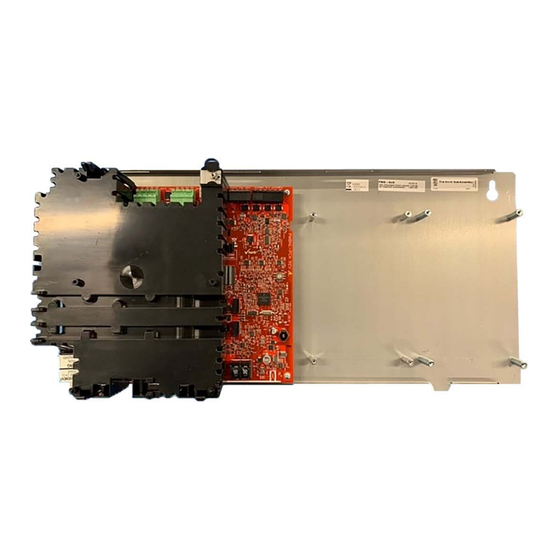

The PMB-AUX and PMB-AUX-RTO are auxiliary power supplies for touchscreen fire alarm control panels. The units are identical in functionality,
but differ in mounting availability. The PMB-AUX mounts in a CAB-5 Series enclosure while the PMB-AUX-RTO mounts in a CAB-4 Series enclo-
sure. They both feature 3 amps of power in standby/8.5 amps of power in alarm, four (4) power-limited NAC outputs which can be configured for
either Class A or Class B wiring, two (2) 24VDC auxiliary power outputs, and a remote sync input. One auxiliary power output, AUX1, can be config-
ured for either class A or class B wiring. A maximum of two (2) PMB-AUX(-RTO) power supplies can be installed in an enclosure in addition to the
FACP (fire alarm control panel). If more than five (5) loop cards are installed in the system, a PMB-AUX(-RTO) power supply is required, and if ten
(10) loop cards are installed in the system, two (2) PMB-AUX(-RTO) power supplies are required, for battery charging and alarm load.
HOT GND NEU
AC Power
(non power-limited)
1.1 Hardware Kit
The PMB ships with all hardware necessary for installation.
•
two (2) #8 keps nuts
•
one (1) 22" wired cable for CLP bus connection
•
six (6) terminal block plugs
NAC outputs
(power-limited)
1
2
3
4
B+B-B+B-
B+B-B+B-
A+A-A+A-
A+A-A+A-
Figure 1 PMB-AUX(-RTO) Board Layout/Wiring Connections
PMB-AUX(-RTO) Power Supplies
Product Installation Document
PN LS10242-000GE-E:B 5/4/2022 ECN: 16475
24VDC aux
power
remote
connections
sync
(power-limited)
input
IN+IN-OUT+OUT- +24V GND A+ A- +24V GND
NACs 1-4 (left to right)
• Power (lights green when configured for power)
• NAC (lights red in alarm when configured for NAC)
• Trouble (lights yellow when in trouble)
System LEDs (left to right)
• AUX1 (lights yellow when AUX1 is in trouble)
• AUX2 (lights yellow when AUX2 is in trouble)
• Status (lights green when PMB is communicating)
• Earth Fault (lights yellow when a ground fault is
+
-
Status LEDs (only visible with door open)
detected)
CLP Bus address dial
CLP Bus termination switch
Slide downwards to IN position if experiencing
communication signal degradation.
CLP Bus connections
(power-limited)
multiple units installed switch
(slide downward when more than one
power supply is installed in the cabinet)
battery connection (non power-limited)
ground fault disable switch
(slide downward to disable ground fault detection
when another unit is responsible for detecting
ground faults) This setting must also be
configured in VeriFire Tools to function properly.
Advertisement
Related Manuals for Honeywell PMB-AUX-RTO
Summary of Contents for Honeywell PMB-AUX-RTO
- Page 1 The PMB-AUX and PMB-AUX-RTO are auxiliary power supplies for touchscreen fire alarm control panels. The units are identical in functionality, but differ in mounting availability. The PMB-AUX mounts in a CAB-5 Series enclosure while the PMB-AUX-RTO mounts in a CAB-4 Series enclo- sure.
- Page 2 2 Specifications 2.5A 120VAC 50/60 HZ, 1.25A 240VAC 50/60 Hz AC power: Power-limited (Class 2) 24V @ 1.5A each, Special Applications Aux Power, Aux 1 Class A/B, Aux 2 Class B only 24VDC aux outputs: Special Applications Class A/B NAC Power, Class D Door Holder Power, 1.5A Special Applications, 150mA Regu- NAC outputs (power-limited): lated, Class A/B Aux Power, UZC carry CLP data and internal 24V power to the SLM-318 loop cards and the core board on the FACP CPU assembly.
- Page 3 3.2 PMB-AUX The PMB-AUX Power supply comes pre-installed on a chassis for easy installation in a CAB-5 series cabinet. Mount the chassis to the backbox by aligning the two mounting tabs with the slots in the backbox, then position the two mounting hole tabs over the studs with nuts located in the upper portion of the backbox.
- Page 4 Mount the chassis into the second row of the backbox. Align the center hole on the edge of the chassis with the studs on the backbox and secure with two supplied #8 keps nuts. (The FACP should be mounted in the top row.) If installing a second PMB-AUX-RTO, install the chassis in the third row of the cabinet using the top mounting holes on the edge of the chassis.
