2

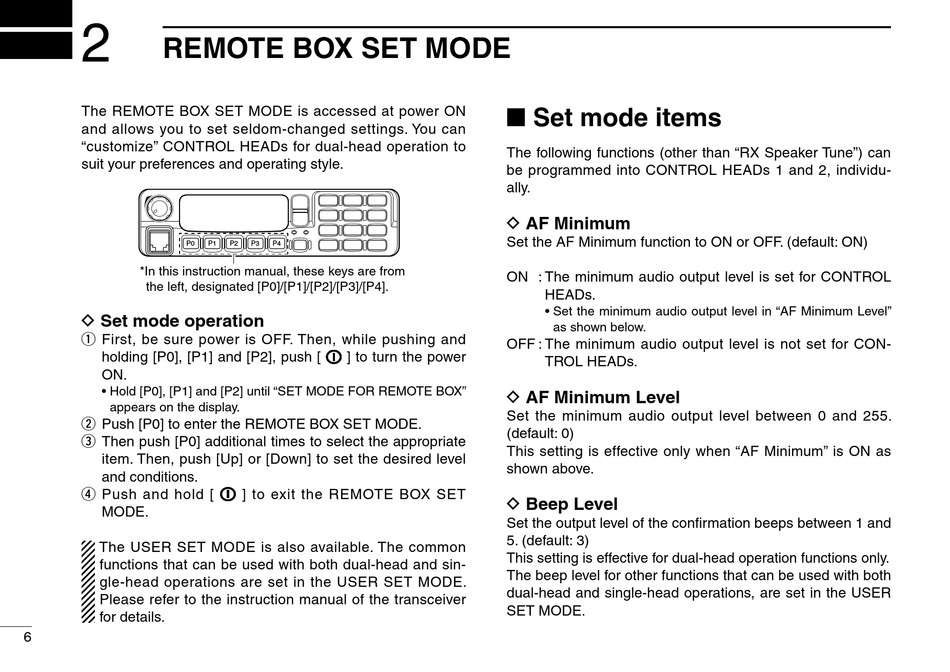

REMOTE BOX SET MODE
The REMOTE BOX SET MODE is accessed at power ON
and allows you to set seldom-changed settings. You can
"customize" CONTROL HEADs for dual-head operation to
suit your preferences and operating style.
P0
*In this instruction manual, these keys are from
the left, designated [P0]/[P1]/[P2]/[P3]/[P4].
D Set mode operation
q First, be sure power is OFF. Then, while pushing and
holding [P0], [P1] and [P2], push [
ON.
• Hold [P0], [P1] and [P2] until "SET MODE FOR REMOTE BOX"
appears on the display.
w Push [P0] to enter the REMOTE BOX SET MODE.
e Then push [P0] additional times to select the appropriate
item. Then, push [Up] or [Down] to set the desired level
and conditions.
r Push and hold [
MODE.
The USER SET MODE is also available. The common
functions that can be used with both dual-head and sin-
gle-head operations are set in the USER SET MODE.
Please refer to the instruction manual of the transceiver
for details.
6
P1
P2
P3
P4
] to turn the power
] to exit the REMOTE BOX SET
■ Set mode items
The following functions (other than "RX Speaker Tune") can
be programmed into CONTROL HEADs 1 and 2, individu-
ally.
D AF Minimum
Set the AF Minimum function to ON or OFF. (default: ON)
ON : The minimum audio output level is set for CONTROL
HEADs.
• Set the minimum audio output level in "AF Minimum Level"
as shown below.
OFF : The minimum audio output level is not set for CON-
TROL HEADs.
D AF Minimum Level
Set the minimum audio output level between 0 and 255.
(default: 0)
This setting is effective only when "AF Minimum" is ON as
shown above.
D Beep Level
Set the output level of the confirmation beeps between 1 and
5. (default: 3)
This setting is effective for dual-head operation functions only.
The beep level for other functions that can be used with both
dual-head and single-head operations, are set in the USER
SET MODE.
