Setup & Operation 5. Motion Range

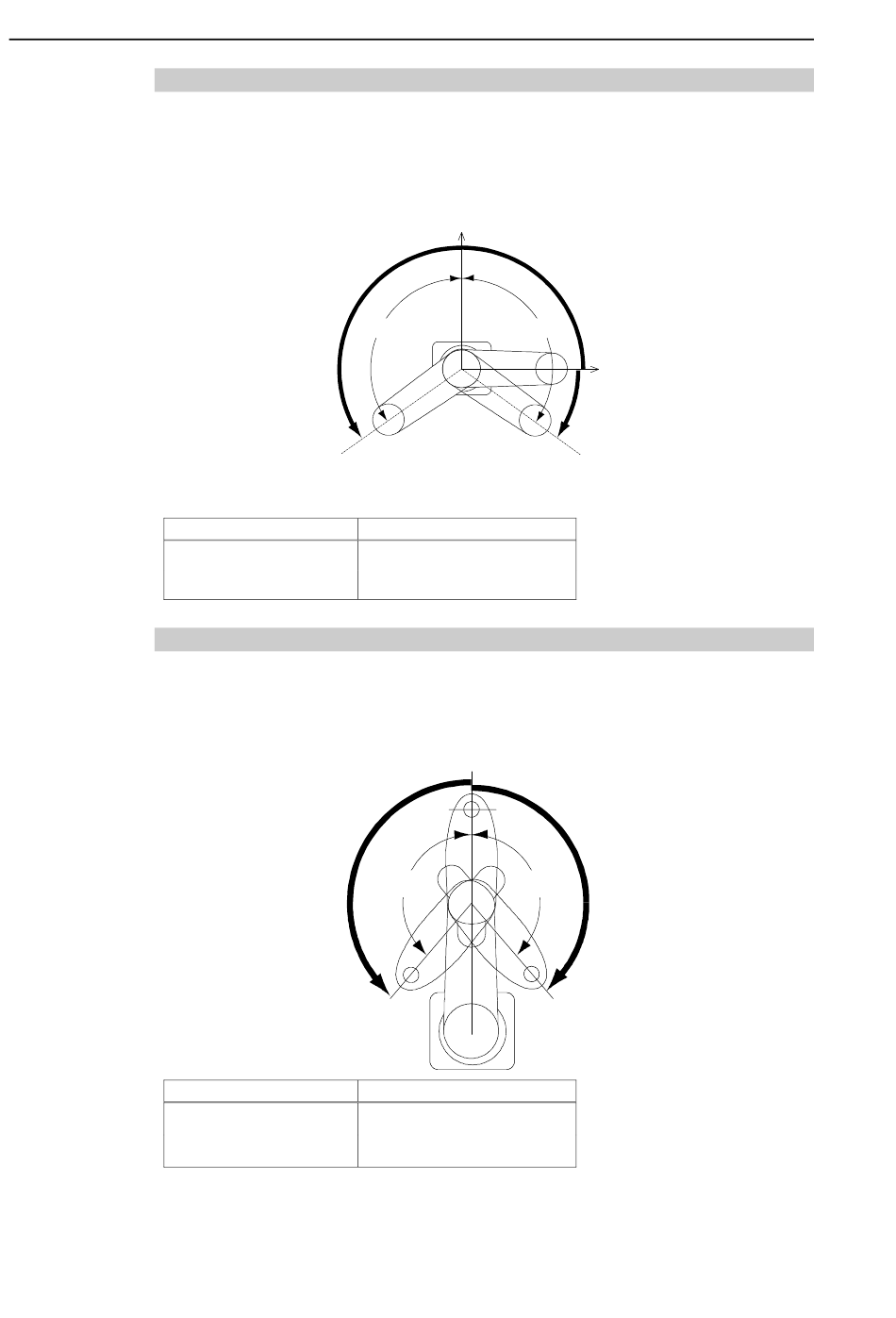

5.1.1 Max. Pulse Range of Joint #1

The 0 (zero) pulse position of Joint #1 is the position where Arm #1 faces toward the positive
(+) direction on the X-coordinate axis.
When the 0 pulse is a starting point, the counterclockwise pulse value is defined as the
positive (+) and the clockwise pulse value is defined as the negative (-).
A: Max. Motion Range

5.1.2 Max. Pulse Range of Joint #2

The 0 (zero) pulse position of Joint #2 is the position where Arm #2 is in-line with Arm #1.
With the 0 pulse as a starting point, the counterclockwise pulse value is defined as the
positive (+) and the clockwise pulse value is defined as the negative (-).
A: Max. Motion Range
48
+ A
+ B
B: Max. Pulse Range
±132° − 152918 ~ 808278 pulse
+ A
+ B
B: Max. Pulse Range
± 152° ± 345885 pulse
+Y
− A
+X 0 pulse
− B
0 pulse
− A
− B
LS20-B Rev.4
