DTP DVI/HDMI 4K 230 D • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP DVI 4K 230 D
and DTP HDMI 4K 230 D Extenders.
Installation
Step 1 — Prepare the Mounting Surface
NOTE:
Use a wall box with a depth of at least 3.0 inches (7.6 cm).
Alternatively, the included mud ring (MR 200) can be used.
For more information, see the full product user guides at
www.extron.com
a. Place the wall box against the installation surface and mark the
opening guidelines.
TIP:
Use a level to mark the opening.
b. Cut out the material from the marked area.
c. Secure the wall box with 10-penny nails or #8 or
#10 screws, leaving the front edge flush with the surface.
d. Run all required cables (see steps 4, 5, and 6) and secure them with
cable clamps.
TIP:
In order to fit in the junction box, do not install a boot
on TP cables and RJ-45 connectors.
Step 2 — Disconnect Power
Disconnect all equipment power sources.
Step 3 — Connect Inputs to the Transmitter
DVI or HDMI input connector — Connect a DVI or HDMI cable between this port and the output port of the digital video source.
Local output (DTP DVI 4K 230 D only) — If desired, connect a DVI monitor for local monitoring of the input digital image.
DDC Route DIP switch (DTP DVI 230 4K D only) — If the local output is not used, set the
DDC Route DIP switch to remote. Ensure that you power the display before the video source.
Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack.
RS-232/IR Pass-Through connector — Plug an RS-232 or modulated IR device into the RS-232/IR
Pass-Through port. Wire the cable as shown below.
LOCAL OUT
INPUTS
DVI-D
DDC
ROUTE
REMOTE
RS-232 IR
ON
AUDIO
1 2
Tx Rx G Tx Rx
LOCAL
DTP DVI 4K 230 D Tx
U T
L O
C A
L O
T S
P U
IN
IR
-2 3 2
R S
I- D R x
D V T x
G
R x
T x
D IO
A U
Tx/Rx
Pins
INPUTS
OVER DTP
RS-232 IR
AUDIO
Tx Rx G Tx Rx
DTP HDMI 4K 230 D Tx
Wall Stud
Screws or
Nails
Wall opening is
flush with edge of box.
Cable
Clamp
Signal Output
Cable
Connected RS-232
and IR Device Pins
Transmit pin on connected unit
Receive pin on connected unit
Ground
Transmit pin on connected unit
Receive pin on connected unit
U T
L O
C A
L O
T S
P U
IN
IR
-2 3 2
R S
I- D R x
D V T x
G
R x
T x
D IO
A U

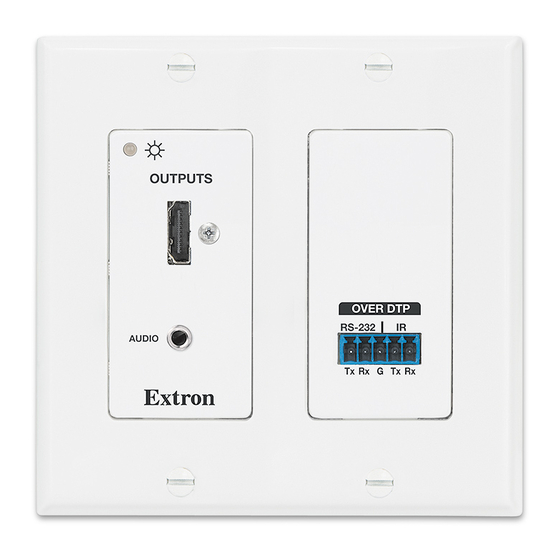

Extron
DTP DVI 4K 230 D
Decorator-Style Faceplate
